CCEM-K5, EUROMET.EM-K5, EUROMET.EM-K5.1, SIM.EM-K5 and COOMET.EM-K5

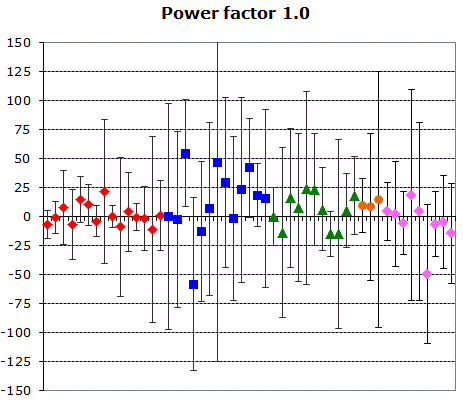

MEASURAND: Electric power at 120 V, 5 A, 53 Hz, power factor 1.0
NOMINAL VALUE: 600 VA, 600 W

Degrees of equivalence: Di = xi - xR and expanded uncertainty Ui (k = 2),
both expressed in µW/VA

Click on the graph for a closer view

Red: participants in CCEM-K5
Dark blue: participants in EUROMET.EM-K5
Green: participants in EUROMET.EM-K5.1
Orange: participants in SIM.EM-K5
Purple: participants in COOMET.EM-K5

The acronym "UMTS" stands for "Ukrmetrteststandard".


CCEM-K5, EUROMET.EM-K5, EUROMET.EM-K5.1, SIM.EM-K5 and COOMET.EM-K5

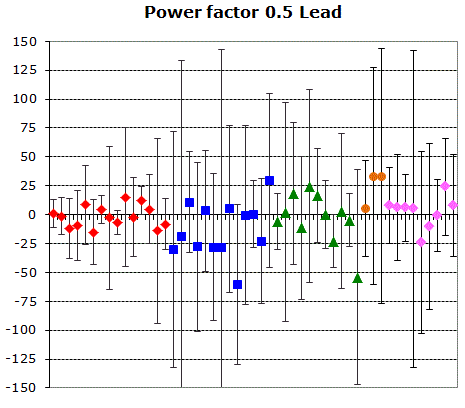

MEASURAND: Electric power at 120 V, 5 A, 53 Hz, power factor 0.5 lead
NOMINAL VALUE: 600 VA, 300 W

Degrees of equivalence: Di = xi - xR and expanded uncertainty Ui (k = 2),
both expressed in µW/VA

Click on the graph for a closer view

Red: participants in CCEM-K5
Dark blue: participants in EUROMET.EM-K5
Green: participants in EUROMET.EM-K5.1
Orange: participants in SIM.EM-K5
Purple: participants in COOMET.EM-K5

The acronym "UMTS" stands for "Ukrmetrteststandard".


CCEM-K5, EUROMET.EM-K5, EUROMET.EM-K5.1, SIM.EM-K5 and COOMET.EM-K5

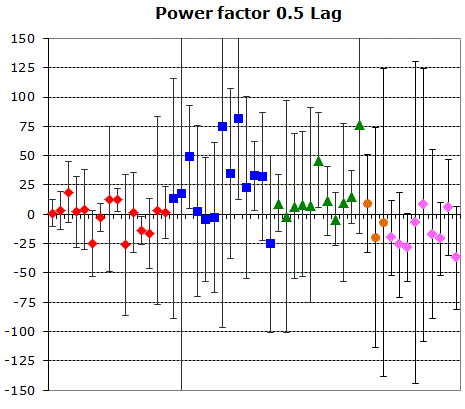

MEASURAND: Electric power at 120 V, 5 A, 53 Hz, power factor 0.5 lag
NOMINAL VALUE: 600 VA, 300 W

Degrees of equivalence: Di = xi - xR and expanded uncertainty Ui (k = 2),
both expressed in µW/VA

Click on the graph for a closer view

Red: participants in CCEM-K5
Dark blue: participants in EUROMET.EM-K5
Green: participants in EUROMET.EM-K5.1
Orange: participants in SIM.EM-K5
Purple: participants in COOMET.EM-K5

The acronym "UMTS" stands for "Ukrmetrteststandard".


CCEM-K5, EUROMET.EM-K5, EUROMET.EM-K5.1, SIM.EM-K5 and COOMET.EM-K5

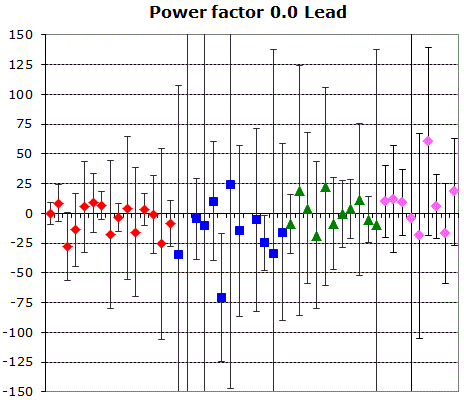

MEASURAND: Electric power at 120 V, 5 A, 53 Hz, power factor 0.0 lead
NOMINAL VALUE: 600 VA, 0 W

Degrees of equivalence: Di = xi - xR and expanded uncertainty Ui (k = 2),
both expressed in µW/VA

Click on the graph for a closer view

Red: participants in CCEM-K5
Dark blue: participants in EUROMET.EM-K5
Green: participants in EUROMET.EM-K5.1
Purple: participants in COOMET.EM-K5

The acronym "UMTS" stands for "Ukrmetrteststandard".


CCEM-K5, EUROMET.EM-K5, EUROMET.EM-K5.1, SIM.EM-K5 and COOMET.EM-K5

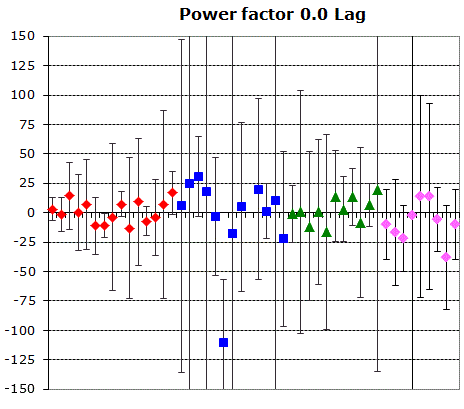

MEASURAND: Electric power at 120 V, 5 A, 53 Hz, power factor 0.0 lag
NOMINAL VALUE: 600 VA, 0 W

Degrees of equivalence: Di = xi - xR and expanded uncertainty Ui (k = 2),
both expressed in µW/VA

Click on the graph for a closer view

Red: participants in CCEM-K5
Dark blue: participants in EUROMET.EM-K5
Green: participants in EUROMET.EM-K5.1
Purple: participants in COOMET.EM-K5

The acronym "UMTS" stands for "Ukrmetrteststandard".


CCEM-K5, EUROMET.EM-K5, EUROMET.EM-K5.1, SIM.EM-K5 and COOMET.EM-K5

MEASURAND: Electric power at 120 V, 5 A, 53 Hz, power factor 1.0
NOMINAL VALUE: 600 VA, 600 W

Degrees of equivalence: Di = xi - xR and expanded uncertainty Ui (k = 2),
both expressed in µW/VA

Red: participants in CCEM-K5
Dark blue: participants in EUROMET.EM-K5
Green: participants in EUROMET.EM-K5.1
Orange: participants in SIM.EM-K5
Purple: participants in COOMET.EM-K5

The acronym "UMTS" stands for "Ukrmetrteststandard".


Results are presented under A4 printable format in Summary Results (PDF file).

CCEM-K5, EUROMET.EM-K5, EUROMET.EM-K5.1, SIM.EM-K5 and COOMET.EM-K5

MEASURAND: Electric power at 120 V, 5 A, 53 Hz, power factor 0.5 lead
NOMINAL VALUE: 600 VA, 300 W

Degrees of equivalence: Di = xi - xR and expanded uncertainty Ui (k = 2),
both expressed in µW/VA

Red: participants in CCEM-K5
Dark blue: participants in EUROMET.EM-K5
Green: participants in EUROMET.EM-K5.1
Orange: participants in SIM.EM-K5
Purple: participants in COOMET.EM-K5

The acronym "UMTS" stands for "Ukrmetrteststandard".


Results are presented under A4 printable format in Summary Results (PDF file).

CCEM-K5, EUROMET.EM-K5, EUROMET.EM-K5.1, SIM.EM-K5 and COOMET.EM-K5

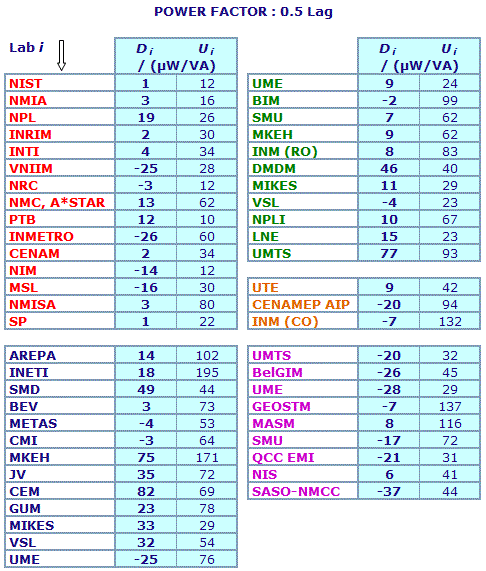

MEASURAND: Electric power at 120 V, 5 A, 53 Hz, power factor 0.5 lag
NOMINAL VALUE: 600 VA, 300 W

Degrees of equivalence: Di = xi - xR and expanded uncertainty Ui (k = 2),
both expressed in µW/VA

Red: participants in CCEM-K5
Dark blue: participants in EUROMET.EM-K5
Green: participants in EUROMET.EM-K5.1
Orange: participants in SIM.EM-K5
Purple: participants in COOMET.EM-K5

The acronym "UMTS" stands for "Ukrmetrteststandard".


Results are presented under A4 printable format in Summary Results (PDF file).

CCEM-K5, EUROMET.EM-K5, EUROMET.EM-K5.1, SIM.EM-K5 and COOMET.EM-K5

MEASURAND: Electric power at 120 V, 5 A, 53 Hz, power factor 0.0 lead
NOMINAL VALUE: 600 VA, 0 W

Degrees of equivalence: Di = xi - xR and expanded uncertainty Ui (k = 2),
both expressed in µW/VA

Red: participants in CCEM-K5
Dark blue: participants in EUROMET.EM-K5
Green: participants in EUROMET.EM-K5.1
Purple: participants in COOMET.EM-K5

The acronym "UMTS" stands for "Ukrmetrteststandard".


Results are presented under A4 printable format in Summary Results (PDF file).

CCEM-K5, EUROMET.EM-K5, EUROMET.EM-K5.1, SIM.EM-K5 and COOMET.EM-K5

MEASURAND: Electric power at 120 V, 5 A, 53 Hz, power factor 0.0 lag
NOMINAL VALUE: 600 VA, 0 W

Degrees of equivalence: Di = xi - xR and expanded uncertainty Ui (k = 2),
both expressed in µW/VA

Red: participants in CCEM-K5
Dark blue: participants in EUROMET.EM-K5
Green: participants in EUROMET.EM-K5.1
Purple: participants in COOMET.EM-K5

The acronym "UMTS" stands for "Ukrmetrteststandard".


Results are presented under A4 printable format in Summary Results (PDF file).

Comparison
Comparison close
CC comparison
Linked comparison
CCEM-K5
Metrology area, Sub-field Electricity and Magnetism, AC Voltage, Current, Power, and AC/DC Transfer
Description AC power at 50/60 Hz
Time of measurements 1996 - 2000
Status Approved for equivalence
Final Reports of the comparisons
Measurand AC power; 120 V, 5 A, at 53 Hz
Parameters Power factor: 1.0, 0.5 Lead, 0.5 Lag, 0.0 Lead, 0.0 Lag
Transfer device Power transducer
Comparison type Key Comparison
Consultative Committee CCEM (Consultative Committee for Electricity and Magnetism)
Conducted by CCEM (Consultative Committee for Electricity and Magnetism)
Comments

Results published on 22 January 2003

EUROMET.EM-K5, EUROMET.EM-K5.1SIM.EM-K5 and COOMET.EM-K5 results are linked to those of CCEM-K5

AC power

:

Pilot institute NIST
National Institute of Standards and Technology
United States
Contact person N. Oldham
nile.oldham@nist.gov
+1 301 975 2408
First Name Last Name
wwww@ww.www +356719836 Institute 1 Institute 1 Khmelnitskiy
Pilot laboratory
NIST

National Institute of Standards and Technology, United States, SIM

CENAM

Centro Nacional de Metrologia, Mexico, SIM

CSIR-NML

Council for Scientific and Industrial Research, National Metrology Laboratory (became NMISA in 2007), South Africa, AFRIMETS

CSIRO-NML

Commonwealth Scientific and Industrial Research Organization - National Measurement Laboratory; became National Measurement Institute, Australia, NMIA in 2004, Australia, APMP

IEN

Istituto Elettrotecnico Nazionale Galileo Ferraris; from 1st January 2006: Istituto Nazionale di Ricerca Metrologica, INRIM, Italy, EURAMET

INMETRO

Instituto Nacional de Metrologia, Qualidade e Tecnologia, Brazil, SIM

INTI

Instituto Nacional de Tecnologia Industrial, Argentina, SIM

MSL

Measurement Standards Laboratory, New Zealand, APMP

NIM

National Institute of Metrology, China, APMP

NPL

National Physical Laboratory, United Kingdom, EURAMET

NRC

National Research Council, Canada, SIM

PTB

Physikalisch-Technische Bundesanstalt, Germany, EURAMET

SP

Technical Research Institute of Sweden from 2017 Research Institutes of Sweden AB, Sweden, EURAMET

SPRING Singapore

Singapore Standards, Productivity and Innovation Board (became NMC, A*STAR in 2008), Singapore, APMP

VNIIM

D.I. Mendeleyev Institute for Metrology, Rosstandart, Russian Federation, COOMET

CCEM-K5, EUROMET.EM-K5, EUROMET.EM-K5.1, SIM.EM-K5 and COOMET.EM-K5

MEASURAND: Electric power at 120 V, 5 A, 53 Hz, power factor 1.0
NOMINAL VALUE: 600 VA, 600 W

  • Key comparison CCEM-K5
The key comparison reference value, xR, is calculated as the weighted mean of the difference between laboratory i and the predicted value, based on measurements performed at the pilot laboratory. Its standard uncertainty, uR, is calculated as the uncertainty of the weighted mean of the differences.

xR = 7 µW/VA and uR = 5 µW/VA

The degree of equivalence of each laboratory with respect to the key comparison reference value is given by a pair of terms:
Di and Ui, its expanded uncertainty (k = 2), both expressed in µW/VA.
The derivation of these terms can be found in the CCEM-K5 Final Report.
When required, the degree of equivalence between two laboratories i and j is given by a pair of terms:
Dij and Uij, its expanded uncertainty (k = 2), both expressed in µW/VA.
The derivation of these terms can also be found in the CCEM-K5 Final Report.
  • Linking EUROMET.EM-K5 to CCEM-K5

The linkage between EUROMET.EM-K5 and CCEM-K5 is computed as explained in the EUROMET.EM-K5 Linkage Report. The INRIM, NPL, PTB and SP participated in both comparisons. The common participants at the exception of SP were used as linking laboratories as explained on page 1 of the Linkage Report.

  • Linking EUROMET.EM-K5.1 to CCEM-K5

PTB as participant in both comparisons ensures the linkage, which is computed as explained in the EUROMET.EM-K5.1 Linkage Report.

  • Linking SIM.EM-K5 to CCEM-K5

It was possible to link SIM.EM-K5 results to those of CCEM-K5 for the power factors 1.0, 0.5 Lead and 0.5 Lag as explained in the Addendum to the SIM.EM-K5 Final Report.
NIST, NRC, INTI, INMETRO and CENAM ensure the linkage.

  • Linking COOMET.EM-K5 to CCEM-K5

The results obtained in COOMET.EM-K5 for each power factor was linked to CCEM-K5 via NIM and VNIIM who participated in both comparisons. The linking process is described in the COOMET.EM-K5 Linkage Report.



CCEM-K5, EUROMET.EM-K5, EUROMET.EM-K5.1, SIM.EM-K5 and COOMET.EM-K5

MEASURAND: Electric power at 120 V, 5 A, 53 Hz, power factor 0.5 lead
NOMINAL VALUE: 600 VA, 300 W

  • Key comparison CCEM-K5
The key comparison reference value, xR, is calculated as the weighted mean of the difference between laboratory i and the predicted value, based on measurements performed at the pilot laboratory. Its standard uncertainty, uR, is calculated as the uncertainty of the weighted mean of the differences.

xR = -1 µW/VA and uR = 5 µW/VA

The degree of equivalence of each laboratory with respect to the key comparison reference value is given by a pair of terms:
Di and Ui, its expanded uncertainty (k = 2), both expressed in µW/VA.
The derivation of these terms can be found in the CCEM-K5 Final Report.
When required, the degree of equivalence between two laboratories i and j is given by a pair of terms:
Dij and Uij, its expanded uncertainty (k = 2), both expressed in µW/VA.
The derivation of these terms can also be found in the CCEM-K5 Final Report.
  • Linking EUROMET.EM-K5 to CCEM-K5

The linkage between EUROMET.EM-K5 and CCEM-K5 is computed as explained in the EUROMET.EM-K5 Linkage Report. The INRIM, NPL, PTB and SP participated in both comparisons. The common participants at the exception of SP were used as linking laboratories as explained on page 1 of the Linkage Report.

  • Linking EUROMET.EM-K5.1 to CCEM-K5

PTB as participant in both comparisons ensures the linkage, which is computed as explained in the EUROMET.EM-K5.1 Linkage Report.

  • Linking SIM.EM-K5 to CCEM-K5

It was possible to link SIM.EM-K5 results to those of CCEM-K5 for the power factors 1.0, 0.5 Lead and 0.5 Lag as explained in the Addendum to the SIM.EM-K5 Final Report.
NIST, NRC, INTI, INMETRO and CENAM ensure the linkage.

  • Linking COOMET.EM-K5 to CCEM-K5

The results obtained in COOMET.EM-K5 for each power factor was linked to CCEM-K5 via NIM and VNIIM who participated in both comparisons. The linking process is described in the COOMET.EM-K5 Linkage Report.



CCEM-K5, EUROMET.EM-K5, EUROMET.EM-K5.1, SIM.EM-K5 and COOMET.EM-K5

MEASURAND: Electric power at 120 V, 5 A, 53 Hz, power factor 0.5 lag
NOMINAL VALUE: 600 VA, 300 W

  • Key comparison CCEM-K5
The key comparison reference value, xR, is calculated as the weighted mean of the difference between laboratory i and the predicted value, based on measurements performed at the pilot laboratory. Its standard uncertainty, uR, is calculated as the uncertainty of the weighted mean of the differences.

xR = -1 µW/VA and uR = 5 µW/VA

The degree of equivalence of each laboratory with respect to the key comparison reference value is given by a pair of terms:
Di and Ui, its expanded uncertainty (k = 2), both expressed in µW/VA.
The derivation of these terms can be found in the CCEM-K5 Final Report.
When required, the degree of equivalence between two laboratories i and j is given by a pair of terms:
Dij and Uij, its expanded uncertainty (k = 2), both expressed in µW/VA.
The derivation of these terms can also be found in the CCEM-K5 Final Report.
  • Linking EUROMET.EM-K5 to CCEM-K5

The linkage between EUROMET.EM-K5 and CCEM-K5 is computed as explained in the EUROMET.EM-K5 Linkage Report. The INRIM, NPL, PTB and SP participated in both comparisons. The common participants at the exception of SP were used as linking laboratories as explained on page 1 of the Linkage Report.

  • Linking EUROMET.EM-K5.1 to CCEM-K5

PTB as participant in both comparisons ensures the linkage, which is computed as explained in the EUROMET.EM-K5.1 Linkage Report.

  • Linking SIM.EM-K5 to CCEM-K5

It was possible to link SIM.EM-K5 results to those of CCEM-K5 for the power factors 1.0, 0.5 Lead and 0.5 Lag as explained in the Addendum to the SIM.EM-K5 Final Report.
NIST, NRC, INTI, INMETRO and CENAM ensure the linkage.

  • Linking COOMET.EM-K5 to CCEM-K5

The results obtained in COOMET.EM-K5 for each power factor was linked to CCEM-K5 via NIM and VNIIM who participated in both comparisons. The linking process is described in the COOMET.EM-K5 Linkage Report.



CCEM-K5, EUROMET.EM-K5, EUROMET.EM-K5.1, SIM.EM-K5 and COOMET.EM-K5

MEASURAND: Electric power at 120 V, 5 A, 53 Hz, power factor 0.0 lead
NOMINAL VALUE: 600 VA, 0 W

  • Key comparison CCEM-K5
The key comparison reference value, xR, is calculated as the weighted mean of the difference between laboratory i and the predicted value, based on measurements performed at the pilot laboratory. Its standard uncertainty, uR, is calculated as the uncertainty of the weighted mean of the differences.

xR = 0 µW/VA and uR = 5 µW/VA

The degree of equivalence of each laboratory with respect to the key comparison reference value is given by a pair of terms:
Di and Ui, its expanded uncertainty (k = 2), both expressed in µW/VA.
The derivation of these terms can be found in the CCEM-K5 Final Report.
When required, the degree of equivalence between two laboratories i and j is given by a pair of terms:
Dij and Uij, its expanded uncertainty (k = 2), both expressed in µW/VA.
The derivation of these terms can also be found in the CCEM-K5 Final Report.
  • Linking EUROMET.EM-K5 to CCEM-K5

The linkage between EUROMET.EM-K5 and CCEM-K5 is computed as explained in the EUROMET.EM-K5 Linkage Report. The INRIM, NPL, PTB and SP participated in both comparisons. The common participants at the exception of SP were used as linking laboratories as explained on page 1 of the Linkage Report.

  • Linking EUROMET.EM-K5.1 to CCEM-K5

PTB as participant in both comparisons ensures the linkage, which is computed as explained in the EUROMET.EM-K5.1 Linkage Report.

  • Linking SIM.EM-K5 to CCEM-K5

It was possible to link SIM.EM-K5 results to those of CCEM-K5 for the power factors 1.0, 0.5 Lead and 0.5 Lag as explained in the Addendum to the SIM.EM-K5 Final Report.
NIST, NRC, INTI, INMETRO and CENAM ensure the linkage.

  • Linking COOMET.EM-K5 to CCEM-K5

The results obtained in COOMET.EM-K5 for each power factor was linked to CCEM-K5 via NIM and VNIIM who participated in both comparisons. The linking process is described in the COOMET.EM-K5 Linkage Report.



CCEM-K5, EUROMET.EM-K5, EUROMET.EM-K5.1, SIM.EM-K5 and COOMET.EM-K5

MEASURAND: Electric power at 120 V, 5 A, 53 Hz, power factor 0.0 lag
NOMINAL VALUE: 600 VA, 0 W

  • Key comparison CCEM-K5
The key comparison reference value, xR, is calculated as the weighted mean of the difference between laboratory i and the predicted value, based on measurements performed at the pilot laboratory. Its standard uncertainty, uR, is calculated as the uncertainty of the weighted mean of the differences.

xR = -3 µW/VA and uR = 5 µW/VA

The degree of equivalence of each laboratory with respect to the key comparison reference value is given by a pair of terms:
Di and Ui, its expanded uncertainty (k = 2), both expressed in µW/VA.
The derivation of these terms can be found in the CCEM-K5 Final Report.
When required, the degree of equivalence between two laboratories i and j is given by a pair of terms:
Dij and Uij, its expanded uncertainty (k = 2), both expressed in µW/VA.
The derivation of these terms can also be found in the CCEM-K5 Final Report.
  • Linking EUROMET.EM-K5 to CCEM-K5

The linkage between EUROMET.EM-K5 and CCEM-K5 is computed as explained in the EUROMET.EM-K5 Linkage Report. The INRIM, NPL, PTB and SP participated in both comparisons. The common participants at the exception of SP were used as linking laboratories as explained on page 1 of the Linkage Report.

  • Linking EUROMET.EM-K5.1 to CCEM-K5

PTB as participant in both comparisons ensures the linkage, which is computed as explained in the EUROMET.EM-K5.1 Linkage Report.

  • Linking SIM.EM-K5 to CCEM-K5

It was possible to link SIM.EM-K5 results to those of CCEM-K5 for the power factors 1.0, 0.5 Lead and 0.5 Lag as explained in the Addendum to the SIM.EM-K5 Final Report.
NIST, NRC, INTI, INMETRO and CENAM ensure the linkage.

  • Linking COOMET.EM-K5 to CCEM-K5

The results obtained in COOMET.EM-K5 for each power factor was linked to CCEM-K5 via NIM and VNIIM who participated in both comparisons. The linking process is described in the COOMET.EM-K5 Linkage Report.



CCEM-K5, EUROMET.EM-K5, EUROMET.EM-K5.1, SIM.EM-K5 and COOMET.EM-K5

MEASURAND: Electric power at 120 V, 5 A, 53 Hz, power factor 1.0
NOMINAL VALUE: 600 VA, 600 W



  • Key comparison CCEM-K5

xi : deviation from nominal measured by laboratory i

ui : standard combined uncertainty of xi

 Lab i xi
/ (µW/VA)
ui
/ (µW/VA)
Date of measurement
 NRC 29 6 Jun 96
 NIST 26 7 Jul 96
 PTB 23 7 Aug 96
 SP -10 15 Sep 96
 NIST 27 7 Oct 96
 NMIA 31 7 Nov 96
 MSL 66 34 Dec 96
 NIST 22 7 Feb 97
 NPL 38 16 Mar 97
 INRIM 23 15 Apr 97
 NIST 21 7 May 97
 INTI 42 10 Aug 97
 NIST 22 7 Sep 97
 NIST 20 7 Nov 97
 NIM 37 6 Mar 98
 NIST 14 7 Apr 98
 VNIIM 30 9 Jun 98
 NRC 14 6 Sep 98
 NIST 9 7 Nov 98
 SPRING 38 31 Dec 98
 CSIR-NML -21 30 Feb 99
 NIST 8 7 Mar 99
 PTB 15 5 May 99
 NIST 8 7 Jun 99
 INMETRO 6 30 Aug 99
 CENAM 19 17 Aug 99
 NIST 10 7 Sep 99
 NIST 9 7 Jun 00
 NIM 20 6 Jul 00
 MSL 20 14 Aug 00
 NIST 17 7 Aug 00
 CSIR-NML 13 40 Sep 00
 SP 27 15 Oct 00
 NIST 21 7 Nov 00

  • Key comparison EUROMET.EM-K5

The results of mesurements obtained by the participants in EURAMET.EM-K5 are given in Table 2 p. 5 of the Final Report.

  • Key comparison EUROMET.EM-K5.1

The results of mesurements obtained by participants in EUROMET.EM-K5.1 are given in Table 2 on page 7 of the EUROMET.EM-K5.1 Final Report.

  • Key comparison SIM.EM-K5

The results of mesurements obtained by the participants in SIM.EM-K5 are given in Tables B.1 to B.8 on pages 29 to 36 of the Final Report.

  • Key comparison COOMET.EM-K5

The results of mesurements obtained by the participants in COOMET.EM-K5 are given in Table 8 on pages 20 to 22 of the Final Report.

CCEM-K5, EUROMET.EM-K5, EUROMET.EM-K5.1, SIM.EM-K5 and COOMET.EM-K5

MEASURAND: Electric power at 120 V, 5 A, 53 Hz, power factor 0.5 lead
NOMINAL VALUE: 600 VA, 300 W

  • Key comparison CCEM-K5

xi : deviation from nominal measured by laboratory i

ui : standard combined uncertainty of xi



 Lab i xi
/ (µW/VA)
ui
/ (µW/VA)
Date of measurement
 NRC 26 6 Jun 96
 NIST 17 7 Jul 96
 PTB 9 7 Aug 96
 SP -5 11 Sep 96
 NIST 20 7 Oct 96
 NMIA 15 8 Nov 96
 MSL 27 24 Dec 96
 NIST 17 7 Feb 97
 NPL 2 13 Mar 97
 INRIM 4 15 Apr 97
 NIST 12 7 May 97
 INTI 20 17 Aug 97
 NIST 15 7 Sep 97
 NIST 12 7 Nov 97
 NIM -2 4 Mar 98
 NIST 5 7 Apr 98
 VNIIM -8 14 Jun 98
 NRC 11 6 Sep 98
 NIST 5 7 Nov 98
 SPRING 3 31 Dec 98
 CSIR-NML -6 30 Feb 99
 NIST 6 7 Mar 99
 PTB -1 5 May 99
 NIST 8 7 Jun 99
 INMETRO 21 30 Aug 99
 CENAM 4 17 Aug 99
 NIST 4 7 Sep 99
 NIST 11 7 Jun 00
 NIM 23 6 Jul 00
 MSL 16 15 Aug 00
 NIST 12 7 Aug 00
 CSIR-NML -1 40 Sep 00
 SP 6 11 Oct 00
 NIST 11 7 Nov 00

  • Key comparison EUROMET.EM-K5

The results of mesurements obtained by the participants in EURAMET.EM-K5 are given in Table 2 p. 5 of the Final Report.

  • Key comparison EUROMET.EM-K5.1

The results of mesurements obtained by participants in EUROMET.EM-K5.1 are given in Table 2 on page 7 of the EUROMET.EM-K5.1 Final Report.

  • Key comparison SIM.EM-K5

The results of mesurements obtained by the participants in SIM.EM-K5 are given in Tables B.1 to B.8 on pages 29 to 36 of the Final Report.

  • Key comparison COOMET.EM-K5

The results of mesurements obtained by the participants in COOMET.EM-K5 are given in Table 8 on pages 20 to 22 of the Final Report.

CCEM-K5, EUROMET.EM-K5, EUROMET.EM-K5.1, SIM.EM-K5 and COOMET.EM-K5

MEASURAND: Electric power at 120 V, 5 A, 53 Hz, power factor 0.5 lag
NOMINAL VALUE: 600 VA, 300 W



  • Key comparison CCEM-K5

xi : deviation from nominal measured by laboratory i

ui : standard combined uncertainty of xi

 Lab i xi
/ (µW/VA)
ui
/ (µW/VA)
Date of measurement
 NRC -27 6 Jun 96
 NIST -24 7 Jul 96
 PTB -18 7 Aug 96
 SP -43 11 Sep 96
 NIST -22 7 Oct 96
 NMIA -20 8 Nov 96
 MSL -4 24 Dec 96
 NIST -25 7 Feb 97
 NPL -4 13 Mar 97
 INRIM -21 15 Apr 97
 NIST -20 7 May 97
 INTI -20 17 Aug 97
 NIST -21 7 Sep 97
 NIST -26 7 Nov 97
 NIM 1 4 Mar 98
 NIST -27 7 Apr 98
 VNIIM -53 14 Jun 98
 NRC -37 6 Sep 98
 NIST -30 7 Nov 98
 SPRING -17 31 Dec 98
 CSIR-NML -45 30 Feb 99
 NIST -32 7 Mar 99
 PTB -18 5 May 99
 NIST -34 7 Jun 99
 INMETRO -56 30 Aug 99
 CENAM -28 17 Aug 99
 NIST -30 7 Sep 99
 NIST -28 7 Jun 00
 NIM -36 6 Jul 00
 MSL -37 15 Aug 00
 NIST -21 7 Aug 00
 CSIR-NML -14 40 Sep 00
 SP -14 11 Oct 00
 NIST -22 7 Nov 00

  • Key comparison EUROMET.EM-K5

The results of mesurements obtained by the participants in EURAMET.EM-K5 are given in Table 2 p. 5 of the Final Report.

  • Key comparison EUROMET.EM-K5.1

The results of mesurements obtained by participants in EUROMET.EM-K5.1 are given in Table 2 on page 7 of the EUROMET.EM-K5.1 Final Report.

  • Key comparison SIM.EM-K5

The results of mesurements obtained by the participants in SIM.EM-K5 are given in Tables B.1 to B.8 on pages 29 to 36 of the Final Report.

  • Key comparison COOMET.EM-K5

The results of mesurements obtained by the participants in COOMET.EM-K5 are given in Table 8 on pages 20 to 22 of the Final Report.

CCEM-K5, EUROMET.EM-K5, EUROMET.EM-K5.1, SIM.EM-K5 and COOMET.EM-K5

MEASURAND: Electric power at 120 V, 5 A, 53 Hz, power factor 0.0 lead
NOMINAL VALUE: 600 VA, 0 W



  • Key comparison CCEM-K5

xi : deviation from nominal measured by laboratory i

ui : standard combined uncertainty of xi

 Lab i xi
/ (ľW/VA)
ui
/ (ľW/VA)
Date of measurement
 NRC -7 5 Jun 96
 NIST -13 6 Jul 96
 PTB -20 6 Aug 96
 SP -18 9 Sep 96
 NIST -7 6 Oct 96
 NMIA -3 7 Nov 96
 MSL -12 18 Dec 96
 NIST -14 6 Feb 97
 NPL -41 14 Mar 97
 INRIM -27 15 Apr 97
 NIST -16 6 May 97
 INTI -9 19 Aug 97
 NIST -13 6 Sep 97
 NIST -13 6 Nov 97
 NIM -40 5 Mar 98
 NIST -20 6 Apr 98
 VNIIM -8 12 Jun 98
 NRC -15 5 Sep 98
 NIST -17 6 Nov 98
 SPRING -36 31 Dec 98
 CSIR-NML -32 30 Feb 99
 NIST -18 6 Mar 99
 PTB -22 5 May 99
 NIST -18 6 Jun 99
 INMETRO -14 30 Aug 99
 CENAM -34 27 Aug 99
 NIST -23 6 Sep 99
 NIST -15 6 Jun 00
 NIM -14 6 Jul 00
 MSL -18 16 Aug 00
 NIST -12 6 Aug 00
 CSIR-NML -43 40 Sep 00
 SP -25 9 Oct 00
 NIST -21 6 Nov 00

  • Key comparison EUROMET.EM-K5

The results of mesurements obtained by the participants in EURAMET.EM-K5 are given in Table 2 p. 5 of the Final Report.

  • Key comparison EUROMET.EM-K5.1

The results of mesurements obtained by participants in EUROMET.EM-K5.1 are given in Table 2 on page 7 of the EUROMET.EM-K5.1 Final Report.

  • Key comparison SIM.EM-K5

The results of mesurements obtained by the participants in SIM.EM-K5 are given in Tables B.1 to B.8 on pages 29 to 36 of the Final Report.

  • Key comparison COOMET.EM-K5

The results of mesurements obtained by the participants in COOMET.EM-K5 are given in Table 8 on pages 20 to 22 of the Final Report.

CCEM-K5, EUROMET.EM-K5, EUROMET.EM-K5.1, SIM.EM-K5 and COOMET.EM-K5

MEASURAND: Electric power at 120 V, 5 A, 53 Hz, power factor 0.0 lag
NOMINAL VALUE: 600 VA, 0 W



  • Key comparison CCEM-K5

xi : deviation from nominal measured by laboratory i

ui : standard combined uncertainty of xi

 Lab i xi
/ (µW/VA)
ui
/ (µW/VA)
Date of measurement
 NRC -68 5 Jun 96
 NIST -59 6 Jul 96
 PTB -53 6 Aug 96
 SP -60 9 Sep 96
 NIST -63 6 Oct 96
 NMIA -62 7 Nov 96
 MSL -73 18 Dec 96
 NIST -54 6 Feb 97
 NPL -44 14 Mar 97
 INRIM -58 16 Apr 97
 NIST -52 6 May 97
 INTI -50 19 Aug 97
 NIST -53 6 Sep 97
 NIST -55 6 Nov 97
 NIM -37 4 Mar 98
 NIST -55 6 Apr 98
 VNIIM -70 12 Jun 98
 NRC -73 5 Sep 98
 NIST -57 6 Nov 98
 SPRING -65 31 Dec 98
 CSIR-NML -54 30 Feb 99
 NIST -58 6 Mar 99
 PTB -56 5 May 99
 NIST -59 6 Jun 99
 INMETRO -77 30 Aug 99
 CENAM -55 27 Aug 99
 NIST -60 6 Sep 99
 NIST -54 6 Jun 00
 NIM -72 6 Jul 00
 MSL -69 16 Aug 00
 NIST -52 6 Aug 00
 CSIR-NML -57 40 Sep 00
 SP -47 9 Oct 00
 NIST -57 6 Nov 00

  • Key comparison EUROMET.EM-K5

The results of mesurements obtained by the participants in EURAMET.EM-K5 are given in Table 2 p. 5 of the Final Report.

  • Key comparison EUROMET.EM-K5.1

The results of mesurements obtained by participants in EUROMET.EM-K5.1 are given in Table 2 on page 7 of the EUROMET.EM-K5.1 Final Report.

  • Key comparison SIM.EM-K5

The results of mesurements obtained by the participants in SIM.EM-K5 are given in Tables B.1 to B.8 on pages 29 to 36 of the Final Report.

  • Key comparison COOMET.EM-K5

The results of mesurements obtained by the participants in COOMET.EM-K5 are given in Table 8 on pages 20 to 22 of the Final Report.
