Results

CCM.FF-K4, EURAMET.M.FF-K4.b, SIM.M.FF-K4, and APMP.M.FF-K4

MEASURAND: Volume
NOMINAL VALUE: 20 L

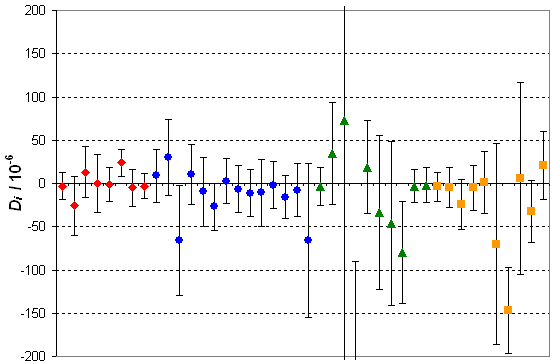

Degrees of equivalence Di and expanded uncertainty Ui at approximately 95% level of confidence, expressed in 10-6

Click on the Graph below to get a closer view and the names of the participating laboratories

Red diamonds : participants in CCM.FF-K4
Blue circles : participants in EURAMET.M.FF-K4.b
Green triangles : participants in SIM.M.FF-K4
Orange squares : participants in APMP.M.FF-K4

Comparison
Comparison close
Results

CCM.FF-K4, EURAMET.M.FF-K4.b, SIM.M.FF-K4, and APMP.M.FF-K4

MEASURAND: Volume
NOMINAL VALUE: 20 L

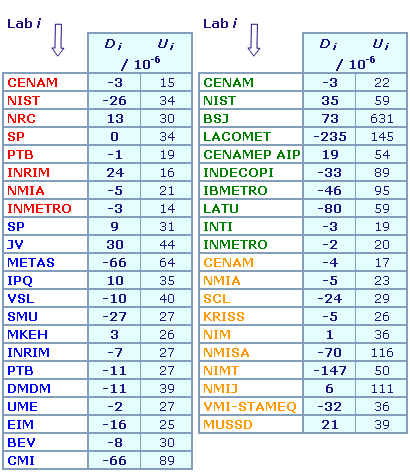

Full set of degrees of equivalence relative to the CCM.FF-K4 key comparison reference value

In Red: participants in CCM.FF-K4
In Blue: participants in EURAMET.M.FF-K4.b
In Green: participants in SIM.M.FF-K4
In Orange: participants in APMP.M.FF-K4

Matrix of equivalence for key comparisons CCM.FF-K4 and EURAMET.M.FF-K4.b
Note: Pair-wise degrees of equivalence involving CCM.FF-K4 and SIM.M.FF-K4 are given on page 16 of the SIM.M.FF-K4 Final Report.
Pair-wise degrees of equivalence involving APMP.M.FF-K4 participants are given on page 17 of the APMP.M.FF-K4 Final Report.


Lab iDiUi
 / 10-6/ 10-6
CENAM-315
NIST-2634
NRC1330
SP034
PTB-119
INRIM2416
NMIA-521
INMETRO-314
SP*931
JV*3044
METAS*-6664
IPQ*1035
VSL*-1040
SMU*-2727
MKEH*326
INRIM*-727
PTB*-1127
DMDM*-1139
UME*-227
EIM*-1625
BEV*-830
CMI*-6689

* participants in EURAMET.M.FF-K4.b

Results are presented under A4 printable format in Summary Results (.PDF file).

Comparison
Comparison close
RMO comparison
Linked comparison
EURAMET.M.FF-K4.b
Metrology area, Sub-field Mass and related quantities, Fluid Flow
Description Liquid volume
Time of measurements 2007 - 2008
Status Approved for equivalence
Final Reports of the comparisons
Measurand Water volume: 20 L
Parameters Temperature: 20 °C
Transfer device 20 L stainless-steel pipette
Comparison type Key Comparison
Consultative Committee CCM (Consultative Committee for Mass and Related Quantities)
Conducted by EURAMET (European Association of National Metrology Institutes)
RMO Internal Identifier EURAMET Project No 1008
Comments

EURAMET.M.FF-K4.b results published on 22 September 2009

EURAMET.M.FF-K4.b, APMP.M.FF-K4 and SIM.M.FF-K4 results are linked to those of CCM.FF-K4.

Liquid volume

Pilot institute SP
Technical Research Institute of Sweden from 2017 Research Institutes of Sweden AB
Sweden
Contact person Peter LAU
peter.lau@ri.se
+46 105 165 462
Additional
First Name Last Name
wwww@ww.www +356719836 Institute 1 Institute 1 Khmelnitskiy
Pilot laboratory
SP

Technical Research Institute of Sweden from 2017 Research Institutes of Sweden AB, Sweden, EURAMET

BEV

Bundesamt für Eich- und Vermessungswesen, Austria, EURAMET

CMI

Czech Metrology Institute, Czechia, EURAMET

DMDM

Directorate of Measures and Precious Metals, Serbia, EURAMET

EIM

Hellenic Institute of Metrology, Greece, EURAMET

INRIM

Istituto Nazionale di Ricerca Metrologica, Italy, EURAMET

IPQ

Instituto Portugues da Qualidade, Portugal, EURAMET

JV

Justervesenet, Norway, EURAMET

METAS

Federal Institute of Metrology, Switzerland, EURAMET

MKEH

Hungarian Trade Licensing Office; now BFKH, Hungary, EURAMET

PTB

Physikalisch-Technische Bundesanstalt, Germany, EURAMET

SMU

Slovensky Metrologicky Ustav, Slovakia, EURAMET

UME

TÜBITAK Ulusal Metroloji Enstitüsü, Turkey, EURAMET

VSL

VSL, Netherlands, EURAMET

Comparison
Comparison close
Results

CCM.FF-K4, EURAMET.M.FF-K4.b, SIM.M.FF-K4, and APMP.M.FF-K4

  • Key comparison CCM.FF-K4

MEASURAND: Volume
NOMINAL VALUE: 20 L
THREE TRANSFER STANDARDS

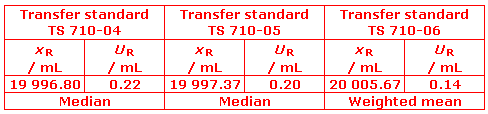

For each of the transfer standards, the key comparison reference value, xR, is computed either as the median or as the weighted mean of the results. Its expanded uncertainty UR is approximately given at a 95% level of confidence.
SP is excluded from the analysis for the transfer standard TS 710-04.
The details are explained in Appendix C of the CCM.FF-K4 Final Report.

For each transfer standard, a first degree of equivalence for laboratory i with respect to the key comparison reference value is calculated as a pair of terms, both expressed in relative value:
Di TS= (xi - xR)/xR and its expanded uncertainty Ui TS at approximately a 95% level of confidence.
The degree of equivalence of laboratory i participating in this key comparison for the
20 L measurements is then given by a pair of terms, both expressed in relative value:
Di and its expanded uncertainty Ui at a ~95 % level of confidence, determined as the arithmetic average of the degrees of equivalence obtained for each individual transfer standard.

The degree of equivalence between two laboratories i and j is given by a pair of terms, both expressed in relative value:
Dij = Di - Dj and its expanded uncertainty Uij at approximately a 95% level of confidence.
  • Linking EURAMET.M.FF-K4.b to CCM.FF-K4

The linking process is described in section 7 of the EURAMET.M.FF-K4.b Final Report. The Matrix of equivalence obtained at 20 L in CCM.FF-K4 is thus extended to EURAMET.M.FF-K4.b participants.
Note: The Dij values given in the Annex 2 of the EURAMET.M.FF-K4.b Final Report correspond to -Dij values shown in the Matrix of equivalence.

  • Linking SIM.M.FF-K4 to CCM.FF-K4

The regional comparison reference value is first determined as the median of the SIM results for transfer standard TS 710-05, as described in section 8 of the SIM.M.FF-K4 Final Report.
Then the linking process uses common participation of CENAM, NIST and INMETRO in both key comparisons, as described in section 9 of the same Report.
Pair-wise degrees of equivalence involving CCM.FF-K4 and SIM.M.FF-K4 are given on page 16 of the SIM.M.FF-K4 Final Report.

  • Linking APMP.M.FF-K4 to CCM.FF-K4

The linking process uses common participation of NMIA and CENAM in both key comparisons, as described in section 7 of the APMP.M.FF-K4 Final Report.
Pair-wise degrees of equivalence involving APMP.M.FF-K4 participants are given on page 17 of the APMP.M.FF-K4 Final Report.

Comparison
Comparison close
Results

CCM.FF-K4, EURAMET.M.FF-K4.b, SIM.M.FF-K4, and APMP.M.FF-K4

MEASURAND: Volume
NOMINAL VALUE: 20 L

  • Key comparison CCM.FF-K4

xi : volume of water the transfer standard is able to deliver after a 60 second period of dripping-off at a reference temperature of 20 °C, measured by laboratory i
ui
: standard uncertainty of xi

TRANSFER STANDARD: TS 710-04

 Lab i xi
/ mL
ui
/ mL
Date of measurement
 CENAM 19 996.71 0.17 Dec 2003
 NIST 19 996.42 0.38 Jan 2004
 NRC 19 996.88 0.31 Mar 2004
 SP 19 992.87 0.36 Apr 2004
 PTB 19 996.80 0.20 Jun 2004
 INRIM 19 997.30 0.13 Aug / Oct 2004
 NMIA 19 996.80 0.23 Oct / Dec 2004
 INMETRO 19 996.77 0.15 Feb 2005

TRANSFER STANDARD: TS 710-05

 Lab i xi
/ mL
ui
/ mL
Date of measurement
 CENAM 19 997.31 0.17 Dec 2003
 NIST 19 996.83 0.25 Jan 2004
 NRC 19 997.75 0.31 Mar 2004
 SP 19 997.40 0.36 Apr 2004
 PTB 19 997.44 0.20 Jun 2004
 INRIM 19 998.00 0.15 Aug / Oct 2004
 NMIA 19 997.16 0.22 Oct / Dec 2004
 INMETRO 19 997.33 0.14 Feb 2005

TRANSFER STANDARD: TS 710-06

 Lab i xi
/ mL
ui
/ mL
Date of measurement
 CENAM 20 005.60 0.17 Dec 2003
 NIST 20 005.04 0.37 Jan 2004
 NRC 20 005.98 0.31 Mar 2004
 SP 20 005.63 0.36 Apr 2004
 PTB 20 005.54 0.20 Jun 2004
 INRIM 20 005.96 0.14 Aug / Oct 2004
 NMIA 20 005.59 0.22 Oct / Dec 2004
 INMETRO 20 005.54 0.15 Feb 2005

  • Key comparison EURAMET.M.FF-K4.b

TRANSFER STANDARD : TS 710-04

xi-EUR.b : volume of water measured by laboratory i participant in EURAMET.M.FF-K4.b
Ui-EUR.b : expanded uncertainty (k = 2) of xi-EUR.b

Lab i xi-EUR.b
/ mL
Ui-EUR.b
/ mL
Date of measurement
SP 20 002.44 0.49 May 07
JV 20 002.87 0.80 Jul 07
METAS 20 000.95 1.22 Aug 07
IPQ

20 002.47

0.58

Aug 07

VSL

20 002.07

0.70

Sep 07

SMU

20 001.72

0.40

Sep 07

MKEH

20 002.32

0.36

Oct 07

INRIM

20 002.14

0.39

Nov 07

PTB

20 002.04

0.39

Jan 08

DMDM

20 002.05

0.68

Feb 08

UME 20 002.23 0.39 Feb 08
EIM 20 001.95 0.33 Mar 08
BEV 20 002.11 0.48 Apr 08
CMI

20 000.95

1.74

Apr 08

  • Key comparison SIM.M.FF-K4

TRANSFER STANDARD : TS 710-05

xi-SIM : volume of water measured by laboratory i participant in SIM.M.FF-K4
ui-SIM : standard uncertainty of xi-SIM

Lab i xi-SIM
/ mL
Ui-SIM
/ mL
Date of measurement
CENAM 19 995.03 0.25 Jan 07
NIST 19 995.79 0.59 Mar 07
BSJ 19 996.62 6.40 Apr 07
LACOMET

19 990.39

1.46

Jun 07

CENAMEP

19 995.47

0.53

Aug 07

INDECOPI

19 994.45

0.89

Oct 07

IBMETRO

19 994.18

0.96

Feb 08

LATU

19 993.50

0.59

Apr 08

INTI

19 995.04

0.12

Aug 08

INMETRO

19 995.06

0.23

Oct 08

  • Key comparison APMP.M.FF-K4

TRANSFER STANDARD : TS 710-04

xi-APMP : volume of water measured by laboratory i participant in APMP.M.FF-K4
Ui-APMP : expanded uncertainty (k = 2, unless otherwise stated) of xi-APMP

Lab i xi-APMP
/ mL
Ui-APMP
/ mL
Date of measurement
CENAM 19 992.94 0.65 (k = 2.09) Jul 06
NMIA 19 992.87 0.44 Jul - Aug 06
SCL 19 992.50 0.50 Aug - Sep 06
KRISS

19 992.87

0.44

Sep 06

NIM

19 992.98

0.65 (k = 1.96)

Oct 06

NMISA

19 991.57

2.30 (k = 2.28)

Nov 06 - Jan 07

NIMT

19 990.03

0.95

Jan - Feb 07

NMIJ

19 993.10

2.20

Feb - Mar 07

VMI-STAMEQ

19 992.33

0.66

Jun 07

MUSSD

19 993.39

0.72 (k = 2.19)

Jul 07

NMIA 19 992.85 0.44 Jul - Aug 07
