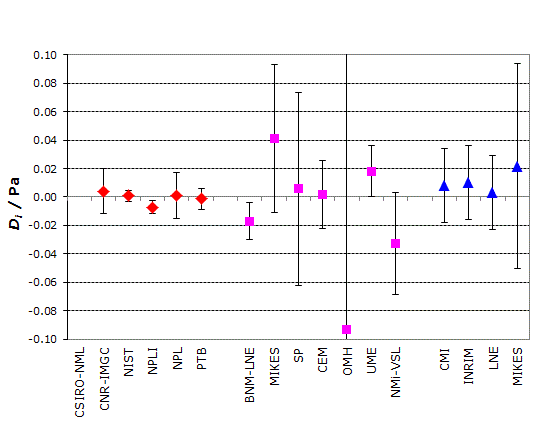

CCM.PK4, EUROMET.M.PK1.a, and EURAMET.M.PK4.2010
MEASURAND : Pressure
NOMINAL VALUE : 3 Pa
Degrees of equivalence D_{i} and expanded uncertainty U_{i} (95% level of confidence) expressed in Pa
Red diamonds : participants in CCM.PK4
Pink squares : participants in EUROMET.M.PK1.a
Blue triangles : participants in EURAMET.M.PK4.2010
Note: Information not apparent on the graph
 D_{CSIRONML }= 0.30 Pa and U_{CSIRONML} = 0.05 Pa,
 U_{OMH} = 0.23 Pa

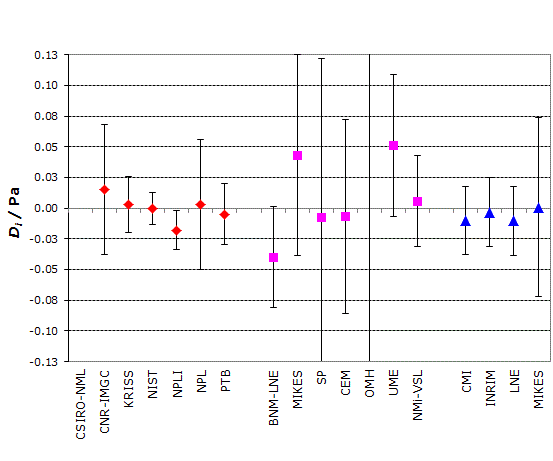

CCM.PK4, EUROMET.M.PK1.a, and EURAMET.M.PK4.2010
MEASURAND : Pressure
NOMINAL VALUE : 10 Pa
Degrees of equivalence D_{i} and expanded uncertainty U_{i} (95% level of confidence) expressed in Pa
Red diamonds : participants in CCM.PK4
Pink squares : participants in EUROMET.M.PK1.a
Blue triangles : participants in EURAMET.M.PK4.2010
Note: Information not apparent on the graph
 D_{CSIRONML }= 0.57 Pa and U_{CSIRONML} = 0.10 Pa,
 D_{OMH} = 0.40 Pa and U_{OMH} = 0.92 Pa

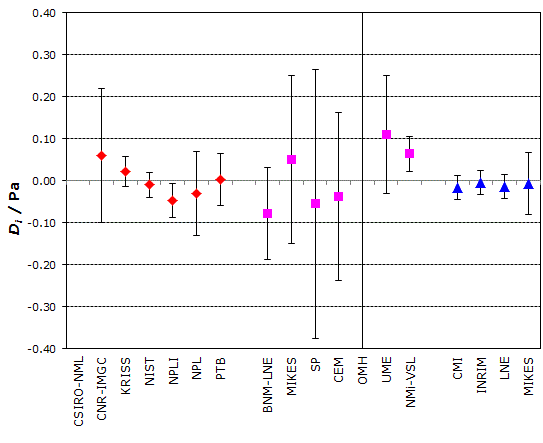

CCM.PK4, EUROMET.M.PK1.a, and EURAMET.M.PK4.2010
MEASURAND : Pressure
NOMINAL VALUE : 30 Pa
Degrees of equivalence D_{i} and expanded uncertainty U_{i} (95% level of confidence) expressed in Pa
Red diamonds : participants in CCM.PK4
Pink squares : participants in EUROMET.M.PK1.a
Blue triangles : participants in EURAMET.M.PK4.2010
Note: Information not apparent on the graph
 D_{CSIRONML }= 0.91 Pa and U_{CSIRONML} = 0.15 Pa,
 D_{OMH} = 2.0 Pa and U_{OMH} = 3.2 Pa

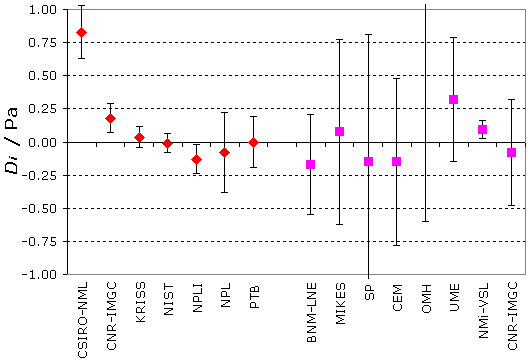

CCM.PK4 and EUROMET.M.PK1.a
MEASURAND : Pressure
NOMINAL VALUE : 100 Pa
Degrees of equivalence D_{i} and expanded uncertainty U_{i} (95% level of confidence) expressed in Pa
Red diamonds : participants in CCM.PK4
Pink squares : participants in EUROMET.M.PK1.a only
Note: Information not apparent on the graph
D_{OMH} = 2.5 Pa and U_{OMH} = 3.1 Pa

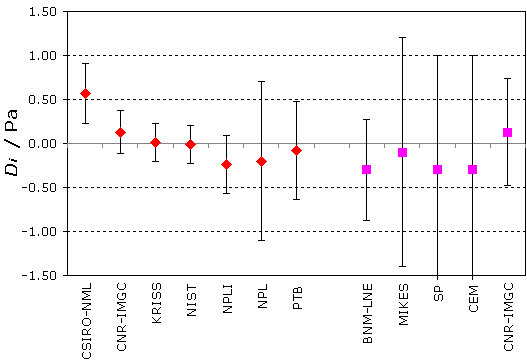

CCM.PK4 and EUROMET.M.PK1.a
MEASURAND : Pressure
NOMINAL VALUE : 300 Pa
Degrees of equivalence D_{i} and expanded uncertainty U_{i} (95% level of confidence) expressed in Pa
Red diamonds : participants in CCM.PK4
Pink squares : participants in EUROMET.M.PK1.a only
CNRIMGC: two different methods

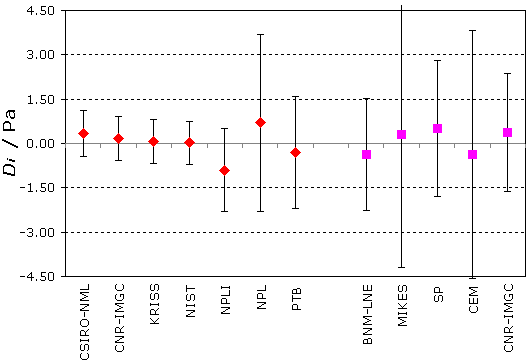

CCM.PK4 and EUROMET.M.PK1.a
MEASURAND : Pressure
NOMINAL VALUE : 1000 Pa
Degrees of equivalence D_{i} and expanded uncertainty U_{i} (95% level of confidence) expressed in Pa
Red diamonds : participants in CCM.PK4
Pink squares : participants in EUROMET.M.PK1.a only
CNRIMGC: two different methods

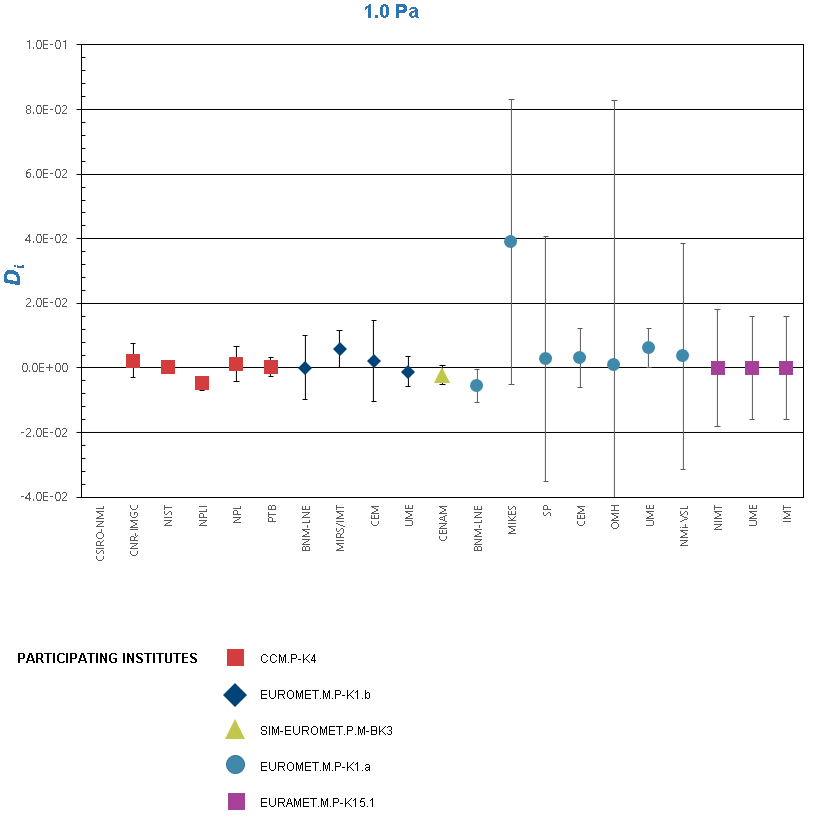

CCM.PK4, EUROMET.M.PK1.a, EUROMET.M.PK1.b, SIMEUROMET.M.PBK3 and EURAMET.M.PK15.1
MEASURAND Pressure
NOMINAL VALUE 1 Pa
Degrees of equivalence represented by D_{i} = (x_{I}  x_{R}) and its expanded uncertainty U_{i} at a 95 % level of confidence, both expressed in Pa.
CCM.PK4, EUROMET.M.PK1.a, and EURAMET.M.PK4.2010
MEASURAND : Pressure
NOMINAL VALUE : 3 Pa
Lab i
D_{i}  U_{i}
/ Pa  / Pa
CSIRONML  0.301  0.052
CNRIMGC  0.004  0.016
NIST  0.0008  0.0037
NPLI  0.0071  0.0049
NPL  0.001  0.016
PTB  0.0013  0.0075
BNMLNE  0.017  0.013
MIKES  0.041  0.052
SP  0.0056  0.068
CEM  0.0020  0.024
OMH  0.093  0.23
UME  0.018  0.018
NMiVSL  0.033  0.036
CMI  0.008  0.026
INRIM  0.010  0.026
LNE  0.003  0.026
MIKES  0.022  0.072
In pink: participants in EUROMET.M.PK1.a.
In blue: participants in EURAMET.M.PK4.2010.
No pairwise degrees of equivalence are deduced from the measurements carried out in the framework of key comparison EUROMET.M.PK1.a and EURAMET.M.PK4.2010.
Results are presented under A4 printable format in Summary Results (PDF file).
Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO 800001:2009 Annex B Rule B.
CCM.PK4, EUROMET.M.PK1.a, and EURAMET.M.PK4.2010
MEASURAND : Pressure
NOMINAL VALUE : 10 Pa
Lab i
D_{i}  U_{i}
/ Pa  / Pa
CSIRONML  0.57  0.10
CNRIMGC  0.015  0.053
KRISS  0.003  0.023
NIST  0.000  0.013
NPLI  0.018  0.016
NPL  0.003  0.053
PTB  0.005  0.025
BNMLNE  0.040  0.041
MIKES  0.043  0.082
SP  0.0080  0.13
CEM  0.0072  0.079
OMH  0.40  0.92
UME  0.051  0.058
NMiVSL  0.0058  0.037
CMI  0.010  0.028
INRIM  0.003  0.028
LNE  0.010  0.028
MIKES  0.001  0.073
In pink: participants in EUROMET.M.PK1.a.
In blue: participants in EURAMET.M.PK4.2010.
No pairwise degrees of equivalence are deduced from the measurements carried out in the framework of key comparison EUROMET.M.PK1.a and EURAMET.M.PK4.2010.
Results are presented under A4 printable format in Summary Results (PDF file).
Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO 800001:2009 Annex B Rule B.
CCM.PK4, EUROMET.M.PK1.a, and EURAMET.M.PK4.2010
MEASURAND : Pressure
NOMINAL VALUE : 30 Pa
Lab i
D_{i}  U_{i}
/ Pa  / Pa
CSIRONML  0.91  0.15
CNRIMGC  0.06  0.16
KRISS  0.022  0.035
NIST  0.010  0.029
NPLI  0.047  0.041
NPL  0.03  0.10
PTB  0.002  0.062
BNMLNE  0.078  0.11
MIKES  0.050  0.20
SP  0.055  0.32
CEM  0.037  0.20
OMH  2.0  3.2
UME  0.11  0.14
NMiVSL  0.064  0.042
CMI  0.016  0.028
INRIM  0.004  0.028
LNE  0.014  0.028
MIKES  0.007  0.074
In pink: participants in EUROMET.M.PK1.a.
In blue: participants in EURAMET.M.PK4.2010.
No pairwise degrees of equivalence are deduced from the measurements carried out in the framework of key comparison EUROMET.M.PK1.a and EURAMET.M.PK4.2010.
Results are presented under A4 printable format in Summary Results (PDF file).
Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO 800001:2009 Annex B Rule B.
CCM.PK4 and EUROMET.M.PK1.a
MEASURAND : Pressure
NOMINAL VALUE : 100 Pa
Lab i
D_{i}  U_{i}
/ Pa  / Pa
CSIRONML  0.83  0.20
CNRIMGC  0.18  0.11
KRISS  0.036  0.081
NIST  0.009  0.074
NPLI  0.13  0.11
NPL  0.08  0.30
PTB  0.00  0.19
BNMLNE  0.17  0.38
MIKES  0.077  0.70
SP  0.15  0.96
CEM  0.15  0.63
OMH  2.5  3.1
UME  0.32  0.47
NMiVSL  0.096  0.069
CNRIMGC  0.080  0.40
In pink: participants in EUROMET.M.PK1.a only.
No pairwise degrees of equivalence are deduced from the measurements carried out in the framework of key comparison EUROMET.M.PK1.a.
Results are presented under A4 printable format in Summary Results (PDF file).
Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO 800001:2009 Annex B Rule B.
CCM.PK4 and EUROMET.M.PK1.a
MEASURAND : Pressure
NOMINAL VALUE : 300 Pa
Lab i
D_{i}  U_{i}
/ Pa  / Pa
CSIRONML  0.57  0.34
CNRIMGC  0.13  0.24
KRISS  0.01  0.22
NIST  0.01  0.22
NPLI  0.24  0.33
NPL  0.20  0.90
PTB  0.08  0.56
BNMLNE  0.30  0.57
MIKES  0.10  1.3
SP  0.30  1.3
CEM  0.30  1.3
CNRIMGC  0.13  0.61
In pink: participants in EUROMET.M.PK1.a only.
No pairwise degrees of equivalence are deduced from the measurements carried out in the framework of key comparison EUROMET.M.PK1.a.
Results are presented under A4 printable format in Summary Results (PDF file).
Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO 800001:2009 Annex B Rule B.
CCM.PK4 and EUROMET.M.PK1.a
MEASURAND : Pressure
NOMINAL VALUE : 1000 Pa
Lab i
D_{i}  U_{i}
/ Pa  / Pa
CSIRONML  0.33  0.78
CNRIMGC  0.18  0.74
KRISS  0.06  0.74
NIST  0.03  0.73
NPLI  0.9  1.4
NPL  0.7  3.0
PTB  0.3  1.9
BNMLNE  0.38  1.9
MIKES  0.32  4.5
SP  0.51  2.3
CEM  0.38  4.2
CNRIMGC  0.38  2.0
In pink: participants in EUROMET.M.PK1.a only.
No pairwise degrees of equivalence are deduced from the measurements carried out in the framework of key comparison EUROMET.M.PK1.a.
Results are presented under A4 printable format in Summary Results (PDF file).
Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO 800001:2009 Annex B Rule B.

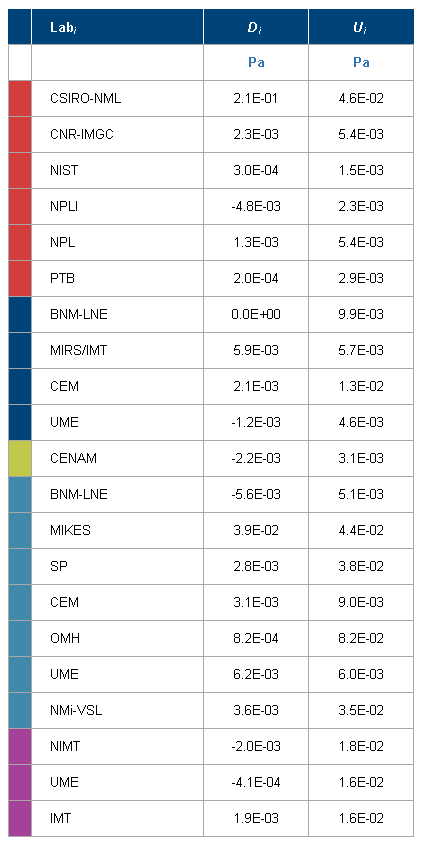

CCM.PK4, EUROMET.M.PK1.a, EUROMET.M.PK1.b, SIMEUROMET.M.PBK3 and EURAMET.M.PK15.1
MEASURAND Pressure
NOMINAL VALUE 1 Pa
Degrees of equivalence represented by D_{i} = (x_{I}  x_{R}) and its expanded uncertainty U_{i} at a 95 % level of confidence, both expressed in Pa.
Metrology area, Subfield  Mass and related quantities, Pressure
Description  Pressure measurements in Nitrogen (absolute mode)
Time of measurements  1999  2002
Status  Approved for equivalence
Final Reports of the comparisons
Measurand  Pressure: 0.1 Pa to 1000 Pa
Transfer device  Pressure transducers
Comparison type  Key Comparison
Consultative Committee  CCM (Consultative Committee for Mass and Related Quantities)
Conducted by  EURAMET (European Association of National Metrology Institutes)
RMO Internal Identifier  EUROMET Project No 442, phase A
Comments  The CCM.PK4 results were published on 08 February 2002, then completed with EUROMET.M.PK1.b and SIMEUROMET.M.PBK3 results at nominal pressure close to 1 Pa, on 15 November 2004. Pressure measurements in gas (absolute mode)

Pilot institute
CNRIMGC
Consiglio Nazionale delle Ricerche  Istituto di Metrologia G. Colonnetti (until 2006) Italy
Contact person  A. Calcatelli +39 011 3977 413
Additional
Pilot laboratory

CNRIMGC
Consiglio Nazionale delle Ricerche  Istituto di Metrologia G. Colonnetti (until 2006), Italy, EURAMET
BNMLNE
Bureau National de Métrologie  Laboratoire National d'Essais, France, EURAMET
CEM
Centro Español de Metrologia, Spain, EURAMET
MIKES
VTT Technical Research Centre of Finland Ltd, Centre for Metrology/Mittatekniikan keskus, Finland, EURAMET
NMiVSL
Nederlands Meetinstituut  Van Swinden Laboratorium (became VSL in 2009), Netherlands, EURAMET
NPL
National Physical Laboratory, United Kingdom, EURAMET
OMH
Országos Mérésügyi Hivatal; Subsequently MKEH, now BKFH, Hungary, EURAMET
PTB
PhysikalischTechnische Bundesanstalt, Germany, EURAMET
SP
Technical Research Institute of Sweden from 2017 Research Institutes of Sweden AB, Sweden, EURAMET
UME
TÜBITAK Ulusal Metroloji Enstitüsü, Türkiye, EURAMET
This page proposes printout on A4 paper (portrait) of the comparison details (best printed out using a black and white printer).
Please, select items to be printed out, then click on "OK" :
CCM.PK4, EUROMET.M.PK1.a, and EURAMET.M.PK4.2010
MEASURAND : Pressure
NOMINAL VALUE : 3 Pa
The key comparison reference value, p_{R}, is obtained from an unweighted mean of the measurement method means (outliers excluded). A correction is applied to set p_{R} numerically equal to the nominal pressure (see CCM.PK4 Final Report, page 41).
The degree of equivalence of each laboratory with respect to the reference value is given by a pair of terms: D_{i} = (p_{i}  p_{R}) and U_{i}, its expanded uncertainty at a 95% level of confidence, both expressed in Pa.
The degree of equivalence between two laboratories is given by a pair of terms: D_{ij} = D_{i}  D_{j} = (p_{i}  p_{j}) and U_{ij}, its expanded uncertainty at 95% level of confidence, both expressed in Pa.
The results of EUROMET.M.PK1.a are linked to those of CCM.PK4 for 7 pressure nominal values in the range 1 Pa to 1000 Pa, through the common participation of three laboratories: CNRIMGC, PTB, and NPL.
The CNRIMGC, however, does not participate in the linking process in the pressure range 100 Pa to 1000 Pa, because it did not use a Static Expansion System for that range of measurements in CCM.PK4.
The detailed calculation used in the linking process is presented on pages 20 and 21 of the EUROMET.M.PK1.a Final report.
The degrees of equivalence of laboratories having participated in EUROMET.M.PK1.a only (plus those of CNRIMGC in the range 100 Pa to 1000 Pa) relative to the CCM.PK4 key comparison reference values are obtained from the linking process and are given in table 11 on page 22 of the EUROMET.M.PK1.a Final Report.
No pairwise degrees of equivalence are deduced from the measurements carried out in the framework of key comparison EUROMET.M.PK1.a.
PTB provides the link between key comparisons CCM.PK4 and EURAMET.M.PK4.2010 for nominal pressures 3 Pa, 10 Pa, and 30 Pa.
The linkage process is described in Section 11 of the EURAMET.M.PK4.2010 Final Report.

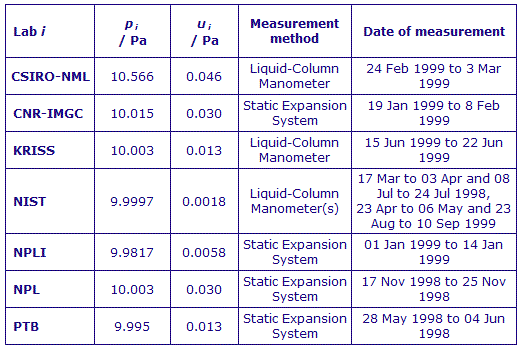

CCM.PK4, EUROMET.M.PK1.a, and EURAMET.M.PK4.2010
MEASURAND : Pressure
NOMINAL VALUE : 10 Pa
The key comparison reference value, p_{R}, is obtained from an unweighted mean of the measurement method means (outliers excluded). A correction is applied to set p_{R} numerically equal to the nominal pressure (see CCM.PK4 Final Report, page 41). The combined standard uncertainty of p_{R} is u_{R} (see CCM.PK4 Final Report, page 42).
The degree of equivalence of each laboratory with respect to the reference value is given by a pair of terms: D_{i} = (p_{i}  p_{R}) and U_{i}, its expanded uncertainty at a 95% level of confidence, both expressed in Pa.
The degree of equivalence between two laboratories is given by a pair of terms: D_{ij} = D_{i}  D_{j} = (p_{i}  p_{j}) and U_{ij}, its expanded uncertainty at 95% level of confidence, both expressed in Pa.
The results of EUROMET.M.PK1.a are linked to those of CCM.PK4 for 7 pressure nominal values in the range 1 Pa to 1000 Pa, through the common participation of three laboratories: CNRIMGC, PTB, and NPL.
The CNRIMGC, however, does not participate in the linking process in the pressure range 100 Pa to 1000 Pa, because it did not use a Static Expansion System for that range of measurements in CCM.PK4.
The detailed calculation used in the linking process in presented on pages 20 and 21 of the EUROMET.M.PK1.a Final report.
The degrees of equivalence of laboratories having participated in EUROMET.M.PK1.a only (plus those of CNRIMGC in the range 100 Pa to 1000 Pa) relative to the CCM.PK4 key comparison reference values are obtained from the linking process and are given in table 11 on page 22 of the EUROMET.M.PK1.a Final Report.
No pairwise degrees of equivalence are deduced from the measurements carried out in the framework of key comparison EUROMET.M.PK1.a.
PTB provides the link between key comparisons CCM.PK4 and EURAMET.M.PK4.2010 for nominal pressures 3 Pa, 10 Pa, and 30 Pa.
The linkage process is described in Section 11 of the EURAMET.M.PK4.2010 Final Report.

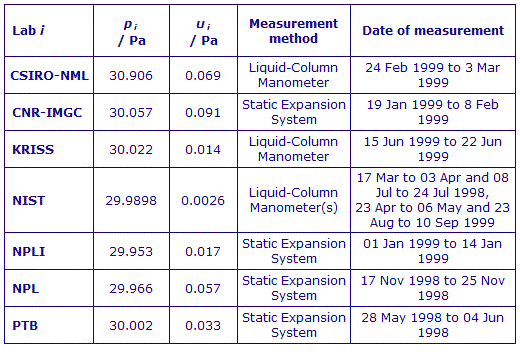

CCM.PK4, EUROMET.M.PK1.a, and EURAMET.M.PK4.2010
MEASURAND : Pressure
NOMINAL VALUE : 30 Pa
The key comparison reference value, p_{R}, is obtained from an unweighted mean of the measurement method means (outliers excluded). A correction is applied to set p_{R} numerically equal to the nominal pressure (see CCM.PK4 Final Report, page 41). The combined standard uncertainty of p_{R} is u_{R} (see CCM.PK4 Final Report, page 42).
The degree of equivalence of each laboratory with respect to the reference value is given by a pair of terms: D_{i} = (p_{i}  p_{R}) and U_{i}, its expanded uncertainty at a 95% level of confidence, both expressed in Pa.
The degree of equivalence between two laboratories is given by a pair of terms: D_{ij} = D_{i}  D_{j} = (p_{i}  p_{j}) and U_{ij}, its expanded uncertainty at 95% level of confidence, both expressed in Pa.
The results of EUROMET.M.PK1.a are linked to those of CCM.PK4 for 7 pressure nominal values in the range 1 Pa to 1000 Pa, through the common participation of three laboratories: CNRIMGC, PTB, and NPL.
The CNRIMGC, however, does not participate in the linking process in the pressure range 100 Pa to 1000 Pa, because it did not use a Static Expansion System for that range of measurements in CCM.PK4.
The detailed calculation used in the linking process in presented on pages 20 and 21 of the EUROMET.M.PK1.a Final report.
The degrees of equivalence of laboratories having participated in EUROMET.M.PK1.a only (plus those of CNRIMGC in the range 100 Pa to 1000 Pa) relative to the CCM.PK4 key comparison reference values are obtained from the linking process and are given in table 11 on page 22 of the EUROMET.M.PK1.a Final Report.
No pairwise degrees of equivalence are deduced from the measurements carried out in the framework of key comparison EUROMET.M.PK1.a.
PTB provides the link between key comparisons CCM.PK4 and EURAMET.M.PK4.2010 for nominal pressures 3 Pa, 10 Pa, and 30 Pa.
The linkage process is described in Section 11 of the EURAMET.M.PK4.2010 Final Report.
CCM.PK4 and EUROMET.M.PK1.a
MEASURAND : Pressure
NOMINAL VALUE : 100 Pa
The key comparison reference value, p_{R}, is obtained from an unweighted mean of the measurement method means (outliers excluded).
The degree of equivalence of each laboratory with respect to the reference value is given by a pair of terms: D_{i} = (p_{i}  p_{R}) and U_{i}, its expanded uncertainty at a 95% level of confidence, both expressed in Pa.
The degree of equivalence between two laboratories is given by a pair of terms: D_{ij} = D_{i}  D_{j} = (p_{i}  p_{j}) and U_{ij}, its expanded uncertainty at 95% level of confidence, both expressed in Pa.
The results of EUROMET.M.PK1.a are linked to those of CCM.PK4 for 7 pressure nominal values in the range 1 Pa to 1000 Pa, through the common participation of three laboratories: CNRIMGC, PTB, and NPL.
The CNRIMGC, however, does not participate in the linking process in the pressure range 100 Pa to 1000 Pa, because it did not use a Static Expansion System for that range of measurements in CCM.PK4.
The detailed calculation used in the linking process in presented on pages 20 and 21 of the EUROMET.M.PK1.a Final report.
The degrees of equivalence of laboratories having participated in EUROMET.M.PK1.a only (plus those of CNRIMGC in the range 100 Pa to 1000 Pa) relative to the CCM.PK4 key comparison reference values are obtained from the linking process and are given in table 11 on page 22 of the EUROMET.M.PK1.a Final Report.
No pairwise degrees of equivalence are deduced from the measurements carried out in the framework of key comparison EUROMET.M.PK1.a.
CCM.PK4 and EUROMET.M.PK1.a
MEASURAND : Pressure
NOMINAL VALUE : 300 Pa
The key comparison reference value, p_{R}, is obtained from an unweighted mean of the measurement method means.
The degree of equivalence of each laboratory with respect to the reference value is given by a pair of terms: D_{i} = (p_{i}  p_{R}) and U_{i}, its expanded uncertainty at a 95% level of confidence, both expressed in Pa.
The degree of equivalence between two laboratories is given by a pair of terms: D_{ij} = D_{i}  D_{j} = (p_{i}  p_{j}) and U_{ij}, its expanded uncertainty at 95% level of confidence, both expressed in Pa.
The results of EUROMET.M.PK1.a are linked to those of CCM.PK4 for 7 pressure nominal values in the range 1 Pa to 1000 Pa, through the common participation of three laboratories: CNRIMGC, PTB, and NPL.
The CNRIMGC, however, does not participate in the linking process in the pressure range 100 Pa to 1000 Pa, because it did not use a Static Expansion System for that range of measurements in CCM.PK4.
The detailed calculation used in the linking process in presented on pages 20 and 21 of the EUROMET.M.PK1.a Final report.
The degrees of equivalence of laboratories having participated in EUROMET.M.PK1.a only (plus those of CNRIMGC in the range 100 Pa to 1000 Pa) relative to the CCM.PK4 key comparison reference values are obtained from the linking process and are given in table 11 on page 22 of the EUROMET.M.PK1.a Final Report.
No pairwise degrees of equivalence are deduced from the measurements carried out in the framework of key comparison EUROMET.M.PK1.a.
CCM.PK4 and EUROMET.M.PK1.a
MEASURAND : Pressure
NOMINAL VALUE : 1000 Pa
The key comparison reference value, p_{R}, is obtained from an unweighted mean of the measurement method means.
The degree of equivalence of each laboratory with respect to the reference value is given by a pair of terms: D_{i} = (p_{i}  p_{R}) and U_{i}, its expanded uncertainty at a 95% level of confidence, both expressed in Pa.
The degree of equivalence between two laboratories is given by a pair of terms: D_{ij} = D_{i}  D_{j} = (p_{i}  p_{j}) and U_{ij}, its expanded uncertainty at 95% level of confidence, both expressed in Pa.
The results of EUROMET.M.PK1.a are linked to those of CCM.PK4 for 7 pressure nominal values in the range 1 Pa to 1000 Pa, through the common participation of three laboratories: CNRIMGC, PTB, and NPL.
The CNRIMGC, however, does not participate in the linking process in the pressure range 100 Pa to 1000 Pa, because it did not use a Static Expansion System for that range of measurements in CCM.PK4.
The detailed calculation used in the linking process in presented on pages 20 and 21 of the EUROMET.M.PK1.a Final report.
The degrees of equivalence of laboratories having participated in EUROMET.M.PK1.a only (plus those of CNRIMGC in the range 100 Pa to 1000 Pa) relative to the CCM.PK4 key comparison reference values are obtained from the linking process and are given in table 11 on page 22 of the EUROMET.M.PK1.a Final Report.
No pairwise degrees of equivalence are deduced from the measurements carried out in the framework of key comparison EUROMET.M.PK1.a.
CCM.PK4, EUROMET.M.PK1.a, EUROMET.M.PK1.b, SIMEUROMET.M.PBK3 and EURAMET.M.PK15.1
MEASURAND Pressure
NOMINAL VALUE 1 Pa
CCM.PK4
The key comparison reference value, x_{R}, is obtained from an unweighted mean of the measurement method means (outliers excluded). A correction is applied to set x_{R} numerically equal to the nominal pressure (see CCM.PK4 Final Report, page 41). The combined standard uncertainty of x_{R} is u_{R} (see CCM.PK4 Final Report, page 42), where
x_{R} = 1 Pa and u_{R} = 0.0008 Pa
The degree of equivalence of each laboratory with respect to the reference value is given by a pair of terms:
D_{i} = (x_{i}  x_{R}) and U_{i}, its expanded uncertainty at a 95% level of confidence (k = 2), both expressed in Pa
Linking EUROMET.M.PK1.a to CCM.PK4
The results of EUROMET.M.PK1.a are linked to those of CCM.PK4 via CNRIMGC, PTB, and NPL; who participated in both vcomparisons.
Linking EUROMET.M.PK1.b to CCM.PK4
The results of EUROMET.M.PK1.b are linked to those of CCM.PK4 via CNRIMGC, PTB, and NPL; who participated in both vcomparisons.
Linking SIMEUROMET.M.PBK3 to CCM.PK4
The results of SIMEUROMET.M.PBK3 are linked to those of CCM.PK4 via PTB / EUROMET.M.PK1.b who participated in these comparisons.
Linking EURAMET.M.PK15.1 to CCM.PK4
The results of EURAMET.M.PK15.1 at 1 Pas are linked to those of CCM.PK4 via PTB who participated in both comparisons

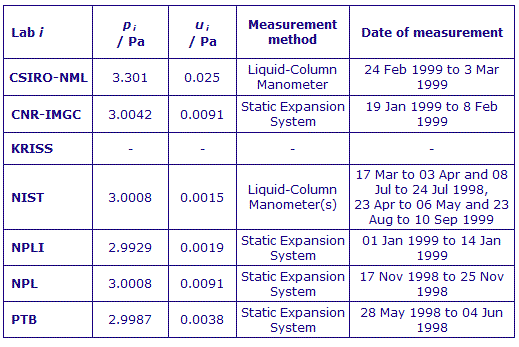

CCM.PK4, EUROMET.M.PK1.a, and EURAMET.M.PK4.2010
MEASURAND : Pressure
NOMINAL PRESSURE : 3 Pa
p_{i} : corrected mean gauge reading obtained by laboratory i
u_{i} : combined standard uncertainty of p_{i}
Further information on p_{i} and u_{i} may be found respectively on page 15 and page 22 of CCM.PK4 Final Report.
The laboratory individual measurements of the participants in EUROMET.M.PK1.a are given in Table 7 and 8 on pages 17, 18, and 19 of the EUROMET.M.PK1.a Final Report.
All measurements used a Static Expansion System and were carried out between September 1998 and April 2004.
The laboratory individual measurements of the participants in the key comparison EURAMET.M.PK4.2010 are given in Table 10.7a on page 23 of the EURAMET.M.PK4.2010 Final Report.
Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO 800001:2009 Annex B Rule B.
CCM.PK4, EUROMET.M.PK1.a, and EURAMET.M.PK4.2010
MEASURAND : Pressure
NOMINAL PRESSURE : 10 Pa
p_{i} : corrected mean gauge reading obtained by laboratory i
u_{i} : combined standard uncertainty of p_{i}
Further information on p_{i} and u_{i} may be found respectively on page 15 and page 22 of CCM.PK4 Final Report.
The laboratory individual measurements of the participants in EUROMET.M.PK1.a are given in Table 7 and 8 on pages 17, 18, and 19 of the EUROMET.M.PK1.a Final Report.
All measurements used a Static Expansion System and were carried out between September 1998 and April 2004.
The laboratory individual measurements of the participants in the key comparison EURAMET.M.PK4.2010 are given in Table 10.7a on page 23 of the EURAMET.M.PK4.2010 Final Report.
Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO 800001:2009 Annex B Rule B.
CCM.PK4, EUROMET.M.PK1.a, and EURAMET.M.PK4.2010
MEASURAND : Pressure
NOMINAL PRESSURE : 30 Pa
p_{i} : corrected mean gauge reading obtained by laboratory i
u_{i} : combined standard uncertainty of p_{i}
Further information on p_{i} and u_{i} may be found respectively on page 15 and page 22 of CCM.PK4 Final Report.
The laboratory individual measurements of the participants in EUROMET.M.PK1.a are given in Table 7 and 8 on pages 17, 18, and 19 of the EUROMET.M.PK1.a Final Report.
All measurements used a Static Expansion System and were carried out between September 1998 and April 2004.
The laboratory individual measurements of the participants in the key comparison EURAMET.M.PK4.2010 are given in Table 10.7a on page 23 of the EURAMET.M.PK4.2010 Final Report.
Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO 800001:2009 Annex B Rule B.
CCM.PK4 and EUROMET.M.PK1.a
MEASURAND : Pressure
NOMINAL PRESSURE : 100 Pa
p_{i} : corrected mean gauge reading obtained by laboratory i
u_{i} : combined standard uncertainty of p_{i}
Further information on p_{i} and u_{i} may be found respectively on page 15 and page 22 of CCM.PK4 Final Report.
Lab i  p_{i} / Pa
u_{i} / Pa
Measurement method
Date of
CSIRONML  100.831  0.093
LiquidColumn Manometer
24 Feb to 03 Mar 1999
CNRIMGC  100.176  0.051
LiquidColumn Manometer
19 Jan to 08 Feb 1999
KRISS  100.036  0.021
LiquidColumn Manometer
15 Jun to 22 Jun 1999
NIST  99.9909  0.0053
LiquidColumn Manometer(s)
17 Mar to 03 Apr and 08 Jul to 24 Jul 1998, 23 Apr to 06 May and 23 Aug to 10 Sep 1999
NPLI  99.874  0.055
Static Expansion System
01 Jan to 14 Jan 1999
NPL  99.92  0.18
Static Expansion System
17 Nov to 25 Nov 1998
PTB  100.00  0.11
Static Expansion System
28 May to 04 Jun 1998
The laboratory individual measurements of the participants in EUROMET.M.PK1.a are given in Table 7 and 8 on pages 17, 18, and 19 of the EUROMET.M.PK1.a Final Report.
All measurements used a Static Expansion System and were carried out between September 1998 and April 2004.
Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO 800001:2009 Annex B Rule B.
CCM.PK4 and EUROMET.M.PK1.a
MEASURAND : Pressure
NOMINAL PRESSURE : 300 Pa
p_{i} : corrected mean gauge reading obtained by laboratory i
u_{i} : combined standard uncertainty of p_{i}
Further information on p_{i} and u_{i} may be found respectively on page 15 and page 22 of CCM.PK4 Final Report.
Lab i  p_{i} / Pa
u_{i} / Pa
Measurement method
Date of
CSIRONML  300.57  0.16
LiquidColumn Manometer
24 Feb to 03 Mar 1999
CNRIMGC  300.132  0.060
LiquidColumn Manometer
19 Jan to 08 Feb 1999
KRISS  300.010  0.023
LiquidColumn Manometer
15 Jun to 22 Jun 1999
NIST  299.9871  0.0054
LiquidColumn Manometer(s)
17 Mar to 03 Apr and 08 Jul to 24 Jul 1998, 23 Apr to 06 May and 23 Aug to 10 Sep 1999
NPLI  299.76  0.16
Static Expansion System
01 Jan to 14 Jan 1999
NPL  299.80  0.54
Static Expansion System
17 Nov to 25 Nov 1998
PTB  299.92  0.32
Static Expansion System
28 May to 04 Jun 1998
The laboratory individual measurements of the participants in EUROMET.M.PK1.a are given in Table 7 and 8 on pages 17, 18, and 19 of the EUROMET.M.PK1.a Final Report.
All measurements used a Static Expansion System and were carried out between September 1998 and April 2004.
Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO 800001:2009 Annex B Rule B.
CCM.PK4 and EUROMET.M.PK1.a
MEASURAND : Pressure
NOMINAL PRESSURE : 1000 Pa
p_{i} : corrected mean gauge reading obtained by laboratory i
u_{i} : combined standard uncertainty of p_{i}
Further information on p_{i} and u_{i} may be found respectively on page 15 and page 22 of CCM.PK4 Final Report.
Lab i  p_{i} / Pa
u_{i} / Pa
Measurement method
Date of
CSIRONML  1000.33  0.16
LiquidColumn Manometer
24 Feb to 03 Mar 1999
CNRIMGC  1000.178  0.061
LiquidColumn Manometer
19 Jan to 08 Feb 1999
KRISS  1000.056  0.055
LiquidColumn Manometer
15 Jun to 22 Jun 1999
NIST  1000.0308  0.0059
LiquidColumn Manometer(s)
17 Mar to 03 Apr and 08 Jul to 24 Jul 1998, 23 Apr to 06 May and 23 Aug to 10 Sep 1999
NPLI  999.12  0.74
Static Expansion System
01 Jan to 14 Jan 1999
NPL  1000.7  1.8
Static Expansion System
17 Nov to 25 Nov 1998
PTB  999.7  1.1
Static Expansion System
28 May to 04 Jun 1998
The laboratory individual measurements of the participants in EUROMET.M.PK1.a are given in Table 7 and 8 on pages 17, 18, and 19 of the EUROMET.M.PK1.a Final Report.
All measurements used a Static Expansion System and were carried out between September 1998 and April 2004.
Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO 800001:2009 Annex B Rule B.
CCM.PK4, EUROMET.M.PK1.a, EUROMET.M.PK1.b, SIMEUROMET.M.PBK3 and EURAMET.M.PK15.1
MEASURAND Pressure
NOMINAL VALUE 1 Pa
The initial measurement results are available in the Final Reports.
