CCM.M-K5, COOMET.M.M-K5 and SIM.M.M-K5

MEASURAND : Mass
NOMINAL VALUE : 2 kg
TRANSFER STANDARDs : 2 kg-Jx for CCM.M-K5, and 2 kg « 5 » and 2 kg None for COOMET.M.M-K5, 2 kg (SN 1867) for SIM.M.M-K5

Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in µg

Red diamonds: CCM.M-K5 participants (2 kg-Jx standard)
Blue squares: COOMET.M.M-K5 participants (2 kg « 5 » standard)
Green triangles: COOMET.M.M-K5 participants (2 kg None standard)
Orange crossed squares: SIM.M.M-K5 participants (2 kg SN 1867 standard)

print out

MEASURAND : Mass
NOMINAL VALUE : 2 kg
TRANSFER STANDARD : Jy

Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in µg

print out

MEASURAND : Mass
NOMINAL VALUE : 200 g
TRANSFER STANDARD : Jx

Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in µg

print out

CCM.M-K5, COOMET.M.M-K5 and SIM.M.M-K5

MEASURAND : Mass
NOMINAL VALUE : 200 g
TRANSFER STANDARDs : 200 g-Jy for CCM.M-K5, and 200 g « * » and 200 g None for COOMET.M.M-K5, 200 g (SN 1865) for SIM.M.M-K5

Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in µg

Red diamonds: CCM.M-K5 participants (200 g-Jy standard)
Blue squares: COOMET.M.M-K5 participants (200 g « * » standard)
Green triangles: COOMET.M.M-K5 participants (200 g None standard)
Orange crossed squares: SIM.M.M-K5 participants (200 g SN 1865 standard)

print out

MEASURAND : Mass
NOMINAL VALUE : 50 g
TRANSFER STANDARD : Jx

Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in µg

print out

CCM.M-K5 and SIM.M.M-K5

MEASURAND : Mass
NOMINAL VALUE : 50 g
TRANSFER STANDARDs : 50 g-Jy for CCM.M-K5, 50 g (SN 1864) for SIM.M.M-K5

Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in µg

Red diamonds: CCM.M-K5 participants (50 g-Jy standard)
Orange crossed squares: SIM.M.M-K5 participants (50 g SN 1864 standard)

print out

MEASURAND : Mass
NOMINAL VALUE : 1 g
TRANSFER STANDARD : Jx

Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in µg

print out

CCM.M-K5, COOMET.M.M-K5 and SIM.M.M-K5

MEASURAND : Mass
NOMINAL VALUE : 1 g
TRANSFER STANDARDs : 1 g-Jy for CCM.M-K5, 1 g « C » and 1 g « K » for COOMET.M.M-K5, 1 g (SN 1863) for SIM.M.M-K5

Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in µg

Red diamonds: CCM.M-K5 participants (1 g-Jy standard)
Blue squares: COOMET.M.M-K5 participants (1 g C standard)
Green triangles: COOMET.M.M-K5 participants (1 g K standard)
Orange crossed squares: SIM.M.M-K5 participants (1 g SN 1863 standard)

print out

MEASURAND : Mass
NOMINAL VALUE : 200 mg
TRANSFER STANDARD : Jx

Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in µg

print out

CCM.M-K5, COOMET.M.M-K5 and SIM.M.M-K5

MEASURAND : Mass
NOMINAL VALUE : 200 mg
TRANSFER STANDARDs : 200 mg-Jy for CCM.M-K5, 200 mg « * » and 200 mg None for COOMET.M.M-K5, 200 mg (SN S/N) for SIM.M.M-K5

Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in µg

Red diamonds: CCM.M-K5 participants (200 mg-Jy standard)
Blue squares: COOMET.M.M-K5 participants (200 mg « * » standard)
Green triangles: COOMET.M.M-K5 participants (200 mg None standard)
Orange crossed squares: SIM.M.M-K5 participants (200 mg SN S/N standard)

Comparison
Comparison close
Results
print out

CCM.M-K5, COOMET.M.M-K5 and SIM.M.M-K5

MEASURAND : Mass
NOMINAL VALUE : 2 kg
TRANSFER STANDARDs : 2 kg-Jx for CCM.M-K5, and 2 kg « 5 » and 2 kg None for COOMET.M.M-K5, 2 kg (SN 1867) for SIM.M.M-K5

Results are presented under A4 printable format in Summary Results (PDF file).

print out

MEASURAND : Mass
NOMINAL VALUE : 2 kg
TRANSFER STANDARD : Jy


Lab iDiUi
 / µg/ µg
KRISS-17088
NMIA100300
NMIJ-45128
NPLI60116
NIM7595
CENAM0137
INMETRO691201
NRC-9782
NIST-9587
VSL33152
VNIIM8371
GUM823365
INRIM-3784
METAS13146
NPL-53101
PTB-3284
CEM-4796
LNE-3210
SMU27118

Results are presented under A4 printable format in Summary Results (PDF file).

Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO 80000-1:2009 Annex B Rule B.

print out

MEASURAND : Mass
NOMINAL VALUE : 200 g
TRANSFER STANDARD : Jx


Lab iDiUi
 / µg/ µg
KRISS-21.410.1
NMIA-1.419.0
NMIJ-9.814.6
NPLI-17.432.6
NIM5.611.8
CENAM0.09.8
INMETRO1.0120.1
NRC-5.29.9
NIST-0.712.3
VSL-2.124.7
VNIIM24.99.8
GUM39.940.4
INRIM8.69.3
METAS15.314.2
NPL7.29.4
PTB-1.58.1
CEM0.612.6
LNE-1.315.2
SMU22.214.2

Results are presented under A4 printable format in Summary Results (PDF file).

Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO 80000-1:2009 Annex B Rule B.

print out

CCM.M-K5, COOMET.M.M-K5 and SIM.M.M-K5

MEASURAND : Mass
NOMINAL VALUE : 200 g
TRANSFER STANDARDs : 200 g-Jy for CCM.M-K5, and 200 g « * » and 200 g None for COOMET.M.M-K5, 200 g (SN 1865) for SIM.M.M-K5

Results are presented under A4 printable format in Summary Results (PDF file).

print out

MEASURAND : Mass
NOMINAL VALUE : 50 g
TRANSFER STANDARD : Jx


Lab iDiUi
 / µg/ µg
KRISS 5.3
NMIA-0.87.8
NMIJ4.66.2
NPLI9.214.4
NIM2.28.7
CENAM-0.66.2
INMETRO1.330.1
NRC9.310.9
NIST-2.88.2
VSL10.86.6
VNIIM-47.214.3
GUM0.822.2
INRIM-1.84.9
METAS9.44.4
NPL-3.74.7
PTB-1.13.6
CEM-1.75.0
LNE0.09.6
SMU5.36.4

Results are presented under A4 printable format in Summary Results (PDF file).

Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO 80000-1:2009 Annex B Rule B.

print out

CCM.M-K5 and SIM.M.M-K5

MEASURAND : Mass
NOMINAL VALUE : 50 g
TRANSFER STANDARDs : 50 g-Jy for CCM.M-K5, 50 g (SN 1864) for SIM.M.M-K5

Results are presented under A4 printable format in Summary Results (PDF file).

print out

MEASURAND : Mass
NOMINAL VALUE : 1 g
TRANSFER STANDARD : Jx


Lab iDiUi
 / µg/ µg
KRISS0.201.05
NMIA0.001.18
NMIJ0.011.32
NPLI1.102.18
NIM0.001.65
CENAM-0.551.60
INMETRO0.851.43
NRC1.051.69
NIST-0.721.64
VSL-0.892.15
VNIIM-2.291.78
GUM0.112.15
INRIM-1.491.27
METAS-0.401.66
NPL-0.651.23
PTB0.751.23
CEM-0.051.55
LNE1.652.31
SMU1.451.98

Results are presented under A4 printable format in Summary Results (PDF file).

Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO 80000-1:2009 Annex B Rule B.

print out

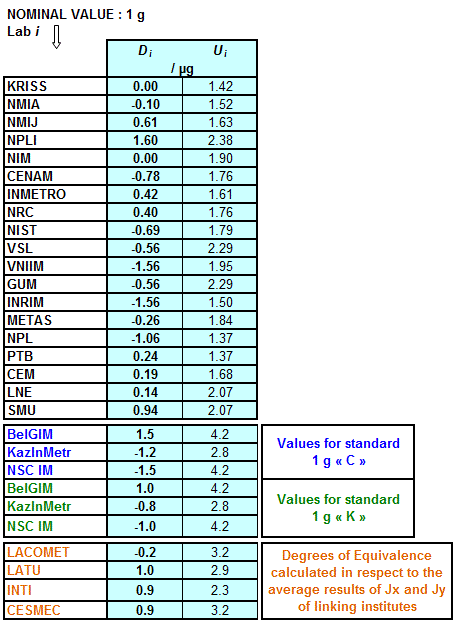

CCM.M-K5, COOMET.M.M-K5 and SIM.M.M-K5

MEASURAND : Mass
NOMINAL VALUE : 1 g
TRANSFER STANDARDs : 1 g-Jy for CCM.M-K5, 1 g « C » and 1 g « K » for COOMET.M.M-K5, 1 g (SN 1863) for SIM.M.M-K5

Results are presented under A4 printable format in Summary Results (PDF file).

print out

MEASURAND : Mass
NOMINAL VALUE : 200 mg
TRANSFER STANDARD : Jx


Lab iDiUi
 / µg/ µg
KRISS1.680.60
NMIA-0.520.79
NMIJ1.480.79
NPLI2.782.07
NIM-0.421.13
CENAM-0.460.80
INMETRO0.341.38
NRC0.041.93
NIST-0.660.79
VSL0.720.96
VNIIM-1.381.13
GUM0.221.31
INRIM-0.880.96
METAS-0.330.83
NPL-1.502.02
PTB0.402.02
CEM-0.472.03
LNE0.002.32
SMU0.502.43

Results are presented under A4 printable format in Summary Results (PDF file).

Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO 80000-1:2009 Annex B Rule B.

print out

CCM.M-K5, COOMET.M.M-K5 and SIM.M.M-K5

MEASURAND : Mass
NOMINAL VALUE : 200 mg
TRANSFER STANDARDs : 200 mg-Jy for CCM.M-K5, 200 mg « * » and 200 mg None for COOMET.M.M-K5, 200 mg (SN S/N) for SIM.M.M-K5

Results are presented under A4 printable format in Summary Results (PDF file).

Comparison
Comparison close
CC comparison
Linked comparison
CCM.M-K5
print out
Metrology area, Sub-field Mass and related quantities, Mass Standards
Description Comparison of mass standards
Time of measurements 2000 - 2003
Status Approved for equivalence
Final Reports of the comparisons
CCM.M-K5 Final Report, 2011, 40 pages
Metrologia, 2011, 48, Tech. Suppl., 07008
Measurand Mass: 200 mg, 1 g, 50 g, 200 g and 2 kg
Transfer device Non-magnetic stainless steel standards
Comparison type Key Comparison
Consultative Committee CCM (Consultative Committee for Mass and Related Quantities)
Conducted by CCM (Consultative Committee for Mass and Related Quantities)
Comments

Results published on 11 May 2011

COOMET.M.M-K5 and SIM.M.M-K5 results are linked to those of CCM.M-K5

Mass standards

Two set of standards (Jx and Jy) have been used in the CCM.M-K5 comparison. Details on the transfer standards are given in Section 3 of the Final Report, and more specifically in Table 1 of this report.
Pilot institute NMIJ AIST
National Metrology Institute of Japan
Japan
Contact person A. Ooiwa

+81 298 54 4024
First Name Last Name
wwww@ww.www +356719836 Institute 1 Institute 1 Khmelnitskiy
Pilot laboratory
NMIJ AIST

National Metrology Institute of Japan, Japan, APMP

CEM

Centro Español de Metrologia, Spain, EURAMET

CENAM

Centro Nacional de Metrologia, Mexico, SIM

GUM

Glowny Urzad Miar, Central Office of Measures, Poland, EURAMET

INMETRO

Instituto Nacional de Metrologia, Qualidade e Tecnologia, Brazil, SIM

INRIM

Istituto Nazionale di Ricerca Metrologica, Italy, EURAMET

KRISS

Korea Research Institute of Standards and Science, Korea, Republic of, APMP

LNE

Laboratoire national de métrologie et d'essais, France, EURAMET

METAS

Federal Institute of Metrology, Switzerland, EURAMET

NIM

National Institute of Metrology, China, APMP

NIST

National Institute of Standards and Technology, United States, SIM

NMIA

National Measurement Institute, Australia, Australia, APMP

NPL

National Physical Laboratory, United Kingdom, EURAMET

NPLI

CSIR National Physical Laboratory of India, India, APMP

NRC

National Research Council, Canada, SIM

PTB

Physikalisch-Technische Bundesanstalt, Germany, EURAMET

SMU

Slovensky Metrologicky Ustav, Slovakia, EURAMET

VNIIM

D.I. Mendeleyev Institute for Metrology, Rosstandart, Russian Federation, COOMET

VSL

VSL, Netherlands, EURAMET

Comparison
Comparison close
Results
print out

CCM.M-K5, COOMET.M.M-K5 and SIM.M.M-K5

MEASURAND : Mass
NOMINAL VALUE : 2 kg
TRANSFER STANDARDs : 2 kg-Jx for CCM.M-K5, and 2 kg « 5 » and 2 kg None for COOMET.M.M-K5, 2 kg (SN 1867) for SIM.M.M-K5

  • Key comparison CCM.M-K5

The comparison reference value is computed as a median as explained in Section 5 of the Final Report. The uncertainty of the key comparison reference value is computed as given in equations 7 and 8 of the report and is equal to 37 µg for nominal mass of 2 kg and transfer standard Jx.
The degree of equivalence of each laboratory i with respect to the key comparison reference value is given by a pair of terms: Di and Ui, its expanded uncertainty
(k = 2), both expressed in µg, computed as explained in equations 6, 9 and 10 of the report.
No pairwise degree of equivalence is given.
  • Linking COOMET.M.M-K5 to CCM.M-K5

The common participation of VNIIM makes it possible to link the COOMET.M.M-K5 results to those of CCM.M-K5 (see Section 4.3 of the COOMET.M.M-K5 Final Report), using the VNIIM results for the CCM.M-K5 standards 2 kg-Jx, 200 g-Jy, 1 g-Jy and 200 mg-Jy.
In CCM.M-K5, the VNIIM results for the weights with nominal values 50 g were not consistent with the key comparison reference values. Thus the results of measurements for this value have been excluded from the computation of the degrees of equivalence of COOMET.M.M-K5 participants.

Pair-wise degrees of equivalence involving COOMET.M.M-K5 participants (only) have not been computed.

  • Linking SIM.M.M-K5 to CCM.M-K5

The linking was made via the CENAM, INMETRO and the NRC that all participated in the CCM.M-K5 comparison. The Degrees of Equivalence for SIM.M.M-K5 were evaluated against the average results of CENAM, INMETRO and the NRC obtained for the Jx and Jy mass standards in the CCM.M-K5 comparison. The DoE have been reproduced in the tables and graphs for Jx (2 kg) and Jy (200 g, 50 g, 1 g, 200mg)

Pair-wise degrees of equivalence involving SIM.M.M-K5 participants (only) have not been computed.

print out

MEASURAND : Mass
NOMINAL VALUE : 2 kg
TRANSFER STANDARD : Jy

The comparison reference value is computed as a median as explained in Section 5 of the Final Report. The uncertainty of the key comparison reference value is computed as given in equations 7 and 8 of the report: 48 µg for nominal mass of 2 kg and transfer standard Jy.

The degree of equivalence of each laboratory i with respect to the key comparison reference value is given by a pair of terms: Di and Ui, its expanded uncertainty
(k = 2), both expressed in µg, computed as explained in equations 6, 9 and 10 of the report.

The degree of equivalence between two laboratories i and j is given by a pair of terms: Dij = Di - Dj and Uij, its expanded uncertainty (k = 2), both expressed in µg, computed as explained in equations 11, 12 and 13 of the report.
print out

MEASURAND : Mass
NOMINAL VALUE : 200 g
TRANSFER STANDARD : Jx

The comparison reference value is computed as a median as explained in Section 5 of the Final Report. The uncertainty of the key comparison reference value is computed as given in equations 7 and 8 of the report: 5.0 µg for nominal mass of 200 g and transfer standard Jx.

The degree of equivalence of each laboratory i with respect to the key comparison reference value is given by a pair of terms: Di and Ui, its expanded uncertainty
(k = 2), both expressed in µg, computed as explained in equations 6, 9 and 10 of the report.

The degree of equivalence between two laboratories i and j is given by a pair of terms: Dij = Di - Dj and Uij, its expanded uncertainty (k = 2), both expressed in µg, computed as explained in equations 11, 12 and 13 of the report.
print out

CCM.M-K5, COOMET.M.M-K5 and SIM.M.M-K5

MEASURAND : Mass
NOMINAL VALUE : 200 g
TRANSFER STANDARDs : 200 g-Jy for CCM.M-K5, and 200 g « * » and 200 g None for COOMET.M.M-K5, 200 g (SN 1865) for SIM.M.M-K5

  • Key comparison CCM.M-K5

The comparison reference value is computed as a median as explained in Section 5 of the Final Report. The uncertainty of the key comparison reference value is computed as given in equations 7 and 8 of the report and is equal to 3.9 µg for nominal mass of 200 g and transfer standard Jy.
The degree of equivalence of each laboratory i with respect to the key comparison reference value is given by a pair of terms: Di and Ui, its expanded uncertainty
(k = 2), both expressed in µg, computed as explained in equations 6, 9 and 10 of the report.
No pairwise degree of equivalence is given.
  • Linking COOMET.M.M-K5 to CCM.M-K5

The common participation of VNIIM makes it possible to link the COOMET.M.M-K5 results to those of CCM.M-K5 (see Section 4.3 of the COOMET.M.M-K5 Final Report), using the VNIIM results for the CCM.M-K5 standards 2 kg-Jx, 200 g-Jy, 1 g-Jy and 200 mg-Jy.
In CCM.M-K5, the VNIIM results for the weights with nominal values 50 g were not consistent with the key comparison reference values. Thus the results of measurements for this value have been excluded from the computation of the degrees of equivalence of COOMET.M.M-K5 participants.

Pair-wise degrees of equivalence involving COOMET.M.M-K5 participants (only) have not been computed.

  • Linking SIM.M.M-K5 to CCM.M-K5

The linking was made via the CENAM, INMETRO and the NRC that all participated in the CCM.M-K5 comparison. The Degrees of Equivalence for SIM.M.M-K5 were evaluated against the average results of CENAM, INMETRO and the NRC obtained for the Jx and Jy mass standards in the CCM.M-K5 comparison. The DoE have been reproduced in the tables and graphs for Jx (2 kg) and Jy (200 g, 50 g, 1 g, 200mg)

Pair-wise degrees of equivalence involving SIM.M.M-K5 participants (only) have not been computed.

print out

MEASURAND : Mass
NOMINAL VALUE : 50 g
TRANSFER STANDARD : Jx

The comparison reference value is computed as a median as explained in Section 5 of the Final Report. The uncertainty of the key comparison reference value is computed as given in equations 7 and 8 of the report: 2.5 µg for nominal mass of 50 g and transfer standard Jx.

The degree of equivalence of each laboratory i with respect to the key comparison reference value is given by a pair of terms: Di and Ui, its expanded uncertainty
(k = 2), both expressed in µg, computed as explained in equations 6, 9 and 10 of the report.

The degree of equivalence between two laboratories i and j is given by a pair of terms: Dij = Di - Dj and Uij, its expanded uncertainty (k = 2), both expressed in µg, computed as explained in equations 11, 12 and 13 of the report.
print out

CCM.M-K5 and SIM.M.M-K5

MEASURAND : Mass
NOMINAL VALUE : 50 g
TRANSFER STANDARDs : 50 g-Jy for CCM.M-K5, 50 g (SN 1864) for SIM.M.M-K5



The comparison reference value is computed as a median as explained in Section 5 of the Final Report. The uncertainty of the key comparison reference value is computed as given in equations 7 and 8 of the report: 2.1 µg for nominal mass of 50 g and transfer standard Jy.
The degree of equivalence of each laboratory i with respect to the key comparison reference value is given by a pair of terms: Di and Ui, its expanded uncertainty
(k = 2), both expressed in µg, computed as explained in equations 6, 9 and 10 of the report.
No pairwise degree of equivalence is given.



  • Linking SIM.M.M-K5 to CCM.M-K5

The linking was made via the CENAM, INMETRO and the NRC that all participated in the CCM.M-K5 comparison. The Degrees of Equivalence for SIM.M.M-K5 were evaluated against the average results of CENAM, INMETRO and the NRC obtained for the Jx and Jy mass standards in the CCM.M-K5 comparison. The DoE have been reproduced in the tables and graphs for Jx (2 kg) and Jy (200 g, 50 g, 1 g, 200mg)

Pair-wise degrees of equivalence involving SIM.M.M-K5 participants (only) have not been computed.

print out

MEASURAND : Mass
NOMINAL VALUE : 1 g
TRANSFER STANDARD : Jx

The comparison reference value is computed as a median as explained in Section 5 of the Final Report. The uncertainty of the key comparison reference value is computed as given in equations 7 and 8 of the report: 0.65 µg for nominal mass of 1 g and transfer standard Jx.

The degree of equivalence of each laboratory i with respect to the key comparison reference value is given by a pair of terms: Di and Ui, its expanded uncertainty
(k = 2), both expressed in µg, computed as explained in equations 6, 9 and 10 of the report.

The degree of equivalence between two laboratories i and j is given by a pair of terms: Dij = Di - Dj and Uij, its expanded uncertainty (k = 2), both expressed in µg, computed as explained in equations 11, 12 and 13 of the report.
print out

CCM.M-K5, COOMET.M.M-K5 and SIM.M.M-K5

MEASURAND : Mass
NOMINAL VALUE : 1 g
TRANSFER STANDARDs : 1 g-Jy for CCM.M-K5, 1 g « C » and 1 g « K » for COOMET.M.M-K5, 1 g (SN 1863) for SIM.M.M-K5

  • Key comparison CCM.M-K5

The comparison reference value is computed as a median as explained in Section 5 of the Final Report. The uncertainty of the key comparison reference value is computed as given in equations 7 and 8 of the report and is equal to 0.50 µg for nominal mass of 1 g and transfer standard Jy.
The degree of equivalence of each laboratory i with respect to the key comparison reference value is given by a pair of terms: Di and Ui, its expanded uncertainty
(k = 2), both expressed in µg, computed as explained in equations 6, 9 and 10 of the report.
No pairwise degree of equivalence is given.
  • Linking COOMET.M.M-K5 to CCM.M-K5

The common participation of VNIIM makes it possible to link the COOMET.M.M-K5 results to those of CCM.M-K5 (see Section 4.3 of the COOMET.M.M-K5 Final Report), using the VNIIM results for the CCM.M-K5 standards 2 kg-Jx, 200 g-Jy, 1 g-Jy and 200 mg-Jy.
In CCM.M-K5, the VNIIM results for the weights with nominal values 50 g were not consistent with the key comparison reference values. Thus the results of measurements for this value have been excluded from the computation of the degrees of equivalence of COOMET.M.M-K5 participants.

Pair-wise degrees of equivalence involving COOMET.M.M-K5 participants (only) have not been computed.

  • Linking SIM.M.M-K5 to CCM.M-K5

The linking was made via the CENAM, INMETRO and the NRC that all participated in the CCM.M-K5 comparison. The Degrees of Equivalence for SIM.M.M-K5 were evaluated against the average results of CENAM, INMETRO and the NRC obtained for the Jx and Jy mass standards in the CCM.M-K5 comparison. The DoE have been reproduced in the tables and graphs for Jx (2 kg) and Jy (200 g, 50 g, 1 g, 200mg)

Pair-wise degrees of equivalence involving SIM.M.M-K5 participants (only) have not been computed.

print out

MEASURAND : Mass
NOMINAL VALUE : 200 mg
TRANSFER STANDARD : Jx

The comparison reference value is computed as a median as explained in Section 5 of the Final Report. The uncertainty of the key comparison reference value is computed as given in equations 7 and 8 of the report: 0.45 µg for nominal mass of 200 mg and transfer standard Jx.

The degree of equivalence of each laboratory i with respect to the key comparison reference value is given by a pair of terms: Di and Ui, its expanded uncertainty
(k = 2), both expressed in µg, computed as explained in equations 6, 9 and 10 of the report.

The degree of equivalence between two laboratories i and j is given by a pair of terms: Dij = Di - Dj and Uij, its expanded uncertainty (k = 2), both expressed in µg, computed as explained in equations 11, 12 and 13 of the report.
print out

CCM.M-K5, COOMET.M.M-K5 and SIM.M.M-K5

MEASURAND : Mass
NOMINAL VALUE : 200 mg
TRANSFER STANDARDs : 200 mg-Jy for CCM.M-K5, 200 mg « * » and 200 mg None for COOMET.M.M-K5, 200 mg (SN S/N) for SIM.M.M-K5

  • Key comparison CCM.M-K5

The comparison reference value is computed as a median as explained in Section 5 of the Final Report. The uncertainty of the key comparison reference value is computed as given in equations 7 and 8 of the report and is equal to 0.51 µg for nominal mass of 200 mg and transfer standard Jy.
The degree of equivalence of each laboratory i with respect to the key comparison reference value is given by a pair of terms: Di and Ui, its expanded uncertainty
(k = 2), both expressed in µg, computed as explained in equations 6, 9 and 10 of the report.
No pairwise degree of equivalence is given.
  • Linking COOMET.M.M-K5 to CCM.M-K5

The common participation of VNIIM makes it possible to link the COOMET.M.M-K5 results to those of CCM.M-K5 (see Section 4.3 of the COOMET.M.M-K5 Final Report), using the VNIIM results for the CCM.M-K5 standards 2 kg-Jx, 200 g-Jy, 1 g-Jy and 200 mg-Jy.
In CCM.M-K5, the VNIIM results for the weights with nominal values 50 g were not consistent with the key comparison reference values. Thus the results of measurements for this value have been excluded from the computation of the degrees of equivalence of COOMET.M.M-K5 participants.

Pair-wise degrees of equivalence involving COOMET.M.M-K5 participants (only) have not been computed.

  • Linking SIM.M.M-K5 to CCM.M-K5

The linking was made via the CENAM, INMETRO and the NRC that all participated in the CCM.M-K5 comparison. The Degrees of Equivalence for SIM.M.M-K5 were evaluated against the average results of CENAM, INMETRO and the NRC obtained for the Jx and Jy mass standards in the CCM.M-K5 comparison. The DoE have been reproduced in the tables and graphs for Jx (2 kg) and Jy (200 g, 50 g, 1 g, 200mg)

Pair-wise degrees of equivalence involving SIM.M.M-K5 participants (only) have not been computed.

Comparison
Comparison close
Results
print out

CCM.M-K5, COOMET.M.M-K5 and SIM.M.M-K5

  • Key comparison CCM.M-K5

MEASURAND : Mass
NOMINAL VALUE : 2 kg
TRANSFER STANDARD : Jx

Details on the transfer standards used in key comparison CCM.M-K5 are given in Section 3 of the Final Report, and more specifically in Table 1 of this report.

The summary of the results reported by the participants and the estimation of the results are given in Sections 4 and 5 of the Final Report, respectively.

  • Key comparison COOMET.M.M-K5

MEASURAND : Mass
NOMINAL VALUE : 2 kg
TRANSFER STANDARDS : 2 kg « 5 » and 2 kg None

The letters and signs used to specify the standards are explained in Section 3.1 of the COOMET.M.M-K5 Final Report, and the results reported by the participants are summarized in Tables 4 and 5 on page 5 of the same Report.

  • Key comparison SIM.M.M-K5

MEASURAND : Mass
NOMINAL VALUE : 2 kg
TRANSFER STANDARDS : 2 kg (SN 1867)

The results reported by the participants are summarized at pp. 4 to 7 of the SIM.M.M-K5 Final Report.

print out

MEASURAND : Mass
NOMINAL VALUE : 2 kg
TRANSFER STANDARD : Jy

Details on the transfer standards used in key comparison CCM.M-K5 are given in Section 3 of the Final Report, and more specifically in Table 1 of this report.

The summary of the results reported by the participants and the estimation of the results are given in Sections 4 and 5 of the Final Report, respectively.

print out

MEASURAND : Mass
NOMINAL VALUE : 200 g
TRANSFER STANDARD : Jx

Details on the transfer standards used in key comparison CCM.M-K5 are given in Section 3 of the Final Report, and more specifically in Table 1 of this report.

The summary of the results reported by the participants and the estimation of the results are given in Sections 4 and 5 of the Final Report, respectively.

print out

CCM.M-K5, COOMET.M.M-K5 and SIM.M.M-K5

  • Key comparison CCM.M-K5

MEASURAND : Mass
NOMINAL VALUE : 200 g
TRANSFER STANDARD : Jy

Details on the transfer standards used in key comparison CCM.M-K5 are given in Section 3 of the Final Report, and more specifically in Table 1 of this report.

The summary of the results reported by the participants and the estimation of the results are given in Sections 4 and 5 of the Final Report, respectively.

  • Key comparison COOMET.M.M-K5

MEASURAND : Mass
NOMINAL VALUE : 200 g
TRANSFER STANDARDS : 200 g « * » and 200 g None

The letters and signs used to specify the standards are explained in Section 3.1 of the COOMET.M.M-K5 Final Report, and the results reported by the participants are summarized in Tables 4 and 5 on page 5 of the same Report.

  • Key comparison SIM.M.M-K5

MEASURAND : Mass
NOMINAL VALUE : 200 g
TRANSFER STANDARDS : 200 g (SN 1865)

The results reported by the participants are summarized at pp. 4 to 7 of the SIM.M.M-K5 Final Report.

print out

MEASURAND : Mass
NOMINAL VALUE : 50 g
TRANSFER STANDARD : Jx

Details on the transfer standards used in key comparison CCM.M-K5 are given in Section 3 of the Final Report, and more specifically in Table 1 of this report.

The summary of the results reported by the participants and the estimation of the results are given in Sections 4 and 5 of the Final Report, respectively.

print out

CCM.M-K5 and SIM.M.M-K5

  • Key comparison CCM.M-K5

MEASURAND : Mass
NOMINAL VALUE : 50 g
TRANSFER STANDARD : Jy

Details on the transfer standards used in key comparison CCM.M-K5 are given in Section 3 of the Final Report, and more specifically in Table 1 of this report.

The summary of the results reported by the participants and the estimation of the results are given in Sections 4 and 5 of the Final Report, respectively.

  • Key comparison SIM.M.M-K5

MEASURAND : Mass
NOMINAL VALUE : 50 g
TRANSFER STANDARDS : 50 g (SN 1864)

The results reported by the participants are summarized at pp. 4 to 7 of the SIM.M.M-K5 Final Report.

print out

MEASURAND : Mass
NOMINAL VALUE : 1 g
TRANSFER STANDARD : Jx

Details on the transfer standards used in key comparison CCM.M-K5 are given in Section 3 of the Final Report, and more specifically in Table 1 of this report.

The summary of the results reported by the participants and the estimation of the results are given in Sections 4 and 5 of the Final Report, respectively.

print out

CCM.M-K5, COOMET.M.M-K5 and SIM.M.M-K5

  • Key comparison CCM.M-K5

MEASURAND : Mass
NOMINAL VALUE : 1 g
TRANSFER STANDARD : Jy

Details on the transfer standards used in key comparison CCM.M-K5 are given in Section 3 of the Final Report, and more specifically in Table 1 of this report.

The summary of the results reported by the participants and the estimation of the results are given in Sections 4 and 5 of the Final Report, respectively.

  • Key comparison COOMET.M.M-K5

MEASURAND : Mass
NOMINAL VALUE : 1 g
TRANSFER STANDARDS : 1 g « C » and 1 g « K »

The letters and signs used to specify the standards are explained in Section 3.1 of the COOMET.M.M-K5 Final Report, and the results reported by the participants are summarized in Tables 4 and 5 on page 5 of the same Report.

  • Key comparison SIM.M.M-K5

MEASURAND : Mass
NOMINAL VALUE : 1 g
TRANSFER STANDARDS : 1 g (SN 1863)

The results reported by the participants are summarized at pp. 4 to 7 of the SIM.M.M-K5 Final Report.

print out

MEASURAND : Mass
NOMINAL VALUE : 200 mg
TRANSFER STANDARD : Jx

Details on the transfer standards used in key comparison CCM.M-K5 are given in Section 3 of the Final Report, and more specifically in Table 1 of this report.

The summary of the results reported by the participants and the estimation of the results are given in Sections 4 and 5 of the Final Report, respectively.

print out

CCM.M-K5, COOMET.M.M-K5 and SIM.M.M-K5

  • Key comparison CCM.M-K5

MEASURAND : Mass
NOMINAL VALUE : 200 mg
TRANSFER STANDARD : Jy

Details on the transfer standards used in key comparison CCM.M-K5 are given in Section 3 of the Final Report, and more specifically in Table 1 of this report.

The summary of the results reported by the participants and the estimation of the results are given in Sections 4 and 5 of the Final Report, respectively.

  • Key comparison COOMET.M.M-K5

MEASURAND : Mass
NOMINAL VALUE : 200 mg
TRANSFER STANDARDS : 200 mg « * » and 200 mg None

The letters and signs used to specify the standards are explained in Section 3.1 of the COOMET.M.M-K5 Final Report, and the results reported by the participants are summarized in Tables 4 and 5 on page 5 of the same Report.

  • Key comparison SIM.M.M-K5

MEASURAND : Mass
NOMINAL VALUE : 200 mg
TRANSFER STANDARDS : 200 mg (SN S/N)

The results reported by the participants are summarized at pp. 4 to 7 of the SIM.M.M-K5 Final Report.
