CCM.M-K5, COOMET.M.M-K5 and SIM.M.M-K5
MEASURAND : Mass
NOMINAL VALUE : 2 kg
TRANSFER STANDARDs : 2 kg-Jx for CCM.M-K5, and 2 kg « 5 » and 2 kg None for COOMET.M.M-K5, 2 kg (SN 1867) for SIM.M.M-K5
Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in µg
Red diamonds: CCM.M-K5 participants (2 kg-Jx standard)
Blue squares: COOMET.M.M-K5 participants (2 kg « 5 » standard)
Green triangles: COOMET.M.M-K5 participants (2 kg None standard)
Orange crossed squares: SIM.M.M-K5 participants (2 kg SN 1867 standard)
CCM.M-K5, COOMET.M.M-K5 and SIM.M.M-K5
MEASURAND : Mass

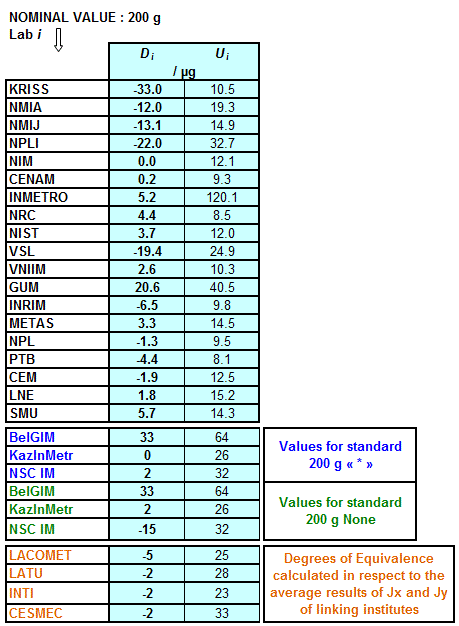

NOMINAL VALUE : 200 g
TRANSFER STANDARDs : 200 g-Jy for CCM.M-K5, and 200 g « * » and 200 g None for COOMET.M.M-K5, 200 g (SN 1865) for SIM.M.M-K5
Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in µg
Red diamonds: CCM.M-K5 participants (200 g-Jy standard)
Blue squares: COOMET.M.M-K5 participants (200 g « * » standard)
Green triangles: COOMET.M.M-K5 participants (200 g None standard)
Orange crossed squares: SIM.M.M-K5 participants (200 g SN 1865 standard)
CCM.M-K5 and SIM.M.M-K5
MEASURAND : Mass

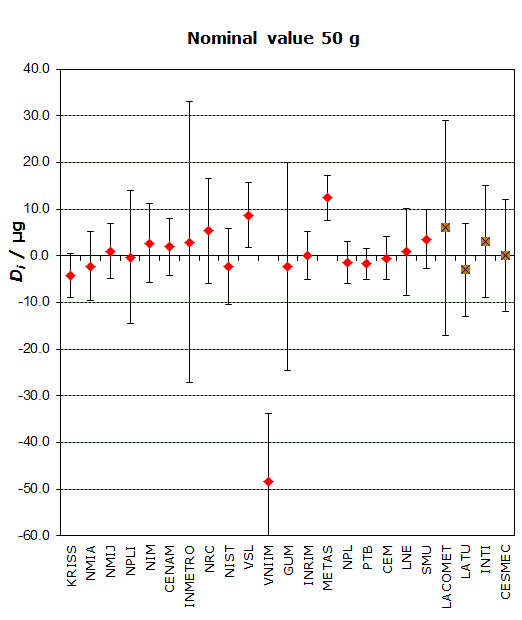

NOMINAL VALUE : 50 g
TRANSFER STANDARDs : 50 g-Jy for CCM.M-K5, 50 g (SN 1864) for SIM.M.M-K5
Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in µg
Red diamonds: CCM.M-K5 participants (50 g-Jy standard)
Orange crossed squares: SIM.M.M-K5 participants (50 g SN 1864 standard)
CCM.M-K5, COOMET.M.M-K5 and SIM.M.M-K5
MEASURAND : Mass
NOMINAL VALUE : 1 g
TRANSFER STANDARDs : 1 g-Jy for CCM.M-K5, 1 g « C » and 1 g « K » for COOMET.M.M-K5, 1 g (SN 1863) for SIM.M.M-K5
Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in µg
Red diamonds: CCM.M-K5 participants (1 g-Jy standard)
Blue squares: COOMET.M.M-K5 participants (1 g C standard)
Green triangles: COOMET.M.M-K5 participants (1 g K standard)
Orange crossed squares: SIM.M.M-K5 participants (1 g SN 1863 standard)
CCM.M-K5, COOMET.M.M-K5 and SIM.M.M-K5
MEASURAND : Mass
NOMINAL VALUE : 200 mg
TRANSFER STANDARDs : 200 mg-Jy for CCM.M-K5, 200 mg « * » and 200 mg None for COOMET.M.M-K5, 200 mg (SN S/N) for SIM.M.M-K5
Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in µg
Red diamonds: CCM.M-K5 participants (200 mg-Jy standard)
Blue squares: COOMET.M.M-K5 participants (200 mg « * » standard)
Green triangles: COOMET.M.M-K5 participants (200 mg None standard)
Orange crossed squares: SIM.M.M-K5 participants (200 mg SN S/N standard)
CCM.M-K5, COOMET.M.M-K5 and SIM.M.M-K5
MEASURAND : Mass
NOMINAL VALUE : 2 kg
TRANSFER STANDARDs : 2 kg-Jx for CCM.M-K5, and 2 kg « 5 » and 2 kg None for COOMET.M.M-K5, 2 kg (SN 1867) for SIM.M.M-K5
Results are presented under A4 printable format in Summary Results (PDF file).
CCM.M-K5, COOMET.M.M-K5 and SIM.M.M-K5
MEASURAND : Mass
NOMINAL VALUE : 200 g
TRANSFER STANDARDs : 200 g-Jy for CCM.M-K5, and 200 g « * » and 200 g None for COOMET.M.M-K5, 200 g (SN 1865) for SIM.M.M-K5
Results are presented under A4 printable format in Summary Results (PDF file).
CCM.M-K5 and SIM.M.M-K5
MEASURAND : Mass
NOMINAL VALUE : 50 g
TRANSFER STANDARDs : 50 g-Jy for CCM.M-K5, 50 g (SN 1864) for SIM.M.M-K5
Results are presented under A4 printable format in Summary Results (PDF file).
CCM.M-K5, COOMET.M.M-K5 and SIM.M.M-K5
MEASURAND : Mass
NOMINAL VALUE : 1 g
TRANSFER STANDARDs : 1 g-Jy for CCM.M-K5, 1 g « C » and 1 g « K » for COOMET.M.M-K5, 1 g (SN 1863) for SIM.M.M-K5
Results are presented under A4 printable format in Summary Results (PDF file).
CCM.M-K5, COOMET.M.M-K5 and SIM.M.M-K5
MEASURAND : Mass
NOMINAL VALUE : 200 mg
TRANSFER STANDARDs : 200 mg-Jy for CCM.M-K5, 200 mg « * » and 200 mg None for COOMET.M.M-K5, 200 mg (SN S/N) for SIM.M.M-K5
Results are presented under A4 printable format in Summary Results (PDF file).
| Metrology area, Sub-field | Mass and related quantities, Mass Standards |
| Description | Comparison of mass standards |
| Time of measurements | 2009 - 2013 |
| Status | Approved for equivalence |
| Final Reports of the comparisons | |
| References | |
| Measurand | Mass: 200 mg, 1 g, 50 g, 200 g and 2 kg |
| Transfer device | Five stainless steel standards |
| Comparison type | Key Comparison |
| Consultative Committee | CCM (Consultative Committee for Mass and Related Quantities) |
| Conducted by | SIM (Inter-American Metrology System) |
| Comments | Results published on 16 April 2016 COOMET.M.M-K5 and SIM.M.M-K5 results are linked to those of CCM.M-K5 Mass standards Two set of standards (Jx and Jy) have been used in the CCM.M-K5 comparison. Details on the transfer standards are given in Section 3 of the Final Report, and more specifically in Table 1 of this report.
|
| Pilot institute |
INTI
Instituto Nacional de Tecnologia Industrial Argentina |
| Contact person | Fernando KORNBLIT +54 11 4724 5402 |
| Pilot laboratory | |
|---|---|
| INTI |
Instituto Nacional de Tecnologia Industrial, Argentina, SIM |
| CENAM |
Centro Nacional de Metrologia, Mexico, SIM |
| CESMEC |
Centro de Estudios, Medición y Certificación de Calidad, Chile, SIM |
| INMETRO |
Instituto Nacional de Metrologia, Qualidade e Tecnologia, Brazil, SIM |
| LACOMET |
Laboratorio Costarricense de Metrologia, Costa Rica, SIM |
| LATU |
Laboratorio Tecnologico del Uruguay, Uruguay, SIM |
| NRC |
National Research Council, Canada, SIM |
This page proposes print-out on A4 paper (portrait) of the comparison details (best printed out using a black and white printer).
Please, select items to be printed out, then click on "OK" :
CCM.M-K5, COOMET.M.M-K5 and SIM.M.M-K5
MEASURAND : Mass
NOMINAL VALUE : 2 kg
TRANSFER STANDARDs : 2 kg-Jx for CCM.M-K5, and 2 kg « 5 » and 2 kg None for COOMET.M.M-K5, 2 kg (SN 1867) for SIM.M.M-K5
|
The comparison reference value is computed as a median as explained in Section 5 of the Final Report. The uncertainty of the key comparison reference value is computed as given in equations 7 and 8 of the report and is equal to 37 µg for nominal mass of 2 kg and transfer standard Jx. |
| The degree of equivalence of each laboratory i with respect to the key comparison reference value is given by a pair of terms: Di and Ui, its expanded uncertainty (k = 2), both expressed in µg, computed as explained in equations 6, 9 and 10 of the report. |
| No pairwise degree of equivalence is given. |
The common participation of VNIIM makes it possible to link the COOMET.M.M-K5 results to those of CCM.M-K5 (see Section 4.3 of the COOMET.M.M-K5 Final Report), using the VNIIM results for the CCM.M-K5 standards 2 kg-Jx, 200 g-Jy, 1 g-Jy and 200 mg-Jy.
In CCM.M-K5, the VNIIM results for the weights with nominal values 50 g were not consistent with the key comparison reference values. Thus the results of measurements for this value have been excluded from the computation of the degrees of equivalence of COOMET.M.M-K5 participants.
Pair-wise degrees of equivalence involving COOMET.M.M-K5 participants (only) have not been computed.
The linking was made via the CENAM, INMETRO and the NRC that all participated in the CCM.M-K5 comparison. The Degrees of Equivalence for SIM.M.M-K5 were evaluated against the average results of CENAM, INMETRO and the NRC obtained for the Jx and Jy mass standards in the CCM.M-K5 comparison. The DoE have been reproduced in the tables and graphs for Jx (2 kg) and Jy (200 g, 50 g, 1 g, 200mg)
Pair-wise degrees of equivalence involving SIM.M.M-K5 participants (only) have not been computed.
CCM.M-K5, COOMET.M.M-K5 and SIM.M.M-K5
MEASURAND : Mass
NOMINAL VALUE : 200 g
TRANSFER STANDARDs : 200 g-Jy for CCM.M-K5, and 200 g « * » and 200 g None for COOMET.M.M-K5, 200 g (SN 1865) for SIM.M.M-K5
|
The comparison reference value is computed as a median as explained in Section 5 of the Final Report. The uncertainty of the key comparison reference value is computed as given in equations 7 and 8 of the report and is equal to 3.9 µg for nominal mass of 200 g and transfer standard Jy. |
| The degree of equivalence of each laboratory i with respect to the key comparison reference value is given by a pair of terms: Di and Ui, its expanded uncertainty (k = 2), both expressed in µg, computed as explained in equations 6, 9 and 10 of the report. |
| No pairwise degree of equivalence is given. |
The common participation of VNIIM makes it possible to link the COOMET.M.M-K5 results to those of CCM.M-K5 (see Section 4.3 of the COOMET.M.M-K5 Final Report), using the VNIIM results for the CCM.M-K5 standards 2 kg-Jx, 200 g-Jy, 1 g-Jy and 200 mg-Jy.
In CCM.M-K5, the VNIIM results for the weights with nominal values 50 g were not consistent with the key comparison reference values. Thus the results of measurements for this value have been excluded from the computation of the degrees of equivalence of COOMET.M.M-K5 participants.
Pair-wise degrees of equivalence involving COOMET.M.M-K5 participants (only) have not been computed.
The linking was made via the CENAM, INMETRO and the NRC that all participated in the CCM.M-K5 comparison. The Degrees of Equivalence for SIM.M.M-K5 were evaluated against the average results of CENAM, INMETRO and the NRC obtained for the Jx and Jy mass standards in the CCM.M-K5 comparison. The DoE have been reproduced in the tables and graphs for Jx (2 kg) and Jy (200 g, 50 g, 1 g, 200mg)
Pair-wise degrees of equivalence involving SIM.M.M-K5 participants (only) have not been computed.
CCM.M-K5 and SIM.M.M-K5
MEASURAND : Mass
NOMINAL VALUE : 50 g
TRANSFER STANDARDs : 50 g-Jy for CCM.M-K5, 50 g (SN 1864) for SIM.M.M-K5
|
The comparison reference value is computed as a median as explained in Section 5 of the Final Report. The uncertainty of the key comparison reference value is computed as given in equations 7 and 8 of the report: 2.1 µg for nominal mass of 50 g and transfer standard Jy. |
| The degree of equivalence of each laboratory i with respect to the key comparison reference value is given by a pair of terms: Di and Ui, its expanded uncertainty (k = 2), both expressed in µg, computed as explained in equations 6, 9 and 10 of the report. |
| No pairwise degree of equivalence is given. |
The linking was made via the CENAM, INMETRO and the NRC that all participated in the CCM.M-K5 comparison. The Degrees of Equivalence for SIM.M.M-K5 were evaluated against the average results of CENAM, INMETRO and the NRC obtained for the Jx and Jy mass standards in the CCM.M-K5 comparison. The DoE have been reproduced in the tables and graphs for Jx (2 kg) and Jy (200 g, 50 g, 1 g, 200mg)
Pair-wise degrees of equivalence involving SIM.M.M-K5 participants (only) have not been computed.
CCM.M-K5, COOMET.M.M-K5 and SIM.M.M-K5
MEASURAND : Mass
NOMINAL VALUE : 1 g
TRANSFER STANDARDs : 1 g-Jy for CCM.M-K5, 1 g « C » and 1 g « K » for COOMET.M.M-K5, 1 g (SN 1863) for SIM.M.M-K5
|
The comparison reference value is computed as a median as explained in Section 5 of the Final Report. The uncertainty of the key comparison reference value is computed as given in equations 7 and 8 of the report and is equal to 0.50 µg for nominal mass of 1 g and transfer standard Jy. |
| The degree of equivalence of each laboratory i with respect to the key comparison reference value is given by a pair of terms: Di and Ui, its expanded uncertainty (k = 2), both expressed in µg, computed as explained in equations 6, 9 and 10 of the report. |
| No pairwise degree of equivalence is given. |
The common participation of VNIIM makes it possible to link the COOMET.M.M-K5 results to those of CCM.M-K5 (see Section 4.3 of the COOMET.M.M-K5 Final Report), using the VNIIM results for the CCM.M-K5 standards 2 kg-Jx, 200 g-Jy, 1 g-Jy and 200 mg-Jy.
In CCM.M-K5, the VNIIM results for the weights with nominal values 50 g were not consistent with the key comparison reference values. Thus the results of measurements for this value have been excluded from the computation of the degrees of equivalence of COOMET.M.M-K5 participants.
Pair-wise degrees of equivalence involving COOMET.M.M-K5 participants (only) have not been computed.
The linking was made via the CENAM, INMETRO and the NRC that all participated in the CCM.M-K5 comparison. The Degrees of Equivalence for SIM.M.M-K5 were evaluated against the average results of CENAM, INMETRO and the NRC obtained for the Jx and Jy mass standards in the CCM.M-K5 comparison. The DoE have been reproduced in the tables and graphs for Jx (2 kg) and Jy (200 g, 50 g, 1 g, 200mg)
Pair-wise degrees of equivalence involving SIM.M.M-K5 participants (only) have not been computed.
CCM.M-K5, COOMET.M.M-K5 and SIM.M.M-K5
MEASURAND : Mass
NOMINAL VALUE : 200 mg
TRANSFER STANDARDs : 200 mg-Jy for CCM.M-K5, 200 mg « * » and 200 mg None for COOMET.M.M-K5, 200 mg (SN S/N) for SIM.M.M-K5
|
The comparison reference value is computed as a median as explained in Section 5 of the Final Report. The uncertainty of the key comparison reference value is computed as given in equations 7 and 8 of the report and is equal to 0.51 µg for nominal mass of 200 mg and transfer standard Jy. |
| The degree of equivalence of each laboratory i with respect to the key comparison reference value is given by a pair of terms: Di and Ui, its expanded uncertainty (k = 2), both expressed in µg, computed as explained in equations 6, 9 and 10 of the report. |
| No pairwise degree of equivalence is given. |
The common participation of VNIIM makes it possible to link the COOMET.M.M-K5 results to those of CCM.M-K5 (see Section 4.3 of the COOMET.M.M-K5 Final Report), using the VNIIM results for the CCM.M-K5 standards 2 kg-Jx, 200 g-Jy, 1 g-Jy and 200 mg-Jy.
In CCM.M-K5, the VNIIM results for the weights with nominal values 50 g were not consistent with the key comparison reference values. Thus the results of measurements for this value have been excluded from the computation of the degrees of equivalence of COOMET.M.M-K5 participants.
Pair-wise degrees of equivalence involving COOMET.M.M-K5 participants (only) have not been computed.
The linking was made via the CENAM, INMETRO and the NRC that all participated in the CCM.M-K5 comparison. The Degrees of Equivalence for SIM.M.M-K5 were evaluated against the average results of CENAM, INMETRO and the NRC obtained for the Jx and Jy mass standards in the CCM.M-K5 comparison. The DoE have been reproduced in the tables and graphs for Jx (2 kg) and Jy (200 g, 50 g, 1 g, 200mg)
Pair-wise degrees of equivalence involving SIM.M.M-K5 participants (only) have not been computed.
CCM.M-K5, COOMET.M.M-K5 and SIM.M.M-K5
MEASURAND : Mass
NOMINAL VALUE : 2 kg
TRANSFER STANDARD : Jx
Details on the transfer standards used in key comparison CCM.M-K5 are given in Section 3 of the Final Report, and more specifically in Table 1 of this report.
The summary of the results reported by the participants and the estimation of the results are given in Sections 4 and 5 of the Final Report, respectively.
MEASURAND : Mass
NOMINAL VALUE : 2 kg
TRANSFER STANDARDS : 2 kg « 5 » and 2 kg None
The letters and signs used to specify the standards are explained in Section 3.1 of the COOMET.M.M-K5 Final Report, and the results reported by the participants are summarized in Tables 4 and 5 on page 5 of the same Report.
MEASURAND : Mass
NOMINAL VALUE : 2 kg
TRANSFER STANDARDS : 2 kg (SN 1867)
The results reported by the participants are summarized at pp. 4 to 7 of the SIM.M.M-K5 Final Report.
CCM.M-K5, COOMET.M.M-K5 and SIM.M.M-K5
MEASURAND : Mass
NOMINAL VALUE : 200 g
TRANSFER STANDARD : Jy
Details on the transfer standards used in key comparison CCM.M-K5 are given in Section 3 of the Final Report, and more specifically in Table 1 of this report.
The summary of the results reported by the participants and the estimation of the results are given in Sections 4 and 5 of the Final Report, respectively.
MEASURAND : Mass
NOMINAL VALUE : 200 g
TRANSFER STANDARDS : 200 g « * » and 200 g None
The letters and signs used to specify the standards are explained in Section 3.1 of the COOMET.M.M-K5 Final Report, and the results reported by the participants are summarized in Tables 4 and 5 on page 5 of the same Report.
MEASURAND : Mass
NOMINAL VALUE : 200 g
TRANSFER STANDARDS : 200 g (SN 1865)
The results reported by the participants are summarized at pp. 4 to 7 of the SIM.M.M-K5 Final Report.
CCM.M-K5 and SIM.M.M-K5
MEASURAND : Mass
NOMINAL VALUE : 50 g
TRANSFER STANDARD : Jy
Details on the transfer standards used in key comparison CCM.M-K5 are given in Section 3 of the Final Report, and more specifically in Table 1 of this report.
The summary of the results reported by the participants and the estimation of the results are given in Sections 4 and 5 of the Final Report, respectively.
MEASURAND : Mass
NOMINAL VALUE : 50 g
TRANSFER STANDARDS : 50 g (SN 1864)
The results reported by the participants are summarized at pp. 4 to 7 of the SIM.M.M-K5 Final Report.
CCM.M-K5, COOMET.M.M-K5 and SIM.M.M-K5
MEASURAND : Mass
NOMINAL VALUE : 1 g
TRANSFER STANDARD : Jy
Details on the transfer standards used in key comparison CCM.M-K5 are given in Section 3 of the Final Report, and more specifically in Table 1 of this report.
The summary of the results reported by the participants and the estimation of the results are given in Sections 4 and 5 of the Final Report, respectively.
MEASURAND : Mass
NOMINAL VALUE : 1 g
TRANSFER STANDARDS : 1 g « C » and 1 g « K »
The letters and signs used to specify the standards are explained in Section 3.1 of the COOMET.M.M-K5 Final Report, and the results reported by the participants are summarized in Tables 4 and 5 on page 5 of the same Report.
MEASURAND : Mass
NOMINAL VALUE : 1 g
TRANSFER STANDARDS : 1 g (SN 1863)
The results reported by the participants are summarized at pp. 4 to 7 of the SIM.M.M-K5 Final Report.
CCM.M-K5, COOMET.M.M-K5 and SIM.M.M-K5
MEASURAND : Mass
NOMINAL VALUE : 200 mg
TRANSFER STANDARD : Jy
Details on the transfer standards used in key comparison CCM.M-K5 are given in Section 3 of the Final Report, and more specifically in Table 1 of this report.
The summary of the results reported by the participants and the estimation of the results are given in Sections 4 and 5 of the Final Report, respectively.
MEASURAND : Mass
NOMINAL VALUE : 200 mg
TRANSFER STANDARDS : 200 mg « * » and 200 mg None
The letters and signs used to specify the standards are explained in Section 3.1 of the COOMET.M.M-K5 Final Report, and the results reported by the participants are summarized in Tables 4 and 5 on page 5 of the same Report.
MEASURAND : Mass
NOMINAL VALUE : 200 mg
TRANSFER STANDARDS : 200 mg (SN S/N)
The results reported by the participants are summarized at pp. 4 to 7 of the SIM.M.M-K5 Final Report.
