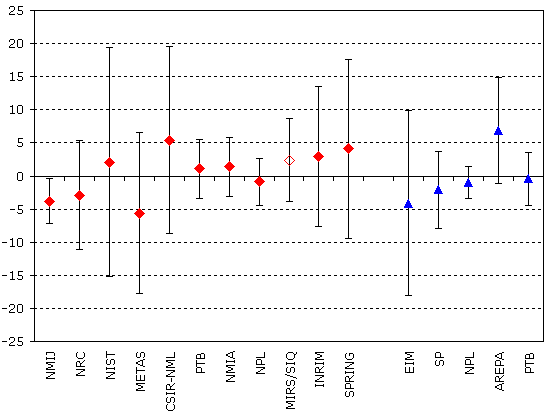

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARD : Power sensor PTB 1-3
FREQUENCY : 50 MHz

Degrees of equivalence: Di = xi - xR and expanded uncertainty Ui (k = 2),
both expressed in 10-3

Open symbol represents value for laboratory in Associate States and Economies of the CGPM.
Blue triangles: Participants in EUROMET.EM.RF-K0.CL

SPRING Singapore used the repaired transfer standard PTB 1-3-1

print out

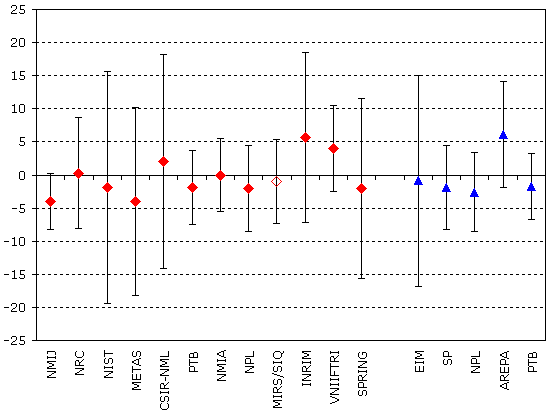

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARD : Power sensor PTB 1-3
FREQUENCY : 1 GHz

Degrees of equivalence: Di = xi - xR and expanded uncertainty Ui (k = 2),
both expressed in 10-3

Open symbol represents value for laboratory in Associate States and Economies of the CGPM.
Blue triangles: Participants in EUROMET.EM.RF-K0.CL

SPRING Singapore used the repaired transfer standard PTB 1-3-1

print out

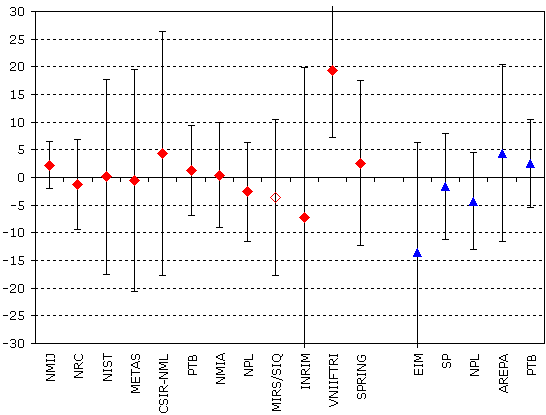

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARD : Power sensor PTB 1-3
FREQUENCY : 10 GHz

Degrees of equivalence: Di = xi - xR and expanded uncertainty Ui (k = 2), both expressed in 10-3

Open symbol represents value for laboratory in Associate States and Economies of the CGPM.
Blue triangles: Participants in EUROMET.EM.RF-K0.CL

SPRING Singapore used the repaired transfer standard PTB 1-3-1

print out

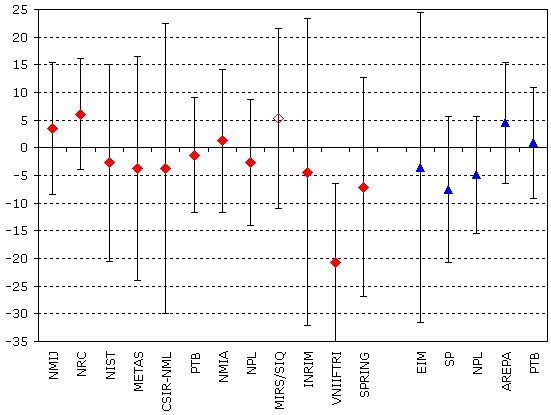

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARD : Power sensor PTB 1-3
FREQUENCY : 18 GHz

Degrees of equivalence: Di = xi - xR and expanded uncertainty Ui (k = 2),
both expressed in 10-3

Open symbol represents value for laboratory in Associate States and Economies of the CGPM.
Blue triangles: Participants in EUROMET.EM.RF-K0.CL

SPRING Singapore used the repaired transfer standard PTB 1-3-1

print out

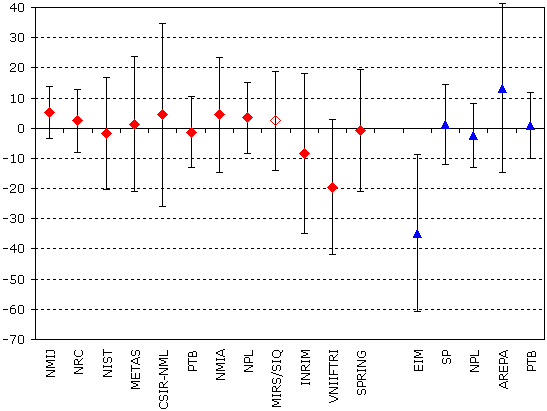

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARD : Power sensor PTB 1-3
FREQUENCY : 20 GHz

Degrees of equivalence: Di = xi - xR and expanded uncertainty Ui (k = 2),
both expressed in 10-3

Open symbol represents value for laboratory in Associate States and Economies of the CGPM.
Blue triangles: Participants in EUROMET.EM.RF-K0.CL

SPRING Singapore used the repaired transfer standard PTB 1-3-1

print out

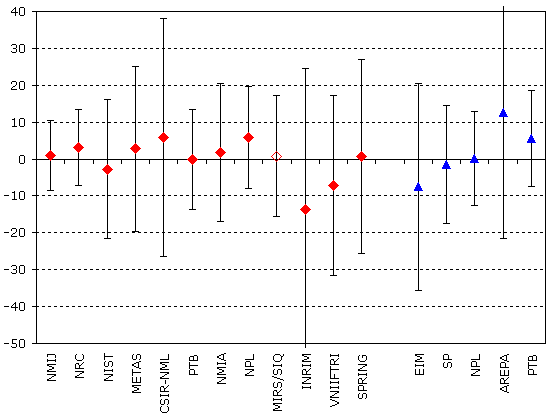

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARD : Power sensor PTB 1-3
FREQUENCY : 23 GHz

Degrees of equivalence: Di = xi - xR and expanded uncertainty Ui (k = 2),
both expressed in 10-3

Open symbol represents value for laboratory in Associate States and Economies of the CGPM.
Blue triangles: Participants in EUROMET.EM.RF-K0.CL

SPRING Singapore used the repaired transfer standard PTB 1-3-1

print out

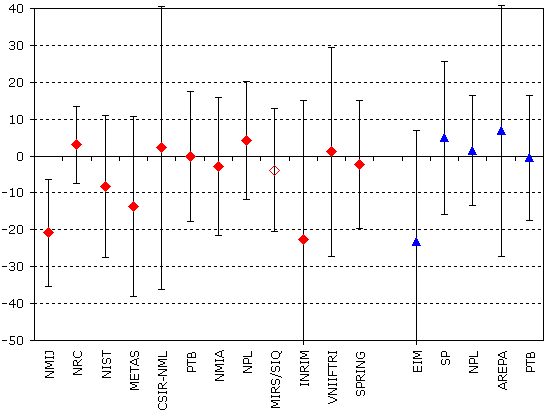

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARD : Power sensor PTB 1-3
FREQUENCY : 26 GHz

Degrees of equivalence: Di = xi - xR and expanded uncertainty Ui (k = 2),
both expressed in 10-3

Open symbol represents value for laboratory in Associate States and Economies of the CGPM.
Blue triangles: Participants in EUROMET.EM.RF-K0.CL

SPRING Singapore used the repaired transfer standard PTB 1-3-1

print out

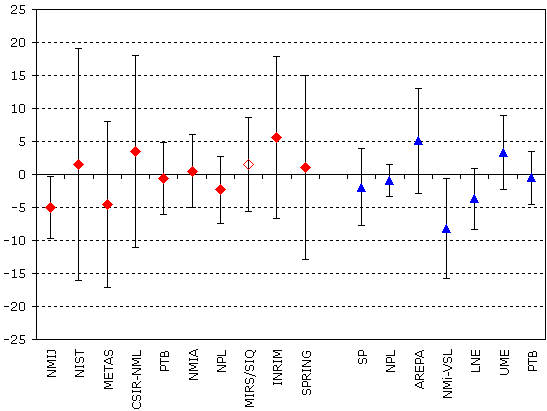

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARD : Power sensor PTB 2-6
FREQUENCY : 50 MHz

Degrees of equivalence: Di = xi - xR and expanded uncertainty Ui (k = 2),
both expressed in 10-3

Open symbol represents value for laboratory in Associate States and Economies of the CGPM.
Blue triangles: Participants in EUROMET.EM.RF-K0.CL

SPRING Singapore used the repaired transfer standard PTB 2-6-1

print out

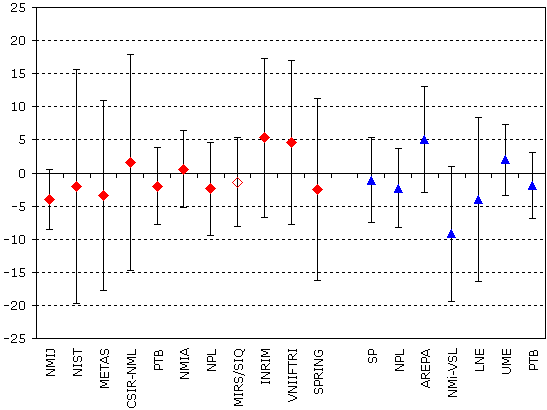

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARD : Power sensor PTB 2-6
FREQUENCY : 1 GHz

Degrees of equivalence: Di = xi - xR and expanded uncertainty Ui (k = 2),
both expressed in 10-3

Open symbol represents value for laboratory in Associate States and Economies of the CGPM.
Blue triangles: Participants in EUROMET.EM.RF-K0.CL

SPRING Singapore used the repaired transfer standard PTB 2-6-1

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARD : Power sensor PTB 2-6
FREQUENCY : 10 GHz

Degrees of equivalence: Di = xi - xR and expanded uncertainty Ui (k = 2),
both expressed in 10-3

Open symbol represents value for laboratory in Associate States and Economies of the CGPM.
Blue triangles: Participants in EUROMET.EM.RF-K0.CL

SPRING Singapore used the repaired transfer standard PTB 2-6-1

print out

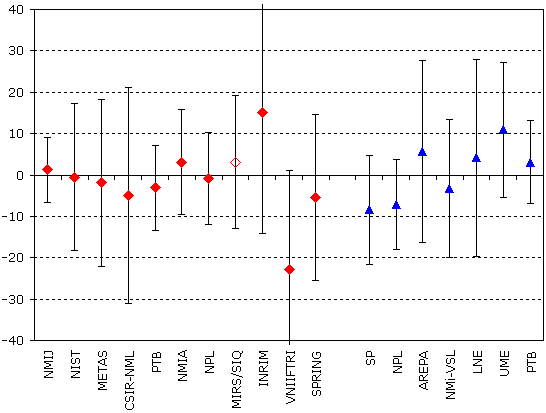

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARD : Power sensor PTB 2-6
FREQUENCY : 18 GHz

Degrees of equivalence: Di = xi - xR and expanded uncertainty Ui (k = 2),
both expressed in 10-3

Open symbol represents value for laboratory in Associate States and Economies of the CGPM.
Blue triangles: Participants in EUROMET.EM.RF-K0.CL

SPRING Singapore used the repaired transfer standard PTB 2-6-1

print out

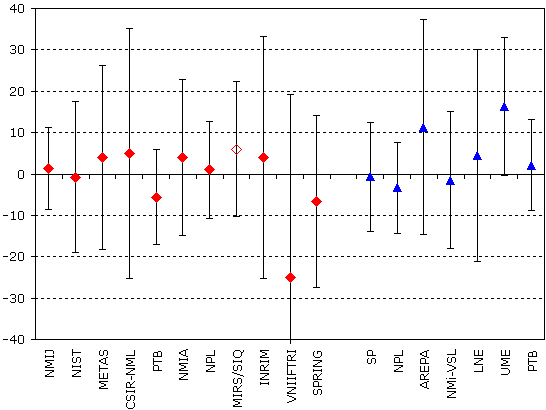

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARD : Power sensor PTB 2-6
FREQUENCY : 20 GHz

Degrees of equivalence: Di = xi - xR and expanded uncertainty Ui (k = 2),
both expressed in 10-3

Open symbol represents value for laboratory in Associate States and Economies of the CGPM.
Blue triangles: Participants in EUROMET.EM.RF-K0.CL

SPRING Singapore used the repaired transfer standard PTB 2-6-1

print out

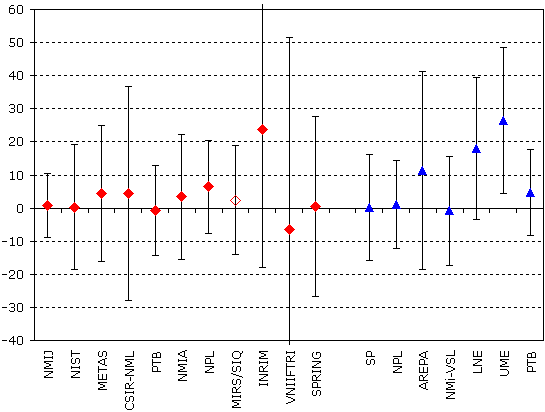

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARD : Power sensor PTB 2-6
FREQUENCY : 23 GHz

Degrees of equivalence: Di = xi - xR and expanded uncertainty Ui (k = 2),
both expressed in 10-3

Open symbol represents value for laboratory in Associate States and Economies of the CGPM.
Blue triangles: Participants in EUROMET.EM.RF-K0.CL

SPRING Singapore used the repaired transfer standard PTB 2-6-1

print out

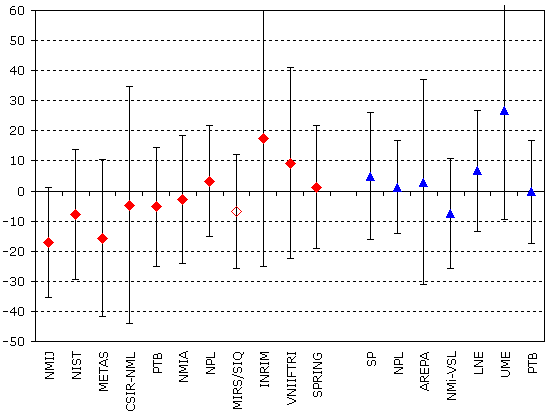

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARD : Power sensor PTB 2-6
FREQUENCY : 26 GHz

Degrees of equivalence: Di = xi - xR and expanded uncertainty Ui (k = 2),
both expressed in 10-3

Open symbol represents value for laboratory in Associate States and Economies of the CGPM.
Blue triangles: Participants in EUROMET.EM.RF-K0.CL

SPRING Singapore used the repaired transfer standard PTB 2-6-1

Comparison
Comparison close
Results
print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARD : Power sensor PTB 1-3
FREQUENCY : 50 MHz


Lab iDiUi
 / 10-3/ 10-3
NMIJ-3.83.4
NRC-2.98.2
NIST2.117.3
METAS-5.612.2
CSIR-NML5.414.1
PTB1.14.5
NMIA1.44.5
NPL-0.93.6
MIRS/SIQ2.46.3
INRIM2.910.6
SPRING*4.113.5
EIM-4.114.0
SP-2.15.8
NPL-1.02.4
AREPA6.98.0
PTB-0.44.0

* Laboratory having used the transfer standard PTB 1-3-1.
In blue: participants in EUROMET.EM.RF-K10.CL

Results are presented under A4 printable format in Summary Results (.PDF file).

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARD : Power sensor PTB 1-3
FREQUENCY : 1 GHz


Lab iDiUi
 / 10-3/ 10-3
NMIJ-4.04.2
NRC0.38.4
NIST-1.917.6
METAS-4.014.2
CSIR-NML2.016.2
PTB-1.95.5
NMIA0.05.5
NPL-2.06.5
MIRS/SIQ-1.06.5
INRIM5.712.8
VNIIFTRI4.06.5
SPRING*-2.013.6
EIM-0.916.0
SP-1.96.4
NPL-2.66.0
AREPA6.18.0
PTB-1.75.0

* Laboratory having used the transfer standard PTB 1-3-1.
In blue: participants in EUROMET.EM.RF-K10.CL

Results are presented under A4 printable format in Summary Results (.PDF file).

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARD : Power sensor PTB 1-3
FREQUENCY : 10 GHz


Lab iDiUi
 / 10-3/ 10-3
NMIJ2.24.2
NRC-1.28.1
NIST0.117.7
METAS-0.620.0
CSIR-NML4.422.0
PTB1.28.1
NMIA0.49.5
NPL-2.68.9
MIRS/SIQ-3.614.1
INRIM-7.227.0
VNIIFTRI19.412.1
SPRING*2.614.9
EIM-13.620.0
SP-1.69.6
NPL-4.38.8
AREPA4.416.0
PTB2.58.0

* Laboratory having used the transfer standard PTB 1-3-1.
In blue: participants in EUROMET.EM.RF-K10.CL

Results are presented under A4 printable format in Summary Results (.PDF file).

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARD : Power sensor PTB 1-3
FREQUENCY : 18 GHz


Lab iDiUi
 / 10-3/ 10-3
NMIJ3.511.9
NRC6.110.0
NIST-2.717.8
METAS-3.720.2
CSIR-NML-3.726.2
PTB-1.310.4
NMIA1.312.9
NPL-2.711.4
MIRS/SIQ5.316.2
INRIM-4.427.7
VNIIFTRI-20.714.3
SPRING*-7.119.8
EIM-3.528.0
SP-7.513.2
NPL-4.910.6
AREPA4.511.0
PTB0.910.0

* Laboratory having used the transfer standard PTB 1-3-1.
In blue: participants in EUROMET.EM.RF-K10.CL

Results are presented under A4 printable format in Summary Results (.PDF file).

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARD : Power sensor PTB 1-3
FREQUENCY : 20 GHz


Lab iDiUi
 / 10-3/ 10-3
NMIJ5.28.8
NRC2.510.4
NIST-1.718.4
METAS1.422.4
CSIR-NML4.430.3
PTB-1.311.7
NMIA4.419.0
NPL3.411.7
MIRS/SIQ2.416.5
INRIM-8.426.5
VNIIFTRI-19.622.4
SPRING*-0.920.2
EIM-34.826.0
SP1.213.2
NPL-2.310.6
AREPA13.228.0
PTB1.011.0

* Laboratory having used the transfer standard PTB 1-3-1.
In blue: participants in EUROMET.EM.RF-K10.CL

Results are presented under A4 printable format in Summary Results (.PDF file).

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARD : Power sensor PTB 1-3
FREQUENCY : 23 GHz


Lab iDiUi
 / 10-3/ 10-3
NMIJ1.09.6
NRC3.210.3
NIST-2.718.8
METAS2.822.3
CSIR-NML5.832.2
PTB-0.113.5
NMIA1.818.8
NPL5.813.7
MIRS/SIQ0.816.4
INRIM-13.738.2
VNIIFTRI-7.224.3
SPRING*0.826.3
EIM-7.528.0
SP-1.516.0
NPL0.212.8
AREPA12.534.0
PTB5.513.0

* Laboratory having used the transfer standard PTB 1-3-1.
In blue: participants in EUROMET.EM.RF-K10.CL

Results are presented under A4 printable format in Summary Results (.PDF file).

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARD : Power sensor PTB 1-3
FREQUENCY : 26 GHz


Lab iDiUi
 / 10-3/ 10-3
NMIJ-20.814.5
NRC3.010.6
NIST-8.319.3
METAS-13.824.4
CSIR-NML2.238.3
PTB-0.117.6
NMIA-2.818.7
NPL4.216.0
MIRS/SIQ-3.816.6
INRIM-22.537.7
VNIIFTRI1.228.3
SPRING*-2.417.4
EIM-23.130.0
SP4.920.8
NPL1.515.0
AREPA6.934.0
PTB-0.517.0

* Laboratory having used the transfer standard PTB 1-3-1.
In blue: participants in EUROMET.EM.RF-K10.CL

Results are presented under A4 printable format in Summary Results (.PDF file).

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARD : Power sensor PTB 2-6
FREQUENCY : 50 MHz


Lab iDiUi
 / 10-3/ 10-3
NMIJ-5.04.7
NIST1.517.6
METAS-4.512.6
CSIR-NML3.514.5
PTB-0.65.5
NMIA0.55.5
NPL-2.35.1
MIRS/SIQ1.57.1
INRIM5.612.2
SPRING*1.113.9
SP-1.95.8
NPL-0.92.4
AREPA5.18.0
NMi-VSL-8.27.6
LNE-3.74.6
UME3.35.6
PTB-0.54.0

* Laboratory having used the transfer standard PTB 2-6-1.
In blue: participants in EUROMET.EM.RF-K10.CL

Results are presented under A4 printable format in Summary Results (.PDF file).

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARD : Power sensor PTB 2-6
FREQUENCY : 1 GHz


Lab iDiUi
 / 10-3/ 10-3
NMIJ-4.04.5
NIST-2.017.7
METAS-3.414.3
CSIR-NML1.616.3
PTB-2.05.8
NMIA0.65.8
NPL-2.47.1
MIRS/SIQ-1.46.7
INRIM5.312.0
VNIIFTRI4.612.4
SPRING*-2.513.7
SP-1.16.4
NPL-2.36.0
AREPA5.08.0
NMi-VSL-9.210.2
LNE-4.012.4
UME2.05.4
PTB-1.95.0

* Laboratory having used the transfer standard PTB 2-6-1.
In blue: participants in EUROMET.EM.RF-K10.CL

Results are presented under A4 printable format in Summary Results (.PDF file).

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARD : Power sensor PTB 2-6
FREQUENCY : 10 GHz


Lab iDiUi
 / 10-3/ 10-3
NMIJ2.24.5
NIST2.617.8
METAS1.020.1
CSIR-NML5.022.1
PTB-0.48.4
NMIA2.09.7
NPL-2.09.3
MIRS/SIQ-7.014.2
INRIM-4.530.7
VNIIFTRI21.020.1
SPRING*0.614.4
SP-0.39.4
NPL-3.28.8
AREPA4.614.0
NMi-VSL-6.013.8
LNE12.117.0
UME13.57.8
PTB1.416.0

* Laboratory having used the transfer standard PTB 2-6-1.
In blue: participants in EUROMET.EM.RF-K10.CL

Results are presented under A4 printable format in Summary Results (.PDF file).

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARD : Power sensor PTB 2-6
FREQUENCY : 18 GHz


Lab iDiUi
 / 10-3/ 10-3
NMIJ1.37.9
NIST-0.517.7
METAS-1.920.1
CSIR-NML-4.926.1
PTB-3.110.2
NMIA3.112.8
NPL-0.911.2
MIRS/SIQ3.116.1
INRIM15.229.3
VNIIFTRI-22.924.1
SPRING*-5.520.1
SP-8.413.2
NPL-7.110.8
AREPA5.622.0
NMi-VSL-3.316.6
LNE4.223.8
UME10.916.4
PTB3.110.0

* Laboratory having used the transfer standard PTB 2-6-1.
In blue: participants in EUROMET.EM.RF-K10.CL

Results are presented under A4 printable format in Summary Results (.PDF file).

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARD : Power sensor PTB 2-6
FREQUENCY : 20 GHz


Lab iDiUi
 / 10-3/ 10-3
NMIJ1.39.9
NIST-0.818.3
METAS4.022.2
CSIR-NML5.030.2
PTB-5.611.5
NMIA4.018.9
NPL1.011.6
MIRS/SIQ6.016.3
INRIM4.029.2
VNIIFTRI-25.044.1
SPRING*-6.620.8
SP-0.713.2
NPL-3.311.0
AREPA11.326.0
NMi-VSL-1.516.6
LNE4.525.6
UME16.316.6
PTB2.111.0

* Laboratory having used the transfer standard PTB 2-6-1.
In blue: participants in EUROMET.EM.RF-K10.CL

Results are presented under A4 printable format in Summary Results (.PDF file).

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARD : Power sensor PTB 2-6
FREQUENCY : 23 GHz


Lab iDiUi
 / 10-3/ 10-3
NMIJ0.89.8
NIST0.318.9
METAS4.420.4
CSIR-NML4.432.3
PTB-0.713.7
NMIA3.418.9
NPL6.414.0
MIRS/SIQ2.416.5
INRIM23.741.6
VNIIFTRI-6.658.2
SPRING*0.527.1
SP0.316.0
NPL1.113.2
AREPA11.330.0
NMi-VSL-0.816.4
LNE18.121.4
UME26.522.0
PTB4.613.0

* Laboratory having used the transfer standard PTB 2-6-1.
In blue: participants in EUROMET.EM.RF-K10.CL

Results are presented under A4 printable format in Summary Results (.PDF file).

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARD : Power sensor PTB 2-6
FREQUENCY : 26 GHz


Lab iDiUi
 / 10-3/ 10-3
NMIJ-17.118.1
NIST-7.921.6
METAS-15.726.1
CSIR-NML-4.739.3
PTB-5.219.8
NMIA-2.721.2
NPL3.318.5
MIRS/SIQ-6.719.0
INRIM17.542.4
VNIIFTRI9.331.7
SPRING*1.320.3
SP5.021.0
NPL1.315.4
AREPA3.034.0
NMi-VSL-7.418.2
LNE6.720.2
UME26.736.2
PTB-0.317.0

* Laboratory having used the transfer standard PTB 2-6-1.
In blue: participants in EUROMET.EM.RF-K10.CL

Results are presented under A4 printable format in Summary Results (.PDF file).

Comparison
Comparison close
CC comparison
Linked comparison
CCEM.RF-K10.CL
print out
Metrology area, Sub-field Electricity and Magnetism, Radio frequencies
Description Power in 50 ohm coaxial lines
Time of measurements 2000 - 2002
Status Approved for equivalence
Final Reports of the comparisons
Metrologia, 2006, 43, Tech. Suppl., 01009
Measurand Calibration factor
Parameters Frequency: 50 MHz to 26 GHz (7 discrete values)
Transfer device PC 3.5 power sensor
Comparison type Key Comparison
Consultative Committee CCEM (Consultative Committee for Electricity and Magnetism)
Conducted by CCEM (Consultative Committee for Electricity and Magnetism)
Comments

CCEM.RF-K10.CL results published on 21 September 2006

EUROMET.EM.RF-K10.CL results, linked to those of CCEM.RF-K10.CL, published on 20 June 2007

Calibration factors of power sensors (50 ohm coaxial lines)

(sensor designation, frequency):
Pilot institute PTB
Physikalisch-Technische Bundesanstalt
Germany
Contact person D. Janik

+49 (0) 531 592 2222
First Name Last Name
wwww@ww.www +356719836 Institute 1 Institute 1 Khmelnitskiy
Pilot laboratory
PTB

Physikalisch-Technische Bundesanstalt, Germany, EURAMET

METAS

Federal Institute of Metrology, Switzerland, EURAMET

NIST

National Institute of Standards and Technology, United States, SIM

NMIA

National Measurement Institute, Australia, Australia, APMP

NMIJ AIST

National Metrology Institute of Japan, Japan, APMP

NPL

National Physical Laboratory, United Kingdom, EURAMET

NRC

National Research Council, Canada, SIM

VNIIFTRI

Institute of Physical Technical and Radiotechnical Measurements, Rosstandart, Russian Federation, COOMET

Comparison
Comparison close
Results
print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

  • Key comparison CCEM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARD : Power sensors PTB 1-3 and PTB 1-3-1
FREQUENCY : 50 MHz

The computation of the key comparison reference values, xR, and of their uncertainties, uR, is explained in Section 6.2 of the Final Report (pages 14 and 15).
For each frequency and each of the transfer standards PTB 1-3 and PTB 2-6, xR is computed as the unweighted arithmetic mean of the participants' results obtained using independant primary power standards with outliers excluded. Its standard uncertainty, uR, is the standard deviation of the mean.
For each frequency and each of the repaired transfer standards PTB 1-3-1 and PTB 2-6-1, xR is computed using the common measurements carried out by PTB (see on page 15 of the Final Report). Its standard uncertainty, uR, is assumed to be equal to the standard uncertainty obtained with the transfer standard before repair.

For PTB 1-3, xR = 0.9866 and uR = 0.0010
For PTB 1-3-1, xR = 0.9895 and uR = 0.0010

The degree of equivalence of laboratory i with respect to the key comparison reference value is given by two terms, both expressed in 10-3: Di = (xi - xR) and its expanded uncertainty Ui (k = 2), Ui = 2(ui2 + uR2)1/2.

The degree of equivalence between two laboratories i and j is given by two terms, both expressed in 10-3: Dij = (Di - Dj) and its expanded uncertainty Uij (k = 2),
Uij = 2(ui2 + uj2)1/2.
  • Linking EUROMET.EM.RF-K10.CL to CCEM.RF-K10.CL

The laboratories that are participants in both comparisons (PTB and NPL) are used for linking the results obtained in EUROMET.EM.RF-K10.CL to the results obtained in CCEM.RF-K10.CL. The linking process is explained in section 6.2 of the EUROMET.EM.RF-K10.CL Final Report.

The degree of equivalence of laboratory i participant in EUROMET.EM.RF-K10.CL with respect to the key comparison reference value is given by two terms, both expressed in 10-3: Di and its expanded uncertainty Ui (k = 2).
The degree of equivalence is computed as explained in section 6.3 of the EUROMET.EM.RF-K10.CL Final Report.

The degree of equivalence between two laboratories i and j is given by two terms, both expressed in 10-3: Dij and its expanded uncertainty Uij (k = 2).
The pair-wise degrees of equivalence are computed only between two laboratories participants in EUROMET.EM.RF-K10.CL.

It follows that the Matrix of equivalence and the Graph of equivalence obtained for CCEM.RF-K10.CL are extended with results obtained in EUROMET.EM.RF-K10.CL.

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

  • Key comparison CCEM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 1-3 and PTB 1-3-1
FREQUENCY : 1 GHz

The computation of the key comparison reference values, xR, and of their uncertainties, uR, is explained in Section 6.2 of the Final Report (pages 14 and 15).
For each frequency and each of the transfer standards PTB 1-3 and PTB 2-6, xR is computed as the unweighted arithmetic mean of the participants' results obtained using independant primary power standards with outliers excluded. Its standard uncertainty, uR, is the standard deviation of the mean.
For each frequency and each of the repaired transfer standards PTB 1-3-1 and PTB 2-6-1, xR is computed using the common measurements carried out by PTB (see on page 15 of the Final Report). Its standard uncertainty, uR, is assumed to be equal to the standard uncertainty obtained with the transfer standard before repair.

For PTB 1-3, xR = 0.9760 and uR = 0.0012
For PTB 1-3-1, xR = 0.9841 and uR = 0.0012

The degree of equivalence of laboratory i with respect to the key comparison reference value is given by two terms, both expressed in 10-3: Di = (xi - xR) and its expanded uncertainty Ui (k = 2), Ui = 2(ui2 + uR2)1/2.

The degree of equivalence between two laboratories i and j is given by two terms, both expressed in 10-3: Dij = (Di - Dj) and its expanded uncertainty Uij (k = 2),
Uij = 2(ui2 + uj2)1/2.
  • Linking EUROMET.EM.RF-K10.CL to CCEM.RF-K10.CL

The laboratories that are participants in both comparisons (PTB and NPL) are used for linking the results obtained in EUROMET.EM.RF-K10.CL to the results obtained in CCEM.RF-K10.CL. The linking process is explained in section 6.2 of the EUROMET.EM.RF-K10.CL Final Report.

The degree of equivalence of laboratory i participant in EUROMET.EM.RF-K10.CL with respect to the key comparison reference value is given by two terms, both expressed in 10-3: Di and its expanded uncertainty Ui (k = 2).
The degree of equivalence is computed as explained in section 6.3 of the EUROMET.EM.RF-K10.CL Final Report.

The degree of equivalence between two laboratories i and j is given by two terms, both expressed in 10-3: Dij and its expanded uncertainty Uij (k = 2).
The pair-wise degrees of equivalence are computed only between two laboratories participants in EUROMET.EM.RF-K10.CL.

It follows that the Matrix of equivalence and the Graph of equivalence obtained for CCEM.RF-K10.CL are extended with results obtained in EUROMET.EM.RF-K10.CL.

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

  • Key comparison CCEM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 1-3 and PTB 1-3-1
FREQUENCY : 10 GHz

The computation of the key comparison reference values, xR, and of their uncertainties, uR, is explained in Section 6.2 of the Final Report (pages 14 and 15).
For each frequency and each of the transfer standards PTB 1-3 and PTB 2-6, xR is computed as the unweighted arithmetic mean of the participants' results obtained using independant primary power standards with outliers excluded. Its standard uncertainty, uR, is the standard deviation of the mean.
For each frequency and each of the repaired transfer standards PTB 1-3-1 and PTB 2-6-1, xR is computed using the common measurements carried out by PTB (see on page 15 of the Final Report). Its standard uncertainty, uR, is assumed to be equal to the standard uncertainty obtained with the transfer standard before repair.

For PTB 1-3, xR = 0.9416 and uR = 0.0007
For PTB 1-3-1, xR = 0.9358 and uR = 0.0007

The degree of equivalence of laboratory i with respect to the key comparison reference value is given by two terms, both expressed in 10-3: Di = (xi - xR) and its expanded uncertainty Ui (k = 2), Ui = 2(ui2 + uR2)1/2.

The degree of equivalence between two laboratories i and j is given by two terms, both expressed in 10-3: Dij = (Di - Dj) and its expanded uncertainty Uij (k = 2),
Uij = 2(ui2 + uj2)1/2.
  • Linking EUROMET.EM.RF-K10.CL to CCEM.RF-K10.CL

The laboratories that are participants in both comparisons (PTB and NPL) are used for linking the results obtained in EUROMET.EM.RF-K10.CL to the results obtained in CCEM.RF-K10.CL. The linking process is explained in section 6.2 of the EUROMET.EM.RF-K10.CL Final Report.

The degree of equivalence of laboratory i participant in EUROMET.EM.RF-K10.CL with respect to the key comparison reference value is given by two terms, both expressed in 10-3: Di and its expanded uncertainty Ui (k = 2).
The degree of equivalence is computed as explained in section 6.3 of the EUROMET.EM.RF-K10.CL Final Report.

The degree of equivalence between two laboratories i and j is given by two terms, both expressed in 10-3: Dij and its expanded uncertainty Uij (k = 2).
The pair-wise degrees of equivalence are computed only between two laboratories participants in EUROMET.EM.RF-K10.CL.

It follows that the Matrix of equivalence and the Graph of equivalence obtained for CCEM.RF-K10.CL are extended with results obtained in EUROMET.EM.RF-K10.CL.

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

  • Key comparison CCEM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 1-3 and PTB 1-3-1
FREQUENCY : 18 GHz

The computation of the key comparison reference values, xR, and of their uncertainties, uR, is explained in Section 6.2 of the Final Report (pages 14 and 15).
For each frequency and each of the transfer standards PTB 1-3 and PTB 2-6, xR is computed as the unweighted arithmetic mean of the participants' results obtained using independant primary power standards with outliers excluded. Its standard uncertainty, uR, is the standard deviation of the mean.
For each frequency and each of the repaired transfer standards PTB 1-3-1 and PTB 2-6-1, xR is computed using the common measurements carried out by PTB (see on page 15 of the Final Report). Its standard uncertainty, uR, is assumed to be equal to the standard uncertainty obtained with the transfer standard before repair.

For PTB 1-3, xR = 0.9317 and uR = 0.0014
For PTB 1-3-1, xR = 0.9004 and uR = 0.0014

The degree of equivalence of laboratory i with respect to the key comparison reference value is given by two terms, both expressed in 10-3: Di = (xi - xR) and its expanded uncertainty Ui (k = 2), Ui = 2(ui2 + uR2)1/2.

The degree of equivalence between two laboratories i and j is given by two terms, both expressed in 10-3: Dij = (Di - Dj) and its expanded uncertainty Uij (k = 2),
Uij = 2(ui2 + uj2)1/2.
  • Linking EUROMET.EM.RF-K10.CL to CCEM.RF-K10.CL

The laboratories that are participants in both comparisons (PTB and NPL) are used for linking the results obtained in EUROMET.EM.RF-K10.CL to the results obtained in CCEM.RF-K10.CL. The linking process is explained in section 6.2 of the EUROMET.EM.RF-K10.CL Final Report.

The degree of equivalence of laboratory i participant in EUROMET.EM.RF-K10.CL with respect to the key comparison reference value is given by two terms, both expressed in 10-3: Di and its expanded uncertainty Ui (k = 2).
The degree of equivalence is computed as explained in section 6.3 of the EUROMET.EM.RF-K10.CL Final Report.

The degree of equivalence between two laboratories i and j is given by two terms, both expressed in 10-3: Dij and its expanded uncertainty Uij (k = 2).
The pair-wise degrees of equivalence are computed only between two laboratories participants in EUROMET.EM.RF-K10.CL.

It follows that the Matrix of equivalence and the Graph of equivalence obtained for CCEM.RF-K10.CL are extended with results obtained in EUROMET.EM.RF-K10.CL.

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

  • Key comparison CCEM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARD : Power sensors PTB 1-3 and PTB 1-3-1
FREQUENCY : 20 GHz

The computation of the key comparison reference values, xR, and of their uncertainties, uR, is explained in Section 6.2 of the Final Report (pages 14 and 15).
For each frequency and each of the transfer standards PTB 1-3 and PTB 2-6, xR is computed as the unweighted arithmetic mean of the participants' results obtained using independant primary power standards with outliers excluded. Its standard uncertainty, uR, is the standard deviation of the mean.
For each frequency and each of the repaired transfer standards PTB 1-3-1 and PTB 2-6-1, xR is computed using the common measurements carried out by PTB (see on page 15 of the Final Report). Its standard uncertainty, uR, is assumed to be equal to the standard uncertainty obtained with the transfer standard before repair.

For PTB 1-3, xR = 0.9276 and uR = 0.0020
For PTB 1-3-1, xR = 0.8849 and uR = 0.0020

The degree of equivalence of laboratory i with respect to the key comparison reference value is given by two terms, both expressed in 10-3: Di = (xi - xR) and its expanded uncertainty Ui (k = 2), Ui = 2(ui2 + uR2)1/2.

The degree of equivalence between two laboratories i and j is given by two terms, both expressed in 10-3: Dij = (Di - Dj) and its expanded uncertainty Uij (k = 2),
Uij = 2(ui2 + uj2)1/2.
  • Linking EUROMET.EM.RF-K10.CL to CCEM.RF-K10.CL

The laboratories that are participants in both comparisons (PTB and NPL) are used for linking the results obtained in EUROMET.EM.RF-K10.CL to the results obtained in CCEM.RF-K10.CL. The linking process is explained in section 6.2 of the EUROMET.EM.RF-K10.CL Final Report.

The degree of equivalence of laboratory i participant in EUROMET.EM.RF-K10.CL with respect to the key comparison reference value is given by two terms, both expressed in 10-3: Di and its expanded uncertainty Ui (k = 2).
The degree of equivalence is computed as explained in section 6.3 of the EUROMET.EM.RF-K10.CL Final Report.

The degree of equivalence between two laboratories i and j is given by two terms, both expressed in 10-3: Dij and its expanded uncertainty Uij (k = 2).
The pair-wise degrees of equivalence are computed only between two laboratories participants in EUROMET.EM.RF-K10.CL.

It follows that the Matrix of equivalence and the Graph of equivalence obtained for CCEM.RF-K10.CL are extended with results obtained in EUROMET.EM.RF-K10.CL.

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

  • Key comparison CCEM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARD : Power sensors PTB 1-3 and PTB 1-3-1
FREQUENCY : 23 GHz

The computation of the key comparison reference values, xR, and of their uncertainties, uR, is explained in Section 6.2 of the Final Report (pages 14 and 15).
For each frequency and each of the transfer standards PTB 1-3 and PTB 2-6, xR is computed as the unweighted arithmetic mean of the participants' results obtained using independant primary power standards with outliers excluded. Its standard uncertainty, uR, is the standard deviation of the mean.
For each frequency and each of the repaired transfer standards PTB 1-3-1 and PTB 2-6-1, xR is computed using the common measurements carried out by PTB (see on page 15 of the Final Report). Its standard uncertainty, uR, is assumed to be equal to the standard uncertainty obtained with the transfer standard before repair.

For PTB 1-3, xR = 0.9252 and uR = 0.0019
For PTB 1-3-1, xR = 0.8582 and uR = 0.0019

The degree of equivalence of laboratory i with respect to the key comparison reference value is given by two terms, both expressed in 10-3: Di = (xi - xR) and its expanded uncertainty Ui (k = 2), Ui = 2(ui2 + uR2)1/2.

The degree of equivalence between two laboratories i and j is given by two terms, both expressed in 10-3: Dij = (Di - Dj) and its expanded uncertainty Uij (k = 2),
Uij = 2(ui2 + uj2)1/2.
  • Linking EUROMET.EM.RF-K10.CL to CCEM.RF-K10.CL

The laboratories that are participants in both comparisons (PTB and NPL) are used for linking the results obtained in EUROMET.EM.RF-K10.CL to the results obtained in CCEM.RF-K10.CL. The linking process is explained in section 6.2 of the EUROMET.EM.RF-K10.CL Final Report.

The degree of equivalence of laboratory i participant in EUROMET.EM.RF-K10.CL with respect to the key comparison reference value is given by two terms, both expressed in 10-3: Di and its expanded uncertainty Ui (k = 2).
The degree of equivalence is computed as explained in section 6.3 of the EUROMET.EM.RF-K10.CL Final Report.

The degree of equivalence between two laboratories i and j is given by two terms, both expressed in 10-3: Dij and its expanded uncertainty Uij (k = 2).
The pair-wise degrees of equivalence are computed only between two laboratories participants in EUROMET.EM.RF-K10.CL.

It follows that the Matrix of equivalence and the Graph of equivalence obtained for CCEM.RF-K10.CL are extended with results obtained in EUROMET.EM.RF-K10.CL.

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

  • Key comparison CCEM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 1-3 and PTB 1-3-1
FREQUENCY : 26 GHz

The computation of the key comparison reference values, xR, and of their uncertainties, uR, is explained in Section 6.2 of the Final Report (pages 14 and 15).
For each frequency and each of the transfer standards PTB 1-3 and PTB 2-6, xR is computed as the unweighted arithmetic mean of the participants' results obtained using independant primary power standards with outliers excluded. Its standard uncertainty, uR, is the standard deviation of the mean.
For each frequency and each of the repaired transfer standards PTB 1-3-1 and PTB 2-6-1, xR is computed using the common measurements carried out by PTB (see on page 15 of the Final Report). Its standard uncertainty, uR, is assumed to be equal to the standard uncertainty obtained with the transfer standard before repair.

For PTB 1-3, xR = 0.9228 and uR = 0.0022
For PTB 1-3-1, xR = 0.8607 and uR = 0.0022

The degree of equivalence of laboratory i with respect to the key comparison reference value is given by two terms, both expressed in 10-3: Di = (xi - xR) and its expanded uncertainty Ui (k = 2), Ui = 2(ui2 + uR2)1/2.

The degree of equivalence between two laboratories i and j is given by two terms, both expressed in 10-3: Dij = (Di - Dj) and its expanded uncertainty Uij (k = 2),
Uij = 2(ui2 + uj2)1/2.
  • Linking EUROMET.EM.RF-K10.CL to CCEM.RF-K10.CL

The laboratories that are participants in both comparisons (PTB and NPL) are used for linking the results obtained in EUROMET.EM.RF-K10.CL to the results obtained in CCEM.RF-K10.CL. The linking process is explained in section 6.2 of the EUROMET.EM.RF-K10.CL Final Report.

The degree of equivalence of laboratory i participant in EUROMET.EM.RF-K10.CL with respect to the key comparison reference value is given by two terms, both expressed in 10-3: Di and its expanded uncertainty Ui (k = 2).
The degree of equivalence is computed as explained in section 6.3 of the EUROMET.EM.RF-K10.CL Final Report.

The degree of equivalence between two laboratories i and j is given by two terms, both expressed in 10-3: Dij and its expanded uncertainty Uij (k = 2).
The pair-wise degrees of equivalence are computed only between two laboratories participants in EUROMET.EM.RF-K10.CL.

It follows that the Matrix of equivalence and the Graph of equivalence obtained for CCEM.RF-K10.CL are extended with results obtained in EUROMET.EM.RF-K10.CL.

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

  • Key comparison CCEM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 2-6 and PTB 2-6-1
FREQUENCY : 50 MHz

The computation of the key comparison reference values, xR, and of their uncertainties, uR, is explained in Section 6.2 of the Final Report (pages 14 and 15).
For each frequency and each of the transfer standards PTB 1-3 and PTB 2-6, xR is computed as the unweighted arithmetic mean of the participants' results obtained using independant primary power standards with outliers excluded. Its standard uncertainty, uR, is the standard deviation of the mean.
For each frequency and each of the repaired transfer standards PTB 1-3-1 and PTB 2-6-1, xR is computed using the common measurements carried out by PTB (see on page 15 of the Final Report). Its standard uncertainty, uR, is assumed to be equal to the standard uncertainty obtained with the transfer standard before repair.

For PTB 2-6, xR = 0.9895 and uR = 0.0019
For PTB 2-6-1, xR = 0.9881 and uR = 0.0019

The degree of equivalence of laboratory i with respect to the key comparison reference value is given by two terms, both expressed in 10-3: Di = (xi - xR) and its expanded uncertainty Ui (k = 2), Ui = 2(ui2 + uR2)1/2.

The degree of equivalence between two laboratories i and j is given by two terms, both expressed in 10-3: Dij = (Di - Dj) and its expanded uncertainty Uij (k = 2),
Uij = 2(ui2 + uj2)1/2.
  • Linking EUROMET.EM.RF-K10.CL to CCEM.RF-K10.CL

The laboratories that are participants in both comparisons (PTB and NPL) are used for linking the results obtained in EUROMET.EM.RF-K10.CL to the results obtained in CCEM.RF-K10.CL. The linking process is explained in section 6.2 of the EUROMET.EM.RF-K10.CL Final Report.

The degree of equivalence of laboratory i participant in EUROMET.EM.RF-K10.CL with respect to the key comparison reference value is given by two terms, both expressed in 10-3: Di and its expanded uncertainty Ui (k = 2).
The degree of equivalence is computed as explained in section 6.3 of the EUROMET.EM.RF-K10.CL Final Report.

The degree of equivalence between two laboratories i and j is given by two terms, both expressed in 10-3: Dij and its expanded uncertainty Uij (k = 2).
The pair-wise degrees of equivalence are computed only between two laboratories participants in EUROMET.EM.RF-K10.CL.

It follows that the Matrix of equivalence and the Graph of equivalence obtained for CCEM.RF-K10.CL are extended with results obtained in EUROMET.EM.RF-K10.CL.

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

  • Key comparison CCEM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 2-6 and PTB 2-6-1
FREQUENCY : 1 GHz

The computation of the key comparison reference values, xR, and of their uncertainties, uR, is explained in Section 6.2 of the Final Report (pages 14 and 15).
For each frequency and each of the transfer standards PTB 1-3 and PTB 2-6, xR is computed as the unweighted arithmetic mean of the participants' results obtained using independant primary power standards with outliers excluded. Its standard uncertainty, uR, is the standard deviation of the mean.
For each frequency and each of the repaired transfer standards PTB 1-3-1 and PTB 2-6-1, xR is computed using the common measurements carried out by PTB (see on page 15 of the Final Report). Its standard uncertainty, uR, is assumed to be equal to the standard uncertainty obtained with the transfer standard before repair.

For PTB 2-6, xR = 0.9804 and uR = 0.0015
For PTB 2-6-1, xR = 0.9800 and uR = 0.0015

The degree of equivalence of laboratory i with respect to the key comparison reference value is given by two terms, both expressed in 10-3: Di = (xi - xR) and its expanded uncertainty Ui (k = 2), Ui = 2(ui2 + uR2)1/2.

The degree of equivalence between two laboratories i and j is given by two terms, both expressed in 10-3: Dij = (Di - Dj) and its expanded uncertainty Uij (k = 2),
Uij = 2(ui2 + uj2)1/2.
  • Linking EUROMET.EM.RF-K10.CL to CCEM.RF-K10.CL

The laboratories that are participants in both comparisons (PTB and NPL) are used for linking the results obtained in EUROMET.EM.RF-K10.CL to the results obtained in CCEM.RF-K10.CL. The linking process is explained in section 6.2 of the EUROMET.EM.RF-K10.CL Final Report.

The degree of equivalence of laboratory i participant in EUROMET.EM.RF-K10.CL with respect to the key comparison reference value is given by two terms, both expressed in 10-3: Di and its expanded uncertainty Ui (k = 2).
The degree of equivalence is computed as explained in section 6.3 of the EUROMET.EM.RF-K10.CL Final Report.

The degree of equivalence between two laboratories i and j is given by two terms, both expressed in 10-3: Dij and its expanded uncertainty Uij (k = 2).
The pair-wise degrees of equivalence are computed only between two laboratories participants in EUROMET.EM.RF-K10.CL.

It follows that the Matrix of equivalence and the Graph of equivalence obtained for CCEM.RF-K10.CL are extended with results obtained in EUROMET.EM.RF-K10.CL.

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

  • Key comparison CCEM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 2-6 and PTB 2-6-1
FREQUENCY : 10 GHz

The computation of the key comparison reference values, xR, and of their uncertainties, uR, is explained in Section 6.2 of the Final Report (pages 14 and 15).
For each frequency and each of the transfer standards PTB 1-3 and PTB 2-6, xR is computed as the unweighted arithmetic mean of the participants' results obtained using independant primary power standards with outliers excluded. Its standard uncertainty, uR, is the standard deviation of the mean.
For each frequency and each of the repaired transfer standards PTB 1-3-1 and PTB 2-6-1, xR is computed using the common measurements carried out by PTB (see on page 15 of the Final Report). Its standard uncertainty, uR, is assumed to be equal to the standard uncertainty obtained with the transfer standard before repair.

For PTB 2-6, xR = 0.9380 and uR = 0.0012
For PTB 2-6-1, xR = 0.9398 and uR = 0.0012

The degree of equivalence of laboratory i with respect to the key comparison reference value is given by two terms, both expressed in 10-3: Di = (xi - xR) and its expanded uncertainty Ui (k = 2), Ui = 2(ui2 + uR2)1/2.

The degree of equivalence between two laboratories i and j is given by two terms, both expressed in 10-3: Dij = (Di - Dj) and its expanded uncertainty Uij (k = 2),
Uij = 2(ui2 + uj2)1/2.
  • Linking EUROMET.EM.RF-K10.CL to CCEM.RF-K10.CL

The laboratories that are participants in both comparisons (PTB and NPL) are used for linking the results obtained in EUROMET.EM.RF-K10.CL to the results obtained in CCEM.RF-K10.CL. The linking process is explained in section 6.2 of the EUROMET.EM.RF-K10.CL Final Report.

The degree of equivalence of laboratory i participant in EUROMET.EM.RF-K10.CL with respect to the key comparison reference value is given by two terms, both expressed in 10-3: Di and its expanded uncertainty Ui (k = 2).
The degree of equivalence is computed as explained in section 6.3 of the EUROMET.EM.RF-K10.CL Final Report.

The degree of equivalence between two laboratories i and j is given by two terms, both expressed in 10-3: Dij and its expanded uncertainty Uij (k = 2).
The pair-wise degrees of equivalence are computed only between two laboratories participants in EUROMET.EM.RF-K10.CL.

It follows that the Matrix of equivalence and the Graph of equivalence obtained for CCEM.RF-K10.CL are extended with results obtained in EUROMET.EM.RF-K10.CL.

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

  • Key comparison CCEM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 2-6 and PTB 2-6-1
FREQUENCY : 18 GHz

The computation of the key comparison reference values, xR, and of their uncertainties, uR, is explained in Section 6.2 of the Final Report (pages 14 and 15).
For each frequency and each of the transfer standards PTB 1-3 and PTB 2-6, xR is computed as the unweighted arithmetic mean of the participants' results obtained using independant primary power standards with outliers excluded. Its standard uncertainty, uR, is the standard deviation of the mean.
For each frequency and each of the repaired transfer standards PTB 1-3-1 and PTB 2-6-1, xR is computed using the common measurements carried out by PTB (see on page 15 of the Final Report). Its standard uncertainty, uR, is assumed to be equal to the standard uncertainty obtained with the transfer standard before repair.

For PTB 2-6, xR = 0.9079 and uR = 0.0010
For PTB 2-6-1, xR = 0.9126 and uR = 0.0010

The degree of equivalence of laboratory i with respect to the key comparison reference value is given by two terms, both expressed in 10-3: Di = (xi - xR) and its expanded uncertainty Ui (k = 2), Ui = 2(ui2 + uR2)1/2.

The degree of equivalence between two laboratories i and j is given by two terms, both expressed in 10-3: Dij = (Di - Dj) and its expanded uncertainty Uij (k = 2),
Uij = 2(ui2 + uj2)1/2.
  • Linking EUROMET.EM.RF-K10.CL to CCEM.RF-K10.CL

The laboratories that are participants in both comparisons (PTB and NPL) are used for linking the results obtained in EUROMET.EM.RF-K10.CL to the results obtained in CCEM.RF-K10.CL. The linking process is explained in section 6.2 of the EUROMET.EM.RF-K10.CL Final Report.

The degree of equivalence of laboratory i participant in EUROMET.EM.RF-K10.CL with respect to the key comparison reference value is given by two terms, both expressed in 10-3: Di and its expanded uncertainty Ui (k = 2).
The degree of equivalence is computed as explained in section 6.3 of the EUROMET.EM.RF-K10.CL Final Report.

The degree of equivalence between two laboratories i and j is given by two terms, both expressed in 10-3: Dij and its expanded uncertainty Uij (k = 2).
The pair-wise degrees of equivalence are computed only between two laboratories participants in EUROMET.EM.RF-K10.CL.

It follows that the Matrix of equivalence and the Graph of equivalence obtained for CCEM.RF-K10.CL are extended with results obtained in EUROMET.EM.RF-K10.CL.

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

  • Key comparison CCEM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 2-6 and PTB 2-6-1
FREQUENCY : 20 GHz

The computation of the key comparison reference values, xR, and of their uncertainties, uR, is explained in Section 6.2 of the Final Report (pages 14 and 15).
For each frequency and each of the transfer standards PTB 1-3 and PTB 2-6, xR is computed as the unweighted arithmetic mean of the participants' results obtained using independant primary power standards with outliers excluded. Its standard uncertainty, uR, is the standard deviation of the mean.
For each frequency and each of the repaired transfer standards PTB 1-3-1 and PTB 2-6-1, xR is computed using the common measurements carried out by PTB (see on page 15 of the Final Report). Its standard uncertainty, uR, is assumed to be equal to the standard uncertainty obtained with the transfer standard before repair.

For PTB 2-6, xR = 0.8960 and uR = 0.0016
For PTB 2-6-1, xR = 0.9110 and uR = 0.0016

The degree of equivalence of laboratory i with respect to the key comparison reference value is given by two terms, both expressed in 10-3: Di = (xi - xR) and its expanded uncertainty Ui (k = 2), Ui = 2(ui2 + uR2)1/2.

The degree of equivalence between two laboratories i and j is given by two terms, both expressed in 10-3: Dij = (Di - Dj) and its expanded uncertainty Uij (k = 2),
Uij = 2(ui2 + uj2)1/2.
  • Linking EUROMET.EM.RF-K10.CL to CCEM.RF-K10.CL

The laboratories that are participants in both comparisons (PTB and NPL) are used for linking the results obtained in EUROMET.EM.RF-K10.CL to the results obtained in CCEM.RF-K10.CL. The linking process is explained in section 6.2 of the EUROMET.EM.RF-K10.CL Final Report.

The degree of equivalence of laboratory i participant in EUROMET.EM.RF-K10.CL with respect to the key comparison reference value is given by two terms, both expressed in 10-3: Di and its expanded uncertainty Ui (k = 2).
The degree of equivalence is computed as explained in section 6.3 of the EUROMET.EM.RF-K10.CL Final Report.

The degree of equivalence between two laboratories i and j is given by two terms, both expressed in 10-3: Dij and its expanded uncertainty Uij (k = 2).
The pair-wise degrees of equivalence are computed only between two laboratories participants in EUROMET.EM.RF-K10.CL.

It follows that the Matrix of equivalence and the Graph of equivalence obtained for CCEM.RF-K10.CL are extended with results obtained in EUROMET.EM.RF-K10.CL.

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

  • Key comparison CCEM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 2-6 and PTB 2-6-1
FREQUENCY : 23 GHz

The computation of the key comparison reference values, xR, and of their uncertainties, uR, is explained in Section 6.2 of the Final Report (pages 14 and 15).
For each frequency and each of the transfer standards PTB 1-3 and PTB 2-6, xR is computed as the unweighted arithmetic mean of the participants' results obtained using independant primary power standards with outliers excluded. Its standard uncertainty, uR, is the standard deviation of the mean.
For each frequency and each of the repaired transfer standards PTB 1-3-1 and PTB 2-6-1, xR is computed using the common measurements carried out by PTB (see on page 15 of the Final Report). Its standard uncertainty, uR, is assumed to be equal to the standard uncertainty obtained with the transfer standard before repair.

For PTB 2-6, xR = 0.8776 and uR = 0.0021
For PTB 2-6-1, xR = 0.8861 and uR = 0.0021

The degree of equivalence of laboratory i with respect to the key comparison reference value is given by two terms, both expressed in 10-3: Di = (xi - xR) and its expanded uncertainty Ui (k = 2), Ui = 2(ui2 + uR2)1/2.

The degree of equivalence between two laboratories i and j is given by two terms, both expressed in 10-3: Dij = (Di - Dj) and its expanded uncertainty Uij (k = 2),
Uij = 2(ui2 + uj2)1/2.
  • Linking EUROMET.EM.RF-K10.CL to CCEM.RF-K10.CL

The laboratories that are participants in both comparisons (PTB and NPL) are used for linking the results obtained in EUROMET.EM.RF-K10.CL to the results obtained in CCEM.RF-K10.CL. The linking process is explained in section 6.2 of the EUROMET.EM.RF-K10.CL Final Report.

The degree of equivalence of laboratory i participant in EUROMET.EM.RF-K10.CL with respect to the key comparison reference value is given by two terms, both expressed in 10-3: Di and its expanded uncertainty Ui (k = 2).
The degree of equivalence is computed as explained in section 6.3 of the EUROMET.EM.RF-K10.CL Final Report.

The degree of equivalence between two laboratories i and j is given by two terms, both expressed in 10-3: Dij and its expanded uncertainty Uij (k = 2).
The pair-wise degrees of equivalence are computed only between two laboratories participants in EUROMET.EM.RF-K10.CL.

It follows that the Matrix of equivalence and the Graph of equivalence obtained for CCEM.RF-K10.CL are extended with results obtained in EUROMET.EM.RF-K10.CL.

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

  • Key comparison CCEM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 2-6 and PTB 2-6-1
FREQUENCY : 26 GHz

The computation of the key comparison reference values, xR, and of their uncertainties, uR, is explained in Section 6.2 of the Final Report (pages 14 and 15).
For each frequency and each of the transfer standards PTB 1-3 and PTB 2-6, xR is computed as the unweighted arithmetic mean of the participants' results obtained using independant primary power standards with outliers excluded. Its standard uncertainty, uR, is the standard deviation of the mean.
For each frequency and each of the repaired transfer standards PTB 1-3-1 and PTB 2-6-1, xR is computed using the common measurements carried out by PTB (see on page 15 of the Final Report). Its standard uncertainty, uR, is assumed to be equal to the standard uncertainty obtained with the transfer standard before repair.

For PTB 2-6, xR = 0.8857 and uR = 0.0051
For PTB 2-6-1, xR = 0.8932 and uR = 0.0051

The degree of equivalence of laboratory i with respect to the key comparison reference value is given by two terms, both expressed in 10-3: Di = (xi - xR) and its expanded uncertainty Ui (k = 2), Ui = 2(ui2 + uR2)1/2.

The degree of equivalence between two laboratories i and j is given by two terms, both expressed in 10-3: Dij = (Di - Dj) and its expanded uncertainty Uij (k = 2),
Uij = 2(ui2 + uj2)1/2.
  • Linking EUROMET.EM.RF-K10.CL to CCEM.RF-K10.CL

The laboratories that are participants in both comparisons (PTB and NPL) are used for linking the results obtained in EUROMET.EM.RF-K10.CL to the results obtained in CCEM.RF-K10.CL. The linking process is explained in section 6.2 of the EUROMET.EM.RF-K10.CL Final Report.

The degree of equivalence of laboratory i participant in EUROMET.EM.RF-K10.CL with respect to the key comparison reference value is given by two terms, both expressed in 10-3: Di and its expanded uncertainty Ui (k = 2).
The degree of equivalence is computed as explained in section 6.3 of the EUROMET.EM.RF-K10.CL Final Report.

The degree of equivalence between two laboratories i and j is given by two terms, both expressed in 10-3: Dij and its expanded uncertainty Uij (k = 2).
The pair-wise degrees of equivalence are computed only between two laboratories participants in EUROMET.EM.RF-K10.CL.

It follows that the Matrix of equivalence and the Graph of equivalence obtained for CCEM.RF-K10.CL are extended with results obtained in EUROMET.EM.RF-K10.CL.

Comparison
Comparison close
Results
print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

  • Key comparison CCEM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 1-3 and PTB 1-3-1
FREQUENCY : 50 MHz

xi : result of measurement carried out by laboratory i
ui : combined standard uncertainty of xi

 Lab i

xi

ui

Date of measurement

 NMIJ

0.9828

0.0014

Jul - Aug 2000

 NRC

0.9837

0.0040

Aug - Sep 2000

 NIST

0.9887

0.0086

Oct - Nov 2000

 METAS

0.9810

0.0060

Nov - Dec 2000

 CSIR-NML

0.9920

0.0070

Dec 2000 - Jan 2001

 PTB

0.9877

0.0020

Feb 2001

 NMIA

0.9880

0.0020

Mar - Apr 2001

 NPL

0.9857

0.0015

Apr - May 2001

 MIRS/SIQ

0.9890

0.0030

May - Jun 2001

 INRIM

0.9895

0.0052

Jun - Jul 2001

 VNIIFTRI

-

-

Sep - Oct 2001

 PTB*

0.9897

0.0020

Nov 2001

 SPRING Singapore*

0.9936

0.0067

Dec 2001 - Jan 2002

* Laboratory having reported result for the measurement of the transfer standard
PTB 1-3-1.
Due to failure, the transfer standard PTB 1-3 was repaired after the VNIIFTRI measurements and relabelled PTB 1-3-1 (see page 10 of the Final Report).

  • Key comparison EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 1-03-2
FREQUENCY : 50 MHz

xi-EUR : result of measurement carried out by laboratory i participant in EUROMET.EM.RF-K10.CL
ui-EUR : combined standard uncertainty of xi-EUR

 Lab i

xi-EUR

ui-EUR

Date of measurement

 EIM

0.9880

0.0070

May 2002

 SP

0.9900

0.0029

Jun 2002

 NPL

0.9912

0.0012

Jul - Aug 2002

 AREPA

0.9990

0.0040

Aug - Sep 2002

 NMi-VSL

0.9764

0.0038

Sep - Oct 2002

 LNE

-

-

Nov 2002

 UME

-

-

Feb - Mar 2003

 PTB

0.9917

0.0020

Mar - Apr 2002,
Dec 2002 - Jan 2003,
Apr 2003

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

  • Key comparison CCEM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 1-3 and PTB 1-3-1
FREQUENCY : 1 GHz

xi : result of measurement carried out by laboratory i
ui : combined standard uncertainty of xi

 Lab i

xi

ui

Date of measurement

 NMIJ

0.9720

0.0017

Jul - Aug 2000

 NRC

0.9763

0.0040

Aug - Sep 2000

 NIST

0.9741

0.0087

Oct - Nov 2000

 METAS

0.9720

0.0070

Nov - Dec 2000

 CSIR-NML

0.9780

0.0080

Dec 2000 - Jan 2001

 PTB

0.9741

0.0025

Feb 2001

 NMIA

0.9760

0.0025

Mar - Apr 2001

 NPL

0.9740

0.0030

Apr - May 2001

 MIRS/SIQ

0.9750

0.0030

May - Jun 2001

 INRIM

0.9817

0.0063

Jun - Jul 2001

 VNIIFTRI

0.9800

0.0030

Sep - Oct 2001

 PTB*

0.9821

0.0025

Nov 2001

 SPRING Singapore*

0.9821

0.0067

Dec 2001 - Jan 2002

* Laboratory having reported result for the measurement of the transfer standard
PTB 1-3-1.
Due to failure, the transfer standard PTB 1-3 was repaired after the VNIIFTRI measurements and relabelled PTB 1-3-1 (see page 10 of the Final Report).

  • Key comparison EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 1-03-2
FREQUENCY : 1 GHz

xi-EUR : result of measurement carried out by laboratory i participant in EUROMET.EM.RF-K10.CL
ui-EUR : combined standard uncertainty of xi-EUR

 Lab i

xi-EUR

ui-EUR

Date of measurement

 EIM

0.9840

0.0080

May 2002

 SP

0.9830

0.0032

Jun 2002

 NPL

0.9823

0.0030

Jul - Aug 2002

 AREPA

0.9910

0.0040

Aug - Sep 2002

 NMi-VSL

0.9679

0.0051

Sep - Oct 2002

 PTB

0.9832

0.0025

Mar - Apr 2002,
Dec 2002 - Jan 2003,
Apr 2003

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

  • Key comparison CCEM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 1-3 and PTB 1-3-1
FREQUENCY : 10 GHz

xi : result of measurement carried out by laboratory i
ui : combined standard uncertainty of xi

 Lab i

xi

ui

Date of measurement

 NMIJ

0.9438

0.0020

Jul - Aug 2000

 NRC

0.9404

0.0040

Aug - Sep 2000

 NIST

0.9417

0.0088

Oct - Nov 2000

 METAS

0.9410

0.0100

Nov - Dec 2000

 CSIR-NML

0.9460

0.0110

Dec 2000 - Jan 2001

 PTB

0.9428

0.0040

Feb 2001

 NMIA

0.9420

0.0047

Mar - Apr 2001

 NPL

0.9390

0.0044

Apr - May 2001

 MIRS/SIQ

0.9380

0.0070

May - Jun 2001

 INRIM

0.9344

0.0135

Jun - Jul 2001

 VNIIFTRI

0.9610

0.0060

Sep - Oct 2001

 PTB*

0.9362

0.0040

Nov 2001

 SPRING Singapore*

0.9384

0.0074

Dec 2001 - Jan 2002

* Laboratory having reported result for the measurement of the transfer standard
PTB 1-3-1.
Due to failure, the transfer standard PTB 1-3 was repaired after the VNIIFTRI measurements and relabelled PTB 1-3-1 (see page 10 of the Final Report).

  • Key comparison EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 1-03-2
FREQUENCY : 10 GHz

xi-EUR : result of measurement carried out by laboratory i participant in EUROMET.EM.RF-K10.CL
ui-EUR : combined standard uncertainty of xi-EUR

 Lab i

xi-EUR

ui-EUR

Date of measurement

 EIM

0.9440

0.0100

May 2002

 SP

0.9560

0.0048

Jun 2002

 NPL

0.9532

0.0044

Jul - Aug 2002

 AREPA

0.9620

0.0080

Aug - Sep 2002

 NMi-VSL

0.9454

0.0070

Sep - Oct 2002

 PTB

0.9601

0.0040

Mar - Apr 2002,
Dec 2002 - Jan 2003,
Apr 2003

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

  • Key comparison CCEM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 1-3 and PTB 1-3-1
FREQUENCY : 18 GHz

xi : result of measurement carried out by laboratory i
ui : combined standard uncertainty of xi

 Lab i

xi

ui

Date of measurement

 NMIJ

0.9352

0.0058

Jul - Aug 2000

 NRC

0.9378

0.0048

Aug - Sep 2000

 NIST

0.9290

0.0088

Oct - Nov 2000

 METAS

0.9280

0.0100

Nov - Dec 2000

 CSIR-NML

0.9280

0.0130

Dec 2000 - Jan 2001

 PTB

0.9304

0.0050

Feb 2001

 NMIA

0.9330

0.0063

Mar - Apr 2001

 NPL

0.9290

0.0055

Apr - May 2001

 MIRS/SIQ

0.9370

0.0080

May - Jun 2001

 INRIM

0.9273

0.0138

Jun - Jul 2001

 VNIIFTRI

0.9110

0.0070

Sep - Oct 2001

 PTB*

0.8982

0.0050

Nov 2001

 SPRING Singapore*

0.8933

0.0098

Dec 2001 - Jan 2002

* Laboratory having reported result for the measurement of the transfer standard
PTB 1-3-1.
Due to failure, the transfer standard PTB 1-3 was repaired after the VNIIFTRI measurements and relabelled PTB 1-3-1 (see page 10 of the Final Report).

  • Key comparison EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 1-03-2
FREQUENCY : 18 GHz

xi-EUR : result of measurement carried out by laboratory i participant in EUROMET.EM.RF-K10.CL
ui-EUR : combined standard uncertainty of xi-EUR

 Lab i

xi-EUR

ui-EUR

Date of measurement

 EIM

0.9440

0.0140

May 2002

 SP

0.9400

0.0066

Jun 2002

 NPL

0.9426

0.0053

Jul - Aug 2002

 AREPA

0.9520

0.0110

Aug - Sep 2002

 NMi-VSL

0.9340

0.0086

Sep - Oct 2002

 PTB

0.9484

0.0050

Mar - Apr 2002,
Dec 2002 - Jan 2003,
Apr 2003

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

  • Key comparison CCEM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 1-3 and PTB 1-3-1
FREQUENCY : 20 GHz

xi : result of measurement carried out by laboratory i
ui : combined standard uncertainty of xi

 Lab i

xi

ui

Date of measurement

 NMIJ

0.9328

0.0039

Jul - Aug 2000

 NRC

0.9301

0.0048

Aug - Sep 2000

 NIST

0.9259

0.0090

Oct - Nov 2000

 METAS

0.9290

0.0110

Nov - Dec 2000

 CSIR-NML

0.9320

0.0150

Dec 2000 - Jan 2001

 PTB

0.9263

0.0055

Feb 2001

 NMIA

0.9320

0.0093

Mar - Apr 2001

 NPL

0.9310

0.0055

Apr - May 2001

 MIRS/SIQ

0.9300

0.0080

May - Jun 2001

 INRIM

0.9192

0.0131

Jun - Jul 2001

 VNIIFTRI

0.9080

0.0110

Sep - Oct 2001

 PTB*

0.8814

0.0055

Nov 2001

 SPRING Singapore*

0.8840

0.0099

Dec 2001 - Jan 2002

* Laboratory having reported result for the measurement of the transfer standard
PTB 1-3-1.
Due to failure, the transfer standard PTB 1-3 was repaired after the VNIIFTRI measurements and relabelled PTB 1-3-1 (see page 10 of the Final Report).

  • Key comparison EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 1-03-2
FREQUENCY : 20 GHz

xi-EUR : result of measurement carried out by laboratory i participant in EUROMET.EM.RF-K10.CL
ui-EUR : combined standard uncertainty of xi-EUR

 Lab i

xi-EUR

ui-EUR

Date of measurement

 EIM

0.9060

0.0130

May 2002

 SP

0.9420

0.0066

Jun 2002

 NPL

0.9385

0.0053

Jul - Aug 2002

 AREPA

0.9540

0.0140

Aug - Sep 2002

 NMi-VSL

0.9329

0.0086

Sep - Oct 2002

 PTB

0.9418

0.0055

Mar - Apr 2002,
Dec 2002 - Jan 2003,
Apr 2003

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

  • Key comparison CCEM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 1-3 and PTB 1-3-1
FREQUENCY : 23 GHz

xi : result of measurement carried out by laboratory i
ui : combined standard uncertainty of xi

 Lab i

xi

ui

Date of measurement

 NMIJ

0.9262

0.0044

Jul - Aug 2000

 NRC

0.9284

0.0048

Aug - Sep 2000

 NIST

0.9225

0.0092

Oct - Nov 2000

 METAS

0.9280

0.0110

Nov - Dec 2000

 CSIR-NML

0.9310

0.0160

Dec 2000 - Jan 2001

 PTB

0.9251

0.0065

Feb 2001

 NMIA

0.9270

0.0092

Mar - Apr 2001

 NPL

0.9310

0.0066

Apr - May 2001

 MIRS/SIQ

0.9260

0.0080

May - Jun 2001

 INRIM

0.9115

0.0190

Jun - Jul 2001

 VNIIFTRI

0.9180

0.0120

Sep - Oct 2001

 PTB*

0.8578

0.0065

Nov 2001

 SPRING Singapore*

0.8590

0.0130

Dec 2001 - Jan 2002

* Laboratory having reported result for the measurement of the transfer standard
PTB 1-3-1.
Due to failure, the transfer standard PTB 1-3 was repaired after the VNIIFTRI measurements and relabelled PTB 1-3-1 (see page 10 of the Final Report).

  • Key comparison EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 1-03-2
FREQUENCY : 23 GHz

xi-EUR : result of measurement carried out by laboratory i participant in EUROMET.EM.RF-K10.CL
ui-EUR : combined standard uncertainty of xi-EUR

 Lab i

xi-EUR

ui-EUR

Date of measurement

 EIM

0.9310

0.0140

May 2002

 SP

0.9370

0.0080

Jun 2002

 NPL

0.9387

0.0064

Jul - Aug 2002

 AREPA

0.9510

0.0170

Aug - Sep 2002

 NMi-VSL

0.9271

0.0087

Sep - Oct 2002

 PTB

0.9440

0.0065

Mar - Apr 2002,
Dec 2002 - Jan 2003,
Apr 2003

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

  • Key comparison CCEM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 1-3 and PTB 1-3-1
FREQUENCY : 26 GHz

xi : result of measurement carried out by laboratory i
ui : combined standard uncertainty of xi

 Lab i

xi

ui

Date of measurement

 NMIJ

0.9020

0.0069

Jul - Aug 2000

 NRC

0.9258

0.0048

Aug - Sep 2000

 NIST

0.9145

0.0094

Oct - Nov 2000

 METAS

0.9090

0.0120

Nov - Dec 2000

 CSIR-NML

0.9250

0.0190

Dec 2000 - Jan 2001

 PTB

0.9227

0.0085

Feb 2001

 NMIA

0.9200

0.0091

Mar - Apr 2001

 NPL

0.9270

0.0077

Apr - May 2001

 MIRS/SIQ

0.9190

0.0080

May - Jun 2001

 INRIM

0.9003

0.0187

Jun - Jul 2001

 VNIIFTRI

0.9240

0.0140

Sep - Oct 2001

 PTB*

0.8580

0.0085

Nov 2001

 SPRING Singapore*

0.8583

0.0084

Dec 2001 - Jan 2002

* Laboratory having reported result for the measurement of the transfer standard
PTB 1-3-1.
Due to failure, the transfer standard PTB 1-3 was repaired after the VNIIFTRI measurements and relabelled PTB 1-3-1 (see page 10 of the Final Report).

  • Key comparison EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 1-03-2
FREQUENCY : 26 GHz

xi-EUR : result of measurement carried out by laboratory i participant in EUROMET.EM.RF-K10.CL
ui-EUR : combined standard uncertainty of xi-EUR

 Lab i

xi-EUR

ui-EUR

Date of measurement

 EIM

0.9140

0.0150

May 2002

 SP

0.9420

0.0104

Jun 2002

 NPL

0.9386

0.0075

Jul - Aug 2002

 AREPA

0.9440

0.0170

Aug - Sep 2002

 NMi-VSL

0.9268

0.0097

Sep - Oct 2002

 PTB

0.9366

0.0085

Mar - Apr 2002,
Dec 2002 - Jan 2003,
Apr 2003

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

  • Key comparison CCEM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 2-6 and PTB 2-6-1
FREQUENCY : 50 MHz

xi : result of measurement carried out by laboratory i
ui : combined standard uncertainty of xi

 Lab i

xi

ui

Date of measurement

 NMIJ

0.9845

0.0014

Jul - Aug 2000

 NRC

-

-

Aug - Sep 2000

 NIST

0.9910

0.0086

Oct - Nov 2000

 METAS

0.9850

0.0060

Nov - Dec 2000

 CSIR-NML

0.9930

0.0070

Dec 2000 - Jan 2001

 PTB

0.9889

0.0020

Feb 2001

 NMIA

0.9900

0.0020

Mar - Apr 2001

 NPL

0.9872

0.0017

Apr - May 2001

 MIRS/SIQ

0.9910

0.0030

May - Jun 2001

 INRIM

0.9951

0.0058

Jun - Jul 2001

 VNIIFTRI

-

-

Sep - Oct 2001

 PTB*

0.9883

0.0020

Nov 2001

 SPRING Singapore*

0.9892

0.0067

Dec 2001 - Jan 2002

* Laboratory having reported result for the measurement of the transfer standard
PTB 2-6-1.
Due to failure, the transfer standard PTB 2-6 was repaired after the VNIIFTRI measurements and relabelled PTB 2-6-1 (see page 10 of the Final Report).

  • Key comparison EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 2-06-2
FREQUENCY : 50 MHz

xi-EUR : result of measurement carried out by laboratory i participant in EUROMET.EM.RF-K10.CL
ui-EUR : combined standard uncertainty of xi-EUR

 Lab i

xi-EUR

ui-EUR

Date of measurement

 SP

0.9870

0.0029

Jun 2002

 NPL

0.9880

0.0012

Jul - Aug 2002

 AREPA

0.9940

0.0040

Aug - Sep 2002

 NMi-VSL

0.9807

0.0038

Sep - Oct 2002

 LNE

0.9852

0.0023

Nov 2002

 UME

0.9922

0.0028

Feb - Mar 2003

 PTB

0.9884

0.0020

Mar - Apr 2002,
Dec 2002 - Jan 2003,
Apr 2003

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

  • Key comparison CCEM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 2-6 and PTB 2-6-1
FREQUENCY : 1 GHz

xi : result of measurement carried out by laboratory i
ui : combined standard uncertainty of xi

 Lab i

xi

ui

Date of measurement

 NMIJ

0.9764

0.0017

Jul - Aug 2000

 NRC

-

-

Aug - Sep 2000

 NIST

0.9784

0.0087

Oct - Nov 2000

 METAS

0.9770

0.0070

Nov - Dec 2000

 CSIR-NML

0.9820

0.0080

Dec 2000 - Jan 2001

 PTB

0.9784

0.0025

Feb 2001

 NMIA

0.9810

0.0025

Mar - Apr 2001

 NPL

0.9780

0.0032

Apr - May 2001

 MIRS/SIQ

0.9790

0.0030

May - Jun 2001

 INRIM

0.9857

0.0058

Jun - Jul 2001

 VNIIFTRI

0.9850

0.0060

Sep - Oct 2001

 PTB*

0.9780

0.0025

Nov 2001

 SPRING Singapore*

0.9775

0.0067

Dec 2001 - Jan 2002

* Laboratory having reported result for the measurement of the transfer standard
PTB 2-6-1.
Due to failure, the transfer standard PTB 2-6 was repaired after the VNIIFTRI measurements and relabelled PTB 2-6-1 (see page 10 of the Final Report).

  • Key comparison EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 2-06-2
FREQUENCY : 1 GHz

xi-EUR : result of measurement carried out by laboratory i participant in EUROMET.EM.RF-K10.CL
ui-EUR : combined standard uncertainty of xi-EUR

 Lab i

xi-EUR

ui-EUR

Date of measurement

 SP

0.9790

0.0032

Jun 2002

 NPL

0.9777

0.0030

Jul - Aug 2002

 AREPA

0.9850

0.0040

Aug - Sep 2002

 NMi-VSL

0.9708

0.0051

Sep - Oct 2002

 LNE

0.9761

0.0062

Nov 2002

 UME

0.9820

0.0027

Feb - Mar 2003

 PTB

0.9782

0.0025

Mar - Apr 2002,
Dec 2002 - Jan 2003,
Apr 2003

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

  • Key comparison CCEM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 2-6 and PTB 2-6-1
FREQUENCY : 10 GHz

xi : result of measurement carried out by laboratory i
ui : combined standard uncertainty of xi

 Lab i

xi

ui

Date of measurement

 NMIJ

0.9402

0.0019

Jul - Aug 2000

 NRC

-

-

Aug - Sep 2000

 NIST

0.9406

0.0088

Oct - Nov 2000

 METAS

0.9390

0.0100

Nov - Dec 2000

 CSIR-NML

0.9430

0.0110

Dec 2000 - Jan 2001

 PTB

0.9376

0.0040

Feb 2001

 NMIA

0.9400

0.0047

Mar - Apr 2001

 NPL

0.9360

0.0045

Apr - May 2001

 MIRS/SIQ

0.9310

0.0070

May - Jun 2001

 INRIM

0.9335

0.0153

Jun - Jul 2001

 VNIIFTRI

0.9590

0.0100

Sep - Oct 2001

 PTB*

0.9402

0.0040

Nov 2001

 SPRING Singapore*

0.9404

0.0071

Dec 2001 - Jan 2002

* Laboratory having reported result for the measurement of the transfer standard
PTB 2-6-1.
Due to failure, the transfer standard PTB 2-6 was repaired after the VNIIFTRI measurements and relabelled PTB 2-6-1 (see page 10 of the Final Report).

  • Key comparison EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 2-06-2
FREQUENCY : 10 GHz

xi-EUR : result of measurement carried out by laboratory i participant in EUROMET.EM.RF-K10.CL
ui-EUR : combined standard uncertainty of xi-EUR

 Lab i

xi-EUR

ui-EUR

Date of measurement

 SP

0.9370

0.0047

Jun 2002

 NPL

0.9341

0.0044

Jul - Aug 2002

 AREPA

0.9420

0.0070

Aug - Sep 2002

 NMi-VSL

0.9314

0.0069

Sep - Oct 2002

 LNE

0.9494

0.0085

Nov 2002

 UME

0.9508

0.0039

Feb - Mar 2003

 PTB

0.9388

0.0080

Mar - Apr 2002,
Dec 2002 - Jan 2003,
Apr 2003

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

  • Key comparison CCEM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 2-6 and PTB 2-6-1
FREQUENCY : 18 GHz

xi : result of measurement carried out by laboratory i
ui : combined standard uncertainty of xi

 Lab i

xi

ui

Date of measurement

 NMIJ

0.9092

0.0038

Jul - Aug 2000

 NRC

-

-

Aug - Sep 2000

 NIST

0.9074

0.0088

Oct - Nov 2000

 METAS

0.9060

0.0100

Nov - Dec 2000

 CSIR-NML

0.9030

0.0130

Dec 2000 - Jan 2001

 PTB

0.9048

0.0050

Feb 2001

 NMIA

0.9110

0.0063

Mar - Apr 2001

 NPL

0.9070

0.0055

Apr - May 2001

 MIRS/SIQ

0.9110

0.0080

May - Jun 2001

 INRIM

0.9231

0.0146

Jun - Jul 2001

 VNIIFTRI

0.8850

0.0120

Sep - Oct 2001

 PTB*

0.9104

0.0050

Nov 2001

 SPRING Singapore*

0.9071

0.0100

Dec 2001 - Jan 2002

* Laboratory having reported result for the measurement of the transfer standard
PTB 2-6-1.
Due to failure, the transfer standard PTB 2-6 was repaired after the VNIIFTRI measurements and relabelled PTB 2-6-1 (see page 10 of the Final Report).

  • Key comparison EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 2-06-2
FREQUENCY : 18 GHz

xi-EUR : result of measurement carried out by laboratory i participant in EUROMET.EM.RF-K10.CL
ui-EUR : combined standard uncertainty of xi-EUR

 Lab i

xi-EUR

ui-EUR

Date of measurement

 SP

0.9040

0.0066

Jun 2002

 NPL

0.9053

0.0054

Jul - Aug 2002

 AREPA

0.9180

0.0110

Aug - Sep 2002

 NMi-VSL

0.9091

0.0083

Sep - Oct 2002

 LNE

0.9167

0.0119

Nov 2002

 UME

0.9233

0.0082

Feb - Mar 2003

 PTB

0.9156

0.0050

Mar - Apr 2002,
Dec 2002 - Jan 2003,
Apr 2003

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

  • Key comparison CCEM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 2-6 and PTB 2-6-1
FREQUENCY : 20 GHz

xi : result of measurement carried out by laboratory i
ui : combined standard uncertainty of xi

 Lab i

xi

ui

Date of measurement

 NMIJ

0.8973

0.0047

Jul - Aug 2000

 NRC

-

-

Aug - Sep 2000

 NIST

0.8952

0.0090

Oct - Nov 2000

 METAS

0.9000

0.0110

Nov - Dec 2000

 CSIR-NML

0.9010

0.0150

Dec 2000 - Jan 2001

 PTB

0.8904

0.0055

Feb 2001

 NMIA

0.9000

0.0093

Mar - Apr 2001

 NPL

0.8970

0.0056

Apr - May 2001

 MIRS/SIQ

0.9020

0.0080

May - Jun 2001

 INRIM

0.9000

0.0145

Jun - Jul 2001

 VNIIFTRI

0.8710

0.0220

Sep - Oct 2001

 PTB*

0.9075

0.0055

Nov 2001

 SPRING Singapore*

0.9044

0.0103

Dec 2001 - Jan 2002

* Laboratory having reported result for the measurement of the transfer standard
PTB 2-6-1.
Due to failure, the transfer standard PTB 2-6 was repaired after the VNIIFTRI measurements and relabelled PTB 2-6-1 (see page 10 of the Final Report).

  • Key comparison EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 2-06-2
FREQUENCY : 20 GHz

xi-EUR : result of measurement carried out by laboratory i participant in EUROMET.EM.RF-K10.CL
ui-EUR : combined standard uncertainty of xi-EUR

 Lab i

xi-EUR

ui-EUR

Date of measurement

 SP

0.8970

0.0066

Jun 2002

 NPL

0.8944

0.0055

Jul - Aug 2002

 AREPA

0.9090

0.0130

Aug - Sep 2002

 NMi-VSL

0.8962

0.0083

Sep - Oct 2002

 LNE

0.9022

0.0128

Nov 2002

 UME

0.9140

0.0083

Feb - Mar 2003

 PTB

0.8998

0.0055

Mar - Apr 2002,
Dec 2002 - Jan 2003,
Apr 2003

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

  • Key comparison CCEM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 2-6 and PTB 2-6-1
FREQUENCY : 23 GHz

xi : result of measurement carried out by laboratory i
ui : combined standard uncertainty of xi

 Lab i

xi

ui

Date of measurement

 NMIJ

0.8784

0.0044

Jul - Aug 2000

 NRC

-

-

Aug - Sep 2000

 NIST

0.8779

0.0092

Oct - Nov 2000

 METAS

0.8820

0.0100

Nov - Dec 2000

 CSIR-NML

0.8820

0.0160

Dec 2000 - Jan 2001

 PTB

0.8769

0.0065

Feb 2001

 NMIA

0.8810

0.0092

Mar - Apr 2001

 NPL

0.8840

0.0067

Apr - May 2001

 MIRS/SIQ

0.8800

0.0080

May - Jun 2001

 INRIM

0.9013

0.0207

Jun - Jul 2001

 VNIIFTRI

0.8710

0.0290

Sep - Oct 2001

 PTB*

0.8857

0.0065

Nov 2001

 SPRING Singapore*

0.8866

0.0134

Dec 2001 - Jan 2002

* Laboratory having reported result for the measurement of the transfer standard
PTB 2-6-1.
Due to failure, the transfer standard PTB 2-6 was repaired after the VNIIFTRI measurements and relabelled PTB 2-6-1 (see page 10 of the Final Report).

  • Key comparison EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 2-06-2
FREQUENCY : 23 GHz

xi-EUR : result of measurement carried out by laboratory i participant in EUROMET.EM.RF-K10.CL
ui-EUR : combined standard uncertainty of xi-EUR

 Lab i

xi-EUR

ui-EUR

Date of measurement

 SP

0.8740

0.0080

Jun 2002

 NPL

0.8748

0.0066

Jul - Aug 2002

 AREPA

0.8850

0.0150

Aug - Sep 2002

 NMi-VSL

0.8729

0.0082

Sep - Oct 2002

 LNE

0.8918

0.0107

Nov 2002

 UME

0.9002

0.0110

Feb - Mar 2003

 PTB

0.8783

0.0065

Mar - Apr 2002,
Dec 2002 - Jan 2003,
Apr 2003

print out

CCEM.RF-K10.CL and EUROMET.EM.RF-K10.CL

  • Key comparison CCEM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 2-6 and PTB 2-6-1
FREQUENCY : 26 GHz

xi : result of measurement carried out by laboratory i
ui : combined standard uncertainty of xi

 Lab i

xi

ui

Date of measurement

 NMIJ

0.8686

0.0075

Jul - Aug 2000

 NRC

-

-

Aug - Sep 2000

 NIST

0.8778

0.0095

Oct - Nov 2000

 METAS

0.8700

0.0120

Nov - Dec 2000

 CSIR-NML

0.8810

0.0190

Dec 2000 - Jan 2001

 PTB

0.8805

0.0085

Feb 2001

 NMIA

0.8830

0.0093

Mar - Apr 2001

 NPL

0.8890

0.0077

Apr - May 2001

 MIRS/SIQ

0.8790

0.0080

May - Jun 2001

 INRIM

0.9032

0.0206

Jun - Jul 2001

 VNIIFTRI

0.8950

0.0150

Sep - Oct 2001

 PTB*

0.8905

0.0085

Nov 2001

 SPRING Singapore*

0.8945

0.0088

Dec 2001 - Jan 2002

* Laboratory having reported result for the measurement of the transfer standard
PTB 2-6-1.
Due to failure, the transfer standard PTB 2-6 was repaired after the VNIIFTRI measurements and relabelled PTB 2-6-1 (see page 10 of the Final Report).

  • Key comparison EUROMET.EM.RF-K10.CL

MEASURAND : Calibration factor
TRANSFER STANDARDS : Power sensors PTB 2-06-2
FREQUENCY : 26 GHz

xi-EUR : result of measurement carried out by laboratory i participant in EUROMET.EM.RF-K10.CL
ui-EUR : combined standard uncertainty of xi-EUR

 Lab i

xi-EUR

ui-EUR

Date of measurement

 SP

0.8820

0.0105

Jun 2002

 NPL

0.8783

0.0077

Jul - Aug 2002

 AREPA

0.8800

0.0170

Aug - Sep 2002

 NMi-VSL

0.8696

0.0091

Sep - Oct 2002

 LNE

0.8837

0.0101

Nov 2002

 UME

0.9037

0.0181

Feb - Mar 2003

 PTB

0.8767

0.0085

Mar - Apr 2002,
Dec 2002 - Jan 2003,
Apr 2003
