CCPR-K1.b and COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance
WAVELENGTH : 200 nm

Degrees of equivalence: Di = (xi - xR)/xR and expanded uncertainty Ui at a 95% level of confidence both expressed in %



print out

CCPR-K1.b and COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance

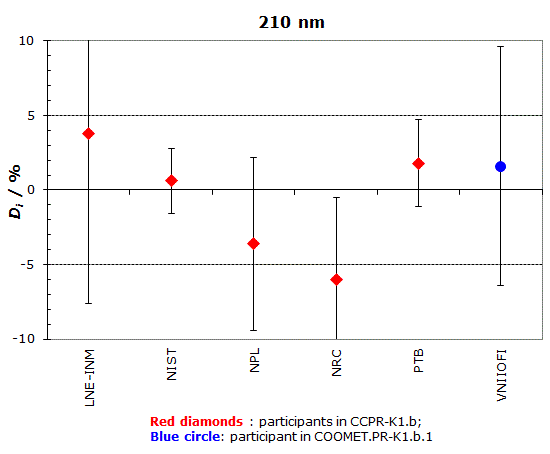

WAVELENGTH : 210 nm

Degrees of equivalence: Di = (xi - xR)/xR and expanded uncertainty Ui at a 95% level of confidence both expressed in %

print out

CCPR-K1.b and COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance
WAVELENGTH : 220 nm

Degrees of equivalence: Di = (xi - xR)/xR and expanded uncertainty Ui at a 95% level of confidence both expressed in %

print out

CCPR-K1.b and COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance
WAVELENGTH : 230 nm

Degrees of equivalence: Di = (xi - xR)/xR and expanded uncertainty Ui at a 95% level of confidence both expressed in %

print out

CCPR-K1.b and COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance
WAVELENGTH : 240 nm

Degrees of equivalence: Di = (xi - xR)/xR and expanded uncertainty Ui at a 95% level of confidence both expressed in %

print out

CCPR-K1.b and COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance

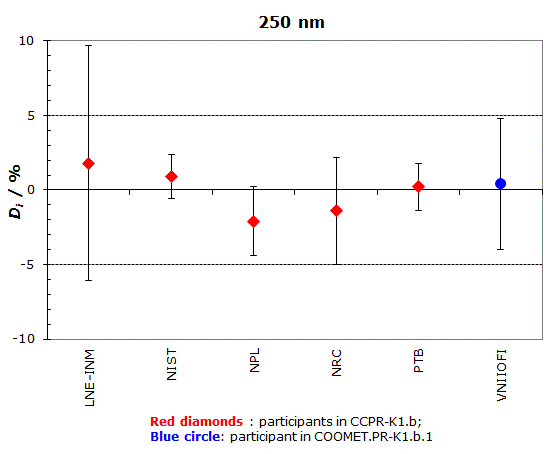

WAVELENGTH : 250 nm

Degrees of equivalence: Di = (xi - xR)/xR and expanded uncertainty Ui at a 95% level of confidence both expressed in %

print out

CCPR-K1.b and COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance

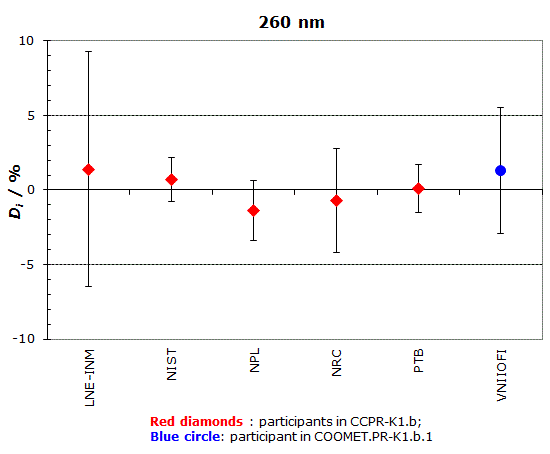

WAVELENGTH : 260 nm

Degrees of equivalence: Di = (xi - xR)/xR and expanded uncertainty Ui at a 95% level of confidence both expressed in %

print out

CCPR-K1.b and COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance

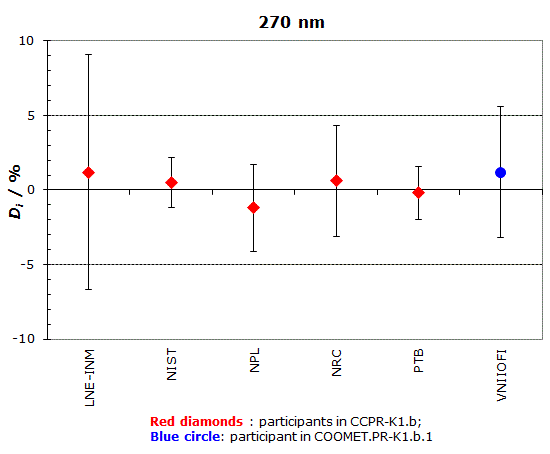

WAVELENGTH : 270 nm

Degrees of equivalence: Di = (xi - xR)/xR and expanded uncertainty Ui at a 95% level of confidence both expressed in %

print out

CCPR-K1.b and COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance

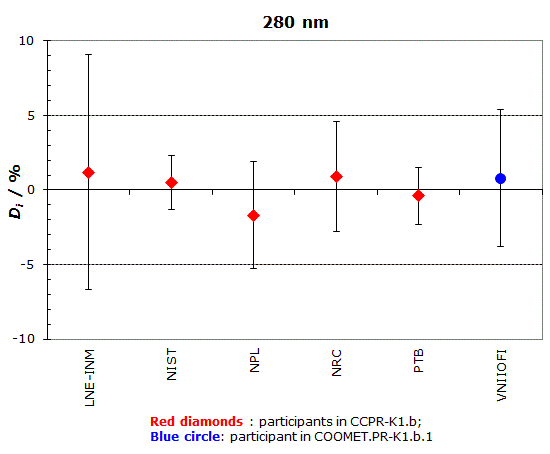

WAVELENGTH : 280 nm

Degrees of equivalence: Di = (xi - xR)/xR and expanded uncertainty Ui at a 95% level of confidence both expressed in %

print out

CCPR-K1.b and COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance

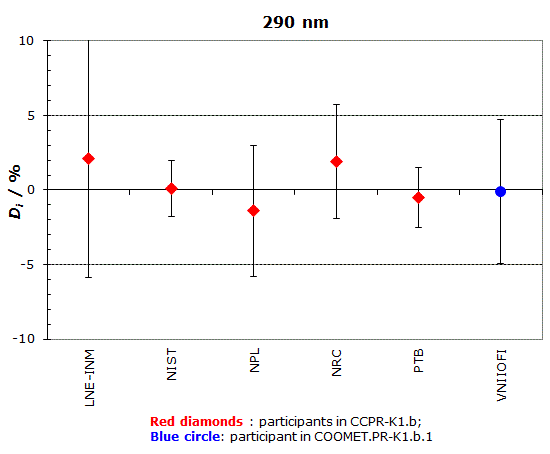

WAVELENGTH : 290 nm

Degrees of equivalence: Di = (xi - xR)/xR and expanded uncertainty Ui at a 95% level of confidence both expressed in %

print out

CCPR-K1.b and COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance
WAVELENGTH : 300 nm

Degrees of equivalence: Di = (xi - xR)/xR and expanded uncertainty Ui at a 95% level of confidence both expressed in %

print out

CCPR-K1.b and COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance
WAVELENGTH : 310 nm

Degrees of equivalence: Di = (xi - xR)/xR and expanded uncertainty Ui at a 95% level of confidence both expressed in %

print out

CCPR-K1.b and COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance
WAVELENGTH : 320 nm

Degrees of equivalence: Di = (xi - xR)/xR and expanded uncertainty Ui at a 95% level of confidence both expressed in %

print out

CCPR-K1.b and COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance

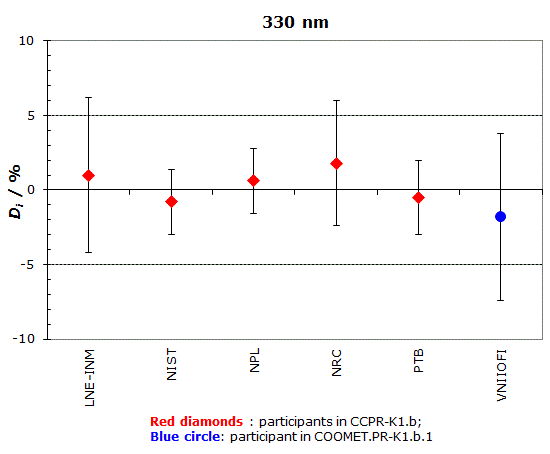

WAVELENGTH : 330 nm

Degrees of equivalence: Di = (xi - xR)/xR and expanded uncertainty Ui at a 95% level of confidence both expressed in %

print out

CCPR-K1.b and COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance
WAVELENGTH : 340 nm

Degrees of equivalence: Di = (xi - xR)/xR and expanded uncertainty Ui at a 95% level of confidence both expressed in %

print out

CCPR-K1.b and COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance

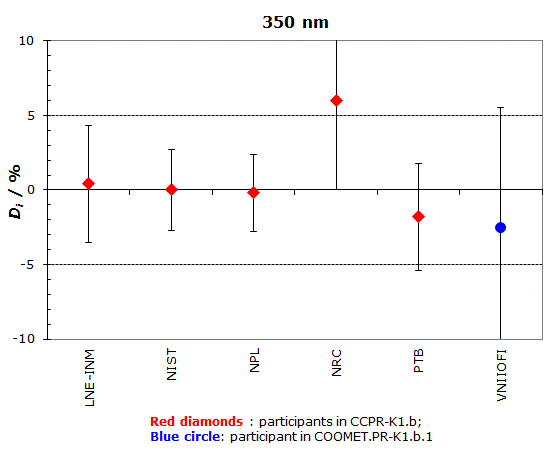

WAVELENGTH : 350 nm

Degrees of equivalence: Di = (xi - xR)/xR and expanded uncertainty Ui at a 95% level of confidence both expressed in %

Comparison
Comparison close
Results
print out

CCPR-K1.b and COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance

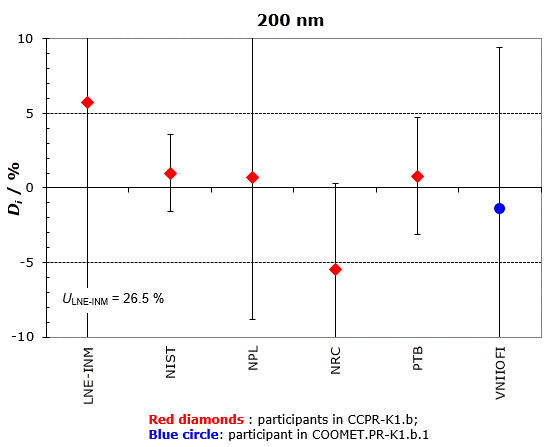

WAVELENGTH : 200 nm


Lab iDiUi
 / %/ %
LNE-INM5.726.5
NIST1.02.6
NPL0.79.5
NRC-5.55.8
PTB0.83.9
VNIIOFI-1.410.8

In dark blue: participants in CCPR-K1.b
In light blue : participant in COOMET.PR-K1.b.1

Results are presented under A4 printable format in Summary Results (.PDF file).

print out

CCPR-K1.b and COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance
WAVELENGTH : 210 nm


Lab iDiUi
 / %/ %
LNE-INM3.811.4
NIST0.62.2
NPL-3.65.8
NRC-6.05.5
PTB1.82.9
VNIIOFI1.68.0

In dark blue: participants in CCPR-K1.b
In light blue : participant in COOMET.PR-K1.b.1

Results are presented under A4 printable format in Summary Results (.PDF file).

print out

CCPR-K1.b and COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance

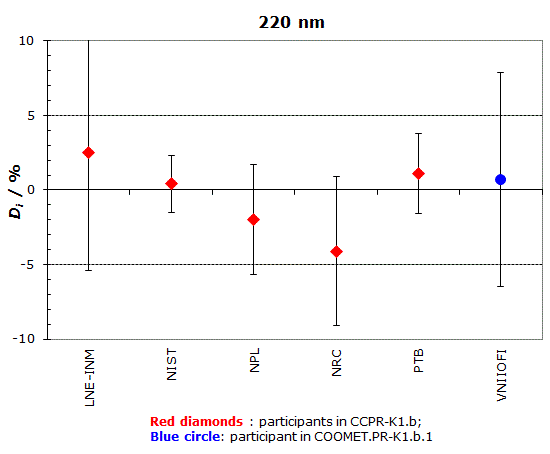

WAVELENGTH : 220 nm


Lab iDiUi
 / %/ %
LNE-INM2.57.9
NIST0.41.9
NPL-2.03.7
NRC-4.15.0
PTB1.12.7
VNIIOFI0.77.2

In dark blue: participants in CCPR-K1.b
In light blue : participant in COOMET.PR-K1.b.1

Results are presented under A4 printable format in Summary Results (.PDF file).

print out

CCPR-K1.b and COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance
WAVELENGTH : 230 nm


Lab iDiUi
 / %/ %
LNE-INM1.37.9
NIST0.41.8
NPL-2.33.4
NRC-3.24.5
PTB1.02.1
VNIIOFI0.05.8

In dark blue: participants in CCPR-K1.b
In light blue : participant in COOMET.PR-K1.b.1

Results are presented under A4 printable format in Summary Results (.PDF file).

print out

CCPR-K1.b and COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance

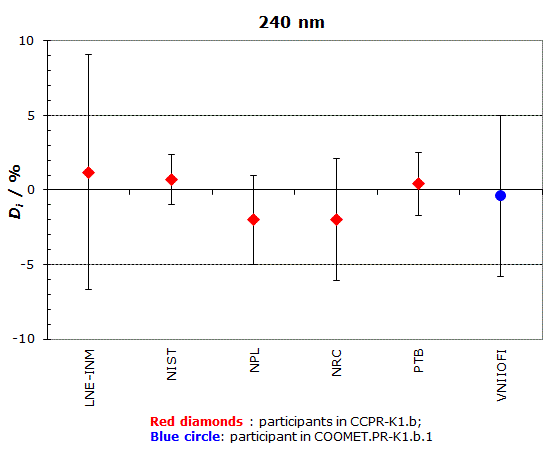

WAVELENGTH : 240 nm


Lab iDiUi
 / %/ %
LNE-INM1.27.9
NIST0.71.7
NPL-2.03.0
NRC-2.04.1
PTB0.42.1
VNIIOFI-0.45.4

In dark blue: participants in CCPR-K1.b
In light blue : participant in COOMET.PR-K1.b.1

Results are presented under A4 printable format in Summary Results (.PDF file).

print out

CCPR-K1.b and COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance
WAVELENGTH : 250 nm


Lab iDiUi
 / %/ %
LNE-INM1.87.9
NIST0.91.5
NPL-2.12.3
NRC-1.43.6
PTB0.21.6
VNIIOFI0.44.4

In dark blue: participants in CCPR-K1.b
In light blue : participant in COOMET.PR-K1.b.1

Results are presented under A4 printable format in Summary Results (.PDF file).

print out

CCPR-K1.b and COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance
WAVELENGTH : 260 nm


Lab iDiUi
 / %/ %
LNE-INM1.47.9
NIST0.71.5
NPL-1.42.0
NRC-0.73.5
PTB0.11.6
VNIIOFI1.34.2

In dark blue: participants in CCPR-K1.b
In light blue : participant in COOMET.PR-K1.b.1

Results are presented under A4 printable format in Summary Results (.PDF file).

print out

CCPR-K1.b and COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance
WAVELENGTH : 270 nm


Lab iDiUi
 / %/ %
LNE-INM1.27.9
NIST0.51.7
NPL-1.22.9
NRC0.63.7
PTB-0.21.8
VNIIOFI1.24.4

In dark blue: participants in CCPR-K1.b
In light blue : participant in COOMET.PR-K1.b.1

Results are presented under A4 printable format in Summary Results (.PDF file).

print out

CCPR-K1.b and COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance
WAVELENGTH : 280 nm


Lab iDiUi
 / %/ %
LNE-INM1.27.9
NIST0.51.8
NPL-1.73.6
NRC0.93.7
PTB-0.41.9
VNIIOFI0.84.6

In dark blue: participants in CCPR-K1.b
In light blue : participant in COOMET.PR-K1.b.1

Results are presented under A4 printable format in Summary Results (.PDF file).

print out

CCPR-K1.b and COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance
WAVELENGTH : 290 nm


Lab iDiUi
 / %/ %
LNE-INM2.18.0
NIST0.11.9
NPL-1.44.4
NRC1.93.8
PTB-0.52.0
VNIIOFI-0.14.8

Results are presented under A4 printable format in Summary Results (.PDF file).

print out

CCPR-K1.b and COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance

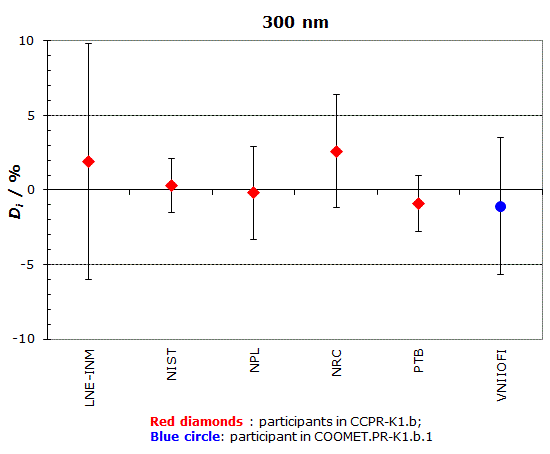

WAVELENGTH : 300 nm


Lab iDiUi
 / %/ %
LNE-INM1.97.9
NIST0.31.8
NPL-0.23.1
NRC2.63.8
PTB-0.91.9
VNIIOFI-1.14.6

In dark blue: participants in CCPR-K1.b
In light blue : participant in COOMET.PR-K1.b.1

Results are presented under A4 printable format in Summary Results (.PDF file).

print out

CCPR-K1.b and COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance
WAVELENGTH : 310 nm


Lab iDiUi
 / %/ %
LNE-INM0.46.0
NIST0.02.0
NPL0.52.8
NRC3.23.9
PTB-1.22.2
VNIIOFI-2.55.0

In dark blue: participants in CCPR-K1.b
In light blue : participant in COOMET.PR-K1.b.1

Results are presented under A4 printable format in Summary Results (.PDF file).

print out

CCPR-K1.b and COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance

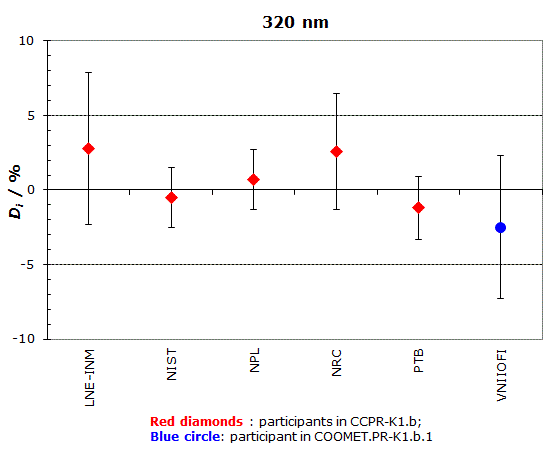

WAVELENGTH : 320 nm


Lab iDiUi
 / %/ %
LNE-INM2.85.1
NIST-0.52.0
NPL0.72.0
NRC2.63.9
PTB-1.22.1
VNIIOFI-2.54.8

In dark blue: participants in CCPR-K1.b
In light blue : participant in COOMET.PR-K1.b.1

Results are presented under A4 printable format in Summary Results (.PDF file).

print out

CCPR-K1.b and COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance
WAVELENGTH : 330 nm


Lab iDiUi
 / %/ %
LNE-INM1.05.2
NIST-0.82.2
NPL0.62.2
NRC1.84.2
PTB-0.52.5
VNIIOFI-1.85.6

In dark blue: participants in CCPR-K1.b
In light blue : participant in COOMET.PR-K1.b.1

Results are presented under A4 printable format in Summary Results (.PDF file).

print out

CCPR-K1.b and COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance

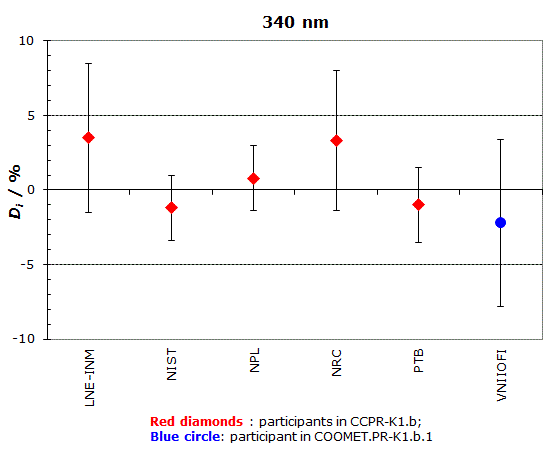

WAVELENGTH : 340 nm


Lab iDiUi
 / %/ %
LNE-INM3.55.0
NIST-1.22.2
NPL0.82.2
NRC3.34.7
PTB-1.02.5
VNIIOFI-2.25.6

In dark blue: participants in CCPR-K1.b
In light blue : participant in COOMET.PR-K1.b.1

Results are presented under A4 printable format in Summary Results (.PDF file).

print out

CCPR-K1.b and COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance
WAVELENGTH : 350 nm


Lab iDiUi
 / %/ %
LNE-INM0.43.9
NIST0.02.7
NPL-0.22.6
NRC6.06.0
PTB-1.83.6
VNIIOFI-2.58.0

In dark blue: participants in CCPR-K1.b
In light blue : participant in COOMET.PR-K1.b.1

Results are presented under A4 printable format in Summary Results (.PDF file).

Comparison
Comparison close
CC comparison
Linked comparison
CCPR-K1.b
print out
Metrology area, Sub-field Photometry and Radiometry, Properties of detectors and sources
Description Spectral irradiance
Time of measurements 2003 - 2004
Status Approved for equivalence
Final Reports of the comparisons
Metrologia, 2008, 45, Tech. Suppl., 02002
References

CCPR-K1.b Technical Protocol

Measurand Spectral irradiance
Parameters Wavelength from 200 nm to 350 nm (16 values)
Transfer device Deuterium lamps
Comparison type Key Comparison
Consultative Committee CCPR (Consultative Committee for Photometry and Radiometry)
Conducted by CCPR (Consultative Committee for Photometry and Radiometry)
Comments

Results published on 09 October 2008

COOMET.PR-K1.b results are linked to those of CCPR-K1.b

Spectral irradiance from 200 nm to 350 nm
Pilot institute PTB
Physikalisch-Technische Bundesanstalt
Germany
Contact person Peter Sperfeld

+495315924144
First Name Last Name
wwww@ww.www +356719836 Institute 1 Institute 1 Khmelnitskiy
Pilot laboratory
PTB

Physikalisch-Technische Bundesanstalt, Germany, EURAMET

LNE-INM

Conservatoire national des arts et métiers / Institut National de Métrologie, France, EURAMET

NIST

National Institute of Standards and Technology, United States, SIM

NPL

National Physical Laboratory, United Kingdom, EURAMET

NRC

National Research Council, Canada, SIM

Comparison
Comparison close
Results
print out

CCPR-K1.b and COOMET.PR-K1.b.1

  • Key comparison CCPR-K1.b

    MEASURAND : Spectral irradiance
    WAVELENGTH : 200 nm

    The key comparison reference value, xR, is based on the weighted mean of the participant results, with application of a cut-off uncertainty, as explained in Section 9.2 on page 93 of the Final Report. Its relative expanded uncertainty at a 95% level of confidence, UR, is determined as explained in the same Section of the Final Report.

    xR = 1.0029 [mW/(m2 nm)], UR = 2.1 %

    The degree of equivalence of laboratory i relative to the key comparison reference value is given by a pair of terms, both expressed in %: Di = (xi - xR)/xR and its expanded uncertainty Ui at a 95% level of confidence, Ui = (ULab i2 + UR2)1/2.
    The degree of equivalence between laboratories i and j is given by a pair of terms, both expressed in %: Dij = Di - Dj and its expanded uncertainty at a 95 % level of confidence, Uij ~ (ULab i2 + ULab j2 + UR2)1/2.
  • Linking COOMET.PR-K1.b.1 to CCPR-K1.b
    The results of VNIOOFI participant in COOMET.PR-K1.b.1 are linked to those of CCPR-K1.b through the results of the linking laboratory, PTB, and the degrees of equivalence of VNIIOFI are computed as explained in Section 9 of the COOMET.PR-K1.b.1 Final Report.
print out

CCPR-K1.b and COOMET.PR-K1.b.1

  • Key comparison CCPR-K1.b

    MEASURAND : Spectral irradiance
    WAVELENGTH : 210 nm

    The key comparison reference value, xR, is based on the weighted mean of the participant results, with application of a cut-off uncertainty, as explained in Section 9.2 on page 93 of the Final Report. Its relative expanded uncertainty at a 95% level of confidence, UR, is determined as explained in the same Section of the Final Report.

    xR = 1.0146 [mW/(m2 nm)], UR = 1.8 %
    The degree of equivalence of laboratory i relative to the key comparison reference value is given by a pair of terms, both expressed in %: Di = (xi - xR)/xR and its expanded uncertainty Ui at a 95% level of confidence, Ui = (ULab i2 + UR2)1/2.

    The degree of equivalence between laboratories i and j is given by a pair of terms, both expressed in %: Dij = Di - Dj and its expanded uncertainty at a 95 % level of confidence, Uij ~ (ULab i2 + ULab j2 + UR2)1/
  • Linking COOMET.PR-K1.b.1 to CCPR-K1.b

     The results of VNIOOFI participant in COOMET.PR-K1.b.1 are linked to those of CCPR-K1.b through the results of the linking laboratory, PTB, and the degrees of equivalence of VNIIOFI are computed as explained in Section 9 of the COOMET.PR-K1.b.1 Final Report.
print out

CCPR-K1.b and COOMET.PR-K1.b.1

  • Key comparison CCPR-K1.b

MEASURAND : Spectral irradiance
WAVELENGTH : 220 nm

The key comparison reference value, xR, is based on the weighted mean of the participant results, with application of a cut-off uncertainty, as explained in Section 9.2 on page 93 of the Final Report. Its relative expanded uncertainty at a 95% level of confidence, UR, is determined as explained in the same Section of the Final Report.

xR = 0.9540 [mW/(m2 nm)], UR = 1.4 %
The degree of equivalence of laboratory i relative to the key comparison reference value is given by a pair of terms, both expressed in %: Di = (xi - xR)/xR and its expanded uncertainty Ui at a 95% level of confidence, Ui = (ULab i2 + UR2)1/2.
The degree of equivalence between laboratories i and j is given by a pair of terms, both expressed in %: Dij = Di - Dj and its expanded uncertainty at a 95 % level of confidence, Uij ~ (ULab i2 + ULab j2 + UR2)1/2.
  • Linking COOMET.PR-K1.b.1 to CCPR-K1.b
The results of VNIOOFI participant in COOMET.PR-K1.b.1 are linked to those of CCPR-K1.b through the results of the linking laboratory, PTB, and the degrees of equivalence of VNIIOFI are computed as explained in Section 9 of the COOMET.PR-K1.b.1 Final Report.
print out

CCPR-K1.b and COOMET.PR-K1.b.1

  • Key comparison CCPR-K1.b

MEASURAND : Spectral irradiance
WAVELENGTH : 230 nm

The key comparison reference value, xR, is based on the weighted mean of the participant results, with application of a cut-off uncertainty, as explained in Section 9.2 on page 93 of the Final Report. Its relative expanded uncertainty at a 95% level of confidence, UR, is determined as explained in the same Section of the Final Report.

xR = 0.8664 [mW/(m2 nm)], UR = 1.2 %
The degree of equivalence of laboratory i relative to the key comparison reference value is given by a pair of terms, both expressed in %: Di = (xi - xR)/xR and its expanded uncertainty Ui at a 95% level of confidence, Ui = (ULab i2 + UR2)1/2.
The degree of equivalence between laboratories i and j is given by a pair of terms, both expressed in %: Dij = Di - Dj and its expanded uncertainty at a 95 % level of confidence, Uij ~ (ULab i2 + ULab j2 + UR2)1/2.
  • Linking COOMET.PR-K1.b.1 to CCPR-K1.b
The results of VNIOOFI participant in COOMET.PR-K1.b.1 are linked to those of CCPR-K1.b through the results of the linking laboratory, PTB, and the degrees of equivalence of VNIIOFI are computed as explained in Section 9 of the COOMET.PR-K1.b.1 Final Report.
print out

CCPR-K1.b and COOMET.PR-K1.b.1

  • Key comparison CCPR-K1.b

MEASURAND : Spectral irradiance
WAVELENGTH : 240 nm

The key comparison reference value, xR, is based on the weighted mean of the participant results, with application of a cut-off uncertainty, as explained in Section 9.2 on page 93 of the Final Report. Its relative expanded uncertainty at a 95% level of confidence, UR, is determined as explained in the same Section of the Final Report.

xR = 0.7636 [mW/(m2 nm)], UR = 1.1 %
The degree of equivalence of laboratory i relative to the key comparison reference value is given by a pair of terms, both expressed in %: Di = (xi - xR)/xR and its expanded uncertainty Ui at a 95% level of confidence, Ui = (ULab i2 + UR2)1/2.
The degree of equivalence between laboratories i and j is given by a pair of terms, both expressed in %: Dij = Di - Dj and its expanded uncertainty at a 95 % level of confidence, Uij ~ (ULab i2 + ULab j2 + UR2)1/2.
  • Linking COOMET.PR-K1.b.1 to CCPR-K1.b
The results of VNIOOFI participant in COOMET.PR-K1.b.1 are linked to those of CCPR-K1.b through the results of the linking laboratory, PTB, and the degrees of equivalence of VNIIOFI are computed as explained in Section 9 of the COOMET.PR-K1.b.1 Final Report.
print out

CCPR-K1.b and COOMET.PR-K1.b.1

  • Key comparison CCPR-K1.b

MEASURAND : Spectral irradiance
WAVELENGTH : 250 nm

The key comparison reference value, xR, is based on the weighted mean of the participant results, with application of a cut-off uncertainty, as explained in Section 9.2 on page 93 of the Final Report. Its relative expanded uncertainty at a 95% level of confidence, UR, is determined as explained in the same Section of the Final Report.

xR = 0.6611 [mW/(m2 nm)], UR = 0.9 %
The degree of equivalence of laboratory i relative to the key comparison reference value is given by a pair of terms, both expressed in %: Di = (xi - xR)/xR and its expanded uncertainty Ui at a 95% level of confidence, Ui = (ULab i2 + UR2)1/2.
The degree of equivalence between laboratories i and j is given by a pair of terms, both expressed in %: Dij = Di - Dj and its expanded uncertainty at a 95 % level of confidence, Uij ~ (ULab i2 + ULab j2 + UR2)1/2.
  • Linking COOMET.PR-K1.b.1 to CCPR-K1.b
The results of VNIOOFI participant in COOMET.PR-K1.b.1 are linked to those of CCPR-K1.b through the results of the linking laboratory, PTB, and the degrees of equivalence of VNIIOFI are computed as explained in Section 9 of the COOMET.PR-K1.b.1 Final Report.
print out

CCPR-K1.b and COOMET.PR-K1.b.1

  • Key comparison CCPR-K1.b

MEASURAND : Spectral irradiance
WAVELENGTH : 260 nm

The key comparison reference value, xR, is based on the weighted mean of the participant results, with application of a cut-off uncertainty, as explained in Section 9.2 on page 93 of the Final Report. Its relative expanded uncertainty at a 95% level of confidence, UR, is determined as explained in the same Section of the Final Report.

xR = 0.5652 [mW/(m2 nm)], UR = 0.8 %
The degree of equivalence of laboratory i relative to the key comparison reference value is given by a pair of terms, both expressed in %: Di = (xi - xR)/xR and its expanded uncertainty Ui at a 95% level of confidence, Ui = (ULab i2 + UR2)1/2.
The degree of equivalence between laboratories i and j is given by a pair of terms, both expressed in %: Dij = Di - Dj and its expanded uncertainty at a 95 % level of confidence, Uij ~ (ULab i2 + ULab j2 + UR2)1/2.
  • Linking COOMET.PR-K1.b.1 to CCPR-K1.b
The results of VNIOOFI participant in COOMET.PR-K1.b.1 are linked to those of CCPR-K1.b through the results of the linking laboratory, PTB, and the degrees of equivalence of VNIIOFI are computed as explained in Section 9 of the COOMET.PR-K1.b.1 Final Report.
print out

CCPR-K1.b and COOMET.PR-K1.b.1

  • Key comparison CCPR-K1.b

MEASURAND : Spectral irradiance
WAVELENGTH : 270 nm

The key comparison reference value, xR, is based on the weighted mean of the participant results, with application of a cut-off uncertainty, as explained in Section 9.2 on page 93 of the Final Report. Its relative expanded uncertainty at a 95% level of confidence, UR, is determined as explained in the same Section of the Final Report.

xR = 0.4809 [mW/(m2 nm)], UR = 1.0 %
The degree of equivalence of laboratory i relative to the key comparison reference value is given by a pair of terms, both expressed in %: Di = (xi - xR)/xR and its expanded uncertainty Ui at a 95% level of confidence, Ui = (ULab i2 + UR2)1/2.
The degree of equivalence between laboratories i and j is given by a pair of terms, both expressed in %: Dij = Di - Dj and its expanded uncertainty at a 95 % level of confidence, Uij ~ (ULab i2 + ULab j2 + UR2)1/2.
  • Linking COOMET.PR-K1.b.1 to CCPR-K1.b
The results of VNIOOFI participant in COOMET.PR-K1.b.1 are linked to those of CCPR-K1.b through the results of the linking laboratory, PTB, and the degrees of equivalence of VNIIOFI are computed as explained in Section 9 of the COOMET.PR-K1.b.1 Final Report.
print out

CCPR-K1.b and COOMET.PR-K1.b.1

  • Key comparison CCPR-K1.b

MEASURAND : Spectral irradiance
WAVELENGTH : 280 nm

The key comparison reference value, xR, is based on the weighted mean of the participant results, with application of a cut-off uncertainty, as explained in Section 9.2 on page 93 of the Final Report. Its relative expanded uncertainty at a 95% level of confidence, UR, is determined as explained in the same Section of the Final Report.

xR = 0.4089 [mW/(m2 nm)], UR = 1.2 %
The degree of equivalence of laboratory i relative to the key comparison reference value is given by a pair of terms, both expressed in %: Di = (xi - xR)/xR and its expanded uncertainty Ui at a 95% level of confidence, Ui = (ULab i2 + UR2)1/2.
The degree of equivalence between laboratories i and j is given by a pair of terms, both expressed in %: Dij = Di - Dj and its expanded uncertainty at a 95 % level of confidence, Uij ~ (ULab i2 + ULab j2 + UR2)1/2.
  • Linking COOMET.PR-K1.b.1 to CCPR-K1.b
The results of VNIOOFI participant in COOMET.PR-K1.b.1 are linked to those of CCPR-K1.b through the results of the linking laboratory, PTB, and the degrees of equivalence of VNIIOFI are computed as explained in Section 9 of the COOMET.PR-K1.b.1 Final Report.
print out

CCPR-K1.b and COOMET.PR-K1.b.1

  • Key comparison CCPR-K1.b

MEASURAND : Spectral irradiance
WAVELENGTH : 290 nm

The key comparison reference value, xR, is based on the weighted mean of the participant results, with application of a cut-off uncertainty, as explained in Section 9.2 on page 93 of the Final Report. Its relative expanded uncertainty at a 95% level of confidence, UR, is determined as explained in the same Section of the Final Report.

xR = 0.3493 [mW/(m2 nm)], UR = 1.2 %
The degree of equivalence of laboratory i relative to the key comparison reference value is given by a pair of terms, both expressed in %: Di = (xi - xR)/xR and its expanded uncertainty Ui at a 95% level of confidence, Ui = (ULab i2 + UR2)1/2.
The degree of equivalence between laboratories i and j is given by a pair of terms, both expressed in %: Dij = Di - Dj and its expanded uncertainty at a 95 % level of confidence, Uij ~ (ULab i2 + ULab j2 + UR2)1/2.
  • Linking COOMET.PR-K1.b.1 to CCPR-K1.b
The results of VNIOOFI participant in COOMET.PR-K1.b.1 are linked to those of CCPR-K1.b through the results of the linking laboratory, PTB, and the degrees of equivalence of VNIIOFI are computed as explained in Section 9 of the COOMET.PR-K1.b.1 Final Report.
print out

CCPR-K1.b and COOMET.PR-K1.b.1

  • Key comparison CCPR-K1.b

MEASURAND : Spectral irradiance
WAVELENGTH : 300 nm

The key comparison reference value, xR, is based on the weighted mean of the participant results, with application of a cut-off uncertainty, as explained in Section 9.2 on page 93 of the Final Report. Its relative expanded uncertainty at a 95% level of confidence, UR, is determined as explained in the same Section of the Final Report.

xR = 0.3003 [mW/(m2 nm)], UR = 1.0 %
The degree of equivalence of laboratory i relative to the key comparison reference value is given by a pair of terms, both expressed in %: Di = (xi - xR)/xR and its expanded uncertainty Ui at a 95% level of confidence, Ui = (ULab i2 + UR2)1/2.
The degree of equivalence between laboratories i and j is given by a pair of terms, both expressed in %: Dij = Di - Dj and its expanded uncertainty at a 95 % level of confidence, Uij ~ (ULab i2 + ULab j2 + UR2)1/2.
  • Linking COOMET.PR-K1.b.1 to CCPR-K1.b
The results of VNIOOFI participant in COOMET.PR-K1.b.1 are linked to those of CCPR-K1.b through the results of the linking laboratory, PTB, and the degrees of equivalence of VNIIOFI are computed as explained in Section 9 of the COOMET.PR-K1.b.1 Final Report.
print out

CCPR-K1.b and COOMET.PR-K1.b.1

  • Key comparison CCPR-K1.b

MEASURAND : Spectral irradiance
WAVELENGTH : 310 nm

The key comparison reference value, xR, is based on the weighted mean of the participant results, with application of a cut-off uncertainty, as explained in Section 9.2 on page 93 of the Final Report. Its relative expanded uncertainty at a 95% level of confidence, UR, is determined as explained in the same Section of the Final Report.

xR = 0.2617 [mW/(m2 nm)], UR = 1.1 %
The degree of equivalence of laboratory i relative to the key comparison reference value is given by a pair of terms, both expressed in %: Di = (xi - xR)/xR and its expanded uncertainty Ui at a 95% level of confidence, Ui = (ULab i2 + UR2)1/2.
The degree of equivalence between laboratories i and j is given by a pair of terms, both expressed in %: Dij = Di - Dj and its expanded uncertainty at a 95 % level of confidence, Uij ~ (ULab i2 + ULab j2 + UR2)1/2.
  • Linking COOMET.PR-K1.b.1 to CCPR-K1.b
The results of VNIOOFI participant in COOMET.PR-K1.b.1 are linked to those of CCPR-K1.b through the results of the linking laboratory, PTB, and the degrees of equivalence of VNIIOFI are computed as explained in Section 9 of the COOMET.PR-K1.b.1 Final Report.
print out

CCPR-K1.b and COOMET.PR-K1.b.1

  • Key comparison CCPR-K1.b

MEASURAND : Spectral irradiance
WAVELENGTH : 320 nm

The key comparison reference value, xR, is based on the weighted mean of the participant results, with application of a cut-off uncertainty, as explained in Section 9.2 on page 93 of the Final Report. Its relative expanded uncertainty at a 95% level of confidence, UR, is determined as explained in the same Section of the Final Report.

xR = 0.2294 [mW/(m2 nm)], UR = 1.0 %
The degree of equivalence of laboratory i relative to the key comparison reference value is given by a pair of terms, both expressed in %: Di = (xi - xR)/xR and its expanded uncertainty Ui at a 95% level of confidence, Ui = (ULab i2 + UR2)1/2.
The degree of equivalence between laboratories i and j is given by a pair of terms, both expressed in %: Dij = Di - Dj and its expanded uncertainty at a 95 % level of confidence, Uij ~ (ULab i2 + ULab j2 + UR2)1/2.
  • Linking COOMET.PR-K1.b.1 to CCPR-K1.b
The results of VNIOOFI participant in COOMET.PR-K1.b.1 are linked to those of CCPR-K1.b through the results of the linking laboratory, PTB, and the degrees of equivalence of VNIIOFI are computed as explained in Section 9 of the COOMET.PR-K1.b.1 Final Report.
print out

CCPR-K1.b and COOMET.PR-K1.b.1

  • Key comparison CCPR-K1.b

MEASURAND : Spectral irradiance
WAVELENGTH : 330 nm

The key comparison reference value, xR, is based on the weighted mean of the participant results, with application of a cut-off uncertainty, as explained in Section 9.2 on page 93 of the Final Report. Its relative expanded uncertainty at a 95% level of confidence, UR, is determined as explained in the same Section of the Final Report.

xR = 0.2024 [mW/(m2 nm)], UR = 1.1 %
The degree of equivalence of laboratory i relative to the key comparison reference value is given by a pair of terms, both expressed in %: Di = (xi - xR)/xR and its expanded uncertainty Ui at a 95% level of confidence, Ui = (ULab i2 + UR2)1/2.
The degree of equivalence between laboratories i and j is given by a pair of terms, both expressed in %: Dij = Di - Dj and its expanded uncertainty at a 95 % level of confidence, Uij ~ (ULab i2 + ULab j2 + UR2)1/2.
  • Linking COOMET.PR-K1.b.1 to CCPR-K1.b
The results of VNIOOFI participant in COOMET.PR-K1.b.1 are linked to those of CCPR-K1.b through the results of the linking laboratory, PTB, and the degrees of equivalence of VNIIOFI are computed as explained in Section 9 of the COOMET.PR-K1.b.1 Final Report.
print out

CCPR-K1.b and COOMET.PR-K1.b.1

  • Key comparison CCPR-K1.b

MEASURAND : Spectral irradiance
WAVELENGTH : 340 nm

The key comparison reference value, xR, is based on the weighted mean of the participant results, with application of a cut-off uncertainty, as explained in Section 9.2 on page 93 of the Final Report. Its relative expanded uncertainty at a 95% level of confidence, UR, is determined as explained in the same Section of the Final Report.

xR = 0.1799 [mW/(m2 nm)], UR = 1.1 %
The degree of equivalence of laboratory i relative to the key comparison reference value is given by a pair of terms, both expressed in %: Di = (xi - xR)/xR and its expanded uncertainty Ui at a 95% level of confidence, Ui = (ULab i2 + UR2)1/2.
The degree of equivalence between laboratories i and j is given by a pair of terms, both expressed in %: Dij = Di - Dj and its expanded uncertainty at a 95 % level of confidence, Uij ~ (ULab i2 + ULab j2 + UR2)1/2.
  • Linking COOMET.PR-K1.b.1 to CCPR-K1.b
The results of VNIOOFI participant in COOMET.PR-K1.b.1 are linked to those of CCPR-K1.b through the results of the linking laboratory, PTB, and the degrees of equivalence of VNIIOFI are computed as explained in Section 9 of the COOMET.PR-K1.b.1 Final Report.
print out

CCPR-K1.b and COOMET.PR-K1.b.1

  • Key comparison CCPR-K1.b

MEASURAND : Spectral irradiance
WAVELENGTH : 350 nm

The key comparison reference value, xR, is based on the weighted mean of the participant results, with application of a cut-off uncertainty, as explained in Section 9.2 on page 93 of the Final Report. Its relative expanded uncertainty at a 95% level of confidence, UR, is determined as explained in the same Section of the Final Report.

xR = 0.1575 [mW/(m2 nm)], UR = 1.3 %
The degree of equivalence of laboratory i relative to the key comparison reference value is given by a pair of terms, both expressed in %: Di = (xi - xR)/xR and its expanded uncertainty Ui at a 95% level of confidence, Ui = (ULab i2 + UR2)1/2.
The degree of equivalence between laboratories i and j is given by a pair of terms, both expressed in %: Dij = Di - Dj and its expanded uncertainty at a 95 % level of confidence, Uij ~ (ULab i2 + ULab j2 + UR2)1/2.
  • Linking COOMET.PR-K1.b.1 to CCPR-K1.b
The results of VNIOOFI participant in COOMET.PR-K1.b.1 are linked to those of CCPR-K1.b through the results of the linking laboratory, PTB, and the degrees of equivalence of VNIIOFI are computed as explained in Section 9 of the COOMET.PR-K1.b.1 Final Report.
Comparison
Comparison close
Results
print out

CCPR-K1.b and COOMET.PR-K1.b.1

  • Key comparison CCPR-K1.b

MEASURAND : Spectral irradiance
WAVELENGTH : 200 nm

xi : result of measurement carried out by laboratory i (representative spectral irradiance of the laboratory - see Section 9.1 of the Final Report)
ULab i : expanded uncertainty of xi at a 95 % level of confidence

 Lab i

xi
/ [mW/(m2 nm)]

 ULab i
/ %

 LNE-INM 1.0597 26.4
 NIST 1.0130 1.5
 NPL 1.0104 9.3
 NRC 0.9478 5.4
 PTB 1.0114 3.3

  • Key comparison COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance
WAVELENGTH : 200 nm

The results of the measurements of the participants in COOMET.PR-K1.b.1 can be found in section 6.2 (for VNIIOFI measurements) and section 6.3 (for PTB measurements) of the Final Report.

print out

CCPR-K1.b and COOMET.PR-K1.b.1

  • Key comparison CCPR-K1.b

MEASURAND : Spectral irradiance
WAVELENGTH : 210 nm

xi : result of measurement carried out by laboratory i (representative spectral irradiance of the laboratory - see Section 9.1 of the Final Report)
ULab i : expanded uncertainty of xi at a 95 % level of confidence

 Lab i

xi
/ [mW/(m2 nm)]

 ULab i
/ %

 LNE-INM 1.0532 11.2
 NIST 1.0210 1.3
 NPL 0.9780 5.6
 NRC 0.9540 5.2
 PTB 1.0331 2.3

  • Key comparison COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance
WAVELENGTH : 210 nm

The results of the measurements of the participants in COOMET.PR-K1.b.1 can be found in section 6.2 (for VNIIOFI measurements) and section 6.3 (for PTB measurements) of the Final Report.

print out

CCPR-K1.b and COOMET.PR-K1.b.1

  • Key comparison CCPR-K1.b

MEASURAND : Spectral irradiance
WAVELENGTH : 220 nm

xi : result of measurement carried out by laboratory i (representative spectral irradiance of the laboratory - see Section 9.1 of the Final Report)
ULab i : expanded uncertainty of xi at a 95 % level of confidence

 Lab i

xi
/ [mW/(m2 nm)]

 ULab i
/ %

 LNE-INM 0.9776 7.8
 NIST 0.9582 1.3
 NPL 0.9353 3.4
 NRC 0.9153 4.8
 PTB 0.9648 2.3

  • Key comparison COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance
WAVELENGTH : 220 nm

The results of the measurements of the participants in COOMET.PR-K1.b.1 can be found in section 6.2 (for VNIIOFI measurements) and section 6.3 (for PTB measurements) of the Final Report.

print out

CCPR-K1.b and COOMET.PR-K1.b.1

  • Key comparison CCPR-K1.b

MEASURAND : Spectral irradiance
WAVELENGTH : 230 nm

xi : result of measurement carried out by laboratory i (representative spectral irradiance of the laboratory - see Section 9.1 of the Final Report)
ULab i : expanded uncertainty of xi at a 95 % level of confidence

 Lab i

xi
/ [mW/(m2 nm)]

 ULab i
/ %

 LNE-INM 0.8777 7.8
 NIST 0.8702 1.3
 NPL 0.8462 3.2
 NRC 0.8389 4.3
 PTB 0.8749 1.7

  • Key comparison COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance
WAVELENGTH : 230 nm

The results of the measurements of the participants in COOMET.PR-K1.b.1 can be found in section 6.2 (for VNIIOFI measurements) and section 6.3 (for PTB measurements) of the Final Report.

print out

CCPR-K1.b and COOMET.PR-K1.b.1

  • Key comparison CCPR-K1.b

MEASURAND : Spectral irradiance
WAVELENGTH : 240 nm

xi : result of measurement carried out by laboratory i (representative spectral irradiance of the laboratory - see Section 9.1 of the Final Report)
ULab i : expanded uncertainty of xi at a 95 % level of confidence

 Lab i

xi
/ [mW/(m2 nm)]

 ULab i
/ %

 LNE-INM 0.7724 7.8
 NIST 0.7691 1.3
 NPL 0.7487 2.8
 NRC 0.7482 3.9
 PTB 0.7668 1.7

  • Key comparison COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance
WAVELENGTH : 240 nm

The results of the measurements of the participants in COOMET.PR-K1.b.1 can be found in section 6.2 (for VNIIOFI measurements) and section 6.3 (for PTB measurements) of the Final Report.

print out

CCPR-K1.b and COOMET.PR-K1.b.1

  • Key comparison CCPR-K1.b

MEASURAND : Spectral irradiance
WAVELENGTH : 250 nm

xi : result of measurement carried out by laboratory i (representative spectral irradiance of the laboratory - see Section 9.1 of the Final Report)
ULab i : expanded uncertainty of xi at a 95 % level of confidence

 Lab i

xi
/ [mW/(m2 nm)]

 ULab i
/ %

 LNE-INM 0.6728 7.8
 NIST 0.6669 1.2
 NPL 0.6474 2.1
 NRC 0.6517 3.5
 PTB 0.6625 1.4

  • Key comparison COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance
WAVELENGTH : 250 nm

The results of the measurements of the participants in COOMET.PR-K1.b.1 can be found in section 6.2 (for VNIIOFI measurements) and section 6.3 (for PTB measurements) of the Final Report.

print out

CCPR-K1.b and COOMET.PR-K1.b.1

  • Key comparison CCPR-K1.b

MEASURAND : Spectral irradiance
WAVELENGTH : 260 nm

xi : result of measurement carried out by laboratory i (representative spectral irradiance of the laboratory - see Section 9.1 of the Final Report)
ULab i : expanded uncertainty of xi at a 95 % level of confidence

 Lab i

xi
/ [mW/(m2 nm)]

 ULab i
/ %

 LNE-INM 0.5733 7.8
 NIST 0.5690 1.3
 NPL 0.5571 1.8
 NRC 0.5614 3.5
 PTB 0.5661 1.4

  • Key comparison COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance
WAVELENGTH : 260 nm

The results of the measurements of the participants in COOMET.PR-K1.b.1 can be found in section 6.2 (for VNIIOFI measurements) and section 6.3 (for PTB measurements) of the Final Report.

print out

CCPR-K1.b and COOMET.PR-K1.b.1

  • Key comparison CCPR-K1.b

MEASURAND : Spectral irradiance
WAVELENGTH : 270 nm

xi : result of measurement carried out by laboratory i (representative spectral irradiance of the laboratory - see Section 9.1 of the Final Report)
ULab i : expanded uncertainty of xi at a 95 % level of confidence

 Lab i

xi
/ [mW/(m2 nm)]

 ULab i
/ %

 LNE-INM 0.4868 7.8
 NIST 0.4832 1.4
 NPL 0.4751 2.7
 NRC 0.4838 3.5
 PTB 0.4798 1.5

  • Key comparison COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance
WAVELENGTH : 270 nm

The results of the measurements of the participants in COOMET.PR-K1.b.1 can be found in section 6.2 (for VNIIOFI measurements) and section 6.3 (for PTB measurements) of the Final Report.

print out

CCPR-K1.b and COOMET.PR-K1.b.1

  • Key comparison CCPR-K1.b

MEASURAND : Spectral irradiance
WAVELENGTH : 280 nm

xi : result of measurement carried out by laboratory i (representative spectral irradiance of the laboratory - see Section 9.1 of the Final Report)
ULab i : expanded uncertainty of xi at a 95 % level of confidence

 Lab i

xi
/ [mW/(m2 nm)]

 ULab i
/ %

 LNE-INM 0.4140 7.8
 NIST 0.4112 1.4
 NPL 0.4019 3.5
 NRC 0.4126 3.5
 PTB 0.4075 1.5

  • Key comparison COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance
WAVELENGTH : 280 nm

The results of the measurements of the participants in COOMET.PR-K1.b.1 can be found in section 6.2 (for VNIIOFI measurements) and section 6.3 (for PTB measurements) of the Final Report.

print out

CCPR-K1.b and COOMET.PR-K1.b.1

  • Key comparison CCPR-K1.b

MEASURAND : Spectral irradiance
WAVELENGTH : 290 nm

xi : result of measurement carried out by laboratory i (representative spectral irradiance of the laboratory - see Section 9.1 of the Final Report)
ULab i : expanded uncertainty of xi at a 95 % level of confidence

 Lab i

xi
/ [mW/(m2 nm)]

 ULab i
/ %

 LNE-INM 0.3566 7.9
 NIST 0.3497 1.5
 NPL 0.3444 4.2
 NRC 0.3560 3.6
 PTB 0.3475 1.6

  • Key comparison COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance
WAVELENGTH : 290 nm

The results of the measurements of the participants in COOMET.PR-K1.b.1 can be found in section 6.2 (for VNIIOFI measurements) and section 6.3 (for PTB measurements) of the Final Report.

print out

CCPR-K1.b and COOMET.PR-K1.b.1

  • Key comparison CCPR-K1.b

MEASURAND : Spectral irradiance
WAVELENGTH : 300 nm

xi : result of measurement carried out by laboratory i (representative spectral irradiance of the laboratory - see Section 9.1 of the Final Report)
ULab i : expanded uncertainty of xi at a 95 % level of confidence

 Lab i

xi
/ [mW/(m2 nm)]

 ULab i
/ %

 LNE-INM 0.3060 7.9
 NIST 0.3012 1.5
 NPL 0.2998 2.9
 NRC 0.3081 3.6
 PTB 0.2976 1.6

  • Key comparison COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance
WAVELENGTH : 300 nm

The results of the measurements of the participants in COOMET.PR-K1.b.1 can be found in section 6.2 (for VNIIOFI measurements) and section 6.3 (for PTB measurements) of the Final Report.

print out

CCPR-K1.b and COOMET.PR-K1.b.1

  • Key comparison CCPR-K1.b

MEASURAND : Spectral irradiance
WAVELENGTH : 310 nm

xi : result of measurement carried out by laboratory i (representative spectral irradiance of the laboratory - see Section 9.1 of the Final Report)
ULab i : expanded uncertainty of xi at a 95 % level of confidence

 Lab i

xi
/ [mW/(m2 nm)]

 ULab i
/ %

 LNE-INM 0.2626 5.9
 NIST 0.2617 1.7
 NPL 0.2631 2.6
 NRC 0.2701 3.7
 PTB 0.2585 1.9

  • Key comparison COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance
WAVELENGTH : 310 nm

The results of the measurements of the participants in COOMET.PR-K1.b.1 can be found in section 6.2 (for VNIIOFI measurements) and section 6.3 (for PTB measurements) of the Final Report.

print out

CCPR-K1.b and COOMET.PR-K1.b.1

  • Key comparison CCPR-K1.b

MEASURAND : Spectral irradiance
WAVELENGTH : 320 nm

xi : result of measurement carried out by laboratory i (representative spectral irradiance of the laboratory - see Section 9.1 of the Final Report)
ULab i : expanded uncertainty of xi at a 95 % level of confidence

 Lab i

xi
/ [mW/(m2 nm)]

 ULab i
/ %

 LNE-INM 0.2359 5.0
 NIST 0.2282 1.7
 NPL 0.2309 1.8
 NRC 0.2354 3.8
 PTB 0.2267 1.9

  • Key comparison COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance
WAVELENGTH : 320 nm

The results of the measurements of the participants in COOMET.PR-K1.b.1 can be found in section 6.2 (for VNIIOFI measurements) and section 6.3 (for PTB measurements) of the Final Report.

print out

CCPR-K1.b and COOMET.PR-K1.b.1

  • Key comparison CCPR-K1.b

MEASURAND : Spectral irradiance
WAVELENGTH : 330 nm

xi : result of measurement carried out by laboratory i (representative spectral irradiance of the laboratory - see Section 9.1 of the Final Report)
ULab i : expanded uncertainty of xi at a 95 % level of confidence

 Lab i

xi
/ [mW/(m2 nm)]

 ULab i
/ %

 LNE-INM 0.2044 5.0
 NIST 0.2008 1.9
 NPL 0.2036 1.9
 NRC 0.2060 4.0
 PTB 0.2014 2.2

  • Key comparison COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance
WAVELENGTH : 330 nm

The results of the measurements of the participants in COOMET.PR-K1.b.1 can be found in section 6.2 (for VNIIOFI measurements) and section 6.3 (for PTB measurements) of the Final Report.

print out

CCPR-K1.b and COOMET.PR-K1.b.1

  • Key comparison CCPR-K1.b

MEASURAND : Spectral irradiance
WAVELENGTH : 340 nm

xi : result of measurement carried out by laboratory i (representative spectral irradiance of the laboratory - see Section 9.1 of the Final Report)
ULab i : expanded uncertainty of xi at a 95 % level of confidence

 Lab i

xi
/ [mW/(m2 nm)]

 ULab i
/ %

 LNE-INM 0.1861 4.9
 NIST 0.1778 1.9
 NPL 0.1813 1.9
 NRC 0.1859 4.6
 PTB 0.1781 2.2

  • Key comparison COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance
WAVELENGTH : 340 nm

The results of the measurements of the participants in COOMET.PR-K1.b.1 can be found in section 6.2 (for VNIIOFI measurements) and section 6.3 (for PTB measurements) of the Final Report.

print out

CCPR-K1.b and COOMET.PR-K1.b.1

  • Key comparison CCPR-K1.b

MEASURAND : Spectral irradiance
WAVELENGTH : 350 nm

xi : result of measurement carried out by laboratory i (representative spectral irradiance of the laboratory - see Section 9.1 of the Final Report)
ULab i : expanded uncertainty of xi at a 95 % level of confidence

 Lab i

xi
/ [mW/(m2 nm)]

 ULab i
/ %

 LNE-INM 0.1581 3.7
 NIST 0.1575 2.4
 NPL 0.1571 2.3
 NRC 0.1669 5.9
 PTB 0.1546 3.3



  • Key comparison COOMET.PR-K1.b.1

MEASURAND : Spectral irradiance
WAVELENGTH : 350 nm

The results of the measurements of the participants in COOMET.PR-K1.b.1 can be found in section 6.2 (for VNIIOFI measurements) and section 6.3 (for PTB measurements) of the Final Report.
