MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)

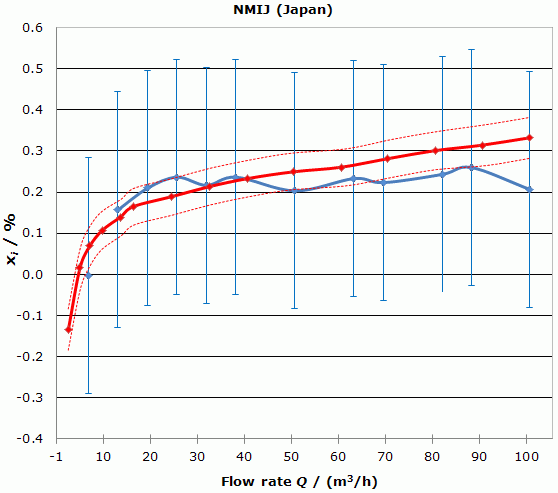

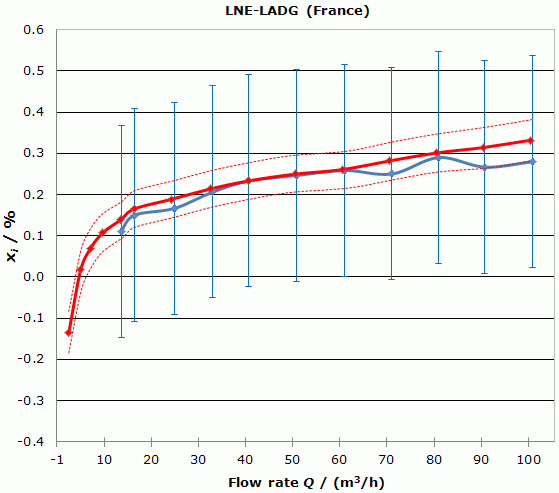

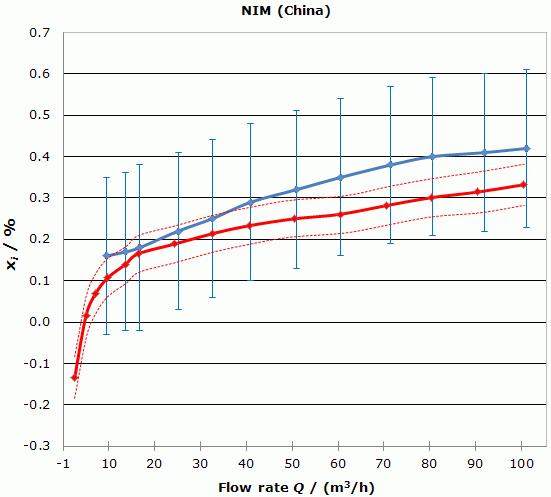

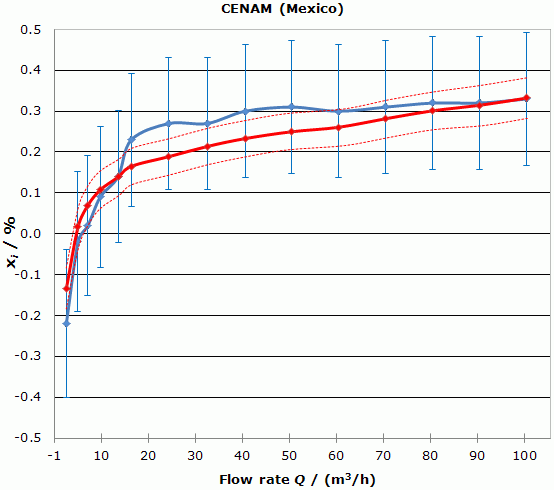

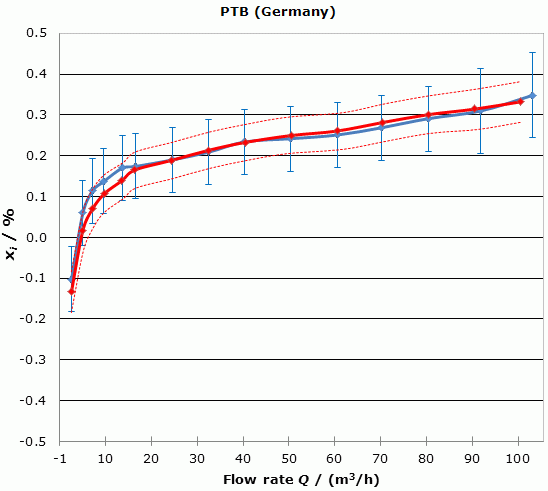

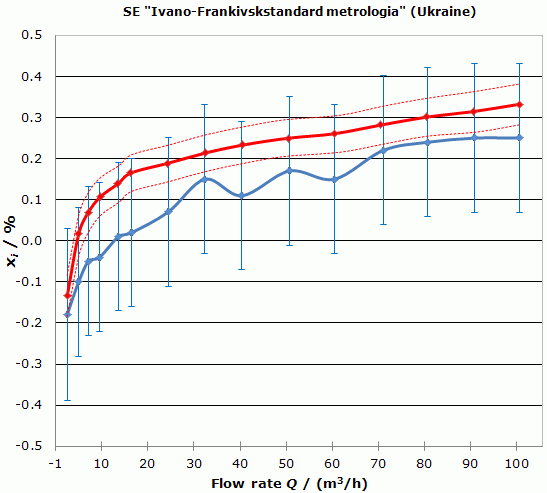

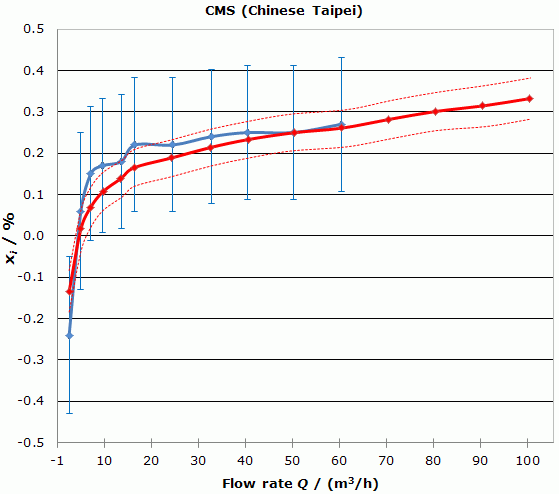

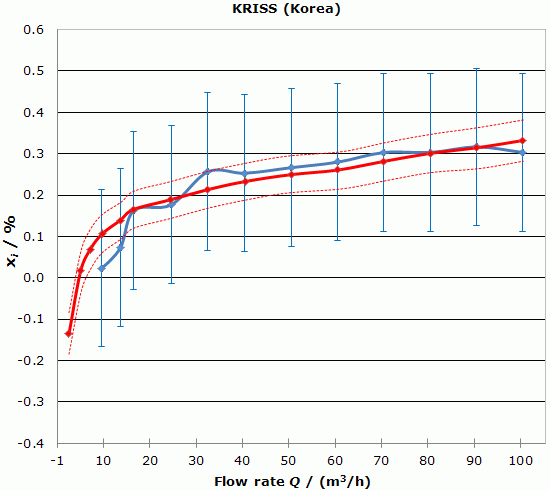

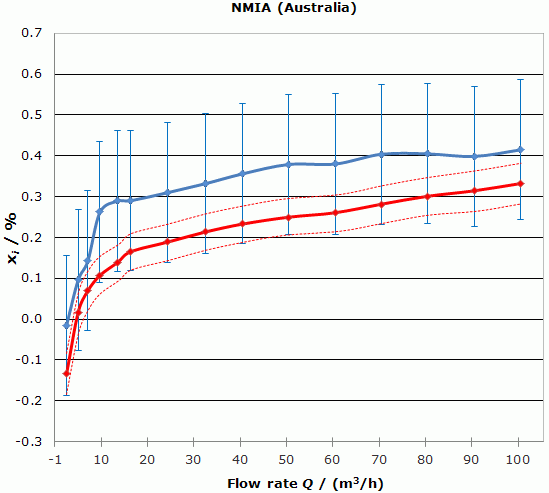

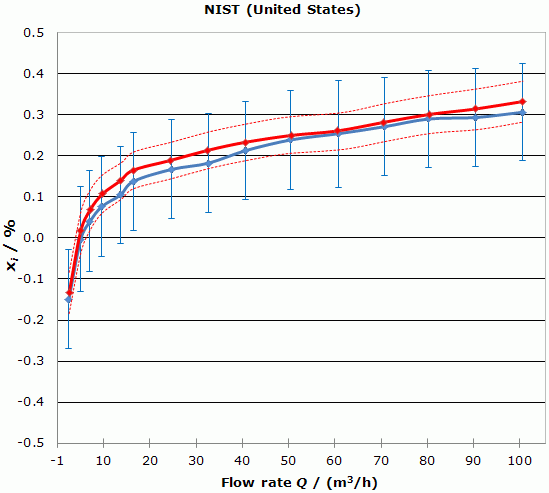

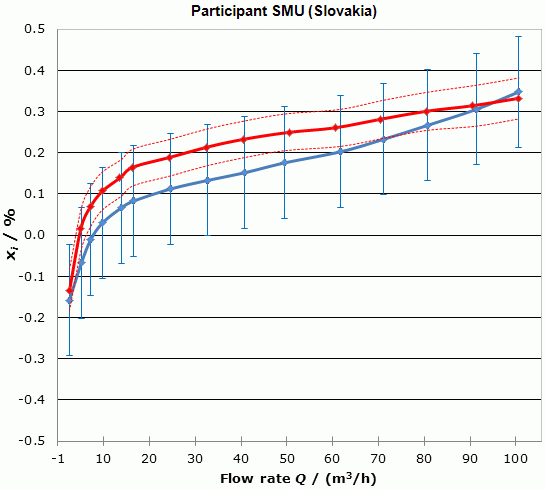

The curve of the key comparison reference value is added on the graph showing the values xi and UiS obtained by this participant.
The solid blue curve represents the participant's results, xi, with expanded uncertainty bars (k = 2), UiS.
The solid red curve represents the key comparison reference value.
The two red dash curves correspond to (xR + UR) and (xR - UR), where UR is the expanded uncertainty (k = 2) of xR.
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
The curve of the key comparison reference value is added on the graph showing the values xi and UiS obtained by this participant.
The solid blue curve represents the participant's results, xi, with expanded uncertainty bars (k = 2), UiS.
The solid red curve represents the key comparison reference value.
The two red dash curves correspond to (xR + UR) and (xR - UR), where UR is the expanded uncertainty (k = 2) of xR.
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
The curve of the key comparison reference value is added on the graph showing the values xi and UiS obtained by this participant.
The solid blue curve represents the participant's results, xi, with expanded uncertainty bars (k = 2), UiS.
The solid red curve represents the key comparison reference value.
The two red dash curves correspond to (xR + UR) and (xR - UR), where UR is the expanded uncertainty (k = 2) of xR.
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
The curve of the key comparison reference value is added on the graph showing the values xi and UiS obtained by this participant.
The solid blue curve represents the participant's results, xi, with expanded uncertainty bars (k = 2), UiS.
The solid red curve represents the key comparison reference value.
The two red dash curves correspond to (xR + UR) and (xR - UR), where UR is the expanded uncertainty (k = 2) of xR.
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
The curve of the key comparison reference value is added on the graph showing the values xi and UiS obtained by this participant.
The solid blue curve represents the participant's results, xi, with expanded uncertainty bars (k = 2), UiS.
The solid red curve represents the key comparison reference value.
The two red dash curves correspond to (xR + UR) and (xR - UR), where UR is the expanded uncertainty (k = 2) of xR.
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
The curve of the key comparison reference value is added on the graph showing the values xi and UiS obtained by this participant.
The solid blue curve represents the participant's results, xi, with expanded uncertainty bars (k = 2), UiS.
The solid red curve represents the key comparison reference value.
The two red dash curves correspond to (xR + UR) and (xR - UR), where UR is the expanded uncertainty (k = 2) of xR.
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
The curve of the key comparison reference value is added on the graph showing the values xi and UiS obtained by this participant.
The solid blue curve represents the participant's results, xi, with expanded uncertainty bars (k = 2), UiS.
The solid red curve represents the key comparison reference value.
The two red dash curves correspond to (xR + UR) and (xR - UR), where UR is the expanded uncertainty (k = 2) of xR.
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
The curve of the key comparison reference value is added on the graph showing the values xi and UiS obtained by this participant.
The solid blue curve represents the participant's results, xi, with expanded uncertainty bars (k = 2), UiS.
The solid red curve represents the key comparison reference value.
The two red dash curves correspond to (xR + UR) and (xR - UR), where UR is the expanded uncertainty (k = 2) of xR.
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
The curve of the key comparison reference value is added on the graph showing the values xi and UiS obtained by this participant.
The solid blue curve represents the participant's results, xi, with expanded uncertainty bars (k = 2), UiS.
The solid red curve represents the key comparison reference value.
The two red dash curves correspond to (xR + UR) and (xR - UR), where UR is the expanded uncertainty (k = 2) of xR.
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
The curve of the key comparison reference value is added on the graph showing the values xi and UiS obtained by this participant.
The solid blue curve represents the participant's results, xi, with expanded uncertainty bars (k = 2), UiS.
The solid red curve represents the key comparison reference value.
The two red dash curves correspond to (xR + UR) and (xR - UR), where UR is the expanded uncertainty (k = 2) of xR.
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
The curve of the key comparison reference value is added on the graph showing the values xi and UiS obtained by this participant.
The solid blue curve represents the participant's results, xi, with expanded uncertainty bars (k = 2), UiS.
The solid red curve represents the key comparison reference value.
The two red dash curves correspond to (xR + UR) and (xR - UR), where UR is the expanded uncertainty (k = 2) of xR.
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)

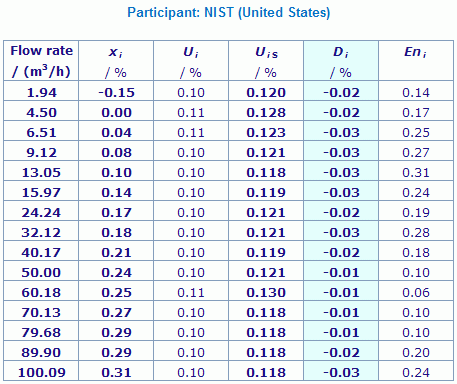

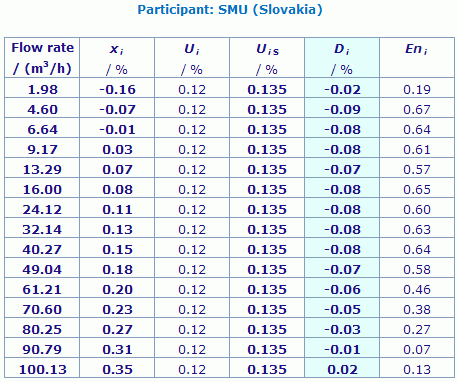

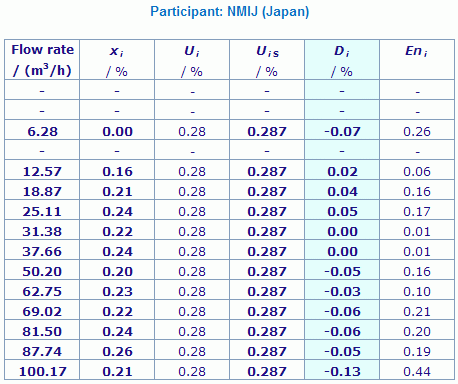

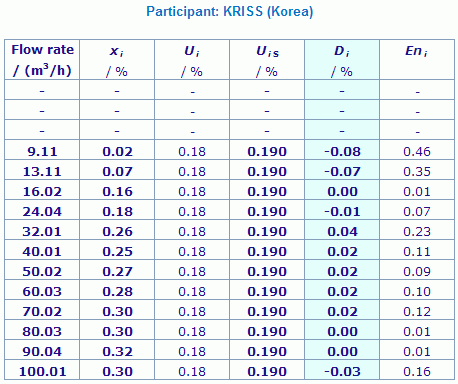

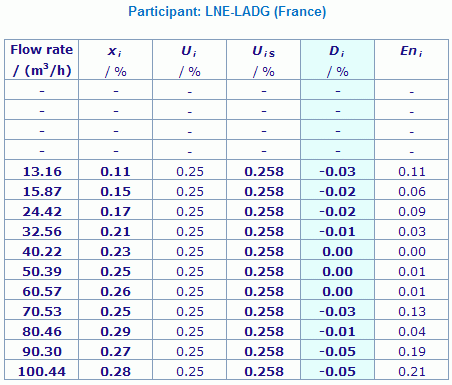

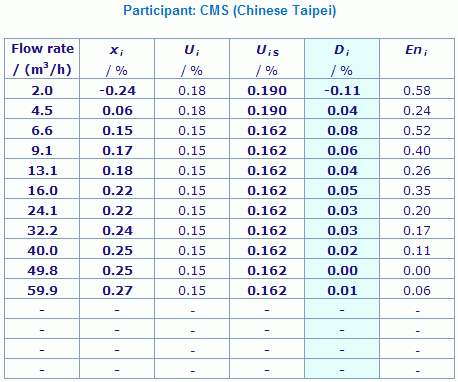

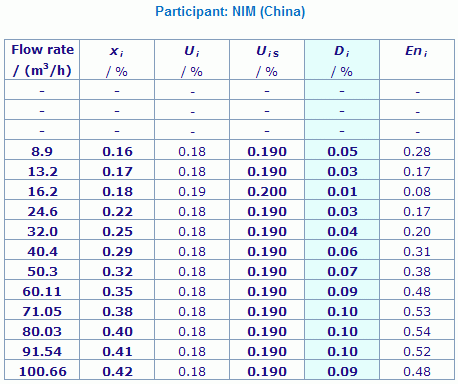

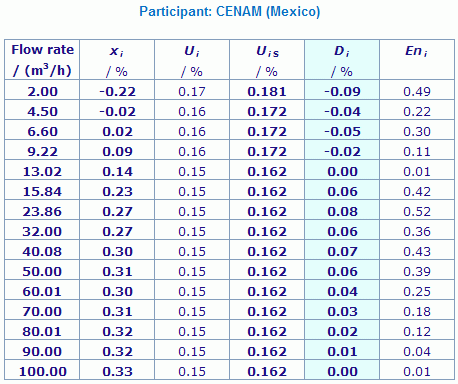

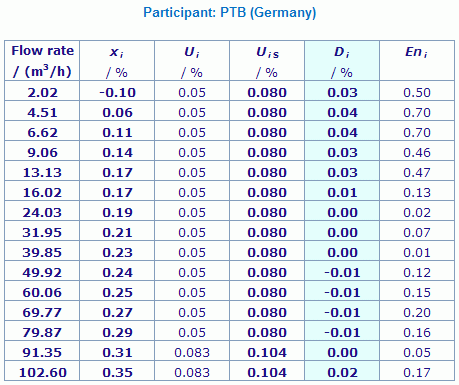

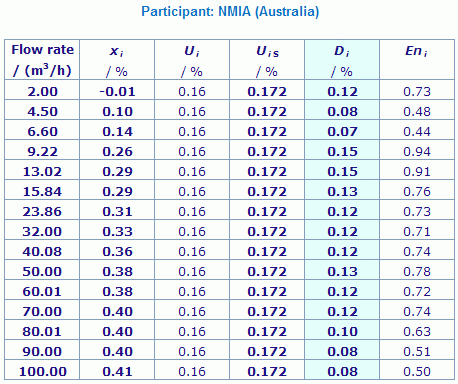

Equivalence is demonstrated by providing the Di and Eni values for one participating laboratory over the complete range of flow rates. The curve of the key comparison reference value is added on the graph showing the values xi and UiS obtained by this participant.
Results are presented under A4 printable format in Summary Results (PDF file).
Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO 80000-1:2009 Annex B Rule B.
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
Equivalence is demonstrated by providing the Di and Eni values for one participating laboratory over the complete range of flow rates. The curve of the key comparison reference value is added on the graph showing the values xi and UiS obtained by this participant.
Results are presented under A4 printable format in Summary Results (PDF file).
Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO 80000-1:2009 Annex B Rule B.
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
Equivalence is demonstrated by providing the Di and Eni values for one participating laboratory over the complete range of flow rates. The curve of the key comparison reference value is added on the graph showing the values xi and UiS obtained by this participant.
Results are presented under A4 printable format in Summary Results (PDF file).
Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO 80000-1:2009 Annex B Rule B.
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
Equivalence is demonstrated by providing the Di and Eni values for one participating laboratory over the complete range of flow rates. The curve of the key comparison reference value is added on the graph showing the values xi and UiS obtained by this participant.
Results are presented under A4 printable format in Summary Results (PDF file).
Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO 80000-1:2009 Annex B Rule B.
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
Equivalence is demonstrated by providing the Di and Eni values for one participating laboratory over the complete range of flow rates. The curve of the key comparison reference value is added on the graph showing the values xi and UiS obtained by this participant.
Results are presented under A4 printable format in Summary Results (PDF file).
Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO 80000-1:2009 Annex B Rule B.
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
Equivalence is demonstrated by providing the Di and Eni values for one participating laboratory over the complete range of flow rates. The curve of the key comparison reference value is added on the graph showing the values xi and UiS obtained by this participant.
Results are presented under A4 printable format in Summary Results (PDF file).
Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO 80000-1:2009 Annex B Rule B.
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
Equivalence is demonstrated by providing the Di and Eni values for one participating laboratory over the complete range of flow rates. The curve of the key comparison reference value is added on the graph showing the values xi and UiS obtained by this participant.
Results are presented under A4 printable format in Summary Results (PDF file).
Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO 80000-1:2009 Annex B Rule B.
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
Equivalence is demonstrated by providing the Di and Eni values for one participating laboratory over the complete range of flow rates. The curve of the key comparison reference value is added on the graph showing the values xi and UiS obtained by this participant.
Results are presented under A4 printable format in Summary Results (PDF file).
Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO 80000-1:2009 Annex B Rule B.
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
Equivalence is demonstrated by providing the Di and Eni values for one participating laboratory over the complete range of flow rates. The curve of the key comparison reference value is added on the graph showing the values xi and UiS obtained by this participant.
Results are presented under A4 printable format in Summary Results (PDF file).
Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO 80000-1:2009 Annex B Rule B.
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
Equivalence is demonstrated by providing the Di and Eni values for one participating laboratory over the complete range of flow rates. The curve of the key comparison reference value is added on the graph showing the values xi and UiS obtained by this participant.
Results are presented under A4 printable format in Summary Results (PDF file).
Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO 80000-1:2009 Annex B Rule B.
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
Equivalence is demonstrated by providing the Di and Eni values for one participating laboratory over the complete range of flow rates. The curve of the key comparison reference value is added on the graph showing the values xi and UiS obtained by this participant.
Results are presented under A4 printable format in Summary Results (PDF file).
Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO 80000-1:2009 Annex B Rule B.
| Metrology area, Sub-field | Mass and related quantities, Fluid Flow |
| Description | Low pressure gas flow |
| Time of measurements | 2010 - 2012 |
| Status | Approved for equivalence |
| Final Reports of the comparisons | |
| References | |
| Measurand | Gas flow: 2 m3/h to 100 m3/h |
| Transfer device | Rotary gas meter |
| Comparison type | Key Comparison |
| Consultative Committee | CCM (Consultative Committee for Mass and Related Quantities) |
| Conducted by | CCM (Consultative Committee for Mass and Related Quantities) |
| Comments | Reference conditions: Results published on 06 May 2014 EURAMET.M.FF-K6 results are linked to those of CCM.FF-K6.2011 Low pressure gas flow (presented per participating laboratory): |
| Pilot institute |
CMI
Czech Metrology Institute Czechia |
| Contact person | Miroslava Benkova +420 734 877 960 |
| Pilot laboratory | |
|---|---|
| CMI |
Czech Metrology Institute, Czechia, EURAMET |
| CENAM |
Centro Nacional de Metrologia, Mexico, SIM |
| CMS |
ITRI Center for Measurement Standards, Chinese Taipei, APMP |
| KRISS |
Korea Research Institute of Standards and Science, Korea, Republic of, APMP |
| LNE-LADG |
Laboratoire Associé de Débitmétrie Gazeuse, France, EURAMET |
| NIM |
National Institute of Metrology, China, APMP |
| NIST |
National Institute of Standards and Technology, United States, SIM |
| NMIA |
National Measurement Institute, Australia, Australia, APMP |
| NMIJ AIST |
National Metrology Institute of Japan, Japan, APMP |
| PTB |
Physikalisch-Technische Bundesanstalt, Germany, EURAMET |
| SE "Ivano-Frankivskstandard metrologia" |
State Enterprise "Ivano-Frankivskstandard metrologia", Ukraine, EURAMET |
| SMU |
Slovensky Metrologicky Ustav, Slovakia, EURAMET |
This page proposes print-out on A4 paper (portrait) of the comparison details (best printed out using a black and white printer).
Please, select items to be printed out, then click on "OK" :
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
|

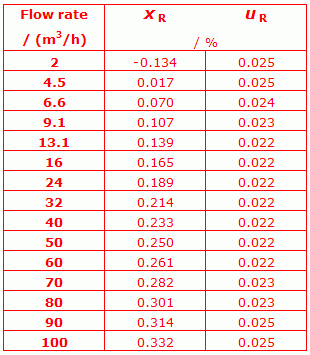

The computation of the key comparison reference value, xR, and of its standard uncertainty, uR, is explained in Section 6 of the Final Report.
|
| The degree of equivalence of laboratory i with respect to the key comparison reference value is given by a pair of terms: Di and its expanded uncertainty (k = 2) computed as explained in Section 6 of the Final Report. The normalized degrees of equivalence Eni are also computed according to equation 16 on page 14 of the Final Report. |
| The pair-wise degrees of equivalence may be computed as explained in Section 6.4 of the Final Report. They are not reported here. |
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
|
The computation of the key comparison reference value, xR, and of its standard uncertainty, uR, is explained in Section 6 of the Final Report.
|
| The degree of equivalence of laboratory i with respect to the key comparison reference value is given by a pair of terms: Di and its expanded uncertainty (k = 2) computed as explained in Section 6 of the Final Report. The normalized degrees of equivalence Eni are also computed according to equation 16 on page 14 of the Final Report. |
| The pair-wise degrees of equivalence may be computed as explained in Section 6.4 of the Final Report. They are not reported here. |
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
|
The computation of the key comparison reference value, xR, and of its standard uncertainty, uR, is explained in Section 6 of the Final Report.
|
| The degree of equivalence of laboratory i with respect to the key comparison reference value is given by a pair of terms: Di and its expanded uncertainty (k = 2) computed as explained in Section 6 of the Final Report. The normalized degrees of equivalence Eni are also computed according to equation 16 on page 14 of the Final Report. |
| The pair-wise degrees of equivalence may be computed as explained in Section 6.4 of the Final Report. They are not reported here. |
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
|
The computation of the key comparison reference value, xR, and of its standard uncertainty, uR, is explained in Section 6 of the Final Report.
|
| The degree of equivalence of laboratory i with respect to the key comparison reference value is given by a pair of terms: Di and its expanded uncertainty (k = 2) computed as explained in Section 6 of the Final Report. The normalized degrees of equivalence Eni are also computed according to equation 16 on page 14 of the Final Report. |
| The pair-wise degrees of equivalence may be computed as explained in Section 6.4 of the Final Report. They are not reported here. |
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
|
The computation of the key comparison reference value, xR, and of its standard uncertainty, uR, is explained in Section 6 of the Final Report.
|
| The degree of equivalence of laboratory i with respect to the key comparison reference value is given by a pair of terms: Di and its expanded uncertainty (k = 2) computed as explained in Section 6 of the Final Report. The normalized degrees of equivalence Eni are also computed according to equation 16 on page 14 of the Final Report. |
| The pair-wise degrees of equivalence may be computed as explained in Section 6.4 of the Final Report. They are not reported here. |
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
|
The computation of the key comparison reference value, xR, and of its standard uncertainty, uR, is explained in Section 6 of the Final Report.
|
| The degree of equivalence of laboratory i with respect to the key comparison reference value is given by a pair of terms: Di and its expanded uncertainty (k = 2) computed as explained in Section 6 of the Final Report. The normalized degrees of equivalence Eni are also computed according to equation 16 on page 14 of the Final Report. |
| The pair-wise degrees of equivalence may be computed as explained in Section 6.4 of the Final Report. They are not reported here. |
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
|
The computation of the key comparison reference value, xR, and of its standard uncertainty, uR, is explained in Section 6 of the Final Report.
|
| The degree of equivalence of laboratory i with respect to the key comparison reference value is given by a pair of terms: Di and its expanded uncertainty (k = 2) computed as explained in Section 6 of the Final Report. The normalized degrees of equivalence Eni are also computed according to equation 16 on page 14 of the Final Report. |
| The pair-wise degrees of equivalence may be computed as explained in Section 6.4 of the Final Report. They are not reported here. |
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
|
The computation of the key comparison reference value, xR, and of its standard uncertainty, uR, is explained in Section 6 of the Final Report.
|
| The degree of equivalence of laboratory i with respect to the key comparison reference value is given by a pair of terms: Di and its expanded uncertainty (k = 2) computed as explained in Section 6 of the Final Report. The normalized degrees of equivalence Eni are also computed according to equation 16 on page 14 of the Final Report. |
| The pair-wise degrees of equivalence may be computed as explained in Section 6.4 of the Final Report. They are not reported here. |
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
|
The computation of the key comparison reference value, xR, and of its standard uncertainty, uR, is explained in Section 6 of the Final Report.
|
| The degree of equivalence of laboratory i with respect to the key comparison reference value is given by a pair of terms: Di and its expanded uncertainty (k = 2) computed as explained in Section 6 of the Final Report. The normalized degrees of equivalence Eni are also computed according to equation 16 on page 14 of the Final Report. |
| The pair-wise degrees of equivalence may be computed as explained in Section 6.4 of the Final Report. They are not reported here. |
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
|
The computation of the key comparison reference value, xR, and of its standard uncertainty, uR, is explained in Section 6 of the Final Report.
|
| The degree of equivalence of laboratory i with respect to the key comparison reference value is given by a pair of terms: Di and its expanded uncertainty (k = 2) computed as explained in Section 6 of the Final Report. The normalized degrees of equivalence Eni are also computed according to equation 16 on page 14 of the Final Report. |
| The pair-wise degrees of equivalence may be computed as explained in Section 6.4 of the Final Report. They are not reported here. |
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
|
The computation of the key comparison reference value, xR, and of its standard uncertainty, uR, is explained in Section 6 of the Final Report.
|
| The degree of equivalence of laboratory i with respect to the key comparison reference value is given by a pair of terms: Di and its expanded uncertainty (k = 2) computed as explained in Section 6 of the Final Report. The normalized degrees of equivalence Eni are also computed according to equation 16 on page 14 of the Final Report. |
| The pair-wise degrees of equivalence may be computed as explained in Section 6.4 of the Final Report. They are not reported here. |
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
xi: relative error of the transfer standard as obtained by laboratory i
xi = 100 [(Vt - Vs)/Vs], where Vt and Vs are the volumes indicated by the transfer standard (in m3) and measured by the national reference standard (in m3), respectively
Ui: expanded uncertainty (k = 2) of the measurement reported by laboratory i
The values of xi and Ui, expressed in %, are reported in Tables 4 and 5, respectively on pages 8 and 10 of the Final Report, for the complete range of flow rates and for all participants.
They are also presented under the form of one single table for all participants in Summary Results, and reproduced in the individual participant's page "Degrees of equivalence".
The standard uncertainty of the corrections and stability of the transfer standard is estimated to be equal to 0.031 % and is combined by root-sum-of-squares with the (Ui/2) values (see Section 5.6 of the Final Report). The resulting expanded uncertainty (k = 2), UiS, are given in the following tables.
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
xi: relative error of the transfer standard as obtained by laboratory i
xi = 100 [(Vt - Vs)/Vs], where Vt and Vs are the volumes indicated by the transfer standard (in m3) and measured by the national reference standard (in m3), respectively
Ui: expanded uncertainty (k = 2) of the measurement reported by laboratory i
The values of xi and Ui, expressed in %, are reported in Tables 4 and 5, respectively on pages 8 and 10 of the Final Report, for the complete range of flow rates and for all participants.
They are also presented under the form of one single table for all participants in Summary Results, and reproduced in the individual participant's page "Degrees of equivalence".
The standard uncertainty of the corrections and stability of the transfer standard is estimated to be equal to 0.031 % and is combined by root-sum-of-squares with the (Ui/2) values (see Section 5.6 of the Final Report). The resulting expanded uncertainty (k = 2), UiS, are given in the following tables.
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
xi: relative error of the transfer standard as obtained by laboratory i
xi = 100 [(Vt - Vs)/Vs], where Vt and Vs are the volumes indicated by the transfer standard (in m3) and measured by the national reference standard (in m3), respectively
Ui: expanded uncertainty (k = 2) of the measurement reported by laboratory i
The values of xi and Ui, expressed in %, are reported in Tables 4 and 5, respectively on pages 8 and 10 of the Final Report, for the complete range of flow rates and for all participants.
They are also presented under the form of one single table for all participants in Summary Results, and reproduced in the individual participant's page "Degrees of equivalence".
The standard uncertainty of the corrections and stability of the transfer standard is estimated to be equal to 0.031 % and is combined by root-sum-of-squares with the (Ui/2) values (see Section 5.6 of the Final Report). The resulting expanded uncertainty (k = 2), UiS, are given in the following tables.
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
xi: relative error of the transfer standard as obtained by laboratory i
xi = 100 [(Vt - Vs)/Vs], where Vt and Vs are the volumes indicated by the transfer standard (in m3) and measured by the national reference standard (in m3), respectively
Ui: expanded uncertainty (k = 2) of the measurement reported by laboratory i
The values of xi and Ui, expressed in %, are reported in Tables 4 and 5, respectively on pages 8 and 10 of the Final Report, for the complete range of flow rates and for all participants.
They are also presented under the form of one single table for all participants in Summary Results, and reproduced in the individual participant's page "Degrees of equivalence".
The standard uncertainty of the corrections and stability of the transfer standard is estimated to be equal to 0.031 % and is combined by root-sum-of-squares with the (Ui/2) values (see Section 5.6 of the Final Report). The resulting expanded uncertainty (k = 2), UiS, are given in the following tables.
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
xi: relative error of the transfer standard as obtained by laboratory i
xi = 100 [(Vt - Vs)/Vs], where Vt and Vs are the volumes indicated by the transfer standard (in m3) and measured by the national reference standard (in m3), respectively
Ui: expanded uncertainty (k = 2) of the measurement reported by laboratory i
The values of xi and Ui, expressed in %, are reported in Tables 4 and 5, respectively on pages 8 and 10 of the Final Report, for the complete range of flow rates and for all participants.
They are also presented under the form of one single table for all participants in Summary Results, and reproduced in the individual participant's page "Degrees of equivalence".
The standard uncertainty of the corrections and stability of the transfer standard is estimated to be equal to 0.031 % and is combined by root-sum-of-squares with the (Ui/2) values (see Section 5.6 of the Final Report). The resulting expanded uncertainty (k = 2), UiS, are given in the following tables.
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
xi: relative error of the transfer standard as obtained by laboratory i
xi = 100 [(Vt - Vs)/Vs], where Vt and Vs are the volumes indicated by the transfer standard (in m3) and measured by the national reference standard (in m3), respectively
Ui: expanded uncertainty (k = 2) of the measurement reported by laboratory i
The values of xi and Ui, expressed in %, are reported in Tables 4 and 5, respectively on pages 8 and 10 of the Final Report, for the complete range of flow rates and for all participants.
They are also presented under the form of one single table for all participants in Summary Results, and reproduced in the individual participant's page "Degrees of equivalence".
The standard uncertainty of the corrections and stability of the transfer standard is estimated to be equal to 0.031 % and is combined by root-sum-of-squares with the (Ui/2) values (see Section 5.6 of the Final Report). The resulting expanded uncertainty (k = 2), UiS, are given in the following tables.
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
xi: relative error of the transfer standard as obtained by laboratory i
xi = 100 [(Vt - Vs)/Vs], where Vt and Vs are the volumes indicated by the transfer standard (in m3) and measured by the national reference standard (in m3), respectively
Ui: expanded uncertainty (k = 2) of the measurement reported by laboratory i
The values of xi and Ui, expressed in %, are reported in Tables 4 and 5, respectively on pages 8 and 10 of the Final Report, for the complete range of flow rates and for all participants.
They are also presented under the form of one single table for all participants in Summary Results, and reproduced in the individual participant's page "Degrees of equivalence".
The standard uncertainty of the corrections and stability of the transfer standard is estimated to be equal to 0.031 % and is combined by root-sum-of-squares with the (Ui/2) values (see Section 5.6 of the Final Report). The resulting expanded uncertainty (k = 2), UiS, are given in the following tables.
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
xi: relative error of the transfer standard as obtained by laboratory i
xi = 100 [(Vt - Vs)/Vs], where Vt and Vs are the volumes indicated by the transfer standard (in m3) and measured by the national reference standard (in m3), respectively
Ui: expanded uncertainty (k = 2) of the measurement reported by laboratory i
The values of xi and Ui, expressed in %, are reported in Tables 4 and 5, respectively on pages 8 and 10 of the Final Report, for the complete range of flow rates and for all participants.
They are also presented under the form of one single table for all participants in Summary Results, and reproduced in the individual participant's page "Degrees of equivalence".
The standard uncertainty of the corrections and stability of the transfer standard is estimated to be equal to 0.031 % and is combined by root-sum-of-squares with the (Ui/2) values (see Section 5.6 of the Final Report). The resulting expanded uncertainty (k = 2), UiS, are given in the following tables.
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
xi: relative error of the transfer standard as obtained by laboratory i
xi = 100 [(Vt - Vs)/Vs], where Vt and Vs are the volumes indicated by the transfer standard (in m3) and measured by the national reference standard (in m3), respectively
Ui: expanded uncertainty (k = 2) of the measurement reported by laboratory i
The values of xi and Ui, expressed in %, are reported in Tables 4 and 5, respectively on pages 8 and 10 of the Final Report, for the complete range of flow rates and for all participants.
They are also presented under the form of one single table for all participants in Summary Results, and reproduced in the individual participant's page "Degrees of equivalence".
The standard uncertainty of the corrections and stability of the transfer standard is estimated to be equal to 0.031 % and is combined by root-sum-of-squares with the (Ui/2) values (see Section 5.6 of the Final Report). The resulting expanded uncertainty (k = 2), UiS, are given in the following tables.
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
xi: relative error of the transfer standard as obtained by laboratory i
xi = 100 [(Vt - Vs)/Vs], where Vt and Vs are the volumes indicated by the transfer standard (in m3) and measured by the national reference standard (in m3), respectively
Ui: expanded uncertainty (k = 2) of the measurement reported by laboratory i
The values of xi and Ui, expressed in %, are reported in Tables 4 and 5, respectively on pages 8 and 10 of the Final Report, for the complete range of flow rates and for all participants.
They are also presented under the form of one single table for all participants in Summary Results, and reproduced in the individual participant's page "Degrees of equivalence".
The standard uncertainty of the corrections and stability of the transfer standard is estimated to be equal to 0.031 % and is combined by root-sum-of-squares with the (Ui/2) values (see Section 5.6 of the Final Report). The resulting expanded uncertainty (k = 2), UiS, are given in the following tables.
MEASURAND : Relative error of a gas flow meter
GAS FLOW RATE : 2 m3/h to 100 m3/h
TRANSFER STANDARD : A rotary gas meter (see Section 3 of the Final Report)
xi: relative error of the transfer standard as obtained by laboratory i
xi = 100 [(Vt - Vs)/Vs], where Vt and Vs are the volumes indicated by the transfer standard (in m3) and measured by the national reference standard (in m3), respectively
Ui: expanded uncertainty (k = 2) of the measurement reported by laboratory i
The values of xi and Ui, expressed in %, are reported in Tables 4 and 5, respectively on pages 8 and 10 of the Final Report, for the complete range of flow rates and for all participants.
They are also presented under the form of one single table for all participants in Summary Results, and reproduced in the individual participant's page "Degrees of equivalence".
The standard uncertainty of the corrections and stability of the transfer standard is estimated to be equal to 0.031 % and is combined by root-sum-of-squares with the (Ui/2) values (see Section 5.6 of the Final Report). The resulting expanded uncertainty (k = 2), UiS, are given in the following tables.
