BIPM.RI(II)-K1.Ho-166m and EURAMET.RI(II)-K2.Ho-166m
MEASURAND Equivalent activity of 166mHo

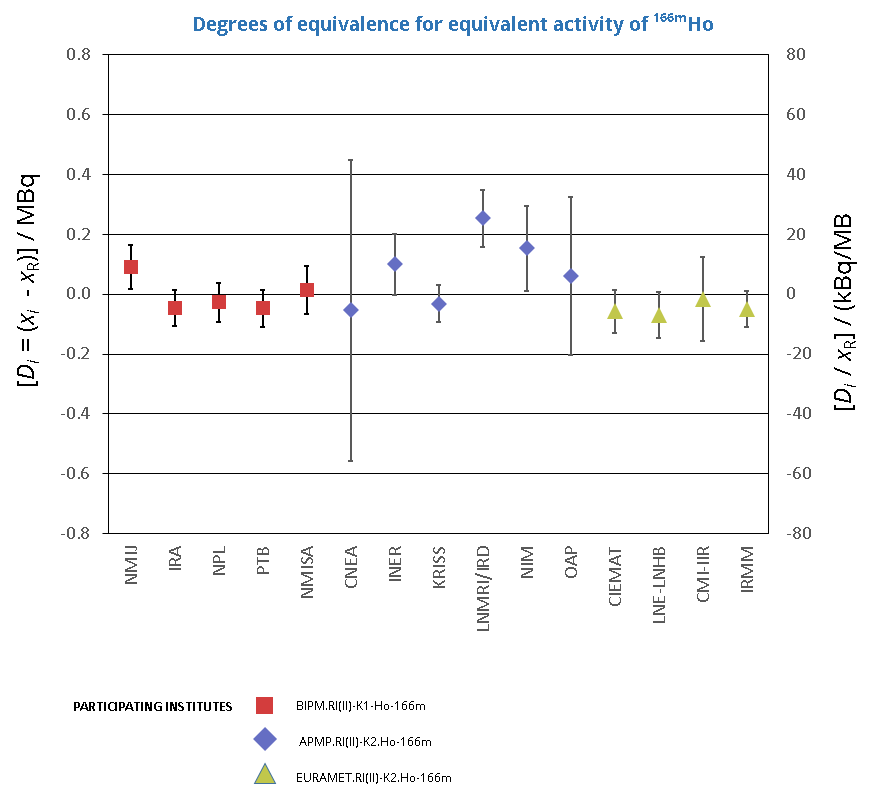

Degrees of equivalence represented by Di = (xi - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in MBq.
Results in absolute values
BIPM.RI(II)-K1.Ho-166m and EURAMET.RI(II)-K2.Ho-166m
MEASURAND Equivalent activity of 166mHo
Degrees of equivalence represented by Di = (xi - xR) /xR and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in kBq/MBq.
Results in relative values
BIPM.RI(II)-K1.Ho-166m and EURAMET.RI(II)-K2.Ho-166m
MEASURAND Equivalent activity of 166mHo
Degrees of equivalence represented by Di = (xi - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in MBq.
| LABi | Di | Uneg,i | Upos,i | |
|---|---|---|---|---|
MBq |
MBq |
MBq |
||
| IRA | -0.05 | 0.06 | ||
| NPL | -0.03 | 0.07 | ||
| PTB | -0.05 | 0.06 | ||
| NMISA | 0.01 | 0.08 | ||
| CIEMAT | -0.06 | 0.07 | ||
| LNE-LNHB | -0.07 | 0.08 | ||
| CMI-IIR | -0.02 | 0.14 | ||
| IRMM | -0.05 | 0.06 |
Results in absolute values
BIPM.RI(II)-K1.Ho-166m and EURAMET.RI(II)-K2.Ho-166m
MEASURAND Equivalent activity of 166mHo
Degrees of equivalence represented by Di = (xi - xR) /xR and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in kBq/MBq.
| LABi | Di | Uneg,i | Upos,i | |
|---|---|---|---|---|
kBq/MBq |
kBq/MBq |
kBq/MBq |
||
| NMIJ | 9.04 | 7.03 | ||
| IRA | -5.02 | 6.02 | ||
| NPL | -3.01 | 7.03 | ||
| PTB | -5.02 | 6.02 | ||
| NMISA | 1.00 | 8.03 | ||
| CIEMAT | -6.02 | 7.03 | ||
| LNE-LNHB | -7.03 | 8.03 | ||
| CMI-IIR | -2.01 | 14.1 | ||
| IRMM | -5.02 | 6.02 |
Results in relative values
| Metrology area, Sub-field | Ionizing Radiation, Section II (Measurement of Radionuclides) |
| Description | Activity of radionuclide Ho-166m |
| Time of measurements | 2013 |
| Status | Approved for equivalence |
| Final Reports of the comparisons | |
| References | |
| Measurand | Activity concentration of the same Ho-166m solution, nominal activity per mass: about 125 kBq/g |
| Transfer device | Solution of radionuclide Ho-166m |
| Comparison type | Key Comparison |
| Consultative Committee | CCRI (Consultative Committee for Ionizing Radiation) |
| Conducted by | EURAMET (European Association of National Metrology Institutes) |
| RMO Internal Identifier | EURAMET Project No 1257 |
| Comments | Results published on 16 December 2014 APMP.RI(II)-K2.Ho-166m and EURAMET.RI(II)-K2.Ho-166m results are linked to those of BIPM.RI(II)-K1.Ho-166m SIR equivalent activity of the radionuclide 166Hom
|
| Pilot institute |
PTB
Physikalisch-Technische Bundesanstalt Germany |
| Contact person | K. Kossert +49 531 592 6110 |
| Pilot laboratory | |
|---|---|
| PTB |
Physikalisch-Technische Bundesanstalt, Germany, EURAMET |
| CIEMAT |
Centro de Investigaciones Energéticas, Medioambientales y Tecnológicas, Spain, EURAMET |
| CMI |
Czech Metrology Institute, Czechia, EURAMET |
| IRMM |
Institute for Reference Materials and Measurements, European Union, EURAMET |
| LNE-LNHB |
Commissariat à l'énergie atomique / Laboratoire National Henri Becquerel, France, EURAMET |
This page proposes print-out on A4 paper (portrait) of the comparison details (best printed out using a black and white printer).
Please, select items to be printed out, then click on "OK" :
BIPM.RI(II)-K1.Ho-166m and EURAMET.RI(II)-K2.Ho-166m
MEASURAND Equivalent activity of 166mHo
Key comparison reference value xR is the SIR reference value for this radionuclide where xR = 9.959 MBq, with a standard uncertainty uR = 0.022 MBq (see section 4.1 of the Final Report). xi is the equivalent activity for laboratory i.
The degree of equivalence of each laboratory with respect to the reference value is given by a pair of terms:
Di = (xi - xR) and Ui, its expanded uncertainty (k = 2), both expressed in MBq. With n the number of laboratories, Ui = 2[(1 - 2/n)ui2 + (1/n2)Σui2]1/2 when each laboratory has contributed to the calculation of xR.
The degrees of equivalence are also given in relative terms by Di = (xi - xR) /xR and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in kBq/MBq.
The value xi is the equivalent activity for laboratory i participant in EURAMET.RI(II)-K2.Ho-166m, having been normalized to the value of PTB as the linking laboratory.
The degree of equivalence of laboratory i participant in EURAMET.RI(II)-K2.Ho-166m with respect to the key comparison reference value is given by a pair of terms:
Di = (xi - xR) and Ui, its expanded uncertainty (k = 2), both expressed in MBq. The approximation Ui = 2(ui2 + uR2)1/2 is used as none of these laboratories contributed to the computation of the key comparison reference value xR.
These statements make it possible to extend the BIPM.RI(II)-K1.Ho-166m table of equivalence to participants in EURAMET.RI(II)-K2.Ho-166m.
BIPM.RI(II)-K1.Ho-166m and EURAMET.RI(II)-K2.Ho-166m
MEASURAND Equivalent activity of 166mHo

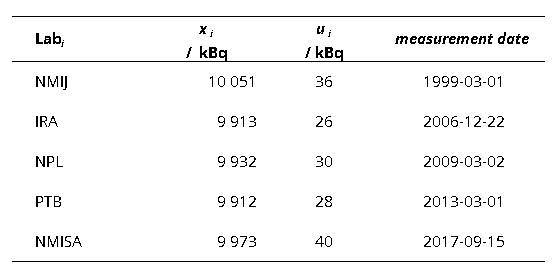

xi : result of measurement carried out in the SIR for the sample submitted by laboratory i
ui : combined standard uncertainty of xi
| Labi | xi | ui | Date of measurement | |
| kBq | kBq | |||
| IRA | 9 913 | 26 | 2006-12-22 | |
| NPL | 9 932 | 30 | 2009-03-02 | |
| PTB | 9 912 | 28 | 2013-03-01 | |
| NMISA | 9 973 | 40 | 2017-09-15 |

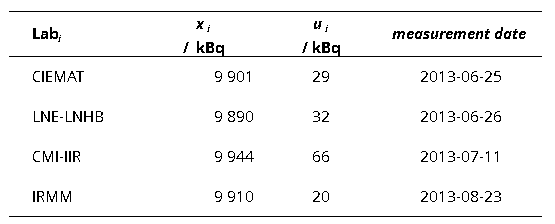

xi : result of measurement carried out by laboratory i converted to the equivalent activity through the PTB
ui : combined standard uncertainty of xi
| Labi | xi | ui | Date of measurement | |
| kBq | kBq | |||
| CIEMAT | 9 901 | 29 | 2013-06-25 | |
| LNE-LNHB | 9 890 | 32 | 2013-06-26 | |
| CMI-IIR | 9 944 | 66 | 2013-07-11 | |
| IRMM | 9 910 | 20 | 2013-08-23 |
