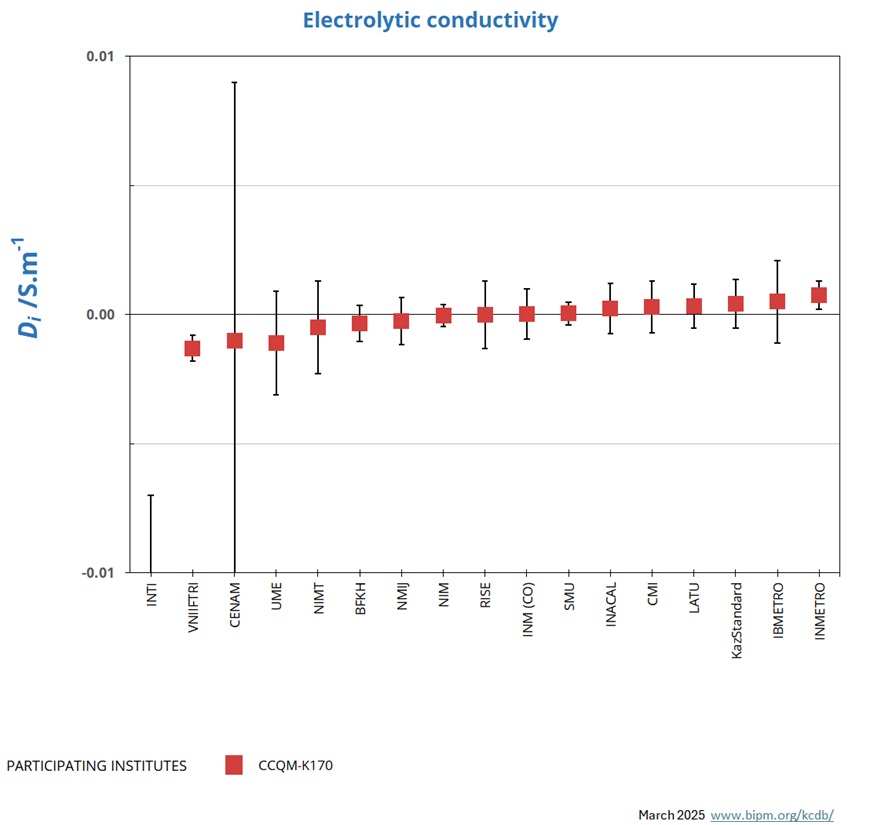

CCQM-K170 and EURAMET.QM-K170

MEASURAND   Electrolytic conductivity of a KCl solution

NOMINAL VALUE 0.5 S.m^-1

Degrees of equivalence represented by D_i = (x_i - x_R) and its expanded uncertainty U_i at a 95 % level of confidence, both expressed in S.m^-1.

Enlarged graph

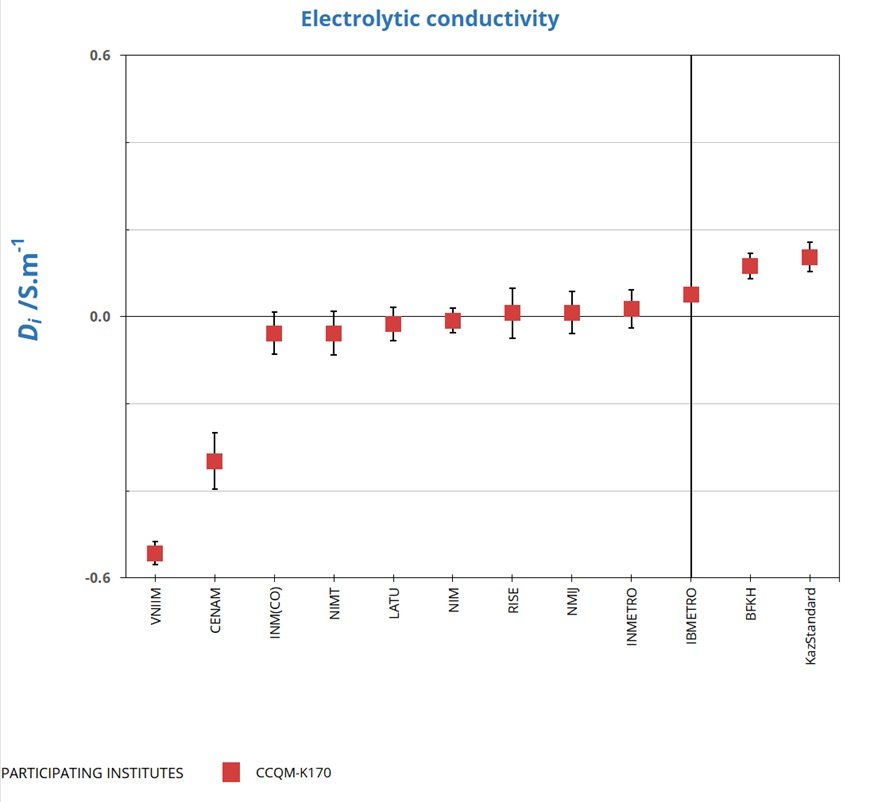

CCQM-K170 and EURAMET.QM-K170

MEASURAND   Electrolytic conductivity of a KCl solution

NOMINAL VALUE 20 S.m^-1

Degrees of equivalence represented by D_i = (x_i - x_R) and its expanded uncertainty U_i at a 95 % level of confidence, both expressed in S.m^-1.

Enlarged graph

CCQM-K170 and EURAMET.QM-K170

MEASURAND   Electrolytic conductivity of a KCl solution

NOMINAL VALUE 0.5 S.m^-1

Degrees of equivalence represented by D_i = (x_i - x_R) and its expanded uncertainty U_i at a 95 % level of confidence, both expressed in S.m^-1.

CCQM-K170 and EURAMET.QM-K170

MEASURAND   Electrolytic conductivity of a KCl solution

NOMINAL VALUE 20 S.m^-1

Degrees of equivalence represented by D_i = (x_i - x_R) and its expanded uncertainty U_i at a 95 % level of confidence, both expressed in S.m^-1.

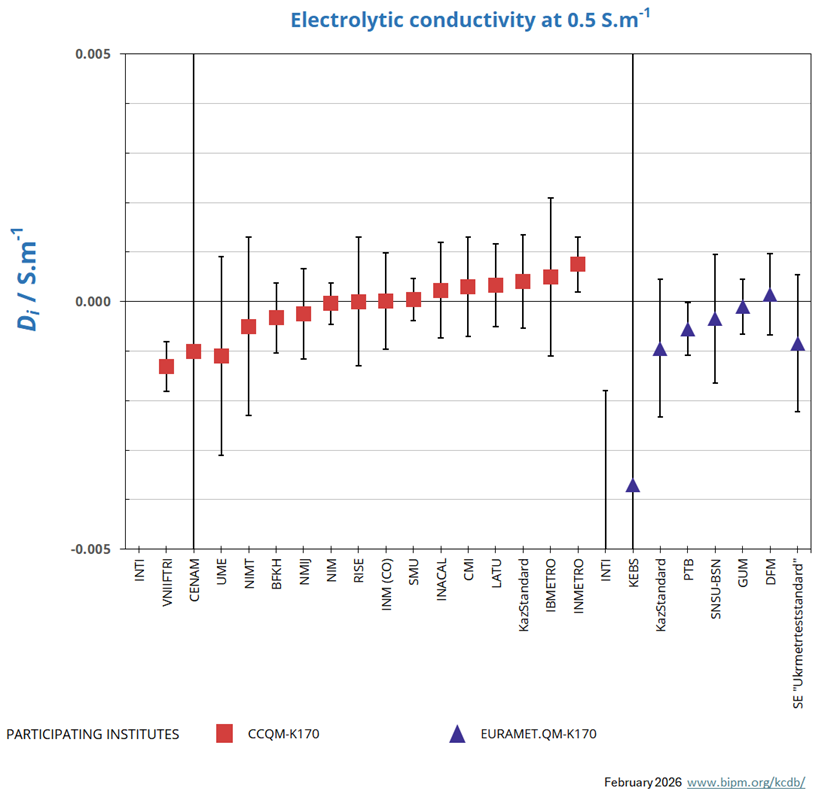

CCQM-K170 and EURAMET.QM-K170

MEASURAND   Electrolytic conductivity of a KCl solution

NOMINAL VALUE 0.5 S.m^-1

CCQM-K170

The key comparison reference value x_R and its associated standard uncertainty u_R are determined from the median of eight results. Secondary measurement results traceable to CRMs from SMU (a participating NMI) and those using non-NMI CRMs as calibrants were excluded. Secondary measurement results traceable to DFM (a non-participating NMI) were first combined into a single result using the uncertainty-weighted mean without dispersion before being included in the x_R calculation (see section 8 of the CCQM-K170 Final report).

        x_R = 0.50150 S.m^-1     u_R = 0.00018 S.m^-1

The degree of equivalence of laboratory i relative to the key comparison reference value x_R is given by a pair of terms, both expressed in S.m^-1:

D_i = (x_i - x_R) and its expanded uncertainty U_i at a 95 % level of confidence calculated as described in section 9 of the CCQM-K170 Final report.

Linking EURAMET.QM-K170 to CCQM-K170

NIM and SMU provide the link between the key comparison CCQM-K170 and URAMET.QM-K170, having participated in both comparisons. The linking process is described in Section 9 of the EURAMET.QM-K170 Final report.

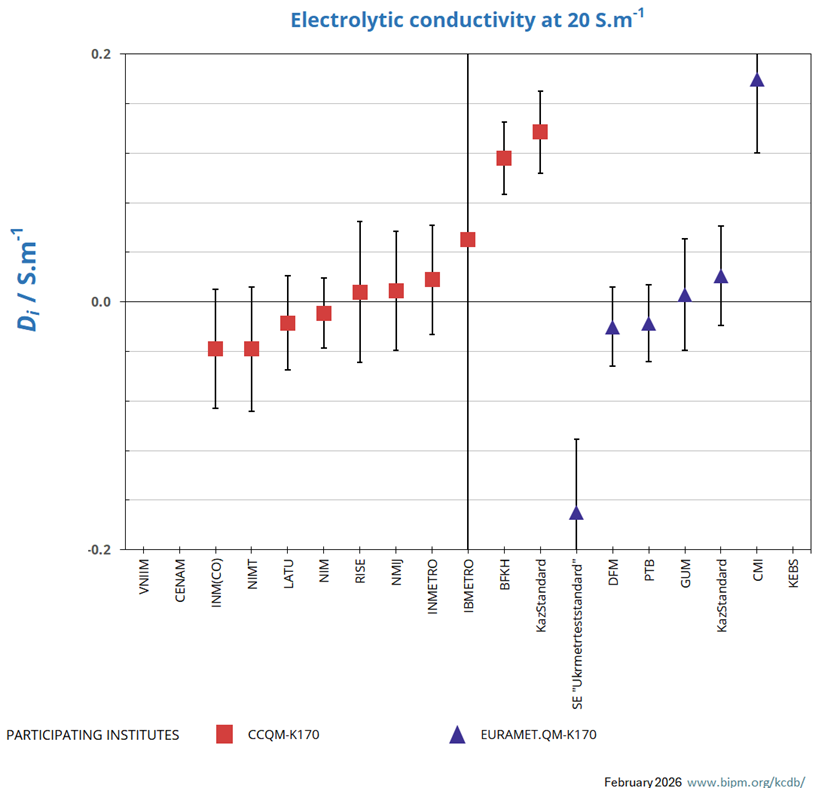

CCQM-K170 and EURAMET.QM-K170

MEASURAND   Electrolytic conductivity of a KCl solution

NOMINAL VALUE 20 S.m^-1

CCQM-K170

The key comparison reference value x_R and its associated standard uncertainty u_R are determined from the median of eight results. Secondary measurement results traceable to CRMs from SMU (a participating NMI) and those using non-NMI CRMs as calibrants were excluded. Secondary measurement results traceable to DFM (a non-participating NMI) were first combined into a single result using the uncertainty-weighted mean without dispersion before being included in the x_R calculation (see section 8 of the CCQM-K170 Final report).

        x_R = 20.148 S.m^-1     u_R = 0.014 S.m^-1

The degree of equivalence of laboratory i relative to the key comparison reference value x_R is given by a pair of terms, both expressed in S.m^-1:

D_i = (x_i - x_R) and its expanded uncertainty U_i at a 95 % level of confidence calculated as described in section 9 of the CCQM-K170 Final report.

Linking EURAMET.QM-K170 to CCQM-K170

NIM provides the link between the key comparison CCQM-K170 and EURAMET.QM-K170, having participated in both comparisons. The linking process is described in Section 9 of the EURAMET.QM-K170 Final report.

CCQM-K170 and EURAMET.QM-K170

MEASURAND   Electrolytic conductivity of a KCl solution

NOMINAL VALUE 0.5 S.m^-1

x_i   measurement value submitted by institute i, Lab_i

u_i   combined standard uncertainty of x_i

CCQM-K170

EURAMET.QM-K170

CCQM-K170 and EURAMET.QM-K170

MEASURAND   Electrolytic conductivity of a KCl solution

NOMINAL VALUE 20 S.m^-1

x_i   measurement value submitted by institute i, Lab_i

u_i   combined standard uncertainty of x_i

CCQM-K170

EURAMET.QM-K170
