Key comparison CCPR-K5 and EURAMET.PR-K5

MEASURAND : Spectral diffuse reflectance
WAVELENGTH : 360 nm to 460 nm

Graph of equivalence

Red diamond : CCPR-K5 Blue square : EURAMET.PR-K5

print out

Key comparison CCPR-K5 and EURAMET.PR-K5

MEASURAND : Spectral diffuse reflectance
WAVELENGTH : 480 nm to 580 nm

Graph of equivalence

Red diamond : CCPR-K5
Blue square : EURAMET.PR-K5

print out

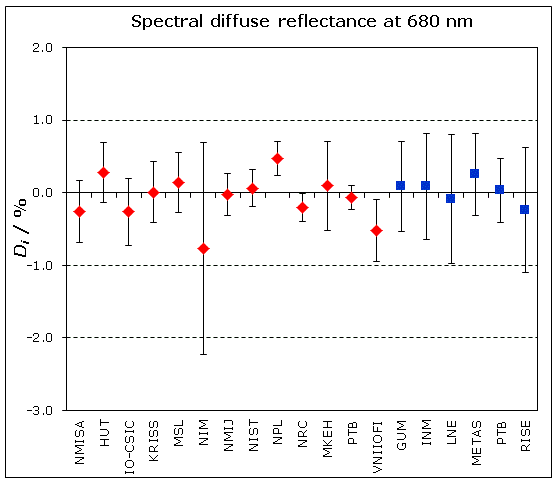

Key comparison CCPR-K5 and EURAMET.PR-K5

MEASURAND : Spectral diffuse reflectance
WAVELENGTH : 600 nm to 700 nm

Graph of equivalence

Red diamond : CCPR-K5
Blue square : EURAMET.PR-K5

print out

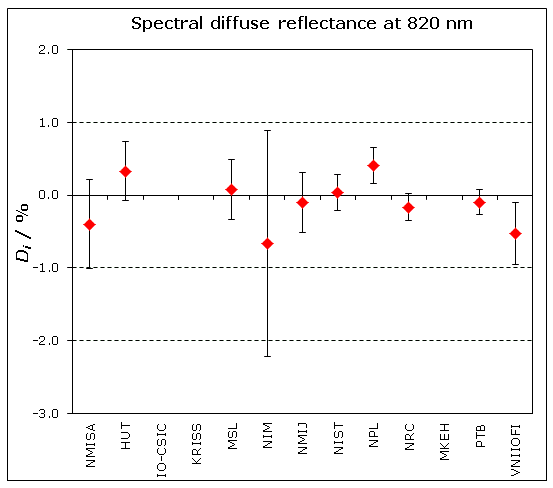

Key comparison CCPR-K5 and EURAMET.PR-K5

MEASURAND : Spectral diffuse reflectance
WAVELENGTH : 720 nm to 820 nm

Graph of equivalence

Red diamond : CCPR-K5
Blue square : EURAMET.PR-K5

Comparison
Comparison close
Results
print out

Key comparison CCPR-K5 and EURAMET.PR-K5

MEASURAND : Spectral diffuse reflectance
WAVELENGTH : 360 nm to 460 nm

Degrees of equivalence relative to the key comparison reference value, expressed in relative terms

Results are presented under A4 printable format in Summary Results (PDF file).



print out

Key comparison CCPR-K5 and EURAMET.PR-K5

MEASURAND : Spectral diffuse reflectance
WAVELENGTH : 480 nm to 580 nm

Degrees of equivalence relative to the key comparison reference value, expressed in relative terms

Results are presented under A4 printable format in Summary Results (PDF file).



print out

Key comparison CCPR-K5 and EURAMET.PR-K5

MEASURAND : Spectral diffuse reflectance
WAVELENGTH : 600 nm to 700 nm

Degrees of equivalence relative to the key comparison reference value, expressed in relative terms

Results are presented under A4 printable format in Summary Results (PDF file).



print out

Key comparison CCPR-K5 and EURAMET.PR-K5

MEASURAND : Spectral diffuse reflectance
WAVELENGTH : 720 nm to 820 nm

Degrees of equivalence relative to the key comparison reference value, expressed in relative terms

Results are presented under A4 printable format in Summary Results (PDF file).



Comparison
Comparison close
CC comparison
Linked comparison
EURAMET.PR-K5.2022
print out
Metrology area, Sub-field Photometry and Radiometry, Properties of materials
Description Spectral diffuse reflectance
Time of measurements 2022 - 2023
Status Measurements in progress
Measurand Average spectral diffuse reflectance
Parameters Wavelength from 360 nm to 830 nm
Transfer device Three identical Spectralon diffuse reflectance samples
Comparison type Key Comparison
Consultative Committee CCPR (Consultative Committee for Photometry and Radiometry)
Conducted by EURAMET (European Association of National Metrology Institutes)
RMO Internal Identifier EURAMET 1509
Pilot institute UME
TÜBITAK Ulusal Metroloji Enstitüsü
Türkiye
Contact person Özcan Bazkir

+905330863045
First Name Last Name
wwww@ww.www +356719836 Institute 1 Institute 1 Khmelnitskiy
Pilot laboratory
UME

TÜBITAK Ulusal Metroloji Enstitüsü, Türkiye, EURAMET

IO-CSIC

Instituto de Optica Daza de Valdés, Spain, EURAMET

SASO-NMCC

National Measurement and Calibration Center - Saudi Standards, Metrology and Quality Organization, Saudi Arabia, GULFMET

UzNIM

Uzbek National Institute of Metrology, Uzbekistan, COOMET

Comparison
Comparison close
Results
print out

Key comparison CCPR-K5 and EURAMET.PR-K5

MEASURAND : Spectral diffuse reflectance
WAVELENGTH : 360 nm to 460 nm

CCPR-K5

Degrees of equivalence are produced from the combined results of both types of samples, but excluding data from 360 nm to 440 nm of ceramic tile samples (reasons for this are explained in Section 12 of the Final Report).
For each wavelength, the key comparison reference value was calculated as a weighted mean of the participants' results with a cut-off, as detailed in Section 13 of the Final Report (see Tables 13.1 and 13.2).



The degree of equivalence of each laboratory with respect to the reference value is given by a pair of relative terms:
Di and Ui, its expanded uncertainty (k = 2), both expressed in % (see equations 13.18 and 13.19 on page 147 of the Final Report).

EURAMET.PR-K5

The linking of EURAMET.PR-K5 to CCPR-K5 is made via METAS who participated in both comparisons.

print out

Key comparison CCPR-K5 and EURAMET.PR-K5

MEASURAND : Spectral diffuse reflectance
WAVELENGTH : 480 nm to 580 nm

CCPR-K5

Degrees of equivalence are produced from the combined results of both types of samples, but excluding data from 360 nm to 440 nm of ceramic tile samples (reasons for this are explained in Section 12 of the Final Report).
For each wavelength, the key comparison reference value was calculated as a weighted mean of the participants' results with a cut-off, as detailed in Section 13 of the Final Report (see Tables 13.1 and 13.2).



The degree of equivalence of each laboratory with respect to the reference value is given by a pair of relative terms:
Di and Ui, its expanded uncertainty (k = 2), both expressed in % (see equations 13.18 and 13.19 on page 147 of the Final Report).

EURAMET.PR-K5

The linking of EURAMET.PR-K5 to CCPR-K5 is made via METAS who participated in both comparisons.

print out

Key comparison CCPR-K5 and EURAMET.PR-K5

MEASURAND : Spectral diffuse reflectance
WAVELENGTH : 600 nm to 700 nm

CCPR-K5

Degrees of equivalence are produced from the combined results of both types of samples, but excluding data from 360 nm to 440 nm of ceramic tile samples (reasons for this are explained in Section 12 of the Final Report).
For each wavelength, the key comparison reference value was calculated as a weighted mean of the participants' results with a cut-off, as detailed in Section 13 of the Final Report (see Tables 13.1 and 13.2).



The degree of equivalence of each laboratory with respect to the reference value is given by a pair of relative terms:
Di and Ui, its expanded uncertainty (k = 2), both expressed in % (see equations 13.18 and 13.19 on page 147 of the Final Report).

EURAMET.PR-K5

The linking of EURAMET.PR-K5 to CCPR-K5 is made via METAS who participated in both comparisons.

print out

Key comparison CCPR-K5 and EURAMET.PR-K5

MEASURAND : Spectral diffuse reflectance
WAVELENGTH : 720 nm to 820 nm

CCPR-K5

Degrees of equivalence are produced from the combined results of both types of samples, but excluding data from 360 nm to 440 nm of ceramic tile samples (reasons for this are explained in Section 12 of the Final Report).
For each wavelength, the key comparison reference value was calculated as a weighted mean of the participants' results with a cut-off, as detailed in Section 13 of the Final Report (see Tables 13.1 and 13.2).



The degree of equivalence of each laboratory with respect to the reference value is given by a pair of relative terms:
Di and Ui, its expanded uncertainty (k = 2), both expressed in % (see equations 13.18 and 13.19 on page 147 of the Final Report).

EURAMET.PR-K5

The linking of EURAMET.PR-K5 to CCPR-K5 is made via METAS who participated in both comparisons.

Comparison
Comparison close
Results
print out

Key comparison CCPR-K5 and EURAMET.PR-K5

MEASURAND : Spectral diffuse reflectance
WAVELENGTH : 360 nm to 460 nm

CCPR-K5

The laboratory individual measurements of all transfer samples (Spectralon and matte white ceramic tile) and corresponding standard uncertainties are given in Sections 9 and 10 of the Final Report, respectively.
The data obtained by the Pilot laboratory, NIST, are given in Section 11 of the Final Report.

EURAMET.PR-K5

The laboratory individual measurements are given in the EURAMET.PR-K5 Final Report.



print out

Key comparison CCPR-K5 and EURAMET.PR-K5

MEASURAND : Spectral diffuse reflectance
WAVELENGTH : 480 nm to 580 nm

CCPR-K5

The laboratory individual measurements of all transfer samples (Spectralon and matte white ceramic tile) and corresponding standard uncertainties are given in Sections 9 and 10 of the Final Report, respectively.
The data obtained by the Pilot laboratory, NIST, are given in Section 11 of the Final Report.

EURAMET.PR-K5

The laboratory individual measurements are given in the EURAMET.PR-K5 Final Report.



print out

Key comparison CCPR-K5 and EURAMET.PR-K5

MEASURAND : Spectral diffuse reflectance
WAVELENGTH : 600 nm to 700 nm

CCPR-K5

The laboratory individual measurements of all transfer samples (Spectralon and matte white ceramic tile) and corresponding standard uncertainties are given in Sections 9 and 10 of the Final Report, respectively.
The data obtained by the Pilot laboratory, NIST, are given in Section 11 of the Final Report.

EURAMET.PR-K5

The laboratory individual measurements are given in the EURAMET.PR-K5 Final Report.



print out

Key comparison CCPR-K5 and EURAMET.PR-K5

MEASURAND : Spectral diffuse reflectance
WAVELENGTH : 720 nm to 820 nm

CCPR-K5

The laboratory individual measurements of all transfer samples (Spectralon and matte white ceramic tile) and corresponding standard uncertainties are given in Sections 9 and 10 of the Final Report, respectively.
The data obtained by the Pilot laboratory, NIST, are given in Section 11 of the Final Report.

EURAMET.PR-K5

The laboratory individual measurements are given in the EURAMET.PR-K5 Final Report.
