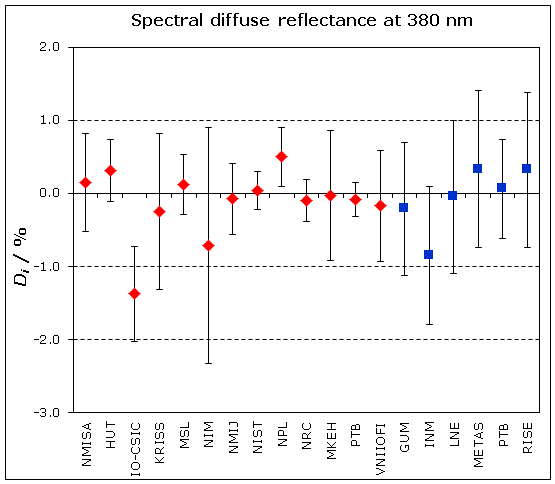

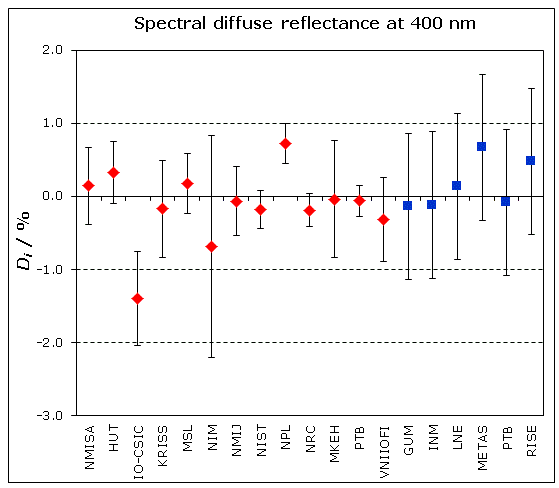

Key comparison CCPR-K5 and EURAMET.PR-K5

MEASURAND : Spectral diffuse reflectance
WAVELENGTH : 360 nm to 460 nm

Graph of equivalence

Red diamond : CCPR-K5 Blue square : EURAMET.PR-K5

print out

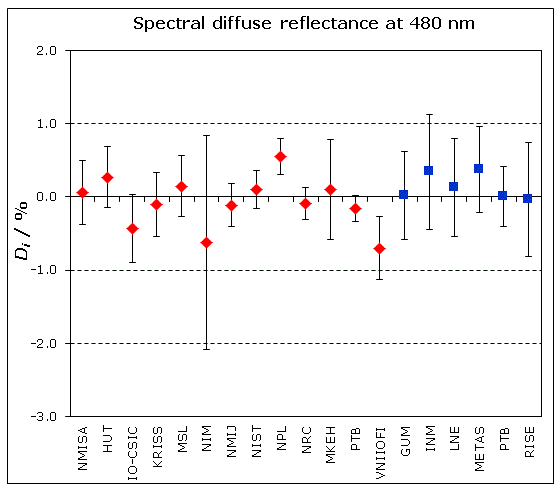

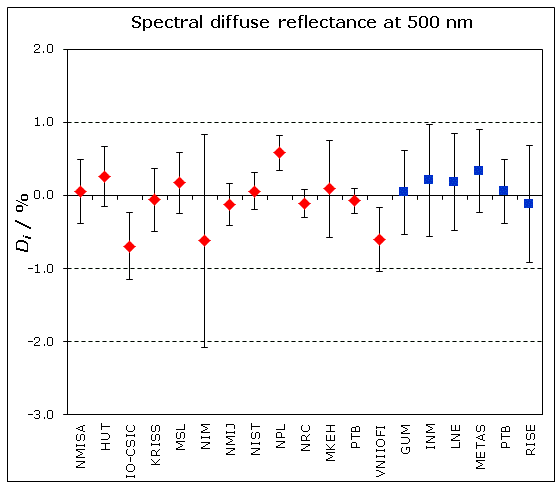

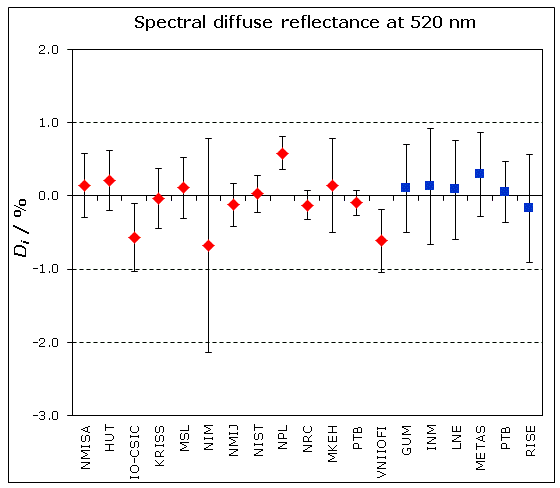

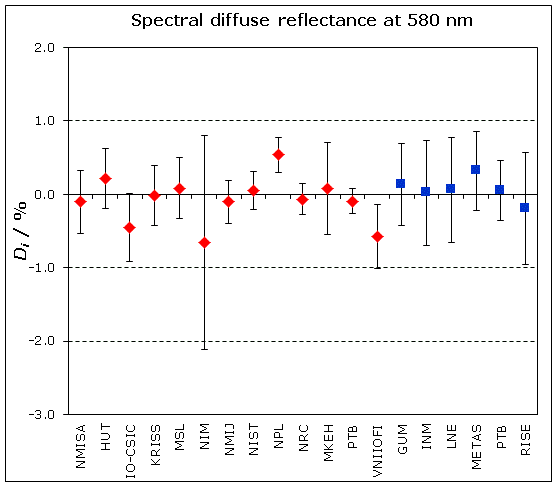

Key comparison CCPR-K5 and EURAMET.PR-K5

MEASURAND : Spectral diffuse reflectance
WAVELENGTH : 480 nm to 580 nm

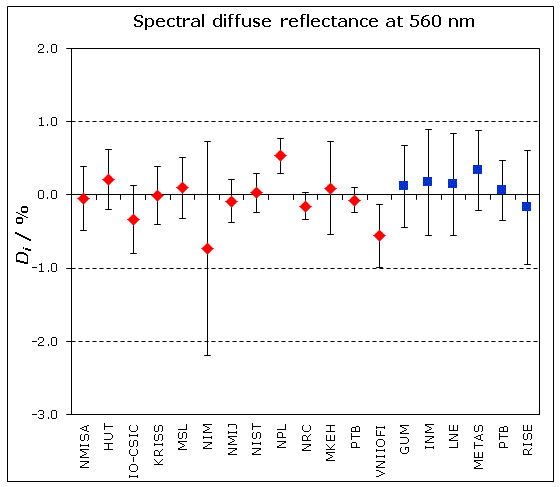

Graph of equivalence

Red diamond : CCPR-K5
Blue square : EURAMET.PR-K5

print out

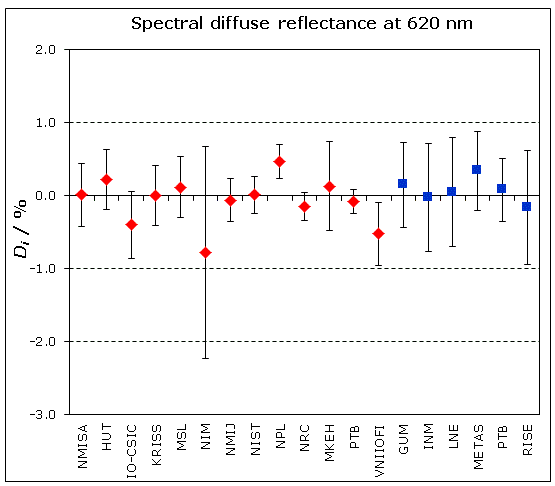

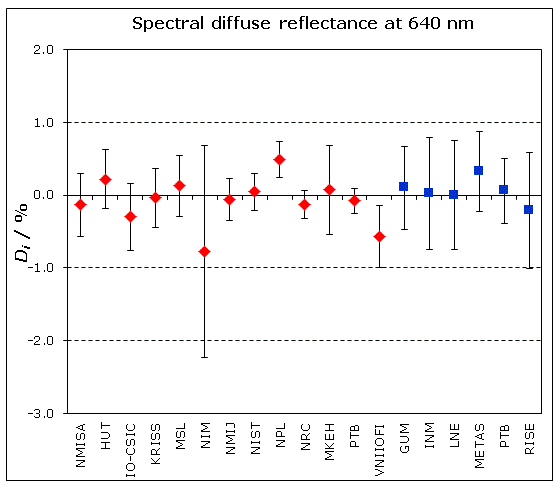

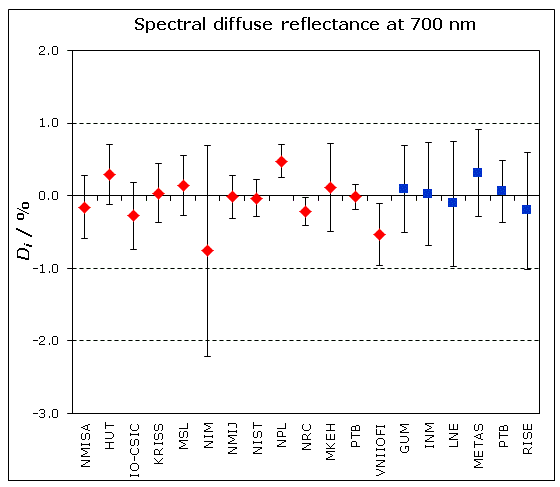

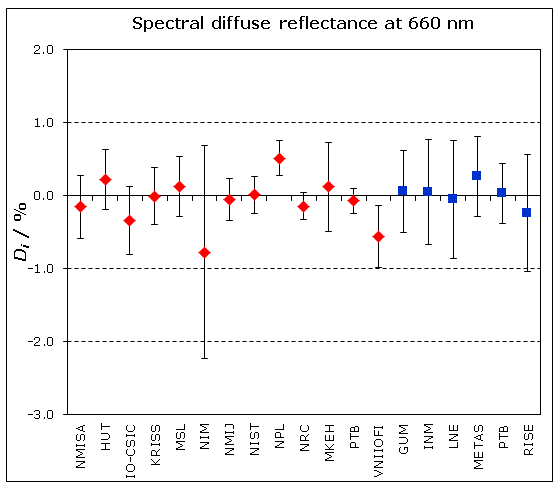

Key comparison CCPR-K5 and EURAMET.PR-K5

MEASURAND : Spectral diffuse reflectance
WAVELENGTH : 600 nm to 700 nm

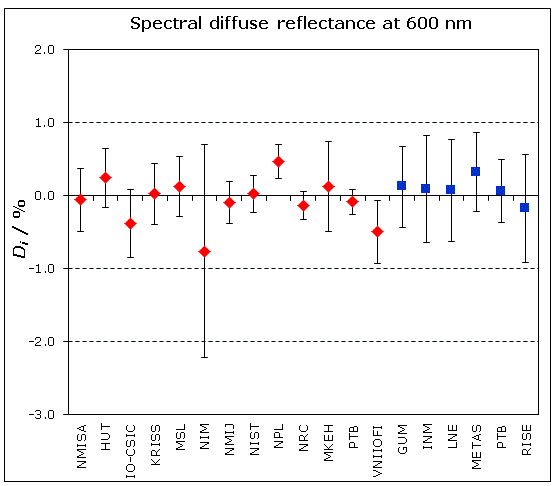

Graph of equivalence

Red diamond : CCPR-K5
Blue square : EURAMET.PR-K5

print out

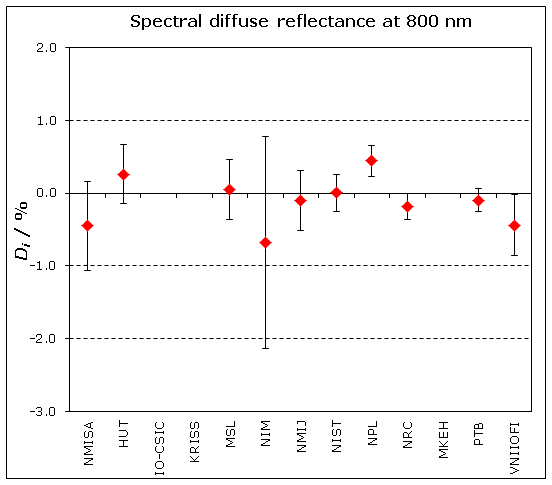

Key comparison CCPR-K5 and EURAMET.PR-K5

MEASURAND : Spectral diffuse reflectance
WAVELENGTH : 720 nm to 820 nm

Graph of equivalence

Red diamond : CCPR-K5
Blue square : EURAMET.PR-K5

Comparison
Comparison close
Results
print out

Key comparison CCPR-K5 and EURAMET.PR-K5

MEASURAND : Spectral diffuse reflectance
WAVELENGTH : 360 nm to 460 nm

Degrees of equivalence relative to the key comparison reference value, expressed in relative terms

Results are presented under A4 printable format in Summary Results (PDF file).



print out

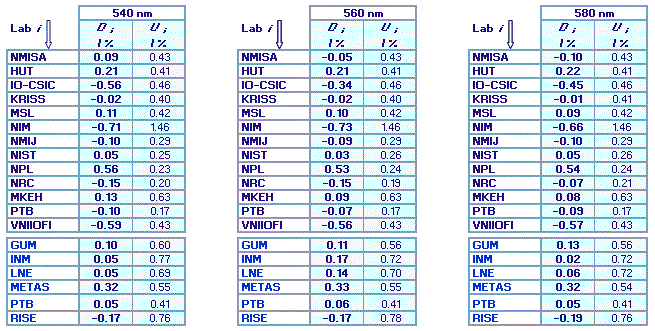

Key comparison CCPR-K5 and EURAMET.PR-K5

MEASURAND : Spectral diffuse reflectance
WAVELENGTH : 480 nm to 580 nm

Degrees of equivalence relative to the key comparison reference value, expressed in relative terms

Results are presented under A4 printable format in Summary Results (PDF file).



print out

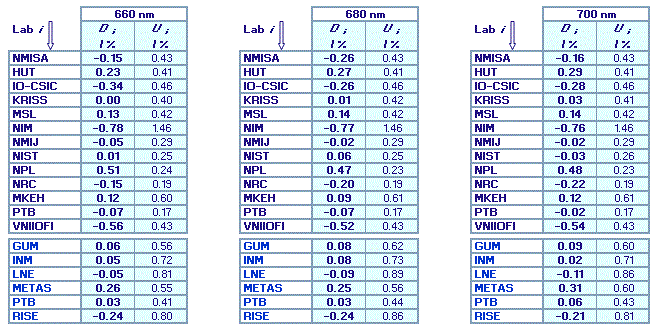

Key comparison CCPR-K5 and EURAMET.PR-K5

MEASURAND : Spectral diffuse reflectance
WAVELENGTH : 600 nm to 700 nm

Degrees of equivalence relative to the key comparison reference value, expressed in relative terms

Results are presented under A4 printable format in Summary Results (PDF file).



print out

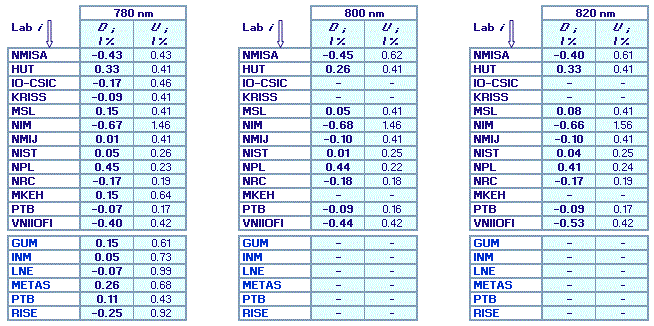

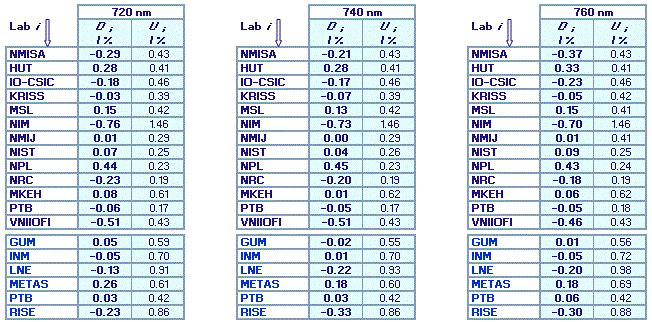

Key comparison CCPR-K5 and EURAMET.PR-K5

MEASURAND : Spectral diffuse reflectance
WAVELENGTH : 720 nm to 820 nm

Degrees of equivalence relative to the key comparison reference value, expressed in relative terms

Results are presented under A4 printable format in Summary Results (PDF file).



Comparison
Comparison close
CC comparison
Linked comparison
EURAMET.PR-K5
print out
Metrology area, Sub-field Photometry and Radiometry, Properties of materials
Description Spectral diffuse reflectance
Time of measurements 2007 -
Status Approved for equivalence
Final Reports of the comparisons
Metrologia, 2018, 55, Tech. Suppl., 02002
Measurand Spectral diffuse reflectance
Parameters Wavelength from 360 nm to 780 nm
Transfer device Spectralon and BCR or CERAM samples
Comparison type Key Comparison
Consultative Committee CCPR (Consultative Committee for Photometry and Radiometry)
Conducted by EURAMET (European Association of National Metrology Institutes)
RMO Internal Identifier EUROMET Project No 619
Comments

Results published on 12 February 2018

Spectral diffuse reflectance

EURAMET.PR-K5 results are linked to those of CCPR-K5
Pilot institute MKEH
Hungarian Trade Licensing Office; now BFKH
Hungary
Contact person G. Andor

+36 1 458 5984
First Name Last Name
wwww@ww.www +356719836 Institute 1 Institute 1 Khmelnitskiy
GUM

Glowny Urzad Miar, Central Office of Measures, Poland, EURAMET

INM

National Institute of Metrology, Romania, EURAMET

METAS

Federal Institute of Metrology, Switzerland, EURAMET

PTB

Physikalisch-Technische Bundesanstalt, Germany, EURAMET

Comparison
Comparison close
Results
print out

Key comparison CCPR-K5 and EURAMET.PR-K5

MEASURAND : Spectral diffuse reflectance
WAVELENGTH : 360 nm to 460 nm

CCPR-K5

Degrees of equivalence are produced from the combined results of both types of samples, but excluding data from 360 nm to 440 nm of ceramic tile samples (reasons for this are explained in Section 12 of the Final Report).
For each wavelength, the key comparison reference value was calculated as a weighted mean of the participants' results with a cut-off, as detailed in Section 13 of the Final Report (see Tables 13.1 and 13.2).



The degree of equivalence of each laboratory with respect to the reference value is given by a pair of relative terms:
Di and Ui, its expanded uncertainty (k = 2), both expressed in % (see equations 13.18 and 13.19 on page 147 of the Final Report).

EURAMET.PR-K5

The linking of EURAMET.PR-K5 to CCPR-K5 is made via METAS who participated in both comparisons.

print out

Key comparison CCPR-K5 and EURAMET.PR-K5

MEASURAND : Spectral diffuse reflectance
WAVELENGTH : 480 nm to 580 nm

CCPR-K5

Degrees of equivalence are produced from the combined results of both types of samples, but excluding data from 360 nm to 440 nm of ceramic tile samples (reasons for this are explained in Section 12 of the Final Report).
For each wavelength, the key comparison reference value was calculated as a weighted mean of the participants' results with a cut-off, as detailed in Section 13 of the Final Report (see Tables 13.1 and 13.2).



The degree of equivalence of each laboratory with respect to the reference value is given by a pair of relative terms:
Di and Ui, its expanded uncertainty (k = 2), both expressed in % (see equations 13.18 and 13.19 on page 147 of the Final Report).

EURAMET.PR-K5

The linking of EURAMET.PR-K5 to CCPR-K5 is made via METAS who participated in both comparisons.

print out

Key comparison CCPR-K5 and EURAMET.PR-K5

MEASURAND : Spectral diffuse reflectance
WAVELENGTH : 600 nm to 700 nm

CCPR-K5

Degrees of equivalence are produced from the combined results of both types of samples, but excluding data from 360 nm to 440 nm of ceramic tile samples (reasons for this are explained in Section 12 of the Final Report).
For each wavelength, the key comparison reference value was calculated as a weighted mean of the participants' results with a cut-off, as detailed in Section 13 of the Final Report (see Tables 13.1 and 13.2).



The degree of equivalence of each laboratory with respect to the reference value is given by a pair of relative terms:
Di and Ui, its expanded uncertainty (k = 2), both expressed in % (see equations 13.18 and 13.19 on page 147 of the Final Report).

EURAMET.PR-K5

The linking of EURAMET.PR-K5 to CCPR-K5 is made via METAS who participated in both comparisons.

print out

Key comparison CCPR-K5 and EURAMET.PR-K5

MEASURAND : Spectral diffuse reflectance
WAVELENGTH : 720 nm to 820 nm

CCPR-K5

Degrees of equivalence are produced from the combined results of both types of samples, but excluding data from 360 nm to 440 nm of ceramic tile samples (reasons for this are explained in Section 12 of the Final Report).
For each wavelength, the key comparison reference value was calculated as a weighted mean of the participants' results with a cut-off, as detailed in Section 13 of the Final Report (see Tables 13.1 and 13.2).



The degree of equivalence of each laboratory with respect to the reference value is given by a pair of relative terms:
Di and Ui, its expanded uncertainty (k = 2), both expressed in % (see equations 13.18 and 13.19 on page 147 of the Final Report).

EURAMET.PR-K5

The linking of EURAMET.PR-K5 to CCPR-K5 is made via METAS who participated in both comparisons.

Comparison
Comparison close
Results
print out

Key comparison CCPR-K5 and EURAMET.PR-K5

MEASURAND : Spectral diffuse reflectance
WAVELENGTH : 360 nm to 460 nm

CCPR-K5

The laboratory individual measurements of all transfer samples (Spectralon and matte white ceramic tile) and corresponding standard uncertainties are given in Sections 9 and 10 of the Final Report, respectively.
The data obtained by the Pilot laboratory, NIST, are given in Section 11 of the Final Report.

EURAMET.PR-K5

The laboratory individual measurements are given in the EURAMET.PR-K5 Final Report.



print out

Key comparison CCPR-K5 and EURAMET.PR-K5

MEASURAND : Spectral diffuse reflectance
WAVELENGTH : 480 nm to 580 nm

CCPR-K5

The laboratory individual measurements of all transfer samples (Spectralon and matte white ceramic tile) and corresponding standard uncertainties are given in Sections 9 and 10 of the Final Report, respectively.
The data obtained by the Pilot laboratory, NIST, are given in Section 11 of the Final Report.

EURAMET.PR-K5

The laboratory individual measurements are given in the EURAMET.PR-K5 Final Report.



print out

Key comparison CCPR-K5 and EURAMET.PR-K5

MEASURAND : Spectral diffuse reflectance
WAVELENGTH : 600 nm to 700 nm

CCPR-K5

The laboratory individual measurements of all transfer samples (Spectralon and matte white ceramic tile) and corresponding standard uncertainties are given in Sections 9 and 10 of the Final Report, respectively.
The data obtained by the Pilot laboratory, NIST, are given in Section 11 of the Final Report.

EURAMET.PR-K5

The laboratory individual measurements are given in the EURAMET.PR-K5 Final Report.



print out

Key comparison CCPR-K5 and EURAMET.PR-K5

MEASURAND : Spectral diffuse reflectance
WAVELENGTH : 720 nm to 820 nm

CCPR-K5

The laboratory individual measurements of all transfer samples (Spectralon and matte white ceramic tile) and corresponding standard uncertainties are given in Sections 9 and 10 of the Final Report, respectively.
The data obtained by the Pilot laboratory, NIST, are given in Section 11 of the Final Report.

EURAMET.PR-K5

The laboratory individual measurements are given in the EURAMET.PR-K5 Final Report.
