Comparison
Comparison close

CCM.P-K4.2012

MEASURAND : Pressure

NOMINAL PRESSURE : 1 Pa, 3 Pa, 10 Pa, 30 Pa,100 Pa, 300 Pa, 1 000 Pa,
                                       3 000 Pa, 7 000 Pa and 10 000 Pa

MEASURAND : Pressure

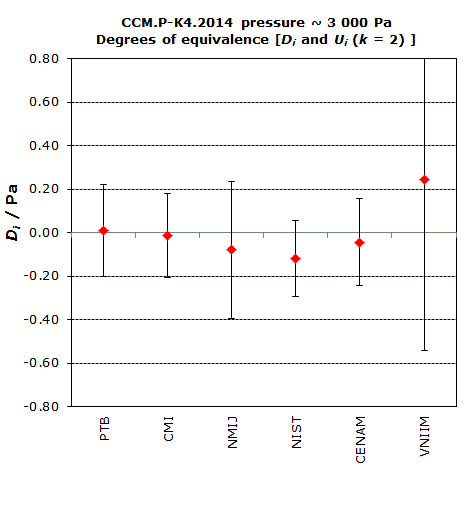

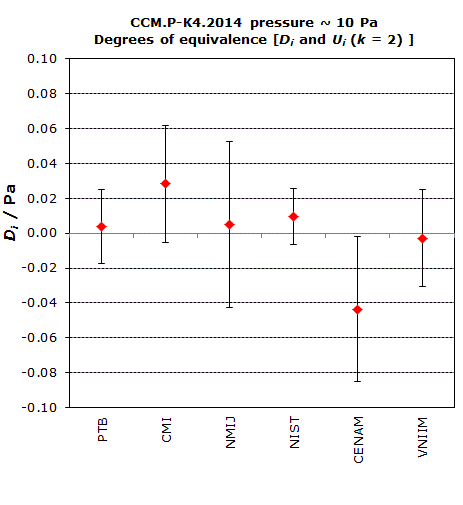

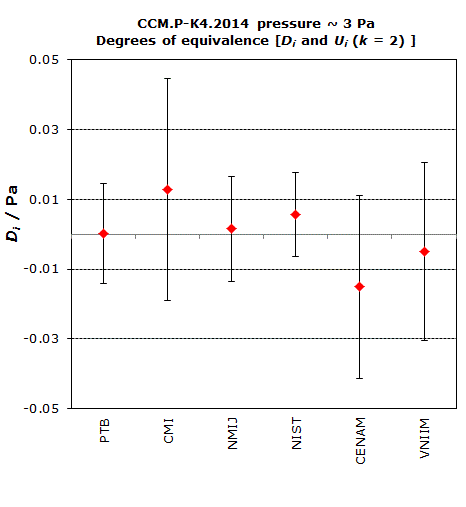

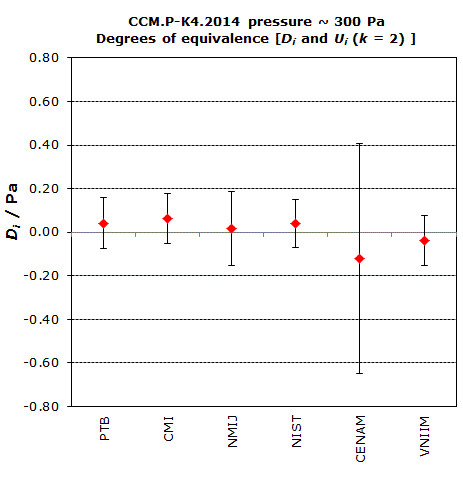

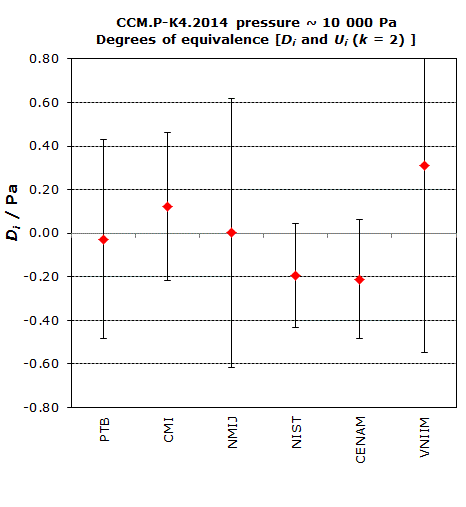

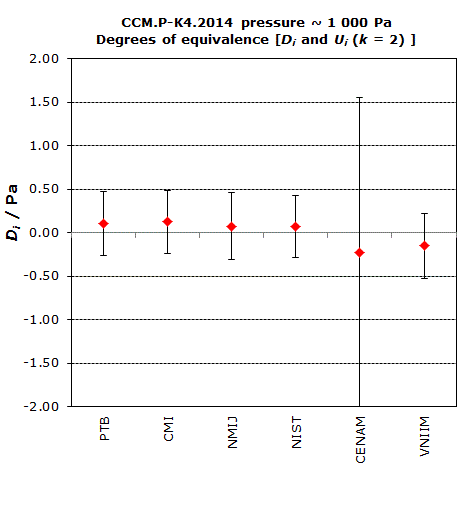

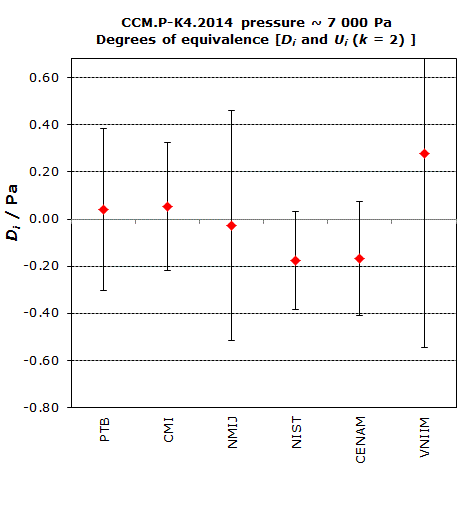

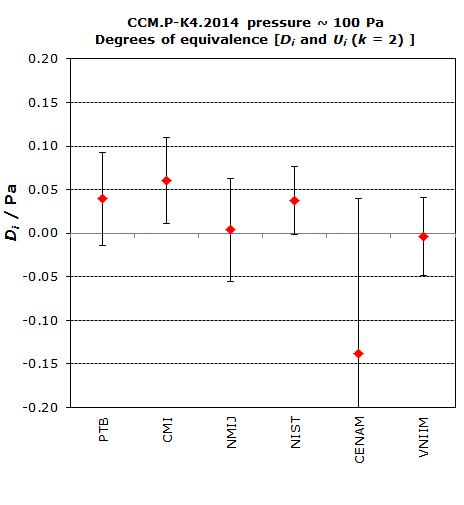

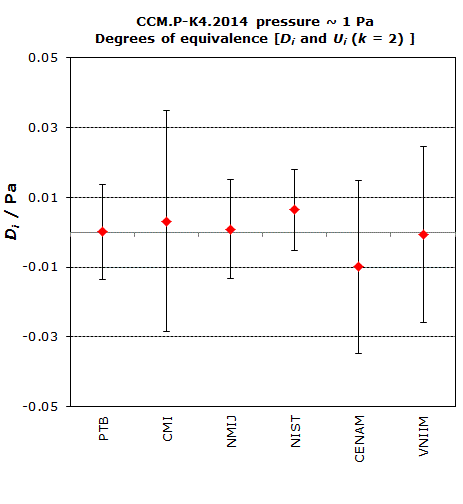

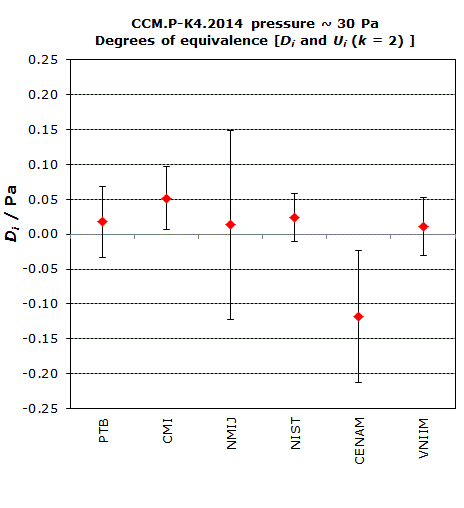

Degrees of equivalence Di and expanded uncertainty Ui (95% level of confidence) expressed in Pa

Comparison
Comparison close

CCM.P-K4.2012

MEASURAND : Pressure

NOMINAL PRESSURE : 1 Pa, 3 Pa, 10 Pa, 30 Pa,100 Pa, 300 Pa, 1 000 Pa,
                                       3 000 Pa, 7 000 Pa and 10 000 Pa



Results are presented under A4 printable format in Summary Results (PDF file).

Comparison
Comparison close
CC comparison
Linked comparison
EURAMET.M.P-K4.2020
Metrology area, Sub-field Mass and related quantities, Pressure
Description

Pressure measurements in gas

Absolute mode, gauge mode, or both modes.

Time of measurements 2019 - 2020
Status Measurements in progress
Measurand Absolute and gauge pressure
1 Pa to 15 kPa
Comparison type Key Comparison
Consultative Committee CCM (Consultative Committee for Mass and Related Quantities)
Conducted by EURAMET (European Association of National Metrology Institutes)
Pilot institute PTB
Physikalisch-Technische Bundesanstalt
Germany
Contact person W. Sabuga
wladimir.sabuga@ptb.de
+49 (0) 531 592 3230
First Name Last Name
wwww@ww.www +356719836 Institute 1 Institute 1 Khmelnitskiy
Pilot laboratory
PTB

Physikalisch-Technische Bundesanstalt, Germany, EURAMET

CMI

Czech Metrology Institute, Czechia, EURAMET

MIRS/IMT

Metrology Institute of Republic of Slovenia - Institute of Metals and Technology, Slovenia, EURAMET

RISE

Research Institutes of Sweden AB, Sweden, EURAMET

UME

TÜBITAK Ulusal Metroloji Enstitüsü, Turkey, EURAMET

Comparison
Comparison close

CCM.P-K4.2012

MEASURAND : Pressure

NOMINAL PRESSURE : 1 Pa, 3 Pa, 10 Pa, 30 Pa,100 Pa, 300 Pa, 1 000 Pa,
                                       3 000 Pa, 7 000 Pa and 10 000 Pa



For each nominal pressure value, the key comparison reference value, pR,  is obtained from an unweighted mean of the measurement method means, excluding CENAM for the determination of pR at 10 Paz and 30 Pa.

The combined standard uncertainty of pR is uR .

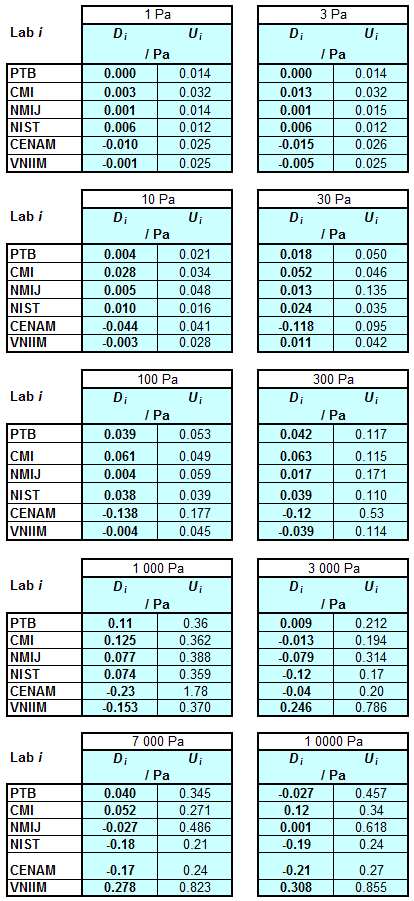

The degree of equivalence of each laboratory with respect to the reference value is given by a pair of terms:
Di = (pi - pR) and Ui, its expanded uncertainty at a (k = 2), both expressed in Pa.



The degree of equivalence between two laboratories is given at p. 29 of the Final Report.
Comparison
Comparison close

CCM.P-K4.2012

MEASURAND : Pressure

NOMINAL PRESSURE : 1 Pa, 3 Pa, 10 Pa, 30 Pa,100 Pa, 300 Pa, 1 000 Pa,
                                       3 000 Pa, 7 000 Pa and 10 000 Pa

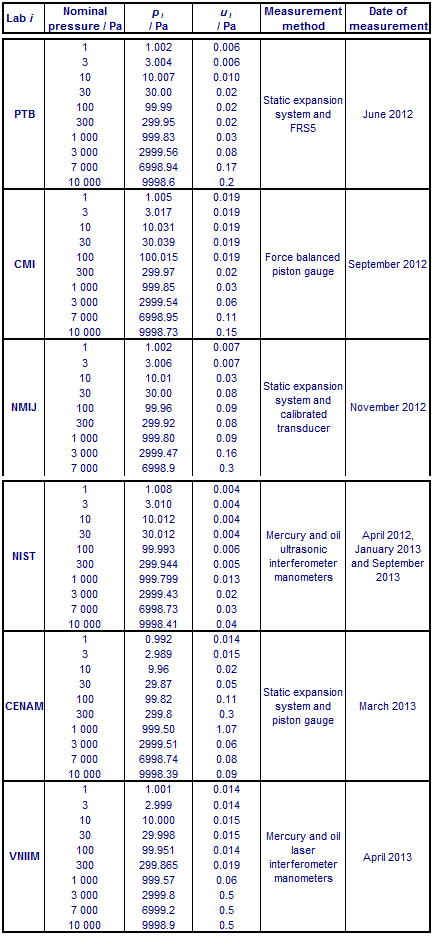

pi : corrected mean gauge reading obtained by laboratory i
ui : combined standard uncertainty of pi
(see CCM.P-K4.2012 Final Report p.15)
