CCM.MK2, APMP.M.MK6, EUROMET.M.MK2, EUROMET.M.MK2.1,
APMP.M.MK2, APMP.M.MK2.1, EURAMET.M.MK2.2,
EURAMET.M.MK2.3, and EURAMET.M.MK2.6

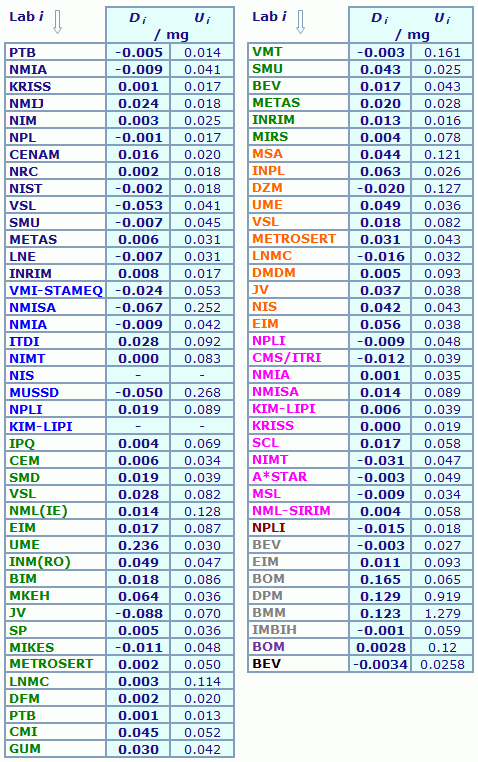

MEASURAND : Mass
NOMINAL VALUE : 500 g
Degrees of equivalence: D_{i} and expanded uncertainty U_{i} (at a 95 % level of confidence) expressed in mg: Click here to view the Graph of equivalence
CCM.MK2, APMP.M.MK6, EUROMET.M.MK2, EUROMET.M.MK2.1, APMP.M.MK2, APMP.M.MK2.1, EURAMET.M.MK2.2,
EURAMET.M.MK2.3, and EURAMET.M.MK2.6

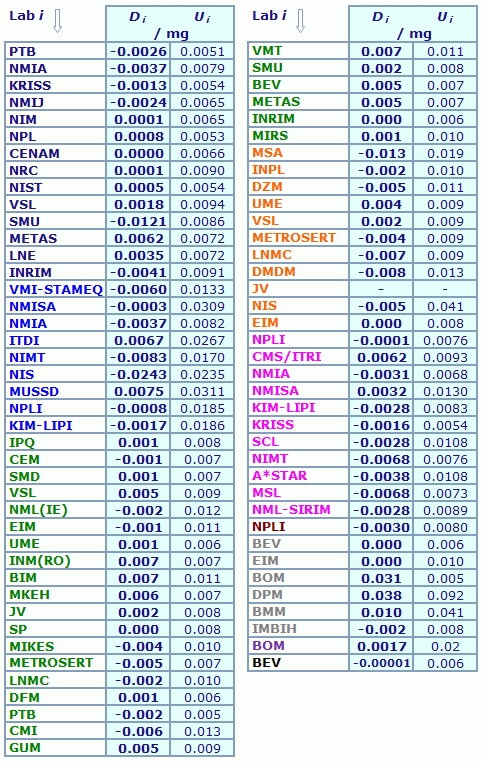

MEASURAND : Mass
NOMINAL VALUE : 20 g
Degrees of equivalence: D_{i} and expanded uncertainty U_{i} (at a 95 % level of confidence) expressed in mg: Click here to view the Graph of equivalence
CCM.MK2, APMP.M.MK6, EUROMET.M.MK2, EUROMET.M.MK2.1,
APMP.M.MK2, APMP.M.MK2.1, EURAMET.M.MK2.2,
and EURAMET.M.MK2.6

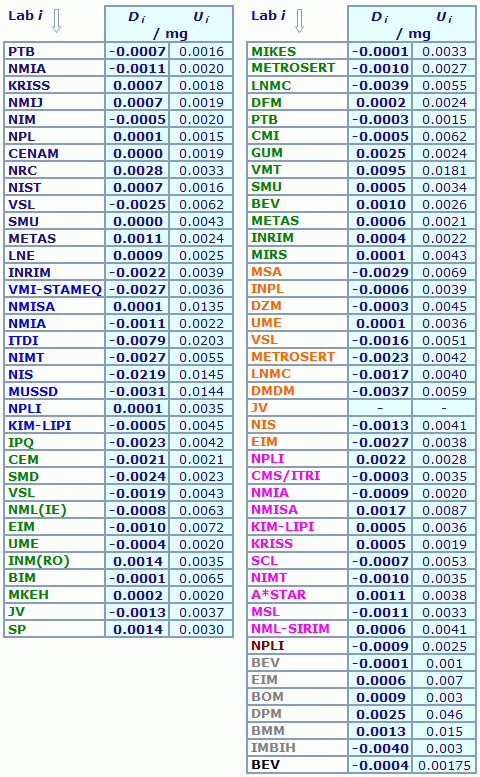

MEASURAND : Mass
NOMINAL VALUE : 2 g
Degrees of equivalence: D_{i} and expanded uncertainty U_{i} (at a 95 % level of confidence) expressed in mg: Click here to view the Graph of equivalence
CCM.MK2, APMP.M.MK6, EUROMET.M.MK2, EUROMET.M.MK2.1,
APMP.M.MK2, APMP.M.MK2.1, EURAMET.M.MK2.2,
and EURAMET.M.MK2.6

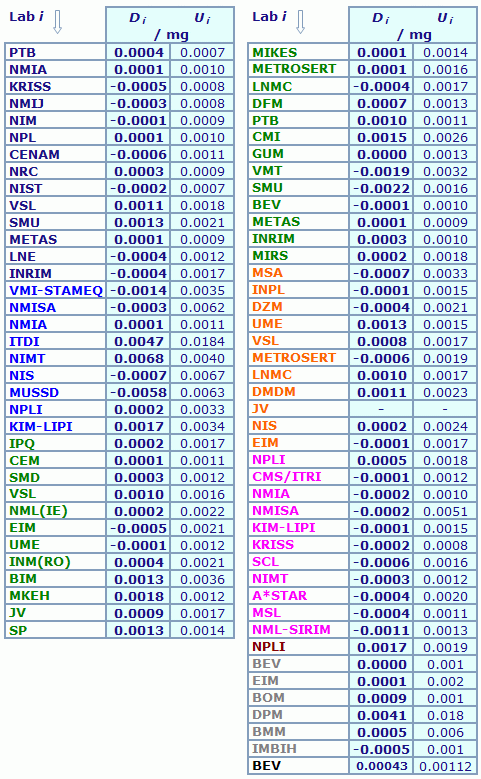

MEASURAND : Mass
NOMINAL VALUE : 100 mg
Degrees of equivalence: D_{i} and expanded uncertainty U_{i} (at a 95 % level of confidence) expressed in mg: Click here to view the Graph of equivalence
CCM.MK2, APMP.M.MK6, EUROMET.M.MK2, EUROMET.M.MK2.1, APMP.M.MK2, APMP.M.MK2.1, EURAMET.M.MK2.2,
EURAMET.M.MK2.3, and EURAMET.M.MK2.6
MEASURAND : Mass
NOMINAL VALUE : 500 g
Degrees of equivalence: D_{i} and expanded uncertainty U_{i} (at a 95 % level of confidence) expressed in mg
In dark blue: laboratories participant in CCM.MK2
In blue: laboratories participant in APMP.M.MK6
In green: laboratories participant in EUROMET.M.MK2
In orange: laboratories participant in EUROMET.M.MK2.1
In pink: laboratories participant in APMP.M.MK2
In braun: laboratory participant in APMP.M.MK2.1
In grey: laboratories participant in EURAMET.M.MK2.2
In purple: laboratory participant in EURAMET.M.MK2.3
In black: laboratory participant in EURAMET.M.MK2.6
Results are presented under A4 printable format in Summary Results (PDF file).
CCM.MK2, APMP.M.MK6, EUROMET.M.MK2, EUROMET.M.MK2.1, APMP.M.MK2, APMP.M.MK2.1, EURAMET.M.MK2.2,
EURAMET.M.MK2.3, and EURAMET.M.MK2.6
MEASURAND : Mass
NOMINAL VALUE : 20 g
Degrees of equivalence: D_{i} and expanded uncertainty U_{i} (at a 95 % level of confidence) expressed in mg
In dark blue: laboratories participant in CCM.MK2
In blue: laboratories participant in APMP.M.MK6
In green: laboratories participant in EUROMET.M.MK2
In orange: laboratories participant in EUROMET.M.MK2.1
In pink: laboratories participant in APMP.M.MK2
In braun: laboratory participant in APMP.M.MK2.1
In grey: laboratories participant in EURAMET.M.MK2.2
In purple: laboratory participant in EURAMET.M.MK2.3
In black: laboratory participant in EURAMET.M.MK2.6
Results are presented under A4 printable format in Summary Results (PDF file).
CCM.MK2, APMP.M.MK6, EUROMET.M.MK2, EUROMET.M.MK2.1,
APMP.M.MK2, APMP.M.MK2.1, EURAMET.M.MK2.2,
and EURAMET.M.MK2.6

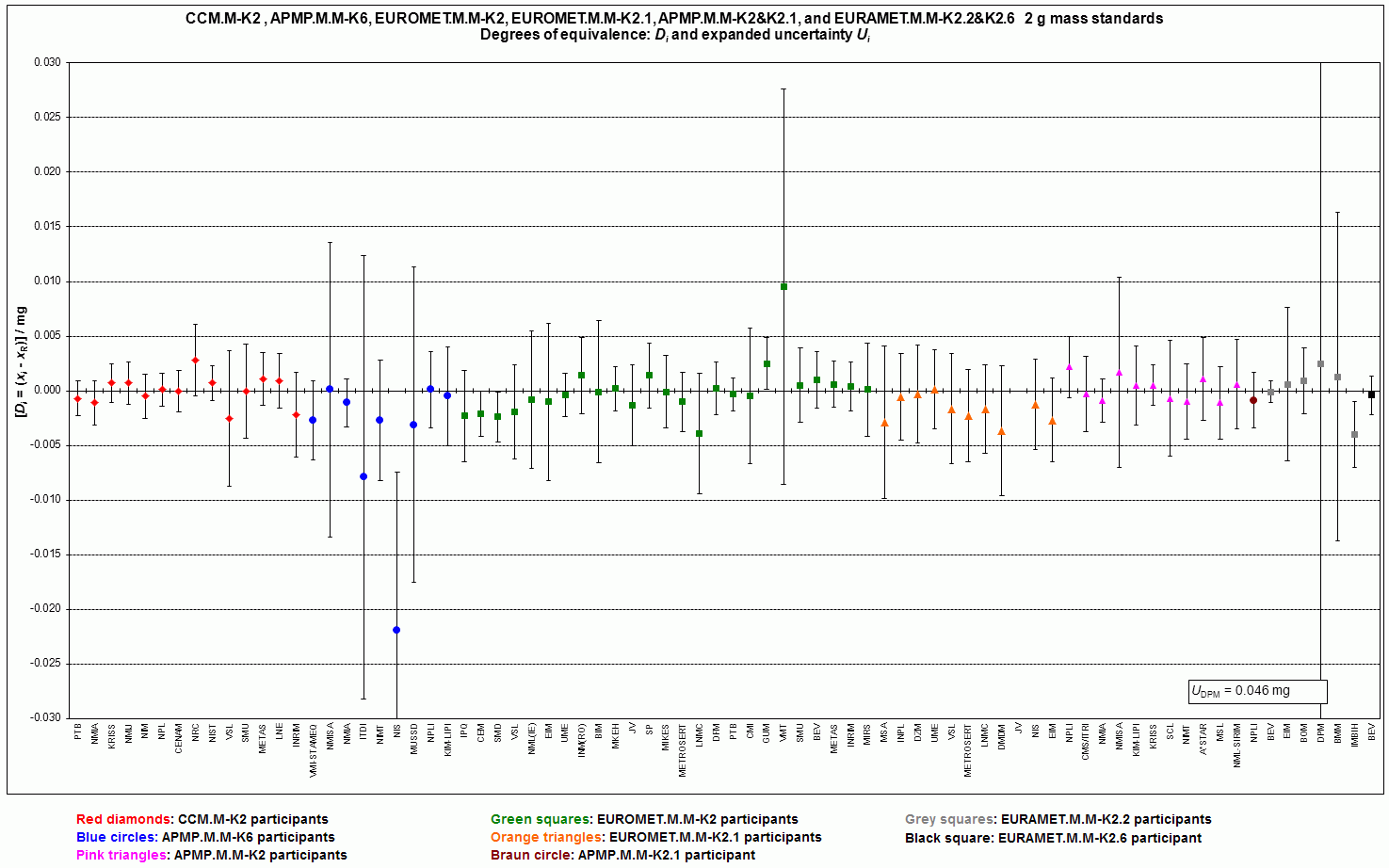

MEASURAND : Mass
NOMINAL VALUE : 2 g
Degrees of equivalence: D_{i} and expanded uncertainty U_{i} (at a 95 % level of confidence) expressed in mg
In dark blue: laboratories participant in CCM.MK2
In blue: laboratories participant in APMP.M.MK6
In green: laboratories participant in EUROMET.M.MK2
In orange: laboratories participant in EUROMET.M.MK2.1
In pink: laboratories participant in APMP.M.MK2
In braun: laboratory participant in APMP.M.MK2.1
In grey: laboratories participant in EURAMET.M.MK2.2
In black: participant in EURAMET.M.MK2.6
Results are presented under A4 printable format in Summary Results (PDF file).
CCM.MK2, APMP.M.MK6, EUROMET.M.MK2, EUROMET.M.MK2.1,
APMP.M.MK2, APMP.M.MK2.1, EURAMET.M.MK2.2,
and EURAMET.M.MK2.6
MEASURAND : Mass
NOMINAL VALUE : 100 mg
Degrees of equivalence: D_{i} and expanded uncertainty U_{i} (at a 95 % level of confidence) expressed in mg
In dark blue: laboratories participant in CCM.MK2
In blue: laboratories participant in APMP.M.MK6
In green: laboratories participant in EUROMET.M.MK2
In orange: laboratories participant in EUROMET.M.MK2.1
In pink: laboratories participant in APMP.M.MK2
In braun: laboratory participant in APMP.M.MK2.1
In grey: laboratories participant in EURAMET.M.MK2.2
In black: participant in EURAMET.M.MK2.6
Results are presented under A4 printable format in Summary Results (PDF file).
Metrology area, Subfield  Mass and related quantities, Mass Standards
Description  Comparison of mass standards
Time of measurements  2014  2015
Status  Approved for equivalence
Final Reports of the comparisons
Measurand  Mass: 100 mg, 2 g, 20 g and 500 g
Transfer device  Stainless steel standards
Comparison type  Key Comparison
Consultative Committee  CCM (Consultative Committee for Mass and Related Quantities)
Conducted by  EURAMET (European Association of National Metrology Institutes)
RMO Internal Identifier  EURAMET Project No 1345
Comments  Results published on 26 March 2015 Comparison of submultiples of the kilogram APMP.M.MK6, APMP.M.MK2.1, EURAMET.M.MK2.2, EURAMET.M.MK2.3, EURAMET.M.MK2.6, APMP.M.MK2, EUROMET.M.MK2 and EUROMET.M.MK2.1 results are linked to those of CCM.MK2 for nominal values 500 g, 20 g, 2 g and 100 mg.

Pilot institute
BEV
Bundesamt für Eich und Vermessungswesen Austria
Contact person  Z. Zelenka +43 1 211 10 6607
This page proposes printout on A4 paper (portrait) of the comparison details (best printed out using a black and white printer).
Please, select items to be printed out, then click on "OK" :
CCM.MK2, APMP.M.MK6, EUROMET.M.MK2, EUROMET.M.MK2.1, APMP.M.MK2, APMP.M.MK2.1, EURAMET.M.MK2.2,
EURAMET.M.MK2.3, and EURAMET.M.MK2.6
MEASURAND : Mass
NOMINAL VALUE : 500 g
The key comparison reference value, x_{R}, is evaluated as the median of the x_{i} values. Its standard uncertainty is denoted u_{R}, see Appendix 1 of the CCM.MK2 Final Report. x_{R} = 0.005 mg and u_{R} = 0.004 mg
The degree of equivalence of each laboratory with respect to the reference value is given by a pair of terms: D_{i} = (x_{i}  x_{R}) and U_{i}, its expanded uncertainty (at a 95% level of confidence), both expressed in mg. Detailed information on the evaluation of U_{i} may be found in Section 5 of the CCM.MK2 Final Report.
The degree of equivalence between two laboratories is given by a pair of terms: D_{ij} = D_{i}  D_{j} = (x_{i}  x_{j}) and U_{ij}, its expanded uncertainty (at a 95% level of confidence), both expressed in mg. Detailed information on the evaluation of U_{ij} may be found in Section 6 of the CCM.MK2 Final Report.
The APMP.M.MK6 results were analyzed and linked to the CCM.MK2 results using Generalised LeastSquares (sometimes known as GaussMarkov) estimation (see Section 7 of the APMP.M.MK6 Final Report).
 the degree of equivalence of each laboratory participant in APMP.M.MK6 with respect to the CCM.MK2 key comparison reference value, D_{i} and U_{i}, and
 the degrees of equivalence between two laboratories both participant in APMP.M.MK6, D_{ij} and U_{ij}, U_{i} and U_{ij} being the expanded uncertainties (k = 2) of D_{i} and D_{ij} respectively. The pairwise degrees of equivalence inside APMP.M.MK6 are given on pages 15 and 16 of the APMP.M.MK6 Final Report.
Artefacts of nominal value 1 kg are also measured in the framework of key comparison APMP.M.MK6. This is reported together with CCM.MK1 results.
The linking process is explained in Appendix A of the EUROMET.M.MK2 Final Report.
The degree of equivalence of each laboratory i participant in EUROMET.M.MK2 with respect to the CCM.MK2 key comparison reference value is given by a pair of terms: D_{i} and U_{i}, its expanded uncertainty (at a 95% level of confidence), both expressed in mg. These are computed as explained in Appendix A of the EUROMET.M.MK2 Final Report.
The degrees of equivalence between any of the laboratories participating in EUROMET.M.MK2 and those participating in CCM.MK2 are not computed. The pairwise degrees of equivalence inside EUROMET.M.MK2 are given in Table 6 to 10 of the EUROMET.M.MK2 Final Report.
The linking process is explained in Appendix A of the EUROMET.M.MK2.1 Final Report.
The degree of equivalence of each laboratory i participant in EUROMET.M.MK2.1 with respect to the CCM.MK2 key comparison reference value is given by a pair of terms: D_{i} and U_{i}, its expanded uncertainty (at a 95% level of confidence), both expressed in mg. These are computed as explained in Appendix A of the EUROMET.M.MK2.1 Final Report.
The degrees of equivalence between any of the laboratories participating in EUROMET.M.MK2.1 and those participating in CCM.MK2 are not computed. The pairwise degrees of equivalence inside EUROMET.M.MK2.1 are given in Table 7 to 11 of the EUROMET.M.MK2.1 Final Report.
The linking process is explained in section 7.3 of the APMP.M.MK2 Final Report.
The degree of equivalence of each laboratory i participant in APMP.M.MK2 with respect to the CCM.MK2 key comparison reference value is given by a pair of terms: D_{i} and U_{i}, its expanded uncertainty (k = 2), both expressed in mg. These are computed as explained in section 7.3 of the APMP.M.MK2 Final Report.
The degrees of equivalence between two laboratories participating in APMP.M.MK2 is given by a pair of terms both expressed in mg: D_{ij} = D_{i } D_{j}, and its expanded uncertainty (k = 2) U_{ij}. The pairwise degrees of equivalence between any of the laboratories participating in APMP.M.MK2 and those participating in CCM.MK2 are not computed.
The linking process is explained in section 6.2 of the APMP.M.MK2.1 Final Report.
The degree of equivalence of each laboratory i participant in APMP.M.MK2.1 with respect to the CCM.MK2 key comparison reference value is given by a pair of terms: D_{i} and U_{i}, its expanded uncertainty (k = 2), both expressed in mg. These are computed as explained in section 6.2 of the APMP.M.MK2.1 Final Report.
No pairwise degrees of equivalence involving APMP.M.MK2.1 participants have been computed.
The link is made through the EUROMET.M.MK2 key comparison using BEV and EIM results in both comparisons (see Section 5 of the EURAMET.M.MK2.2 Final Report).
No pairwise degrees of equivalence involving EURAMET.M.MK2.2 participants have been computed.
The link is made through the EUROMET.M.MK2 key comparison using EIM results in both comparisons (see Section 7 of the EURAMET.M.MK2.3 Final Report).
The pairwise degrees of equivalence inside EURAMET.M.MK2.3 are given in Table 5 of the EURAMET.M.MK2.3 Final Report.
The link is made through the results of NPL having participated in both comparisons (see Section 4 of the EURAMET.M.MK2.6 Final Report).
No pairwise degrees of equivalence involving EURAMET.M.MK2.6 participants have been computed.
CCM.MK2, APMP.M.MK6, EUROMET.M.MK2, EUROMET.M.MK2.1, APMP.M.MK2, APMP.M.MK2.1, EURAMET.M.MK2.2,
EURAMET.M.MK2.3, and EURAMET.M.MK2.6
MEASURAND : Mass
NOMINAL VALUE : 20 g
The key comparison reference value, x_{R}, is evaluated as the median of the x_{i} values. Its standard uncertainty is denoted u_{R}, see Appendix 1 of the CCM.MK2 Final Report. x_{R} = 0.0027 mg and u_{R} = 0.0011 mg
The degree of equivalence of each laboratory with respect to the reference value is given by a pair of terms: D_{i} = (x_{i}  x_{R}) and U_{i}, its expanded uncertainty (at a 95% level of confidence), both expressed in mg. Detailed information on the evaluation of U_{i} may be found in Section 5 of the CCM.MK2 Final Report.
The degree of equivalence between two laboratories is given by a pair of terms: D_{ij} = D_{i}  D_{j} = (x_{i}  x_{j}) and U_{ij}, its expanded uncertainty (at a 95% level of confidence), both expressed in mg. Detailed information on the evaluation of U_{ij} may be found in Section 6 of the CCM.MK2 Final Report.
The APMP.M.MK6 results were analyzed and linked to the CCM.MK2 results using Generalised LeastSquares (sometimes known as GaussMarkov) estimation (see Section 7 of the APMP.M.MK6 Final Report).
 the degree of equivalence of each laboratory participant in APMP.M.MK6 with respect to the CCM.MK2 key comparison reference value, D_{i} and U_{i}, and
 the degrees of equivalence between two laboratories both participant in APMP.M.MK6, D_{ij} and U_{ij}, U_{i} and U_{ij} being the expanded uncertainties (k = 2) of D_{i} and D_{ij} respectively. The pairwise degrees of equivalence inside APMP.M.MK6 are given on pages 15 and 16 of the APMP.M.MK6 Final Report.
Artefacts of nominal value 1 kg are also measured in the framework of key comparison APMP.M.MK6. This is reported together with CCM.MK1 results.
The linking process is explained in Appendix A of the EUROMET.M.MK2 Final Report.
The degree of equivalence of each laboratory i participant in EUROMET.M.MK2 with respect to the CCM.MK2 key comparison reference value is given by a pair of terms: D_{i} and U_{i}, its expanded uncertainty (at a 95% level of confidence), both expressed in mg. These are computed as explained in Appendix A of the EUROMET.M.MK2 Final Report.
The degrees of equivalence between any of the laboratories participating in EUROMET.M.MK2 and those participating in CCM.MK2 are not computed. The pairwise degrees of equivalence inside EUROMET.M.MK2 are given in Table 6 to 10 of the EUROMET.M.MK2 Final Report.
The linking process is explained in Appendix A of the EUROMET.M.MK2.1 Final Report.
The degree of equivalence of each laboratory i participant in EUROMET.M.MK2.1 with respect to the CCM.MK2 key comparison reference value is given by a pair of terms: D_{i} and U_{i}, its expanded uncertainty (at a 95% level of confidence), both expressed in mg. These are computed as explained in Appendix A of the EUROMET.M.MK2.1 Final Report.
The degrees of equivalence between any of the laboratories participating in EUROMET.M.MK2.1 and those participating in CCM.MK2 are not computed. The pairwise degrees of equivalence inside EUROMET.M.MK2.1 are given in Table 7 to 11 of the EUROMET.M.MK2.1 Final Report.
The linking process is explained in section 7.3 of the APMP.M.MK2 Final Report.
The degree of equivalence of each laboratory i participant in APMP.M.MK2 with respect to the CCM.MK2 key comparison reference value is given by a pair of terms: D_{i} and U_{i}, its expanded uncertainty (k = 2), both expressed in mg. These are computed as explained in section 7.3 of the APMP.M.MK2 Final Report.
The degrees of equivalence between two laboratories participating in APMP.M.MK2 is given by a pair of terms both expressed in mg: D_{ij} = D_{i } D_{j}, and its expanded uncertainty (k = 2) U_{ij}. The pairwise degrees of equivalence between any of the laboratories participating in APMP.M.MK2 and those participating in CCM.MK2 are not computed.
The linking process is explained in section 6.2 of the APMP.M.MK2.1 Final Report.
The degree of equivalence of each laboratory i participant in APMP.M.MK2.1 with respect to the CCM.MK2 key comparison reference value is given by a pair of terms: D_{i} and U_{i}, its expanded uncertainty (k = 2), both expressed in mg. These are computed as explained in section 6.2 of the APMP.M.MK2.1 Final Report.
No pairwise degrees of equivalence involving APMP.M.MK2.1 participants have been computed.
The link is made through the EUROMET.M.MK2 key comparison using BEV and EIM results in both comparisons (see Section 5 of the EURAMET.M.MK2.2 Final Report).
No pairwise degrees of equivalence involving EURAMET.M.MK2.2 participants have been computed.
The link is made through the EUROMET.M.MK2 key comparison using EIM results in both comparisons (see Section 7 of the EURAMET.M.MK2.3 Final Report).
The pairwise degrees of equivalence inside EURAMET.M.MK2.3 are given in Table 5 of the EURAMET.M.MK2.3 Final Report.
The link is made through the results of NPL having participated in both comparisons (see Section 4 of the EURAMET.M.MK2.6 Final Report).
No pairwise degrees of equivalence involving EURAMET.M.MK2.6 participants have been computed.
CCM.MK2, APMP.M.MK6, EUROMET.M.MK2, EUROMET.M.MK2.1,
APMP.M.MK2, APMP.M.MK2.1, EURAMET.M.MK2.2,
and EURAMET.M.MK2.6
MEASURAND : Mass
NOMINAL VALUE : 2 g
The key comparison reference value, x_{R}, is evaluated as the median of the x_{i} values. Its standard uncertainty is denoted u_{R}, see Appendix 1 of the CCM.MK2 Final Report. x_{R} = 0.0007 mg and u_{R} = 0.0004 mg
The degree of equivalence of each laboratory with respect to the reference value is given by a pair of terms: D_{i} = (x_{i}  x_{R}) and U_{i}, its expanded uncertainty (at a 95% level of confidence), both expressed in mg. Detailed information on the evaluation of U_{i} may be found in Section 5 of the CCM.MK2 Final Report.
The degree of equivalence between two laboratories is given by a pair of terms: D_{ij} = D_{i}  D_{j} = (x_{i}  x_{j}) and U_{ij}, its expanded uncertainty (at a 95% level of confidence), both expressed in mg. Detailed information on the evaluation of U_{ij} may be found in Section 6 of the CCM.MK2 Final Report.
The APMP.M.MK6 results were analyzed and linked to the CCM.MK2 results using Generalised LeastSquares (sometimes known as GaussMarkov) estimation (see Section 7 of the APMP.M.MK6 Final Report).
 the degree of equivalence of each laboratory participant in APMP.M.MK6 with respect to the CCM.MK2 key comparison reference value, D_{i} and U_{i}, and
 the degrees of equivalence between two laboratories both participant in APMP.M.MK6, D_{ij} and U_{ij}, U_{i} and U_{ij} being the expanded uncertainties (k = 2) of D_{i} and D_{ij} respectively. The pairwise degrees of equivalence inside APMP.M.MK6 are given on pages 15 and 16 of the APMP.M.MK6 Final Report.
Artefacts of nominal value 1 kg are also measured in the framework of key comparison APMP.M.MK6. This is reported together with CCM.MK1 results.
The linking process is explained in Appendix A of the EUROMET.M.MK2 Final Report.
The degree of equivalence of each laboratory i participant in EUROMET.M.MK2 with respect to the CCM.MK2 key comparison reference value is given by a pair of terms: D_{i} and U_{i}, its expanded uncertainty (at a 95% level of confidence), both expressed in mg. These are computed as explained in Appendix A of the EUROMET.M.MK2 Final Report.
The degrees of equivalence between any of the laboratories participating in EUROMET.M.MK2 and those participating in CCM.MK2 are not computed. The pairwise degrees of equivalence inside EUROMET.M.MK2 are given in Table 6 to 10 of the EUROMET.M.MK2 Final Report.
The linking process is explained in Appendix A of the EUROMET.M.MK2.1 Final Report.
The degree of equivalence of each laboratory i participant in EUROMET.M.MK2.1 with respect to the CCM.MK2 key comparison reference value is given by a pair of terms: D_{i} and U_{i}, its expanded uncertainty (at a 95% level of confidence), both expressed in mg. These are computed as explained in Appendix A of the EUROMET.M.MK2.1 Final Report.
The degrees of equivalence between any of the laboratories participating in EUROMET.M.MK2.1 and those participating in CCM.MK2 are not computed. The pairwise degrees of equivalence inside EUROMET.M.MK2.1 are given in Table 7 to 11 of the EUROMET.M.MK2.1 Final Report.
The linking process is explained in section 7.3 of the APMP.M.MK2 Final Report.
The degree of equivalence of each laboratory i participant in APMP.M.MK2 with respect to the CCM.MK2 key comparison reference value is given by a pair of terms: D_{i} and U_{i}, its expanded uncertainty (k = 2), both expressed in mg. These are computed as explained in section 7.3 of the APMP.M.MK2 Final Report.
The degrees of equivalence between two laboratories participating in APMP.M.MK2 is given by a pair of terms both expressed in mg: D_{ij} = D_{i } D_{j}, and its expanded uncertainty (k = 2) U_{ij}. The pairwise degrees of equivalence between any of the laboratories participating in APMP.M.MK2 and those participating in CCM.MK2 are not computed.
The linking process is explained in section 6.2 of the APMP.M.MK2.1 Final Report.
The degree of equivalence of each laboratory i participant in APMP.M.MK2.1 with respect to the CCM.MK2 key comparison reference value is given by a pair of terms: D_{i} and U_{i}, its expanded uncertainty (k = 2), both expressed in mg. These are computed as explained in section 6.2 of the APMP.M.MK2.1 Final Report.
No pairwise degrees of equivalence involving APMP.M.MK2.1 participants have been computed.
The link is made through the EUROMET.M.MK2 key comparison using BEV and EIM results in both comparisons (see Section 5 of the EURAMET.M.MK2.2 Final Report).
No pairwise degrees of equivalence involving EURAMET.M.MK2.2 participants have been computed.
The link is made through the results of NPL having participated in both comparisons (see Section 4 of the EURAMET.M.MK2.6 Final Report).
No pairwise degrees of equivalence involving EURAMET.M.MK2.6 participants have been computed.
CCM.MK2, APMP.M.MK6, EUROMET.M.MK2, EUROMET.M.MK2.1,
APMP.M.MK2, APMP.M.MK2.1, EURAMET.M.MK2.2,
and EURAMET.M.MK2.6
MEASURAND : Mass
NOMINAL VALUE : 100 mg
The key comparison reference value, x_{R}, is evaluated as the median of the x_{i} values. Its standard uncertainty is denoted u_{R}, see Appendix 1 of the CCM.MK2 Final Report. x_{R} = 0.0004 mg and u_{R} = 0.0002 mg
The degree of equivalence of each laboratory with respect to the reference value is given by a pair of terms: D_{i} = (x_{i}  x_{R}) and U_{i}, its expanded uncertainty (at a 95% level of confidence), both expressed in mg. Detailed information on the evaluation of U_{i} may be found in Section 5 of the CCM.MK2 Final Report.
The degree of equivalence between two laboratories is given by a pair of terms: D_{ij} = D_{i}  D_{j} = (x_{i}  x_{j}) and U_{ij}, its expanded uncertainty (at a 95% level of confidence), both expressed in mg. Detailed information on the evaluation of U_{ij} may be found in Section 6 of the CCM.MK2 Final Report.
The APMP.M.MK6 results were analyzed and linked to the CCM.MK2 results using Generalised LeastSquares (sometimes known as GaussMarkov) estimation (see Section 7 of the APMP.M.MK6 Final Report).
 the degree of equivalence of each laboratory participant in APMP.M.MK6 with respect to the CCM.MK2 key comparison reference value, D_{i} and U_{i}, and
 the degrees of equivalence between two laboratories both participant in APMP.M.MK6, D_{ij} and U_{ij}, U_{i} and U_{ij} being the expanded uncertainties (k = 2) of D_{i} and D_{ij} respectively. The pairwise degrees of equivalence inside APMP.M.MK6 are given on pages 15 and 16 of the APMP.M.MK6 Final Report.
Artefacts of nominal value 1 kg are also measured in the framework of key comparison APMP.M.MK6. This is reported together with CCM.MK1 results.
The linking process is explained in Appendix A of the EUROMET.M.MK2 Final Report.
The degree of equivalence of each laboratory i participant in EUROMET.M.MK2 with respect to the CCM.MK2 key comparison reference value is given by a pair of terms: D_{i} and U_{i}, its expanded uncertainty (at a 95% level of confidence), both expressed in mg. These are computed as explained in Appendix A of the EUROMET.M.MK2 Final Report.
The degrees of equivalence between any of the laboratories participating in EUROMET.M.MK2 and those participating in CCM.MK2 are not computed. The pairwise degrees of equivalence inside EUROMET.M.MK2 are given in Table 6 to 10 of the EUROMET.M.MK2 Final Report.
The linking process is explained in Appendix A of the EUROMET.M.MK2.1 Final Report.
The degree of equivalence of each laboratory i participant in EUROMET.M.MK2.1 with respect to the CCM.MK2 key comparison reference value is given by a pair of terms: D_{i} and U_{i}, its expanded uncertainty (at a 95% level of confidence), both expressed in mg. These are computed as explained in Appendix A of the EUROMET.M.MK2.1 Final Report.
The degrees of equivalence between any of the laboratories participating in EUROMET.M.MK2.1 and those participating in CCM.MK2 are not computed. The pairwise degrees of equivalence inside EUROMET.M.MK2.1 are given in Table 7 to 11 of the EUROMET.M.MK2.1 Final Report.
The degrees of equivalence between two laboratories participating in APMP.M.MK2 is given by a pair of terms both expressed in mg: D_{ij} = D_{i } D_{j}, and its expanded uncertainty (k = 2) U_{ij}. The pairwise degrees of equivalence between any of the laboratories participating in APMP.M.MK2 and those participating in CCM.MK2 are not computed.
The linking process is explained in section 7.3 of the APMP.M.MK2 Final Report.
The degree of equivalence of each laboratory i participant in APMP.M.MK2 with respect to the CCM.MK2 key comparison reference value is given by a pair of terms: D_{i} and U_{i}, its expanded uncertainty (k = 2), both expressed in mg. These are computed as explained in section 7.3 of the APMP.M.MK2 Final Report.
The degrees of equivalence between two laboratories participating in APMP.M.MK2 is given by a pair of terms both expressed in mg: D_{ij} = D_{i } D_{j}, and its expanded uncertainty (k = 2) U_{ij}. The pairwise degrees of equivalence between any of the laboratories participating in APMP.M.MK2 and those participating in CCM.MK2 are not computed.
The linking process is explained in section 6.2 of the APMP.M.MK2.1 Final Report.
The degree of equivalence of each laboratory i participant in APMP.M.MK2.1 with respect to the CCM.MK2 key comparison reference value is given by a pair of terms: D_{i} and U_{i}, its expanded uncertainty (k = 2), both expressed in mg. These are computed as explained in section 6.2 of the APMP.M.MK2.1 Final Report.
No pairwise degrees of equivalence involving APMP.M.MK2.1 participants have been computed.
The link is made through the EUROMET.M.MK2 key comparison using BEV and EIM results in both comparisons (see Section 5 of the EURAMET.M.MK2.2 Final Report)
No pairwise degrees of equivalence involving EURAMET.M.MK2.2 participants have been computed.
The link is made through the results of NPL having participated in both comparisons (see Section 4 of the EURAMET.M.MK2.6 Final Report).
No pairwise degrees of equivalence involving EURAMET.M.MK2.6 participants have been computed.
CCM.MK2, APMP.M.MK6, EUROMET.M.MK2, EUROMET.M.MK2.1, APMP.M.MK2, APMP.M.MK2.1, EURAMET.M.MK2.2,
EURAMET.M.MK2.3, and EURAMET.M.MK2.6
MEASURAND : Mass
NOMINAL VALUE : 500 g
Note: all values are expressed in mg
x_{(rep)i} : reported result obtained as the difference between the measurement of the mass standard carried out by laboratory i and its nominal value
u_{i }: combined standard uncertainty of x_{(rep)i}
Three sets of mass standards, designated as CA, CB and CC, were circulated.
For each set of mass standards the Pilot Laboratory, PTB, carried out two measurements: the first one before the circulation and the second one after the circulation, as indicated respectively by (1) and (2).
x_{i} : difference between the mass determined by laboratory i, x_{(rep)i}, and that determined by the Pilot Laboratory.
The Pilot's mass value is the average of the two results obtained before and after the circulation.
Lab i  x_{(rep)i}  u_{i}  x_{i}_{ }  Date of measurement
Set of mass standards CA
PTB (1)
0.1801
0.0062  0.0028  Mar 98
NMIA
0.1820
0.0200  0.0047  Jul 98
KRISS
0.1719
0.0073  0.0054  Aug 98
NMIJ
0.1490
0.0080  0.0283  Sep 98
NIM
0.1700
0.0120  0.0073  Nov 98
PTB (2)
0.1745
0.0062  0.0028  Mar 99
Set of mass standards CB
PTB (1)
0.2149
0.0062  0.0019  Mar 98
NPL
0.2090
0.0074  0.0040  Aug 98
CENAM
0.1922
0.0094  0.0208  Sep 98
NRC
0.2062
0.0078  0.0068  Nov 98
NIST
0.2108
0.0081  0.0022
Dec 98

PTB (2)
0.2111
0.0062
0.0019
Mar 99

Set of mass standards CC
PTB (1)
0.5135
0.0062
0.0021
Mar 98

VSL
0.5600
0.0200
0.0487
Jun 98

SMU
0.5140
0.0220
0.0027
Aug 98

METAS
0.5010
0.0151
0.0104
Sep 98

LNE
0.5140
0.0150
0.0027
Oct 98

INRIM
0.4990
0.0076
0.0124
Nov 98

PTB (2)
0.5092
0.0062
0.0021
Mar 99
x_{APMP i} : reported result obtained as the difference between the measurement of the mass standards carried out by laboratory i and its nominal value
u_{APMP} _{i }: combined standard uncertainty of x_{APMP i}
As APMP.M.MK6 Pilot Laboratory, VMISTAMEQ determined the mass of the travelling standards four times for Loop A of the comparison, and three times for Loop B of the comparison.
Lab i  x_{APMP i}  u_{APMP i}  Date of measurement
Loop A
VMISTAMEQ
0.213
0.0207  May 2005
NMISA
0.17
0.125  June 2005
NMIA
0.228
0.024  September 2005
VMISTAMEQ
0.201
0.0374  November 2005
ITDI
0.265
0.043  December 2005
NIMT
0.237
0.038  January 2006
VMISTAMEQ
0.209
0.0374  April 2006
NIS

  July 2006
VMISTAMEQ
0.198
0.0374  November 2006
Loop B
VMISTAMEQ
0.148
0.0207
May 2005

MUSSD
0.1216
0.133
June 2005

NPLI
0.191
0.041
October 2005

VMISTAMEQ
0.139
0.0374
December 2005

KIMLIPI*

0.031
March 2006

VMISTAMEQ
4.45
0.0374
October 2006
* Measurement results invalidated due to damage of the transfer standards
The results and uncertainties reported by the participants in EUROMET.M.MK2 are given in Table 2 of the EUROMET.M.MK2 Final Report.
The results and uncertainties reported by the participants in EUROMET.M.MK2.1 are given in Table 3 of the EUROMET.M.MK2.1 Final Report.
The results and uncertainties reported by the participants in APMP.M.MK2 are given in Table 1 of the APMP.M.MK2 Final Report.
The results and uncertainties reported by the participants in APMP.M.MK2.1 are given in Table 1 of the APMP.M.MK2.1 Final Report.
The results and uncertainties reported by the participants in EURAMET.M.MK2.2 are given in Table 10 of the EURAMET.M.MK2.2 Final Report.
The results and uncertainties reported by the participants in EURAMET.M.MK2.3 are given in Table 2 of the EURAMET.M.MK2.3 Final Report.
The results and uncertainties reported by the participants in EURAMET.M.MK2.6 are given in Table 6 of the EURAMET.M.MK2.6 Final Report.
CCM.MK2, APMP.M.MK6, EUROMET.M.MK2, EUROMET.M.MK2.1, APMP.M.MK2, APMP.M.MK2.1, EURAMET.M.MK2.2,
EURAMET.M.MK2.3, and EURAMET.M.MK2.6
MEASURAND : Mass
NOMINAL VALUE : 20 g
Note: all values are expressed in mg
x_{(rep)i} : reported result obtained as the difference between the measurement of the mass standard carried out by laboratory i and its nominal value
u_{i }: combined standard uncertainty of x_{(rep)i}
Three sets of mass standards, designated as CA, CB and CC, were circulated.
For each set of mass standards the Pilot Laboratory, PTB, carried out two measurements: the first one before the circulation and the second one after the circulation, as indicated respectively by (1) and (2).
x_{i} : difference between the mass determined by laboratory i, x_{(rep)i}, and that determined by the Pilot Laboratory.
The Pilot's mass value is the average of the two results obtained before and after the circulation.
Lab i  x_{(rep)i}  u_{i}  x_{i}_{ }  Date of measurement
Set of mass standards CA
PTB (1)
0.0052
0.0023  0.0009  Mar 98
NMIA
0.0053
0.0030  0.0011  Jul 98
KRISS
0.0029
0.0009  0.0014  Aug 98
NMIJ
0.0040
0.0020  0.0003  Sep 98
NIM
0.0015
0.0020  0.0028  Nov 98
PTB (2)
0.0033
0.0023  0.0010  Mar 99
Set of mass standards CB
PTB (1)
0.0035
0.0023  0.0007  Mar 98
NPL
0.0008
0.0009  0.0034  Aug 98
CENAM
0.0016
0.0021  0.0026  Sep 98
NRC
0.0015
0.0037  0.0027  Nov 98
NIST
0.0011
0.0010  0.0031
Dec 98

PTB (2)
0.0049
0.0023
0.0007
Mar 99

Set of mass standards CC
PTB (1)
0.0024
0.0023
0.0000
Mar 98

VSL
0.0020
0.0040
0.0044
Jun 98

SMU
0.0119
0.0035
0.0095
Aug 98

METAS
0.0064
0.0026
0.0088
Sep 98

LNE
0.0037
0.0026
0.0061
Oct 98

INRIM
0.0039
0.0038
0.0015
Nov 98

PTB (2)
0.0024
0.0023
0.0000
Mar 99
x_{APMP i} : reported result obtained as the difference between the measurement of the mass standards carried out by laboratory i and its nominal value
u_{APMP} _{i }: combined standard uncertainty of x_{APMP i}
As APMP.M.MK6 Pilot Laboratory, VMISTAMEQ determined the mass of the travelling standards four times for Loop A of the comparison, and three times for Loop B of the comparison.
Lab i  x_{APMP i}  u_{APMP i}  Date of measurement
Loop A
VMISTAMEQ
0.003
0.0022  May 2005
NMISA
0.006
0.0135  June 2005
NMIA
0.0026
0.0032  September 2005
VMISTAMEQ
0.0057
0.0029  November 2005
ITDI
0.013
0.011  December 2005
NIMT
0.002
0.004  January 2006
VMISTAMEQ
0.00074
0.0030  April 2006
NIS
0.018
0.009  July 2006
VMISTAMEQ
0.0064
0.0030  November 2006
Loop B
VMISTAMEQ
0.0005
0.0022
May 2005

MUSSD
0.0182
0.013
June 2005

NPLI
0.0099
0.0035
October 2005

VMISTAMEQ
0.004
0.0041
December 2005

KIMLIPI
0.009
0.0037
March 2006

VMISTAMEQ
0.011
0.0036
October 2006
The results and uncertainties reported by the participants in EUROMET.M.MK2 are given in Table 2 of the EUROMET.M.MK2 Final Report.
The results and uncertainties reported by the participants in EUROMET.M.MK2.1 are given in Table 3 of the EUROMET.M.MK2.1 Final Report.
The results and uncertainties reported by the participants in APMP.M.MK2 are given in Table 1 of the APMP.M.MK2 Final Report.
The results and uncertainties reported by the participants in APMP.M.MK2.1 are given in Table 1 of the APMP.M.MK2.1 Final Report.
The results and uncertainties reported by the participants in EURAMET.M.MK2.2 are given in Table 10 of the EURAMET.M.MK2.2 Final Report.
The results and uncertainties reported by the participants in EURAMET.M.MK2.3 are given in Table 2 of the EURAMET.M.MK2.3 Final Report.
The results and uncertainties reported by the participants in EURAMET.M.MK2.6 are given in Table 6 of the EURAMET.M.MK2.6 Final Report.
CCM.MK2, APMP.M.MK6, EUROMET.M.MK2, EUROMET.M.MK2.1,
APMP.M.MK2, APMP.M.MK2.1, EURAMET.M.MK2.2,
and EURAMET.M.MK2.6
MEASURAND : Mass
NOMINAL VALUE : 2 g
Note: all values are expressed in mg
x_{(rep)i} : reported result obtained as the difference between the measurement of the mass standard carried out by laboratory i and its nominal value
u_{i }: combined standard uncertainty of x_{(rep)i}
Three sets of mass standards, designated as CA, CB and CC, were circulated.
For each set of mass standards the Pilot Laboratory, PTB, carried out two measurements: the first one before the circulation and the second one after the circulation, as indicated respectively by (1) and (2).
x_{i} : difference between the mass determined by laboratory i, x_{(rep)i}, and that determined by the Pilot Laboratory.
The Pilot's mass value is the average of the two results obtained before and after the circulation.
Lab i  x_{(rep)i}  u_{i}  x_{i}_{ }  Date of measurement
Set of mass standards CA
PTB (1)
0.0002
0.0007  0.0008  Mar 98
NMIA
0.0014
0.0006  0.0004  Jul 98
KRISS
0.0004
0.0004  0.0014  Aug 98
NMIJ
0.0004
0.0005  0.0014  Sep 98
NIM
0.0008
0.0006  0.0002  Nov 98
PTB (2)
0.0018
0.0007  0.0008  Mar 99
Set of mass standards CB
PTB (1)
0.0036
0.0007  0.0003  Mar 98
NPL
0.0031
0.0002  0.0008  Aug 98
CENAM
0.0032
0.0006  0.0007  Sep 98
NRC
0.0004
0.0015  0.0035  Nov 98
NIST
0.0025
0.0004  0.0013
Dec 98

PTB (2)
0.0041
0.0007
0.0003
Mar 99

Set of mass standards CC
PTB (1)
0.0032
0.0007
0.0005
Mar 98

VSL
0.0010
0.0030
0.0018
Jun 98

SMU
0.0034
0.0020
0.0007
Aug 98

METAS
0.0045
0.0010
0.0018
Sep 98

LNE
0.0043
0.0010
0.0016
Oct 98

INRIM
0.0012
0.0018
0.0016
Nov 98

PTB (2)
0.0023
0.0007
0.0005
Mar 99
x_{APMP i} : reported result obtained as the difference between the measurement of the mass standards carried out by laboratory i and its nominal value
u_{APMP} _{i }: combined standard uncertainty of x_{APMP i}
As APMP.M.MK6 Pilot Laboratory, VMISTAMEQ determined the mass of the travelling standards four times for Loop A of the comparison, and three times for Loop B of the comparison.
Lab i  x_{APMP i}  u_{APMP i}  Date of measurement
Loop A
VMISTAMEQ
0.0125
0.001  May 2005
NMISA
0.014
0.0065  June 2005
NMIA
0.0128
0.0011  September 2005
VMISTAMEQ
0.0115
0.001  November 2005
ITDI
0.006
0.01  December 2005
NIMT
0.0112
0.0021  January 2006
VMISTAMEQ
0.011
0.001  April 2006
NIS
0.008
0.007  July 2006
VMISTAMEQ
0.0096
0.001  November 2006
Loop B
VMISTAMEQ
0.004
0.001
May 2005

MUSSD
0.0049
0.007
June 2005

NPLI
0.0017
0.0006
October 2005

VMISTAMEQ
0.005
0.001
December 2005

KIMLIPI
0.0023
0.0015
March 2006

VMISTAMEQ
0.004
0.001
October 2006
The results and uncertainties reported by the participants in EUROMET.M.MK2 are given in Table 2 of the EUROMET.M.MK2 Final Report.
The results and uncertainties reported by the participants in EUROMET.M.MK2.1 are given in Table 3 of the EUROMET.M.MK2.1 Final Report.
The results and uncertainties reported by the participants in APMP.M.MK2 are given in Table 1 of the APMP.M.MK2 Final Report.
The results and uncertainties reported by the participants in APMP.M.MK2.1 are given in Table 1 of the APMP.M.MK2.1 Final Report.
The results and uncertainties reported by the participants in EURAMET.M.MK2.2 are given in Table 10 of the EURAMET.M.MK2.2 Final Report.
The results and uncertainties reported by the participants in EURAMET.M.MK2.6 are given in Table 6 of the EURAMET.M.MK2.6 Final Report.
CCM.MK2, APMP.M.MK6, EUROMET.M.MK2, EUROMET.M.MK2.1,
APMP.M.MK2, APMP.M.MK2.1, EURAMET.M.MK2.2,
and EURAMET.M.MK2.6
MEASURAND : Mass
NOMINAL VALUE : 100 mg
Note: all values are expressed in mg
x_{(rep)i} : reported result obtained as the difference between the measurement of the mass standard carried out by laboratory i and its nominal value
u_{i }: combined standard uncertainty of x_{(rep)i}
Three sets of mass standards, designated as CA, CB and CC, were circulated.
For each set of mass standards the Pilot Laboratory, PTB, carried out two measurements: the first one before the circulation and the second one after the circulation, as indicated respectively by (1) and (2).
x_{i} : difference between the mass determined by laboratory i, x_{(rep)i}, and that determined by the Pilot Laboratory.
The Pilot's mass value is the average of the two results obtained before and after the circulation.
Lab i  x_{(rep)i}  u_{i}  x_{i}_{ }  Date of measurement
Set of mass standards CA
PTB (1)
0.0000
0.0003  0.0002  Mar 98
NMIA
0.0005
0.0003  0.0003  Jul 98
KRISS
0.0011
0.0001  0.0009  Aug 98
NMIJ
0.0009
0.0002  0.0007  Sep 98
NIM
0.0007
0.0003  0.0005  Nov 98
PTB (2)
0.0004
0.0003  0.0002  Mar 99
Set of mass standards CB
PTB (1)
0.0002
0.0003  0.0001  Mar 98
NPL
0.0005
0.0004  0.0004  Aug 98
CENAM
0.0012
0.0004  0.0011  Sep 98
NRC
0.0003
0.0003  0.0002  Nov 98
NIST
0.0008
0.0001  0.0006
Dec 98

PTB (2)
0.0001
0.0003
0.0001
Mar 99

Set of mass standards CC
PTB (1)
0.0007
0.0003
0.0004
Mar 98

VSL
0.0004
0.0008
0.0007
Jun 98

SMU
0.0002
0.0010
0.0009
Aug 98

METAS
0.0014
0.0003
0.0004
Sep 98

LNE
0.0019
0.0004
0.0008
Oct 98

INRIM
0.0019
0.0008
0.0009
Nov 98

PTB (2)
0.0014
0.0003
0.0004
Mar 99
x_{APMP i} : reported result obtained as the difference between the measurement of the mass standards carried out by laboratory i and its nominal value
u_{APMP} _{i }: combined standard uncertainty of x_{APMP i}
As APMP.M.MK6 Pilot Laboratory, VMISTAMEQ determined the mass of the travelling standards four times for Loop A of the comparison, and three times for Loop B of the comparison.
Lab i  x_{APMP i}  u_{APMP i}  Date of measurement
Loop A
VMISTAMEQ
0.006
0.001  May 2005
NMISA
0.005
0.0025  June 2005
NMIA
0.0046
0.00047  September 2005
VMISTAMEQ
0.008
0.001  November 2005
ITDI
0.000
0.009  December 2005
NIMT
0.0021
0.0008  January 2006
VMISTAMEQ
0.005
0.001  April 2006
NIS
0.0054
0.0028  July 2006
VMISTAMEQ
0.006
0.001  November 2006
Loop B
VMISTAMEQ
0.0025
0.001
May 2005

MUSSD
0.0026
0.0027
June 2005

NPLI
0.0034
0.0005
October 2005

VMISTAMEQ
0.0028
0.001
December 2005

KIMLIPI
0.0049
0.00066
March 2006

VMISTAMEQ
0.0034
0.001
October 2006
The results and uncertainties reported by the participants in EUROMET.M.MK2 are given in Table 2 of the EUROMET.M.MK2 Final Report.
The results and uncertainties reported by the participants in EUROMET.M.MK2.1 are given in Table 3 of the EUROMET.M.MK2.1 Final Report.
The results and uncertainties reported by the participants in APMP.M.MK2 are given in Table 1 of the APMP.M.MK2 Final Report.
The results and uncertainties reported by the participants in APMP.M.MK2.1 are given in Table 1 of the APMP.M.MK2.1 Final Report.
The results and uncertainties reported by the participants in EURAMET.M.MK2.2 are given in Table 10 of the EURAMET.M.MK2.2 Final Report.
The results and uncertainties reported by the participants in EURAMET.M.MK2.6 are given in Table 6 of the EURAMET.M.MK2.6 Final Report.
