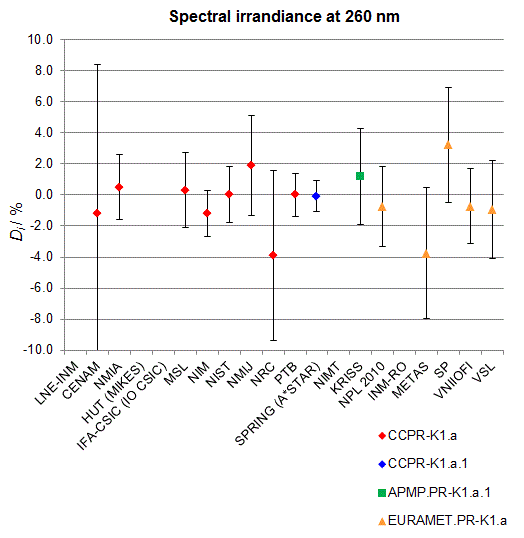

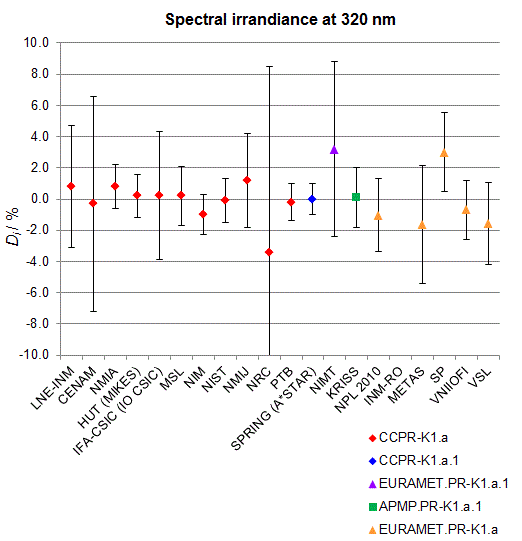

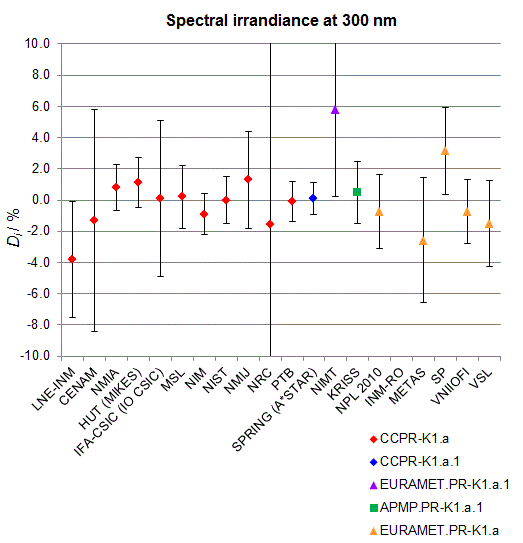

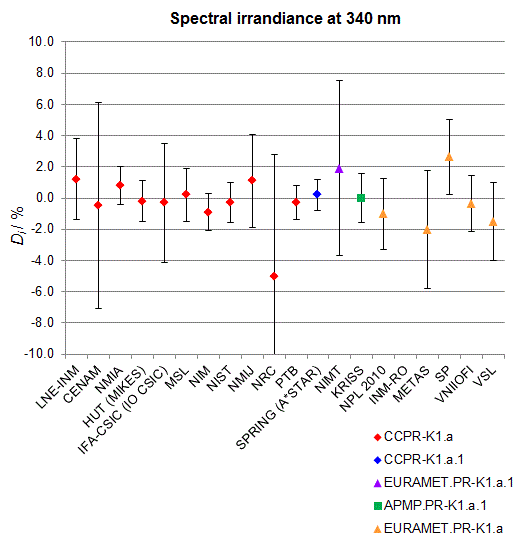

CCPR-K1.a, CCPR-K1.a.1, APMP.PR-K1.a.1, EURAMET.PR-K1.a and EURAMET.PR-K1.a.1
Spectral irradiance in the interval from 250 nm to 360 nm

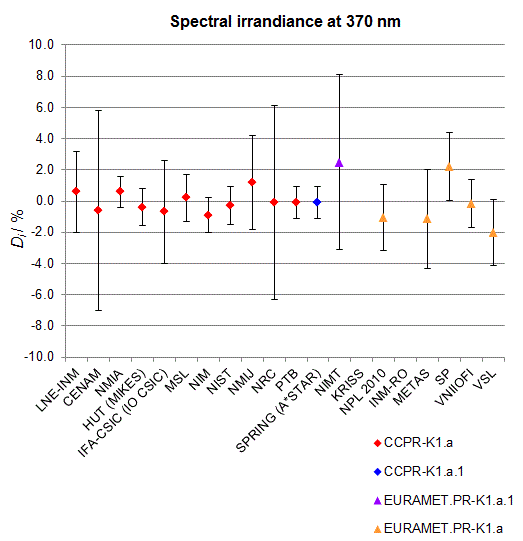

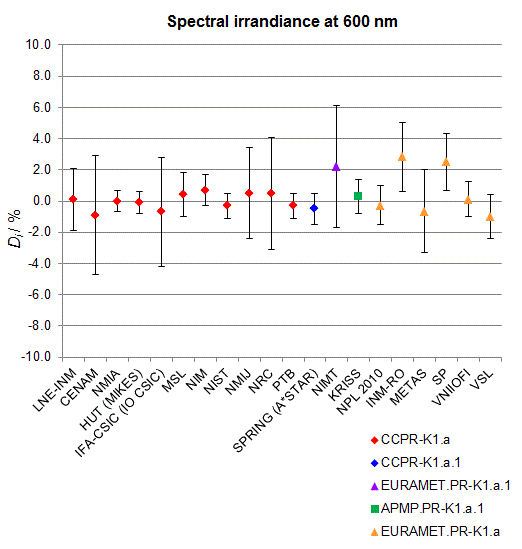

CCPR-K1.a, CCPR-K1.a.1, APMP.PR-K1.a.1, EURAMET.PR-K1.a and EURAMET.PR-K1.a.1
Spectral irradiance in the interval from 370 nm to 750 nm

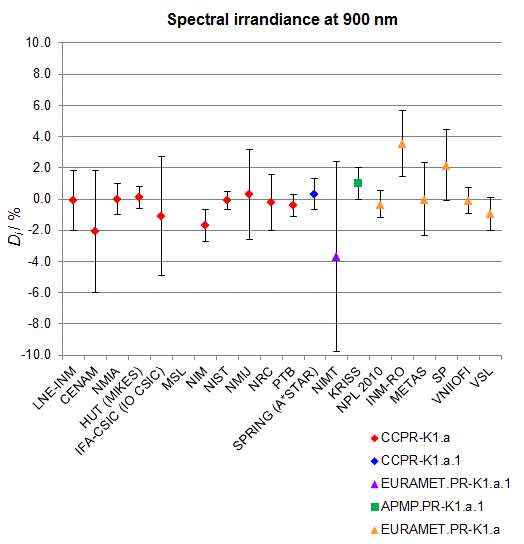

CCPR-K1.a, CCPR-K1.a.1, APMP.PR-K1.a.1, EURAMET.PR-K1.a and EURAMET.PR-K1.a.1
Spectral irradiance in the interval from 800 nm to 1700 nm

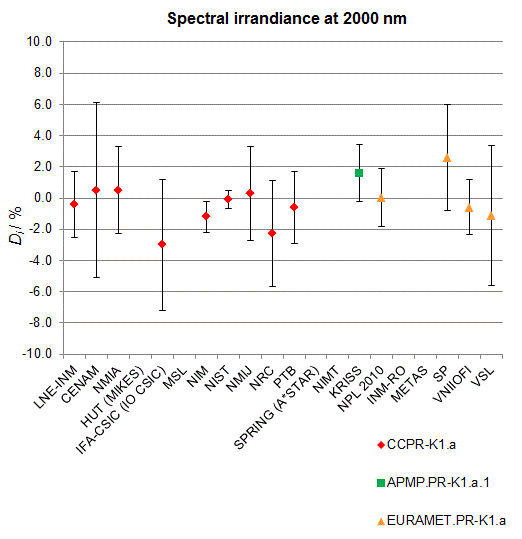

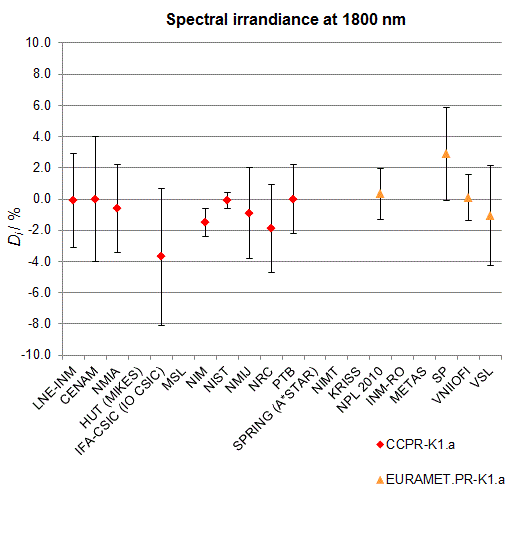

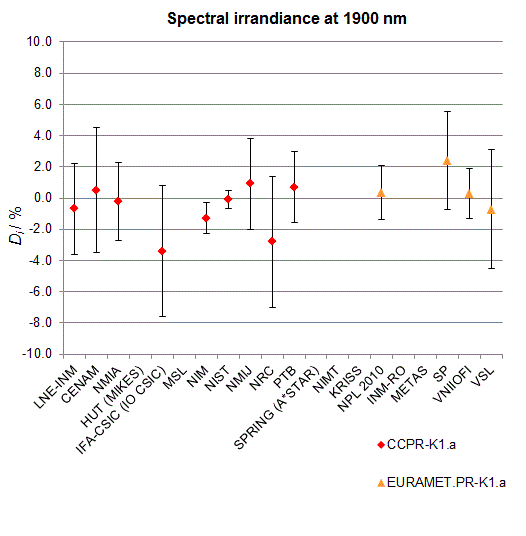

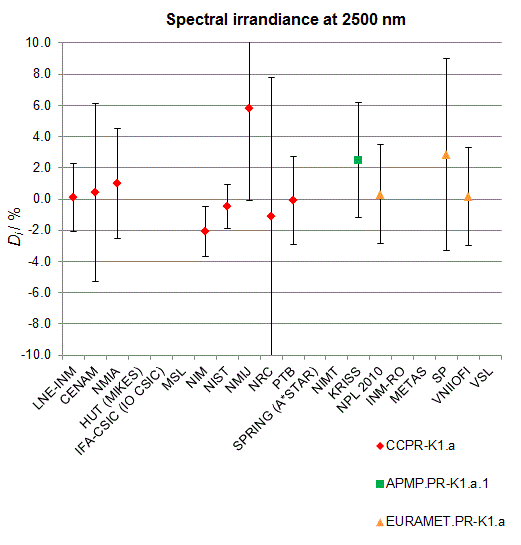

CCPR-K1.a, CCPR-K1.a.1, APMP.PR-K1.a.1, EURAMET.PR-K1.a and EURAMET.PR-K1.a.1
Spectral irradiance in the interval from 1800 nm to 2500 nm

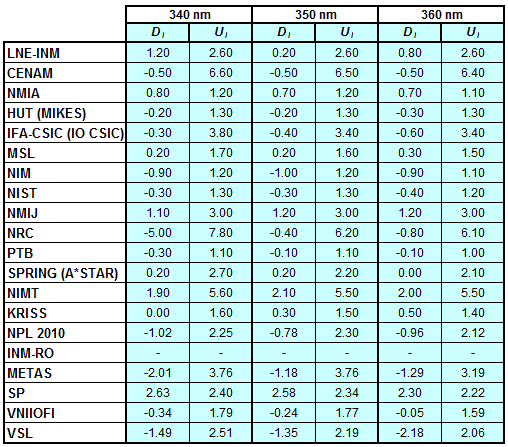

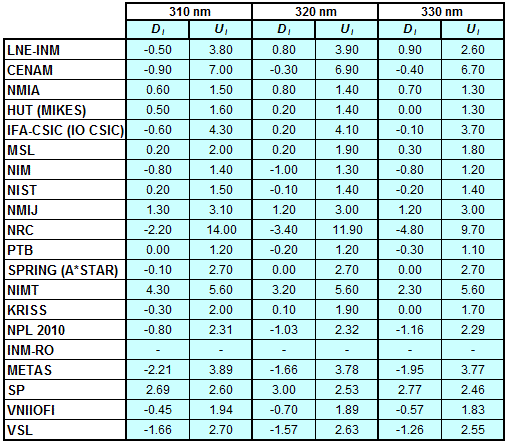

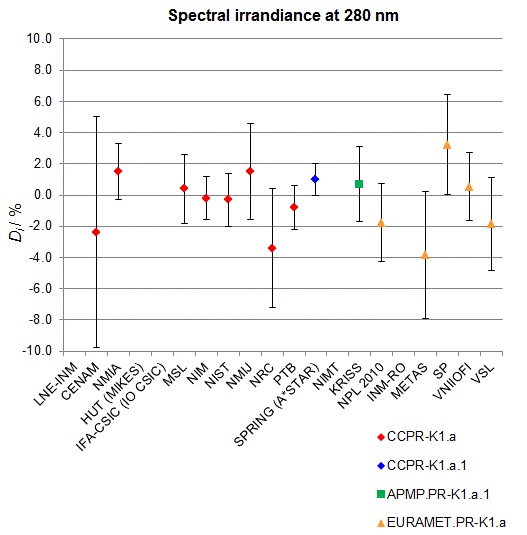

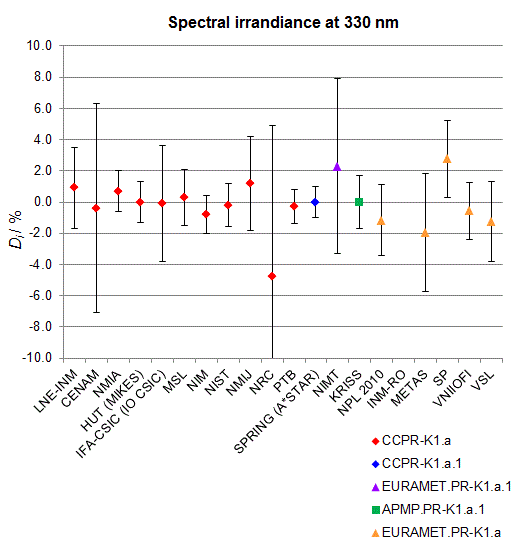

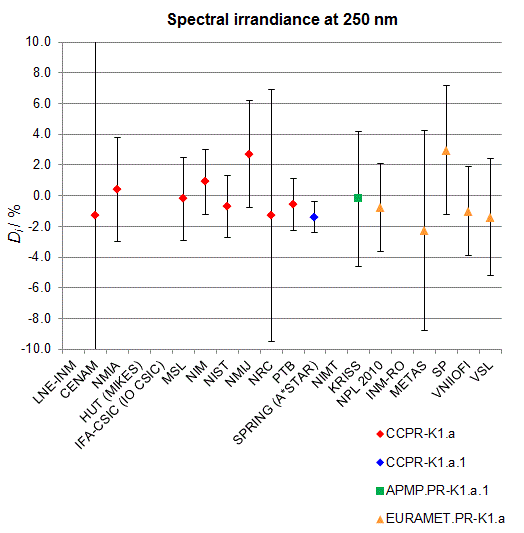

CCPR-K1.a, CCPR-K1.a.1, APMP.PR-K1.a.1, EURAMET.PR-K1.a and EURAMET.PR-K1.a.1

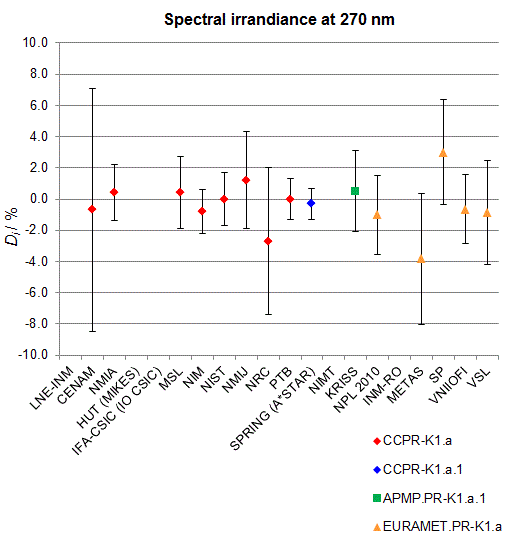

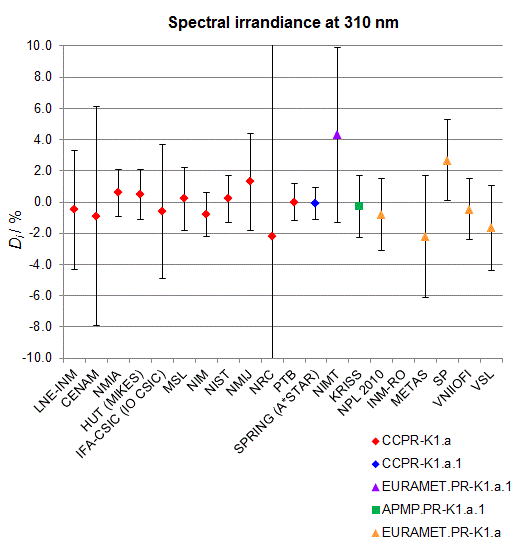

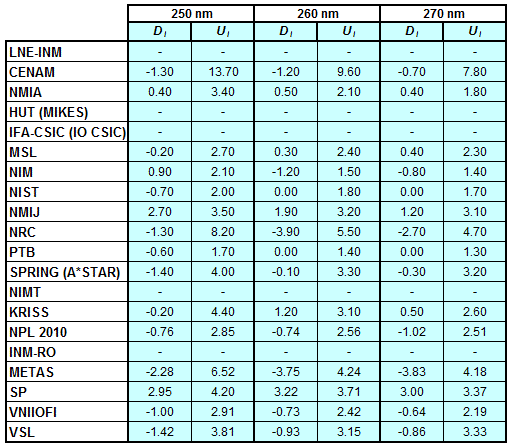

Degrees of Equivalence for spectral irradiance
in the interval from 250 nm to 360 nm
A*STAR (former SPRING) Singapore participated in CCPR-K1.a.1
NIMT participated in EURAMET.PR-K1.a.1
KRISS participated in APMP.PR-K1.a.1
NPL, PTB, INM-RO, METAS, SP, VNIIOFI and VSL participated in EURAMET.PR-K1.a
Results are presented under A4 printable format in Summary Results (.PDF file).

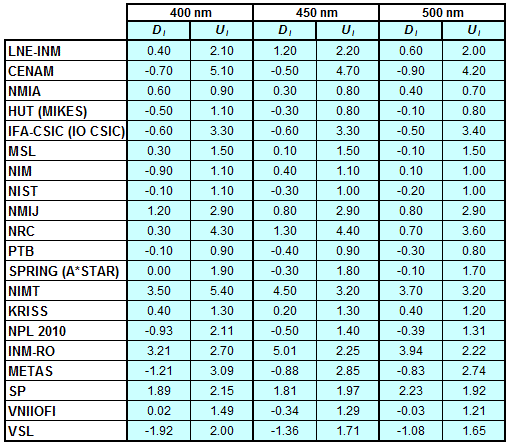

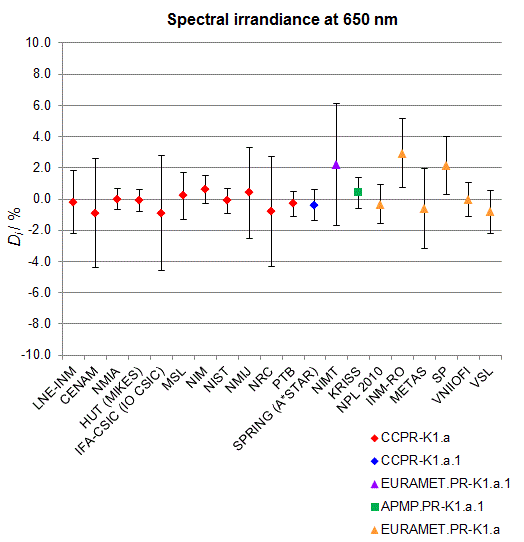

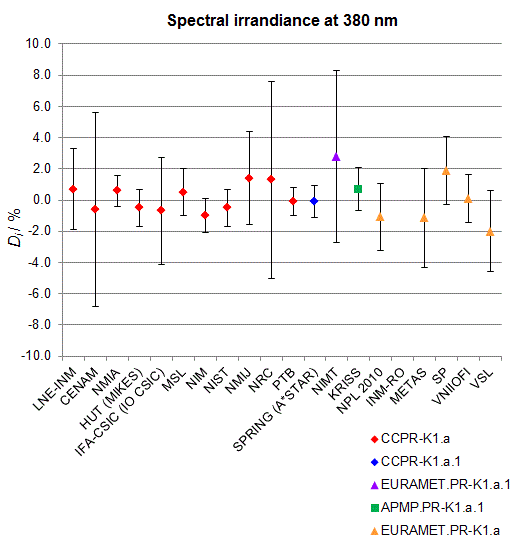

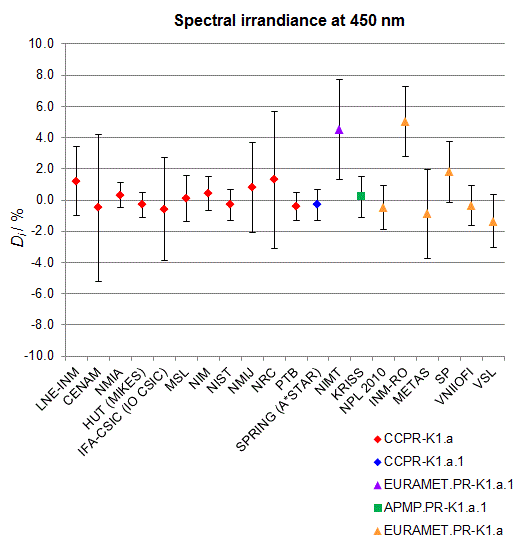

CCPR-K1.a, CCPR-K1.a.1, APMP.PR-K1.a.1, EURAMET.PR-K1.a and EURAMET.PR-K1.a.1

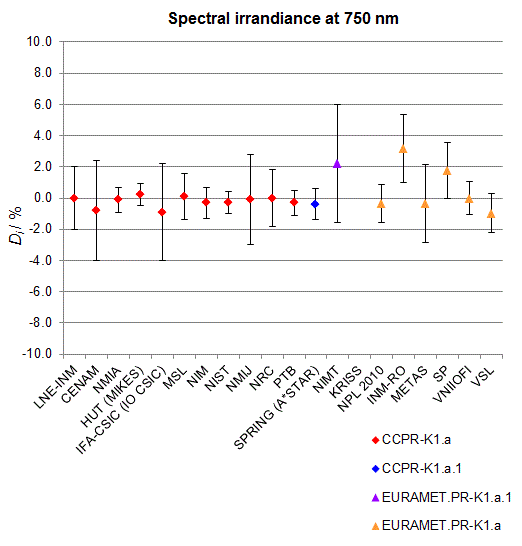

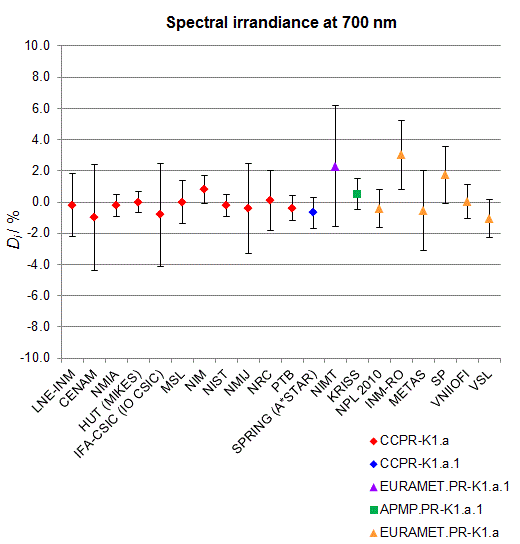

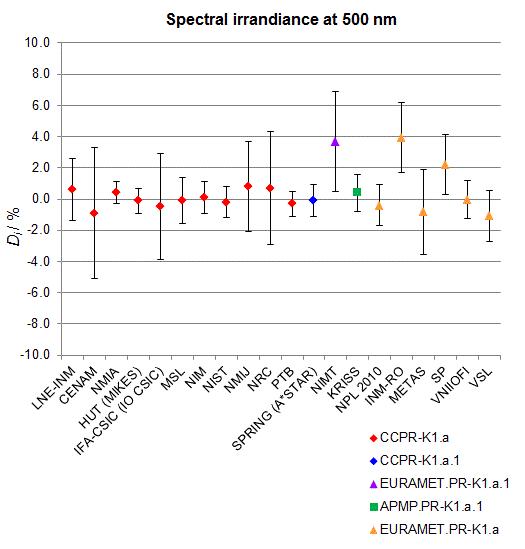

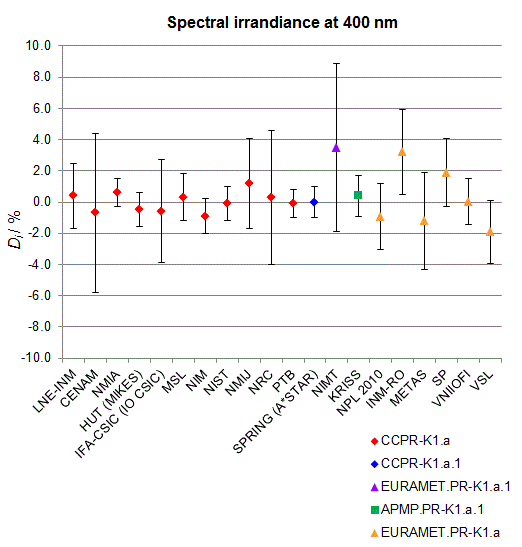

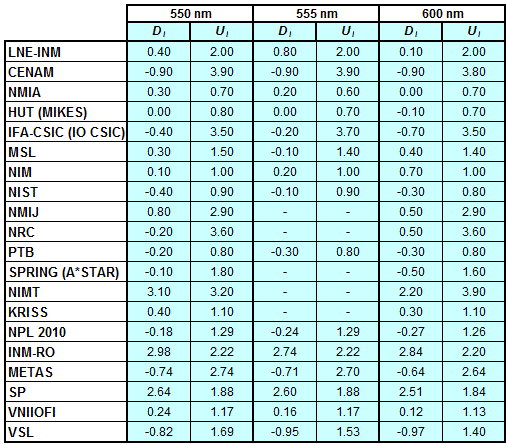

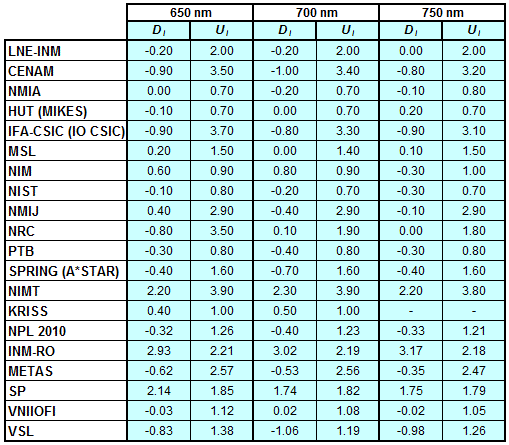

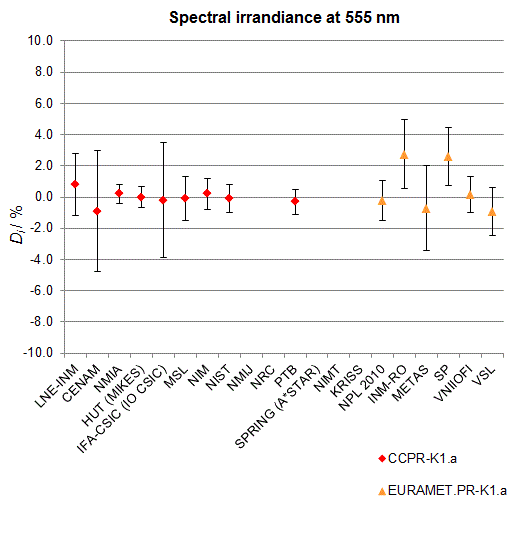

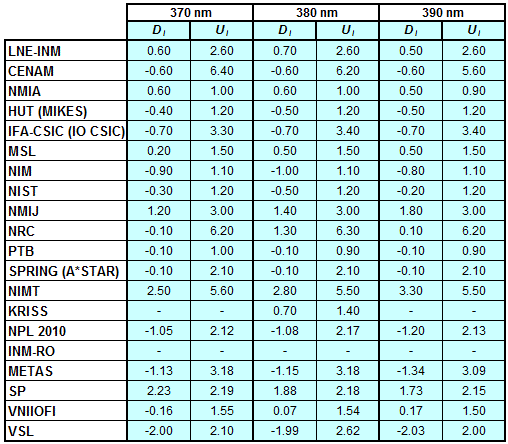

Degrees of Equivalence for spectral irradiance
in the interval from 370 nm to 750 nm
A*STAR (former SPRING) Singapore participated in CCPR-K1.a.1
NIMT participated in EURAMET.PR-K1.a.1
KRISS participated in APMP.PR-K1.a.1
NPL, PTB, INM-RO, METAS, SP, VNIIOFI and VSL participated in EURAMET.PR-K1.a
Results are presented under A4 printable format in Summary Results (.PDF file).

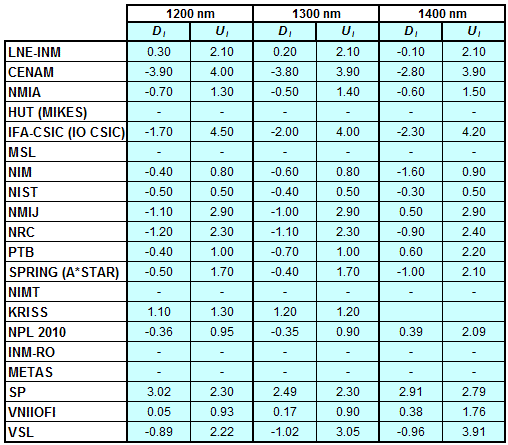

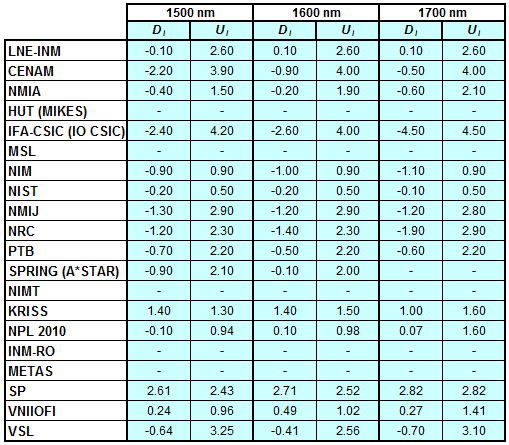

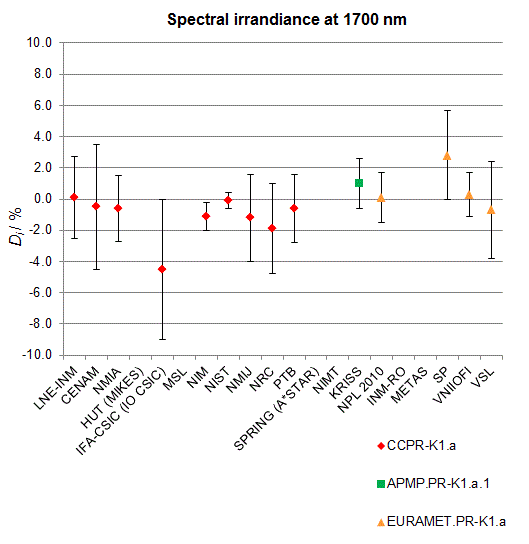

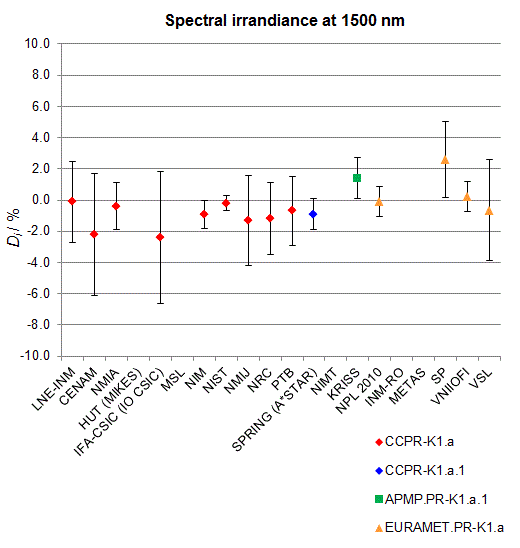

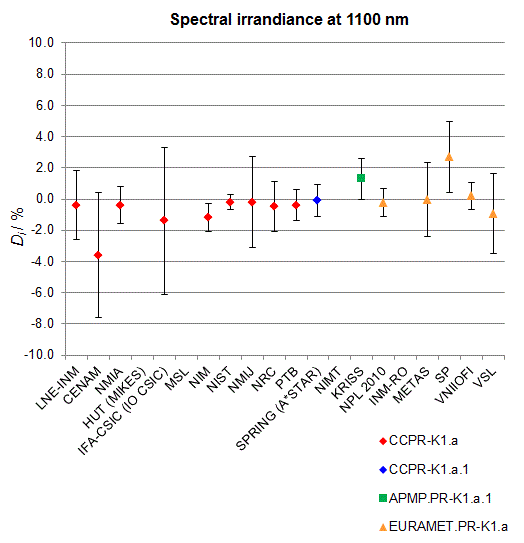

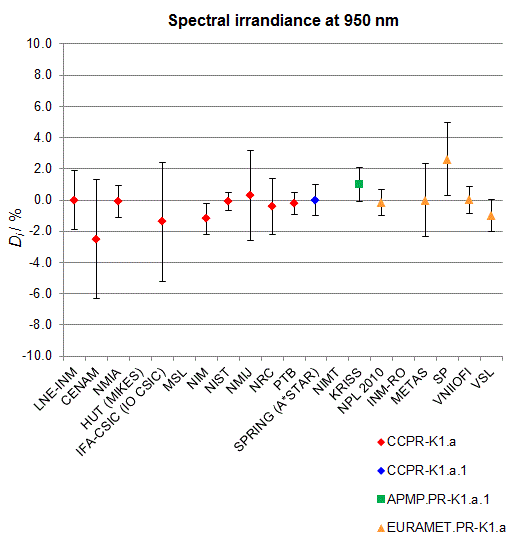

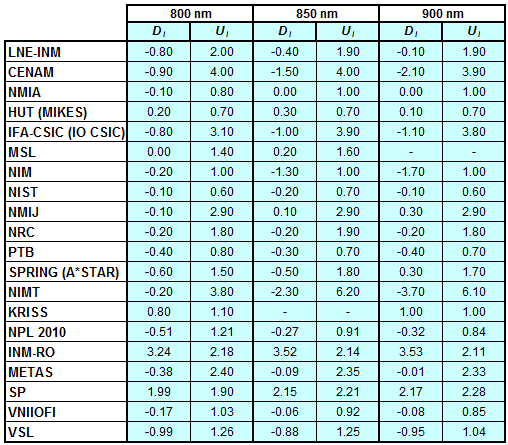

CCPR-K1.a, CCPR-K1.a.1, APMP.PR-K1.a.1, EURAMET.PR-K1.a and EURAMET.PR-K1.a.1

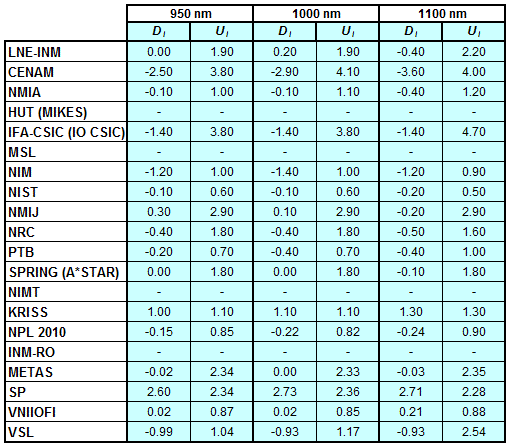

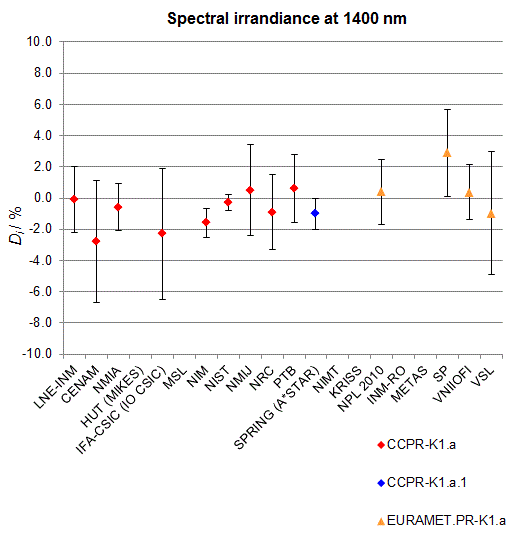

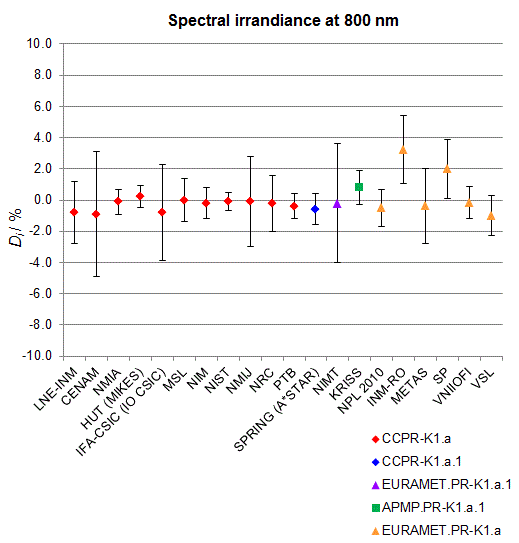

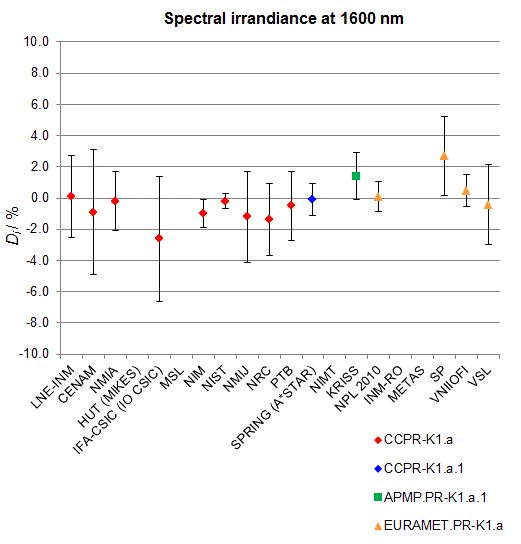

Degrees of Equivalence for spectral irradiance
in the interval from 800 nm to 1700 nm
A*STAR (former SPRING) Singapore participated in CCPR-K1.a.1
NIMT participated in EURAMET.PR-K1.a.1
KRISS participated in APMP.PR-K1.a.1
NPL, PTB, INM-RO, METAS, SP, VNIIOFI and VSL participated in EURAMET.PR-K1.a
Results are presented under A4 printable format in Summary Results (.PDF file).

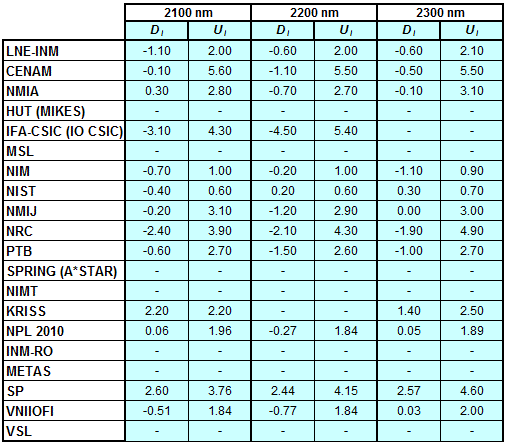

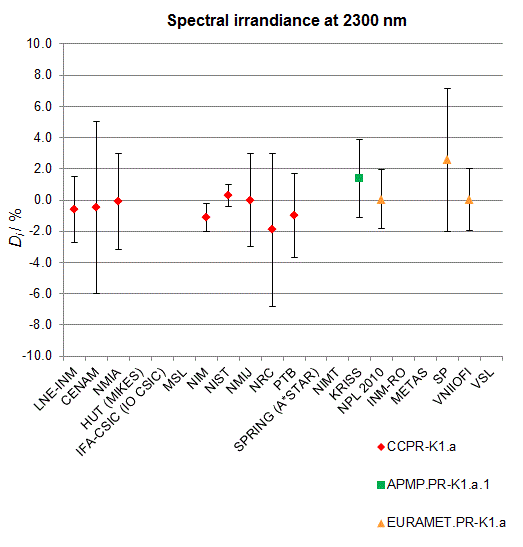

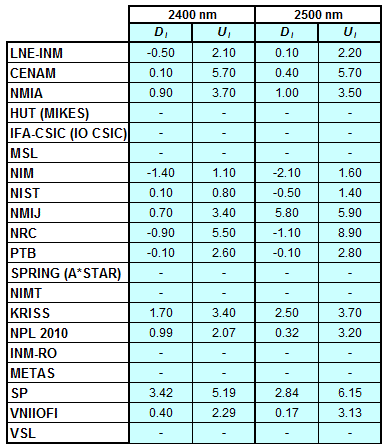

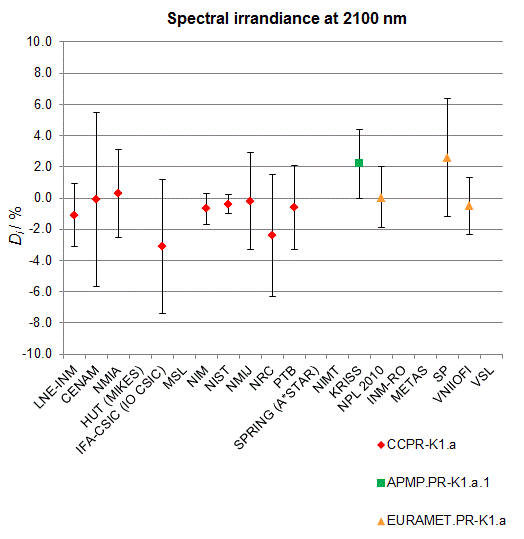

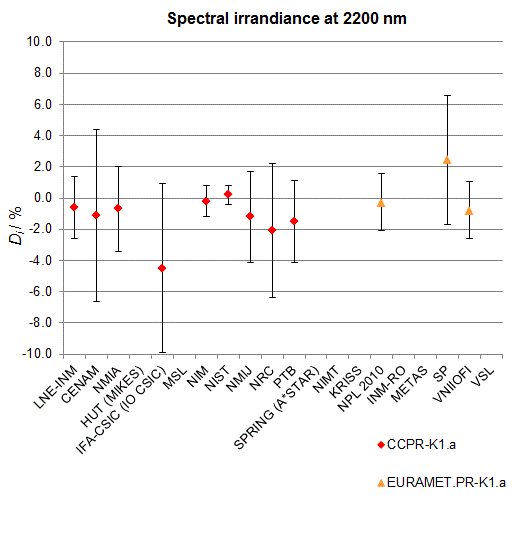

CCPR-K1.a, CCPR-K1.a.1, APMP.PR-K1.a.1, EURAMET.PR-K1.a and EURAMET.PR-K1.a.1

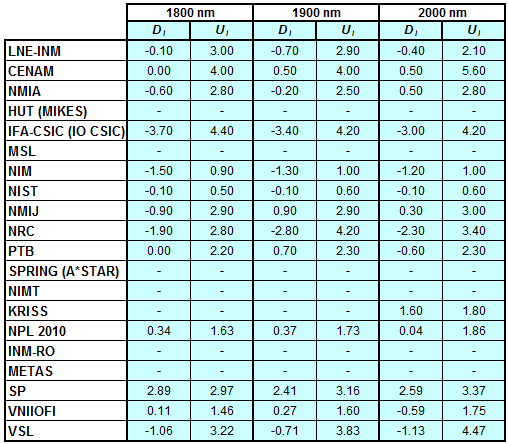

Degrees of Equivalence for spectral irradiance
in the interval from 1800 nm to 2500 nm
A*STAR (former SPRING) Singapore participated in CCPR-K1.a.1
NIMT participated in EURAMET.PR-K1.a.1
KRISS participated in APMP.PR-K1.a.1
NPL, PTB, INM-RO, METAS, SP, VNIIOFI and VSL participated in EURAMET.PR-K1.a
Results are presented under A4 printable format in Summary Results (.PDF file).
| Metrology area, Sub-field | Photometry and Radiometry, Properties of detectors and sources |
| Description | Spectral irradiance |
| Time of measurements | 2001 - 2003 |
| Status | Approved for equivalence |
| Final Reports of the comparisons | |
| Measurand | Spectral irradiance |
| Parameters | Wavelength from 250 nm to 2500 nm |
| Transfer device | Detector Stabilized Lamps (DSL) |
| Comparison type | Key Comparison |
| Consultative Committee | CCPR (Consultative Committee for Photometry and Radiometry) |
| Conducted by | CCPR (Consultative Committee for Photometry and Radiometry) |
| Comments | A subsequent bilateral comparison was decided in 2003 between NMIA and SPRING Singapore. CCPR-K1.a results published on 06 February 2006 CCPR-K1.a.1 results (from 250 nm to 1600 nm), EURAMET.PR-K1.a.1 results (from 290 nm to 900 nm), APMP.PR-K1.a.1 and EURAMET.PR-K1.a results (from 250 nm to 2500 nm) are linked to those of CCPR-K1.a. Spectral irradiance from 250 nm to 2500 nm
|
| Pilot institute |
NPL
National Physical Laboratory United Kingdom |
| Contact person | N. Fox +44 (0) 20 8943 6825 |
| Pilot laboratory | |
|---|---|
| NPL |
National Physical Laboratory, United Kingdom, EURAMET |
| CENAM |
Centro Nacional de Metrologia, Mexico, SIM |
| HUT |
Helsinki University of Technology, Finland, EURAMET |
| IFA-CSIC |
Instituto de Fisica Aplicada - Consejo Superior de Investigaciones Cientificas, now IO-CSIC, Instituto de Optica Daza de Valdés, Spain, EURAMET |
| LNE-INM |
Conservatoire national des arts et métiers / Institut National de Métrologie, France, EURAMET |
| MSL |
Measurement Standards Laboratory, New Zealand, APMP |
| NIM |
National Institute of Metrology, China, APMP |
| NIST |
National Institute of Standards and Technology, United States, SIM |
| NMIA |
National Measurement Institute, Australia, Australia, APMP |
| NMIJ AIST |
National Metrology Institute of Japan, Japan, APMP |
| NRC |
National Research Council, Canada, SIM |
| PTB |
Physikalisch-Technische Bundesanstalt, Germany, EURAMET |
| VNIIOFI |
All-Russian Scientific Institute for Optical and Physical Measurements, Rosstandart, Russian Federation, COOMET |
This page proposes print-out on A4 paper (portrait) of the comparison details (best printed out using a black and white printer).
Please, select items to be printed out, then click on "OK" :
CCPR-K1.a, CCPR-K1.a.1, APMP.PR-K1.a.1, EURAMET.PR-K1.a and EURAMET.PR-K1.a.1
Spectral irradiance in the interval from 250 nm to 360 nm
n.b. All wavelengths within this interval are not covered by all listed comparisons (cf. Degrees of Equivalence)
|
This comparison was carried out independently at each wavelength. The key comparison reference value is calculated as the weighted geometric mean (with a cut-off) of the estimated systematic factors. It is stipulated to be unity by a special choice of the constraint equation. |
| The degree of equivalence of laboratory i with respect to the key comparison reference value is given by a pair of terms: Di, the difference between the estimated systematic factor for that participant and the key comparison reference value, being unity, and Ui, its expanded uncertainty at a 95 % level of confidence (see section 17.6.2 of the CCPR-K1.a Final Report). Di and Ui are expressed in relative units. |
| CCPR-K1.a.1 is a subsequent bilateral key comparison to CCPR-K1.a, between NMIA and SPRING Singapore. At any one common wavelength to both comparisons, the degree of equivalence of SPRING Singapore relative to the CCPR-K1.a reference value is computed using the NMIA results obtained in both comparisons, as explained in Section 9 of the CCPR-K1.a.1 Final Report (pages 20 to 24). This makes it possible to extend the CCPR-K1.a graphs of equivalence with one additional point from SPRING Singapore. |
| APMP.PR-K1.a.1 is a subsequent bilateral key comparison to CCPR-K1.a, between KRISS and VNIIOFI. At any one common wavelength to both comparisons, the degree of equivalence of KRISS relative to the CCPR-K1.a reference value is computed using the VNIIOFI results obtained in both comparisons, as explained in Section 6.2 and in Appendix C of the APMP.PR-K1.a.1 Final Report. This makes it possible to extend the CCPR-K1.a graphs of equivalence with one additional point from KRISS. |
|
EURAMET.PR-K1.a is a subsequent key comparison to CCPR-K1.a, between the NPL, PTB, INM-RO, METAS, SP, VNIIOFI and the VSL. This makes it possible to extend the CCPR-K1.a graphs of equivalence with the results obtained by the EURAMET.PR-K1.a comparison. |
| EURAMET.PR-K1.a.1 is a subsequent bilateral key comparison to CCPR-K1.a, between MIKES and NIMT. At any one common wavelength to both comparisons, the degree of equivalence of NIMT relative to the CCPR-K1.a reference value is computed using the MIKES (referred to as "HUT" at the time of the CCPR-K1.a key comparison) results obtained in both comparisons, as explained in the Appendix A of the EURAMET.PR-K1.a.1 Final Report (page 12). This makes it possible to extend the CCPR-K1.a graphs of equivalence with one additional point from NIMT. |
CCPR-K1.a, CCPR-K1.a.1, APMP.PR-K1.a.1, EURAMET.PR-K1.a and EURAMET.PR-K1.a.1
Spectral irradiance in the interval from 370 nm to 750 nm
n.b. All wavelengths within this interval are not covered by all listed comparisons (cf. Degrees of Equivalence)
|
This comparison was carried out independently at each wavelength. The key comparison reference value is calculated as the weighted geometric mean (with a cut-off) of the estimated systematic factors. It is stipulated to be unity by a special choice of the constraint equation. |
| The degree of equivalence of laboratory i with respect to the key comparison reference value is given by a pair of terms: Di, the difference between the estimated systematic factor for that participant and the key comparison reference value, being unity, and Ui, its expanded uncertainty at a 95 % level of confidence (see section 17.6.2 of the CCPR-K1.a Final Report). Di and Ui are expressed in relative units. |
| CCPR-K1.a.1 is a subsequent bilateral key comparison to CCPR-K1.a, between NMIA and SPRING Singapore. At any one common wavelength to both comparisons, the degree of equivalence of SPRING Singapore relative to the CCPR-K1.a reference value is computed using the NMIA results obtained in both comparisons, as explained in Section 9 of the CCPR-K1.a.1 Final Report (pages 20 to 24). This makes it possible to extend the CCPR-K1.a graphs of equivalence with one additional point from SPRING Singapore. |
| APMP.PR-K1.a.1 is a subsequent bilateral key comparison to CCPR-K1.a, between KRISS and VNIIOFI. At any one common wavelength to both comparisons, the degree of equivalence of KRISS relative to the CCPR-K1.a reference value is computed using the VNIIOFI results obtained in both comparisons, as explained in Section 6.2 and in Appendix C of the APMP.PR-K1.a.1 Final Report. This makes it possible to extend the CCPR-K1.a graphs of equivalence with one additional point from KRISS. |
|
EURAMET.PR-K1.a is a subsequent key comparison to CCPR-K1.a, between the NPL, PTB, INM-RO, METAS, SP, VNIIOFI and the VSL. This makes it possible to extend the CCPR-K1.a graphs of equivalence with the results obtained by the EURAMET.PR-K1.a comparison. |
| EURAMET.PR-K1.a.1 is a subsequent bilateral key comparison to CCPR-K1.a, between MIKES and NIMT. At any one common wavelength to both comparisons, the degree of equivalence of NIMT relative to the CCPR-K1.a reference value is computed using the MIKES (referred to as "HUT" at the time of the CCPR-K1.a key comparison) results obtained in both comparisons, as explained in the Appendix A of the EURAMET.PR-K1.a.1 Final Report (page 12). This makes it possible to extend the CCPR-K1.a graphs of equivalence with one additional point from NIMT. |
CCPR-K1.a, CCPR-K1.a.1, APMP.PR-K1.a.1, EURAMET.PR-K1.a and EURAMET.PR-K1.a.1
Spectral irradiance in the interval from 800 nm to 1700 nm
n.b. All wavelengths within this interval are not covered by all listed comparisons (cf. Degrees of Equivalence)
|
This comparison was carried out independently at each wavelength. The key comparison reference value is calculated as the weighted geometric mean (with a cut-off) of the estimated systematic factors. It is stipulated to be unity by a special choice of the constraint equation. |
| The degree of equivalence of laboratory i with respect to the key comparison reference value is given by a pair of terms: Di, the difference between the estimated systematic factor for that participant and the key comparison reference value, being unity, and Ui, its expanded uncertainty at a 95 % level of confidence (see section 17.6.2 of the CCPR-K1.a Final Report). Di and Ui are expressed in relative units. |
| CCPR-K1.a.1 is a subsequent bilateral key comparison to CCPR-K1.a, between NMIA and SPRING Singapore. At any one common wavelength to both comparisons, the degree of equivalence of SPRING Singapore relative to the CCPR-K1.a reference value is computed using the NMIA results obtained in both comparisons, as explained in Section 9 of the CCPR-K1.a.1 Final Report (pages 20 to 24). This makes it possible to extend the CCPR-K1.a graphs of equivalence with one additional point from SPRING Singapore. |
| APMP.PR-K1.a.1 is a subsequent bilateral key comparison to CCPR-K1.a, between KRISS and VNIIOFI. At any one common wavelength to both comparisons, the degree of equivalence of KRISS relative to the CCPR-K1.a reference value is computed using the VNIIOFI results obtained in both comparisons, as explained in Section 6.2 and in Appendix C of the APMP.PR-K1.a.1 Final Report. This makes it possible to extend the CCPR-K1.a graphs of equivalence with one additional point from KRISS. |
|
EURAMET.PR-K1.a is a subsequent key comparison to CCPR-K1.a, between the NPL, PTB, INM-RO, METAS, SP, VNIIOFI and the VSL. This makes it possible to extend the CCPR-K1.a graphs of equivalence with the results obtained by the EURAMET.PR-K1.a comparison. |
| EURAMET.PR-K1.a.1 is a subsequent bilateral key comparison to CCPR-K1.a, between MIKES and NIMT. At any one common wavelength to both comparisons, the degree of equivalence of NIMT relative to the CCPR-K1.a reference value is computed using the MIKES (referred to as "HUT" at the time of the CCPR-K1.a key comparison) results obtained in both comparisons, as explained in the Appendix A of the EURAMET.PR-K1.a.1 Final Report (page 12). This makes it possible to extend the CCPR-K1.a graphs of equivalence with one additional point from NIMT. |
CCPR-K1.a, CCPR-K1.a.1, APMP.PR-K1.a.1, EURAMET.PR-K1.a and EURAMET.PR-K1.a.1
Spectral irradiance in the interval from 1800 nm to 2500 nm
n.b. All wavelengths within this interval are not covered by all listed comparisons (cf. Degrees of Equivalence)
|
This comparison was carried out independently at each wavelength. The key comparison reference value is calculated as the weighted geometric mean (with a cut-off) of the estimated systematic factors. It is stipulated to be unity by a special choice of the constraint equation. |
| The degree of equivalence of laboratory i with respect to the key comparison reference value is given by a pair of terms: Di, the difference between the estimated systematic factor for that participant and the key comparison reference value, being unity, and Ui, its expanded uncertainty at a 95 % level of confidence (see section 17.6.2 of the CCPR-K1.a Final Report). Di and Ui are expressed in relative units. |
| CCPR-K1.a.1 is a subsequent bilateral key comparison to CCPR-K1.a, between NMIA and SPRING Singapore. At any one common wavelength to both comparisons, the degree of equivalence of SPRING Singapore relative to the CCPR-K1.a reference value is computed using the NMIA results obtained in both comparisons, as explained in Section 9 of the CCPR-K1.a.1 Final Report (pages 20 to 24). This makes it possible to extend the CCPR-K1.a graphs of equivalence with one additional point from SPRING Singapore. |
| APMP.PR-K1.a.1 is a subsequent bilateral key comparison to CCPR-K1.a, between KRISS and VNIIOFI. At any one common wavelength to both comparisons, the degree of equivalence of KRISS relative to the CCPR-K1.a reference value is computed using the VNIIOFI results obtained in both comparisons, as explained in Section 6.2 and in Appendix C of the APMP.PR-K1.a.1 Final Report. This makes it possible to extend the CCPR-K1.a graphs of equivalence with one additional point from KRISS. |
|
EURAMET.PR-K1.a is a subsequent key comparison to CCPR-K1.a, between the NPL, PTB, INM-RO, METAS, SP, VNIIOFI and the VSL. This makes it possible to extend the CCPR-K1.a graphs of equivalence with the results obtained by the EURAMET.PR-K1.a comparison. |
| EURAMET.PR-K1.a.1 is a subsequent bilateral key comparison to CCPR-K1.a, between MIKES and NIMT. At any one common wavelength to both comparisons, the degree of equivalence of NIMT relative to the CCPR-K1.a reference value is computed using the MIKES (referred to as "HUT" at the time of the CCPR-K1.a key comparison) results obtained in both comparisons, as explained in the Appendix A of the EURAMET.PR-K1.a.1 Final Report (page 12). This makes it possible to extend the CCPR-K1.a graphs of equivalence with one additional point from NIMT. |
CCPR-K1.a, CCPR-K1.a.1, EURAMET.PR-K1.a.1 and APMP.PR-K1.a.1 Spectral irradiance in the interval from 250 nm to 360 nm No Laboratory Individual Measurements are available for these comparisons.
Please see Equivalence statements.
CCPR-K1.a, CCPR-K1.a.1, EURAMET.PR-K1.a.1 and APMP.PR-K1.a.1 Spectral irradiance in the interval from 370 nm to 750 nm No Laboratory Individual Measurements are available for these comparisons.
Please see Equivalence statements.
CCPR-K1.a, CCPR-K1.a.1, EURAMET.PR-K1.a.1 and APMP.PR-K1.a.1 Spectral irradiance in the interval from 800 nm to 1700 nm No Laboratory Individual Measurements are available for these comparisons.
Please see Equivalence statements.
CCPR-K1.a, CCPR-K1.a.1, EURAMET.PR-K1.a.1 and APMP.PR-K1.a.1 Spectral irradiance in the interval from 1800 nm to 2500 nm No Laboratory Individual Measurements are available for these comparisons.
Please see Equivalence statements.
