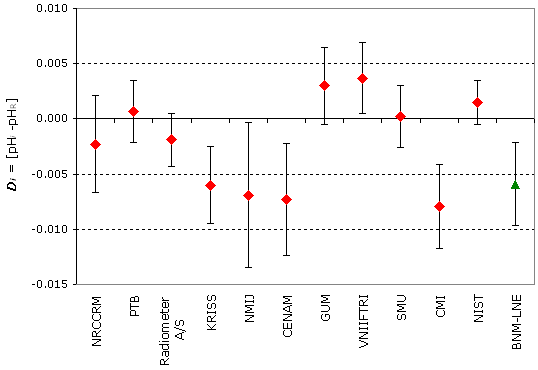

CCQMK17 and EUROMET.QMK17
MEASURAND : pH value of phthalate buffer
Sample: Potassium hydrogen phthalate, KHC_{8}H_{4}O_{4}Measurements at 15 °C
NOMINAL VALUE : pH = 4.0 at 25 °C
Degrees of equivalence D_{i} and expanded uncertainty U_{i} (k = 2)
Red diamonds: participants in CCQMK17
Green triangle: participant in EUROMET.QMK17

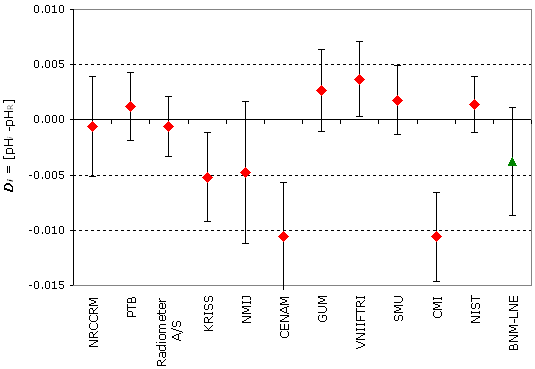

CCQMK17 and EUROMET.QMK17
MEASURAND : pH value of phthalate buffer
Sample: Potassium hydrogen phthalate, KHC_{8}H_{4}O_{4}Measurements at 25 °C
NOMINAL VALUE : pH = 4.0 at 25 °C
Degrees of equivalence D_{i} and expanded uncertainty U_{i} (k = 2)
Red diamonds: participants in CCQMK17
Green triangle: participant in EUROMET.QMK17

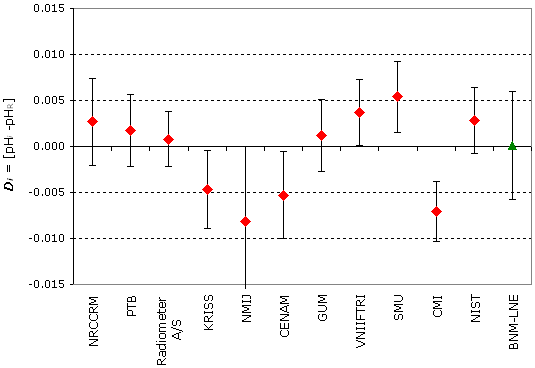

CCQMK17 and EUROMET.QMK17
MEASURAND : pH value of phthalate buffer
Sample: Potassium hydrogen phthalate, KHC_{8}H_{4}O_{4}Measurements at 37 °C
NOMINAL VALUE : pH = 4.0 at 25 °C
Degrees of equivalence D_{i} and expanded uncertainty U_{i} (k = 2)
Red diamonds: participants in CCQMK17
Green triangle: participant in EUROMET.QMK17
CCQMK17 and EUROMET.QMK17
MEASURAND : pH value of phthalate buffer
Sample: Potassium hydrogen phthalate, KHC_{8}H_{4}O_{4}Measurements at 15 °C
NOMINAL VALUE : pH = 4.0 at 25 °C
Degrees of equivalence D_{i} and expanded uncertainty U_{i }(k = 2)
BNMLNE*: participant in EUROMET.QMK17

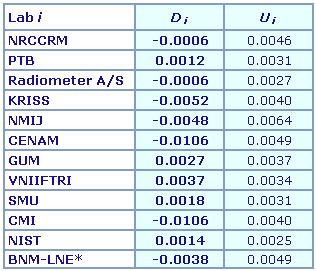

CCQMK17 and EUROMET.QMK17
MEASURAND : pH value of phthalate buffer
Sample: Potassium hydrogen phthalate, KHC_{8}H_{4}O_{4}Measurements at 25 °C
NOMINAL VALUE : pH = 4.0 at 25 °C
Degrees of equivalence D_{i} and expanded uncertainty U_{i }(k = 2)
BNMLNE*: participant in EUROMET.QMK17

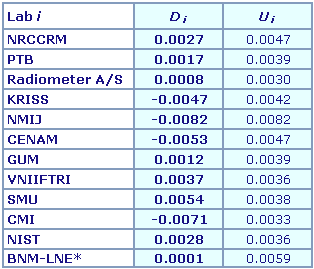

CCQMK17 and EUROMET.QMK17
MEASURAND : pH value of phthalate buffer
Sample: Potassium hydrogen phthalate, KHC_{8}H_{4}O_{4}Measurements at 37 °C
NOMINAL VALUE : pH = 4.0 at 25 °C
Degrees of equivalence D_{i} and expanded uncertainty U_{i }(k = 2)
BNMLNE*: participant in EUROMET.QMK17
Metrology area, Subfield  Chemistry and Biology, Electrochemistry
Description  pH measurement of phthalate buffer solutions
Time of measurements  2001
Status  Approved for equivalence
Final Reports of the comparisons
Measurand  pH 4.1 at temperature 25 °C
Parameters  Temperature: 15 °C, 25 °C and 37 °C
Transfer device  A phthalate buffer, containing potassium hydrogen phthalate at a molality of 0.05 mol/kg
Comparison type  Key Comparison
Consultative Committee  CCQM (Consultative Committee for Amount of Substance)
Conducted by  CCQM (Consultative Committee for Amount of Substance)
Comments  EUROMET.QMK17 results are linked to those of CCQMK17. CCQMK17 results were published on 8 September 2003, and EUROMET.QMK17 results on 28 February 2005. pH determination of a phthalate buffer at temperatures ranging from 15 °C to 37 °C.
Pilot institute
PTB
PhysikalischTechnische Bundesanstalt Germany
Contact person  P. Spitzer +49 (0) 531 592 3130
Pilot laboratory

PTB
PhysikalischTechnische Bundesanstalt, Germany, EURAMET
CENAM
Centro Nacional de Metrologia, Mexico, SIM
CMI
Czech Metrology Institute, Czechia, EURAMET
GUM
Glowny Urzad Miar, Central Office of Measures, Poland, EURAMET
KRISS
Korea Research Institute of Standards and Science, Korea, Republic of, APMP
NIST
National Institute of Standards and Technology, United States, SIM
NMIJ AIST
National Metrology Institute of Japan, Japan, APMP
NRCCRM
National Research Centre for Certified Reference Materials, merged in NIM (National Institute of Metrology) starting 1st January 2006, China, APMP
Radiometer A/S
Radiometer Medical A/S, Denmark, EURAMET
SMU
Slovensky Metrologicky Ustav, Slovakia, EURAMET
VNIIFTRI
Institute of Physical Technical and Radiotechnical Measurements, Rosstandart, Russian Federation, COOMET
This page proposes printout on A4 paper (portrait) of the comparison details (best printed out using a black and white printer).
Please, select items to be printed out, then click on "OK" :
CCQMK17 and EUROMET.QMK17
MEASURAND : pH value of phthalate buffer
Sample: Potassium hydrogen phthalate, KHC_{8}H_{4}O_{4}Measurements at 15 °C
NOMINAL VALUE : pH = 4.0 at 25 °C
The key comparison reference value, pH_{R}, is obtained as the varianceweighted mean of the results from the participants. The standard uncertainty, u_{R}, of pH_{R} is calculated according to the external consistency concept (see page 8 of CCQMK17 Final Report). pH_{R} = 4.0093 and u_{R} = 0.00089
The degree of equivalence of each laboratory with respect to the key comparison reference value is given by a pair of terms: D_{i }= (pH_{i}  pH_{R}) and U_{i}, its expanded uncertainty (k = 2), U_{i} = 2(u_{i}^{2} + u_{R}^{2})^{1/2}. Note that this gives a conservative estimate of U_{i}.
The degree of equivalence between two laboratories may be calculated using the following pair of terms: D_{ij} = D_{i}  D_{j} = pH_{i}  pH_{j} and U_{ij}, its expanded uncertainty (k = 2), U_{ij} = 2(u_{i}^{2} + u_{j}^{2})^{1/2}. No numerical values of pairwise degrees of equivalence are given.
The PTB acted as pilot laboratory in both key comparisons.
To link the results obtained by the BNMLNE in EUROMET.QMK17 to CCQMK17 the performance of PTB within its uncertainty is assumed to be similar in both comparisons. Therefore it is assumed that the bias between the PTB results and the key comparison reference value remains constant over both comparisons.
The degree of equivalence of the BNMLNE with respect to the key comparison reference value is given by a pair of terms: D_{i } and U_{i}, its expanded uncertainty
(k = 2), see equations 1 to 4 in the EUROMET.QMK17 Final Report.
The pairwise degrees of equivalence involving the BNMLNE are not calculated.
CCQMK17 and EUROMET.QMK17
MEASURAND : pH value of phthalate buffer
Sample: Potassium hydrogen phthalate, KHC_{8}H_{4}O_{4}Measurements at 25 °C
NOMINAL VALUE : pH = 4.0 at 25 °C
The key comparison reference value, pH_{R}, is obtained as the varianceweighted mean of the results from the participants. The standard uncertainty, u_{R}, of pH_{R} is calculated according to the external consistency concept (see page 8 of CCQMK17 Final Report). pH_{R} = 4.0156 and u_{R} = 0.00109
The degree of equivalence of each laboratory with respect to the key comparison reference value is given by a pair of terms: D_{i }= (pH_{i}  pH_{R}) and U_{i}, its expanded uncertainty (k = 2), U_{i} = 2(u_{i}^{2} + u_{R}^{2})^{1/2}. Note that this gives a conservative estimate of U_{i}.
The degree of equivalence between two laboratories may be calculated using the following pair of terms:
The PTB acted as pilot laboratory in both key comparisons.
To link the results obtained by the BNMLNE in EUROMET.QMK17 to CCQMK17 the performance of PTB within its uncertainty is assumed to be similar in both comparisons. Therefore it is assumed that the bias between the PTB results and the key comparison reference value remains constant over both comparisons.
The degree of equivalence of the BNMLNE with respect to the key comparison reference value is given by a pair of terms: D_{i }and U_{i}, its expanded uncertainty
(k = 2), see equations 1 to 4 in the EUROMET.QMK17 Final Report.
The pairwise degrees of equivalence involving the BNMLNE are not calculated.
CCQMK17 and EUROMET.QMK17
MEASURAND : pH value of phthalate buffer
Sample: Potassium hydrogen phthalate, KHC_{8}H_{4}O_{4}Measurements at 37 °C
NOMINAL VALUE : pH = 4.0 at 25 °C
The key comparison reference value, pH_{R}, is obtained as the varianceweighted mean of the results from the participants. The standard uncertainty, u_{R}, of pH_{R} is calculated according to the external consistency concept (see page 8 of CCQMK17 Final Report). pH_{R} = 4.0343 and u_{R} = 0.00125
The degree of equivalence of each laboratory with respect to the key comparison reference value is given by a pair of terms: D_{i }= (pH_{i}  pH_{R}) and U_{i}, its expanded uncertainty (k = 2), U_{i} = 2(u_{i}^{2} + u_{R}^{2})^{1/2}. Note that this gives a conservative estimate of U_{i}.
The degree of equivalence between two laboratories may be calculated using the following pair of terms: D_{ij} = D_{i}  D_{j} = pH_{i}  pH_{j} and U_{ij}, its expanded uncertainty (k = 2), U_{ij} = 2(u_{i}^{2} + u_{j}^{2})^{1/2}. No numerical values of pairwise degrees of equivalence are given.
The PTB acted as pilot laboratory in both key comparisons.
To link the results obtained by the BNMLNE in EUROMET.QMK17 to CCQMK17 the performance of PTB within its uncertainty is assumed to be similar in both comparisons. Therefore it is assumed that the bias between the PTB results and the key comparison reference value remains constant over both comparisons.
The degree of equivalence of the BNMLNE with respect to the key comparison reference value is given by a pair of terms: D_{i }and U_{i}, its expanded uncertainty
(k = 2), see equations 1 to 4 in the EUROMET.QMK17 Final Report.
The pairwise degrees of equivalence involving the BNMLNE are not calculated.
CCQMK17 and EUROMET.QMK17
MEASURAND : pH value of phthalate buffer
Sample: Potassium hydrogen phthalate, KHC_{8}H_{4}O_{4}
Measurements at 15 °C
NOMINAL VALUE : pH = 4.0 at 25 °C
pH_{i} : result of measurement carried out by laboratory i
u_{i} : combined standard uncertainty (k = 1) of pH_{i}U_{i }: expanded uncertainty (k = 2) of pH_{i}, U_{i} = 2u_{i}

pH_{i}  u_{i}  Date of measurement
NRCCRM  4.0070  0.0020  Aug 01
PTB  4.0100  0.0011  Jul 01
Radiometer A/S  4.0074  0.0008  Jul 01
KRISS  4.0033  0.0015  Jul 01
NMIJ  4.0024  0.0032  Jul 01
CENAM  4.0020  0.0024  Jul 01
GUM  4.0123  0.0015  Jul 01
VNIIFTRI  4.0130  0.0013  Jul 01
SMU  4.0095  0.0011  Sep 01
CMI  4.0014  0.0017  Sep 01
NIST  4.0108  0.0005  Jul 01

pH_{i}  U_{i}  Date of measurement
BNMLNE  3.9919  0.0024  Feb 03
PTB  3.9985  0.0024  Jan 03
CCQMK17 and EUROMET.QMK17
MEASURAND : pH value of phthalate buffer
Sample: Potassium hydrogen phthalate, KHC_{8}H_{4}O_{4}
Measurements at 25 °C
NOMINAL VALUE : pH = 4.0 at 25 °C
pH_{i} : result of measurement carried out by laboratory i
u_{i} : combined standard uncertainty (k = 1) of pH_{i}U_{i }: expanded uncertainty (k = 2) of pH_{i}, U_{i} = 2u_{i}

pH_{i}  u_{i}  Date of measurement
NRCCRM  4.0150  0.0020  Aug 01
PTB  4.0168  0.0011  Jul 01
Radiometer A/S  4.0150  0.0008  Jul 01
KRISS  4.0104  0.0017  Jul 01
NMIJ  4.0108  0.0030  Jul 01
CENAM  4.0050  0.0022  Jul 01
GUM  4.0183  0.0015  Jul 01
VNIIFTRI  4.0193  0.0013  Jul 01
SMU  4.0174  0.0011  Sep 01
CMI  4.0050  0.0017  Sep 01
NIST  4.0170  0.0006  Jul 01

pH_{i}  U_{i}  Date of measurement
BNMLNE  4.0002  0.0038  Feb 03
PTB  4.0052  0.0024  Jan 03
CCQMK17 and EUROMET.QMK17
MEASURAND : pH value of phthalate buffer
Sample: Potassium hydrogen phthalate, KHC_{8}H_{4}O_{4}
Measurements at 37 °C
NOMINAL VALUE : pH = 4.0 at 25 °C
pH_{i} : result of measurement carried out by laboratory i
u_{i} : combined standard uncertainty (k = 1) of pH_{i}U_{i }: expanded uncertainty (k = 2) of pH_{i}, U_{i} = 2u_{i}

pH_{i}  u_{i}  Date of measurement
NRCCRM  4.0370  0.0020  Aug 01
PTB  4.0360  0.0015  Jul 01
Radiometer A/S  4.0351  0.0008  Jul 01
KRISS  4.0296  0.0017  Jul 01
NMIJ  4.0261  0.0039  Jul 01
CENAM  4.0290  0.0020  Jul 01
GUM  4.0355  0.0015  Jul 01
VNIIFTRI  4.0380  0.0013  Jul 01
SMU  4.0397  0.0015  Sep 01
CMI  4.0272  0.0011  Sep 01
NIST  4.0371  0.0013  Jul 01

pH_{i}  U_{i}  Date of measurement
BNMLNE  4.0209  0.0046  Feb 03
PTB  4.0225  0.0024  Jan 03
