CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc A for 1 000 mL/min to 10 000 mL/min
NOMINAL VALUE 10 000 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc A for 1 000 mL/min to 10 000 mL/min
NOMINAL VALUE 7 500 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc A for 1 000 mL/min to 10 000 mL/min
NOMINAL VALUE 5 000 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc A for 1 000 mL/min to 10 000 mL/min
NOMINAL VALUE 2 500 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc A for 1 000 mL/min to 10 000 mL/min
NOMINAL VALUE 1 000 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc B for 100 mL/min to 1 000 mL/min
NOMINAL VALUE 1 000 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc B for 100 mL/min to 1 000 mL/min
NOMINAL VALUE 750 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc B for 100 mL/min to 1 000 mL/min
NOMINAL VALUE 500 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc B for 100 mL/min to 1 000 mL/min
NOMINAL VALUE 250 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc B for 100 mL/min to 1 000 mL/min
NOMINAL VALUE 100 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc C for 10 mL/min to 100 mL/min
NOMINAL VALUE 100 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc C for 10 mL/min to 100 mL/min
NOMINAL VALUE 75 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc C for 10 mL/min to 100 mL/min
NOMINAL VALUE 50 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc C for 10 mL/min to 100 mL/min
NOMINAL VALUE 25 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc C for 10 mL/min to 100 mL/min
NOMINAL VALUE 10 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc D for 2 mL/min to 10 mL/min
NOMINAL VALUE 10 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc D for 2 mL/min to 10 mL/min
NOMINAL VALUE 5 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.

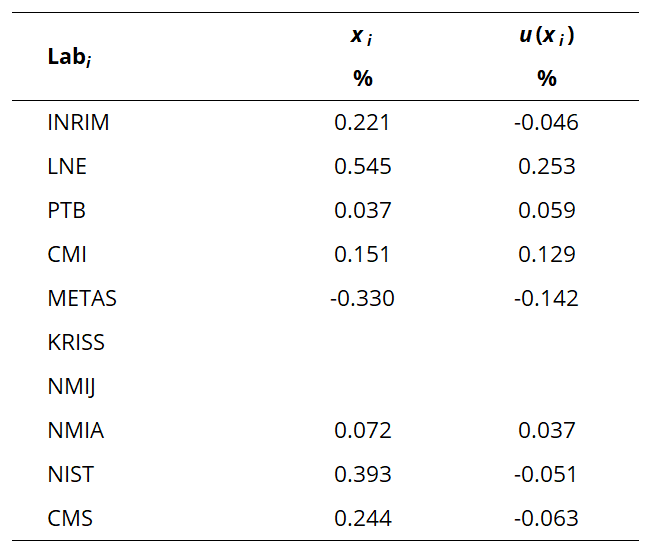

CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc D for 2 mL/min to 10 mL/min
NOMINAL VALUE 2 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.

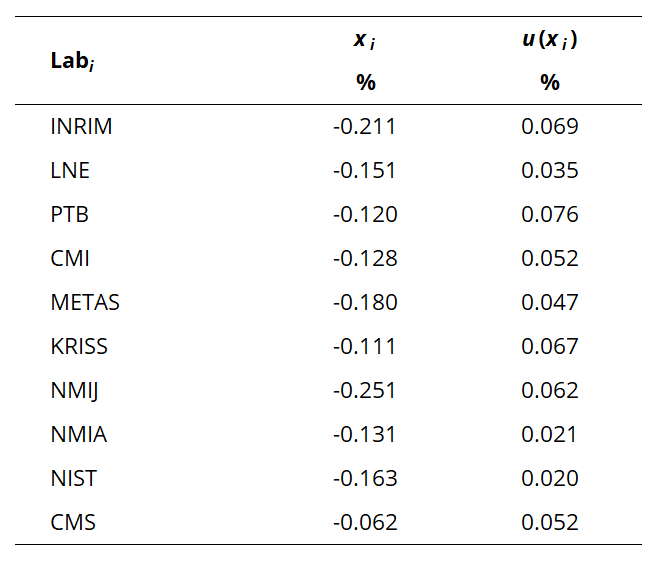

CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc A for 1 000 mL/min to 10 000 mL/min
NOMINAL VALUE 10 000 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.
| LABi | Di | Uneg,i | Upos,i | |
|---|---|---|---|---|
% |
% |
% |
||
| INRIM | -0.062 | 0.136 | ||
| LNE | -0.002 | 0.066 | ||
| PTB | 0.029 | 0.151 | ||
| CMI | 0.021 | 0.102 | ||
| METAS | -0.031 | 0.092 | ||
| KRISS | 0.038 | 0.132 | ||
| NMIJ | -0.102 | 0.122 | ||
| NMIA | 0.018 | 0.036 | ||
| NIST | -0.014 | 0.032 | ||
| CMS | 0.087 | 0.102 |

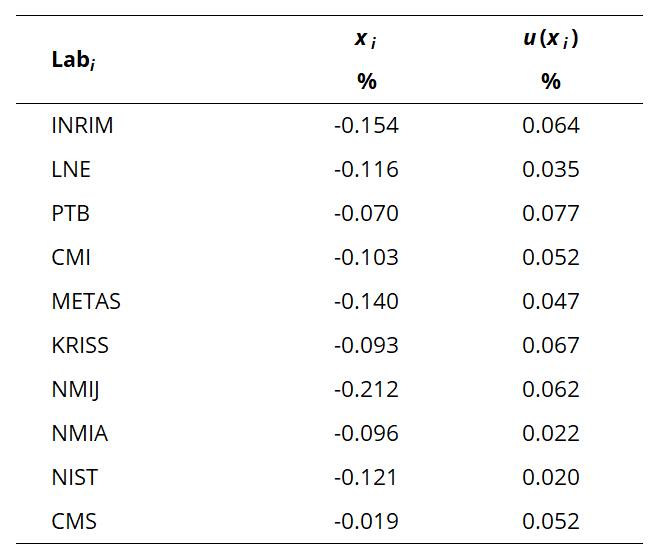

CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc A for 1 000 mL/min to 10 000 mL/min
NOMINAL VALUE 7 500 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.
| LABi | Di | Uneg,i | Upos,i | |
|---|---|---|---|---|
% |
% |
% |
||
| INRIM | -0.043 | 0.125 | ||
| LNE | -0.005 | 0.066 | ||
| PTB | 0.041 | 0.152 | ||
| CMI | 0.009 | 0.102 | ||
| METAS | -0.029 | 0.092 | ||
| KRISS | 0.018 | 0.131 | ||
| NMIJ | -0.101 | 0.122 | ||
| NMIA | 0.015 | 0.037 | ||
| NIST | -0.010 | 0.032 | ||
| CMS | 0.092 | 0.102 |

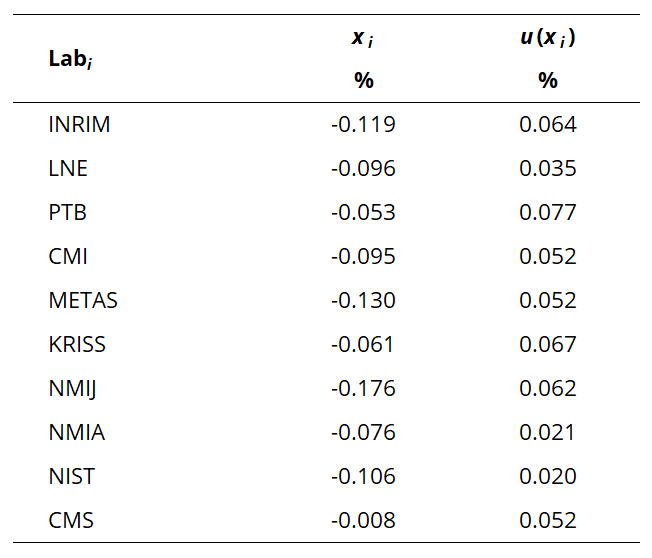

CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc A for 1 000 mL/min to 10 000 mL/min
NOMINAL VALUE 5 000 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.
| LABi | Di | Uneg,i | Upos,i | |
|---|---|---|---|---|
% |
% |
% |
||
| INRIM | -0.026 | 0.125 | ||
| LNE | -0.003 | 0.066 | ||
| PTB | 0.039 | 0.151 | ||
| CMI | -0.002 | 0.102 | ||
| METAS | -0.037 | 0.102 | ||
| KRISS | 0.031 | 0.131 | ||
| NMIJ | -0.083 | 0.122 | ||
| NMIA | 0.016 | 0.036 | ||
| NIST | -0.013 | 0.032 | ||
| CMS | 0.085 | 0.102 |

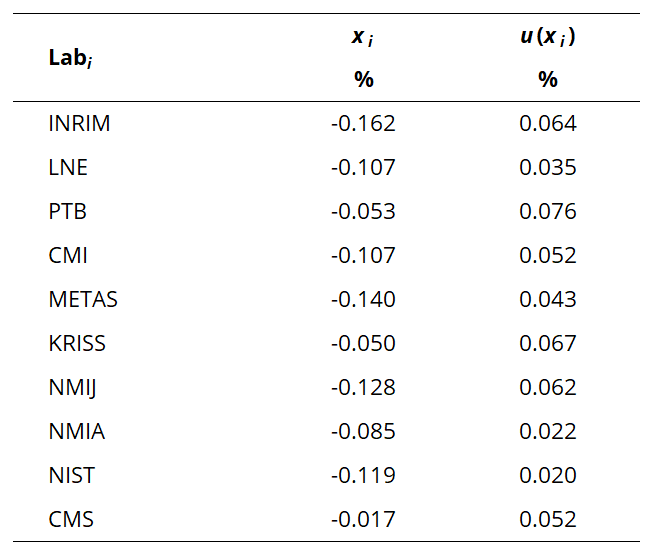

CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc A for 1 000 mL/min to 10 000 mL/min
NOMINAL VALUE 2 500 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.
| LABi | Di | Uneg,i | Upos,i | |
|---|---|---|---|---|
% |
% |
% |
||
| INRIM | -0.059 | 0.126 | ||
| LNE | -0.004 | 0.066 | ||
| PTB | 0.050 | 0.151 | ||
| CMI | -0.004 | 0.102 | ||
| METAS | -0.037 | 0.082 | ||
| KRISS | 0.053 | 0.131 | ||
| NMIJ | -0.025 | 0.122 | ||
| NMIA | 0.018 | 0.037 | ||
| NIST | -0.017 | 0.032 | ||
| CMS | 0.086 | 0.102 |
CCM.FF-K6.2017

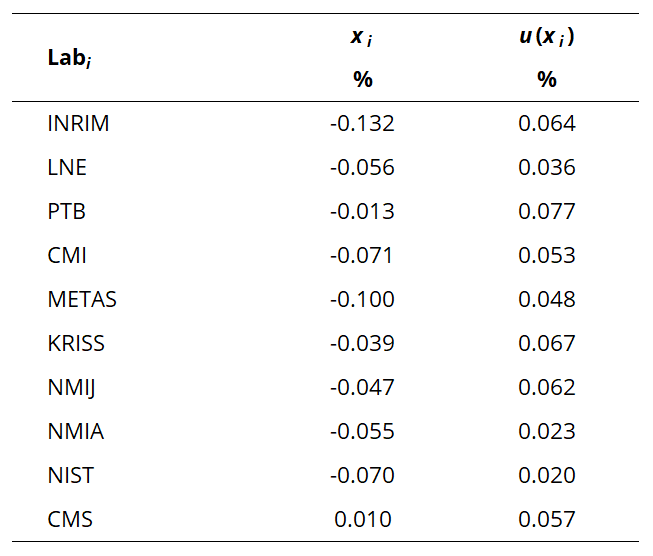

MEASURAND Gas flow
INSTRUMENT Molbloc A for 1 000 mL/min to 10 000 mL/min
NOMINAL VALUE 1 000 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.
| LABi | Di | Uneg,i | Upos,i | |
|---|---|---|---|---|
% |
% |
% |
||
| INRIM | -0.070 | 0.125 | ||
| LNE | 0.006 | 0.067 | ||
| PTB | 0.049 | 0.151 | ||
| CMI | -0.009 | 0.103 | ||
| METAS | -0.038 | 0.092 | ||
| KRISS | 0.023 | 0.131 | ||
| NMIJ | 0.015 | 0.121 | ||
| NMIA | 0.007 | 0.040 | ||
| NIST | -0.008 | 0.031 | ||
| CMS | 0.072 | 0.112 |

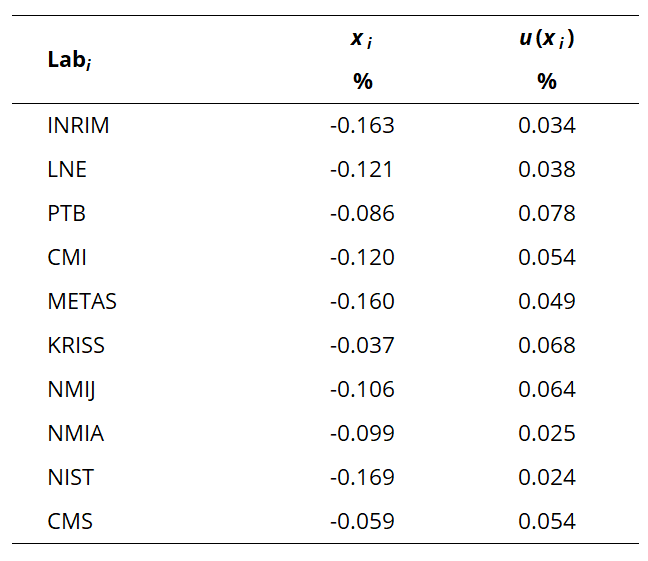

CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc B for 100 mL/min to 1 000 mL/min
NOMINAL VALUE 1 000 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.
| LABi | Di | Uneg,i | Upos,i | |
|---|---|---|---|---|
% |
% |
% |
||
| INRIM | -0.034 | 0.064 | ||
| LNE | 0.008 | 0.072 | ||
| PTB | 0.043 | 0.154 | ||
| CMI | 0.009 | 0.105 | ||
| METAS | -0.031 | 0.095 | ||
| KRISS | 0.092 | 0.134 | ||
| NMIJ | 0.023 | 0.125 | ||
| NMIA | 0.030 | 0.044 | ||
| NIST | -0.040 | 0.040 | ||
| CMS | 0.070 | 0.105 |

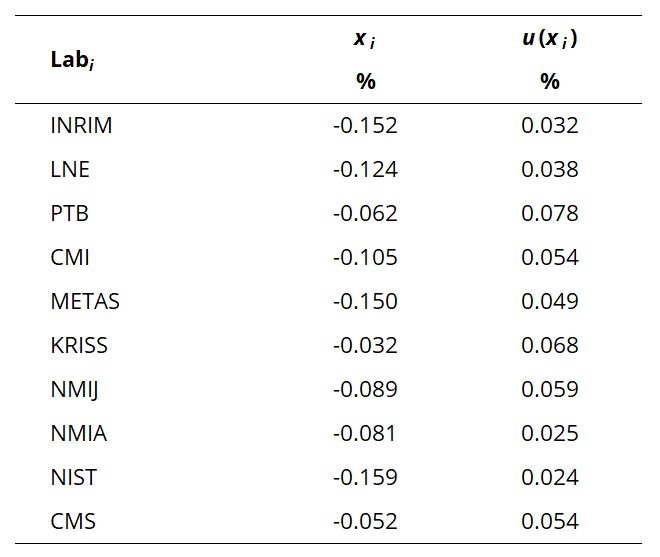

CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc B for 100 mL/min to 1 000 mL/min
NOMINAL VALUE 750 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.
| LABi | Di | Uneg,i | Upos,i | |
|---|---|---|---|---|
% |
% |
% |
||
| INRIM | -0.033 | 0.060 | ||
| LNE | -0.006 | 0.071 | ||
| PTB | 0.056 | 0.154 | ||
| CMI | 0.014 | 0.105 | ||
| METAS | -0.032 | 0.095 | ||
| KRISS | 0.086 | 0.134 | ||
| NMIJ | 0.029 | 0.115 | ||
| NMIA | 0.037 | 0.044 | ||
| NIST | -0.040 | 0.040 | ||
| CMS | 0.066 | 0.105 |

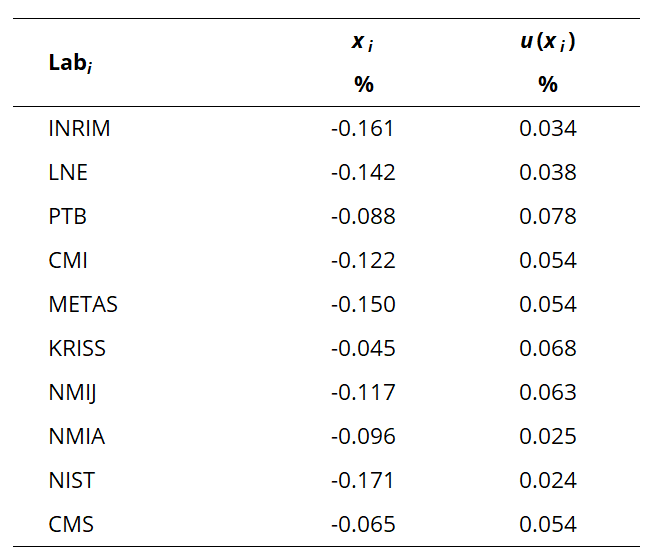

CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc B for 100 mL/min to 1 000 mL/min
NOMINAL VALUE 500 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.
| LABi | Di | Uneg,i | Upos,i | |
|---|---|---|---|---|
% |
% |
% |
||
| INRIM | -0.030 | 0.064 | ||
| LNE | -0.011 | 0.072 | ||
| PTB | 0.043 | 0.154 | ||
| CMI | 0.010 | 0.105 | ||
| METAS | -0.019 | 0.105 | ||
| KRISS | 0.086 | 0.134 | ||
| NMIJ | 0.015 | 0.124 | ||
| NMIA | 0.036 | 0.044 | ||
| NIST | -0.040 | 0.040 | ||
| CMS | 0.066 | 0.105 |

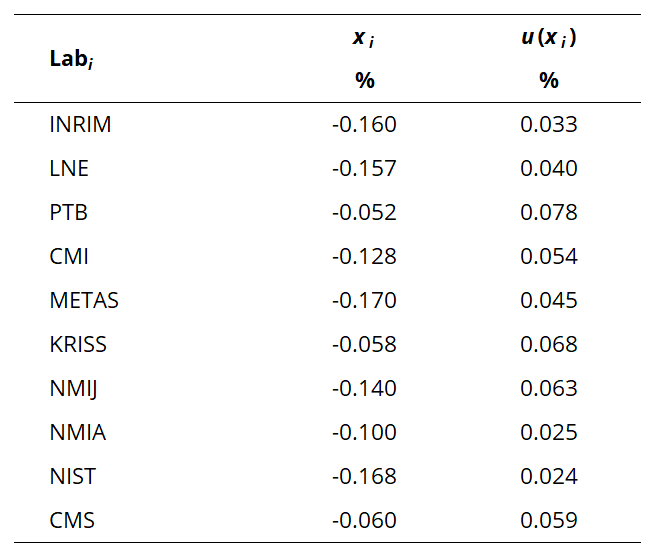

CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc B for 100 mL/min to 1 000 mL/min
NOMINAL VALUE 250 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.
| LABi | Di | Uneg,i | Upos,i | |
|---|---|---|---|---|
% |
% |
% |
||
| INRIM | -0.024 | 0.062 | ||
| LNE | -0.022 | 0.077 | ||
| PTB | 0.084 | 0.153 | ||
| CMI | 0.008 | 0.105 | ||
| METAS | -0.034 | 0.086 | ||
| KRISS | 0.077 | 0.134 | ||
| NMIJ | -0.004 | 0.124 | ||
| NMIA | 0.035 | 0.044 | ||
| NIST | -0.032 | 0.040 | ||
| CMS | 0.075 | 0.114 |

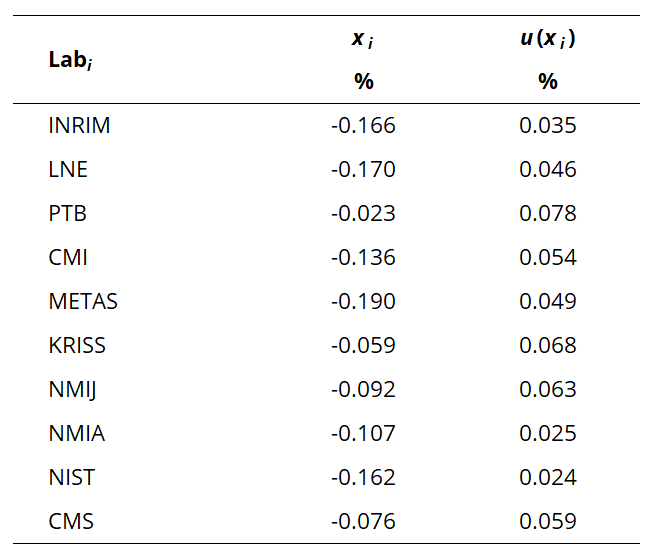

CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc B for 100 mL/min to 1 000 mL/min
NOMINAL VALUE 100 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.
| LABi | Di | Uneg,i | Upos,i | |
|---|---|---|---|---|
% |
% |
% |
||
| INRIM | -0.030 | 0.065 | ||
| LNE | -0.034 | 0.089 | ||
| PTB | 0.113 | 0.154 | ||
| CMI | 0.000 | 0.105 | ||
| METAS | -0.054 | 0.095 | ||
| KRISS | 0.077 | 0.134 | ||
| NMIJ | 0.044 | 0.124 | ||
| NMIA | 0.029 | 0.043 | ||
| NIST | -0.026 | 0.040 | ||
| CMS | 0.060 | 0.115 |
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc C for 10 mL/min to 100 mL/min
NOMINAL VALUE 100 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.
| LABi | Di | Uneg,i | Upos,i | |
|---|---|---|---|---|
% |
% |
% |
||
| INRIM | -0.016 | 0.073 | ||
| LNE | 0.013 | 0.097 | ||
| PTB | -0.012 | 0.159 | ||
| CMI | 0.111 | 0.113 | ||
| METAS | -0.071 | 0.104 | ||
| KRISS | -0.041 | 0.140 | ||
| NMIJ | 0.101 | 0.118 | ||
| NMIA | 0.018 | 0.064 | ||
| NIST | -0.043 | 0.057 | ||
| CMS | 0.022 | 0.122 |
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc C for 10 mL/min to 100 mL/min
NOMINAL VALUE 75 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.
| LABi | Di | Uneg,i | Upos,i | |
|---|---|---|---|---|
% |
% |
% |
||
| INRIM | -0.022 | 0.074 | ||
| LNE | -0.003 | 0.101 | ||
| PTB | -0.011 | 0.159 | ||
| CMI | 0.100 | 0.113 | ||
| METAS | -0.069 | 0.104 | ||
| KRISS | -0.015 | 0.140 | ||
| NMIJ | 0.111 | 0.121 | ||
| NMIA | 0.020 | 0.063 | ||
| NIST | -0.039 | 0.057 | ||
| CMS | 0.024 | 0.121 |
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc C for 10 mL/min to 100 mL/min
NOMINAL VALUE 50 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.
| LABi | Di | Uneg,i | Upos,i | |
|---|---|---|---|---|
% |
% |
% |
||
| INRIM | -0.039 | 0.075 | ||
| LNE | -0.022 | 0.111 | ||
| PTB | 0.007 | 0.159 | ||
| CMI | 0.070 | 0.112 | ||
| METAS | -0.075 | 0.113 | ||
| KRISS | -0.019 | 0.140 | ||
| NMIJ | 0.111 | 0.121 | ||
| NMIA | 0.053 | 0.063 | ||
| NIST | -0.040 | 0.057 | ||
| CMS | 0.007 | 0.122 |
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc C for 10 mL/min to 100 mL/min
NOMINAL VALUE 25 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.
| LABi | Di | Uneg,i | Upos,i | |
|---|---|---|---|---|
% |
% |
% |
||
| INRIM | -0.032 | 0.072 | ||
| LNE | -0.006 | 0.136 | ||
| PTB | 0.041 | 0.158 | ||
| CMI | 0.053 | 0.112 | ||
| METAS | -0.087 | 0.099 | ||
| KRISS | 0.025 | 0.140 | ||
| NMIA | 0.080 | 0.070 | ||
| NIST | -0.031 | 0.056 | ||
| CMS | 0.016 | 0.121 |
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc C for 10 mL/min to 100 mL/min
NOMINAL VALUE 10 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.
| LABi | Di | Uneg,i | Upos,i | |
|---|---|---|---|---|
% |
% |
% |
||
| INRIM | -0.040 | 0.072 | ||
| LNE | 0.060 | 0.230 | ||
| PTB | 0.052 | 0.161 | ||
| CMI | -0.010 | 0.125 | ||
| METAS | -0.060 | 0.170 | ||
| KRISS | 0.044 | 0.139 | ||
| NMIA | 0.007 | 0.060 | ||
| NIST | 0.006 | 0.069 | ||
| CMS | 0.016 | 0.121 |
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc D for 2 mL/min to 10 mL/min
NOMINAL VALUE 10 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.
| LABi | Di | Uneg,i | Upos,i | |
|---|---|---|---|---|
% |
% |
% |
||
| INRIM | 0.000 | 0.076 | ||
| LNE | 0.080 | 0.232 | ||
| PTB | -0.114 | 0.109 | ||
| CMI | 0.056 | 0.119 | ||
| METAS | -0.190 | 0.166 | ||
| NMIA | -0.125 | 0.091 | ||
| NIST | 0.058 | 0.066 | ||
| CMS | 0.005 | 0.118 |
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc D for 2 mL/min to 10 mL/min
NOMINAL VALUE 5 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.
| LABi | Di | Uneg,i | Upos,i | |
|---|---|---|---|---|
% |
% |
% |
||
| INRIM | -0.004 | 0.074 | ||
| LNE | 0.110 | 0.448 | ||
| PTB | -0.201 | 0.126 | ||
| CMI | 0.005 | 0.127 | ||
| METAS | -0.381 | 0.180 | ||
| NMIA | -0.078 | 0.110 | ||
| NIST | 0.050 | 0.064 | ||
| CMS | -0.047 | 0.118 |
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc D for 2 mL/min to 10 mL/min
NOMINAL VALUE 2 mL/min
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in %.
| LABi | Di | Uneg,i | Upos,i | |
|---|---|---|---|---|
% |
% |
% |
||
| INRIM | 0.147 | 0.110 | ||
| LNE | 0.471 | 0.502 | ||
| PTB | -0.037 | 0.102 | ||
| CMI | 0.077 | 0.251 | ||
| METAS | -0.404 | 0.290 | ||
| NMIA | -0.002 | 0.043 | ||
| NIST | 0.319 | 0.118 | ||
| CMS | 0.170 | 0.140 |
| Metrology area, Sub-field | Mass and related quantities, Fluid Flow |
| Description | Low pressure gas flow |
| Time of measurements | 2017 - 2019 |
| Status | Approved for equivalence |
| Final Reports of the comparisons | |
| References | |
| Measurand | Gas flow: (2, 5, 10, 25, 50, 75, 100, 250, 500, 750, 1000, 2500, 5000, 7500, and 10000) cm3/min |
| Transfer device | Four laminar flow meters |
| Comparison type | Key Comparison |
| Consultative Committee | CCM (Consultative Committee for Mass and Related Quantities) |
| Conducted by | CCM (Consultative Committee for Mass and Related Quantities) |
| Pilot institute |
CMS/ITRI
Industrial Technology Research Institute/Center for Measurement Standards Chinese Taipei |
| Contact person | Chun-lin Chiang +886-3-5741211 |
| CMI |
Czech Metrology Institute, Czechia, EURAMET |
| CMS |
ITRI Center for Measurement Standards, Chinese Taipei, APMP |
| INRIM |
Istituto Nazionale di Ricerca Metrologica, Italy, EURAMET |
| KRISS |
Korea Research Institute of Standards and Science, Korea, Republic of, APMP |
| LNE |
Laboratoire national de métrologie et d'essais, France, EURAMET |
| METAS |
Federal Institute of Metrology, Switzerland, EURAMET |
| NIST |
National Institute of Standards and Technology, United States, SIM |
| NMIA |
National Measurement Institute, Australia, Australia, APMP |
| NMIJ AIST |
National Metrology Institute of Japan, Japan, APMP |
| PTB |
Physikalisch-Technische Bundesanstalt, Germany, EURAMET |
This page proposes print-out on A4 paper (portrait) of the comparison details (best printed out using a black and white printer).
Please, select items to be printed out, then click on "OK" :
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc A for 1 000 mL/min to 10 000 mL/min
NOMINAL VALUE 10 000 mL/min
The technique to determine key comparison reference value xR and its associated standard uncertainty uR is described in Section 6 of the CCM.FF-K6.2017 Final Report.
| instrument | flowrate | xR / % | uR / % |
| molbloc-L_A | 10000 mL/min | -0.149 | 0.011 |
| molbloc-L_A | 7500 mL/min | -0.111 | 0.011 |
| molbloc-L_A | 5000 mL/min | -0.093 | 0.011 |
| molbloc-L_A | 2500 mL/min | -0.103 | |
| molbloc-L_A | 1000 mL/min | -0.062 | |
| molbloc-L_B | 1000 mL/min | -0.129 | 0.012 |
| molbloc-L_B | 750 mL/min | -0.118 | 0.012 |
| molbloc-L_B | 500 mL/min | -0.131 | 0.012 |
| molbloc-L_B | 250 mL/min | -0.136 | 0.012 |
| molbloc-L_B | 100 mL/min | -0.136 | 0.013 |
| molbloc-L_C | 100 mL/min | 0.081 | 0.015 |
| molbloc-L_C | 75 mL/min | 0.099 | 0.015 |
| molbloc-L_C | 50 mL/min | 0.105 | 0.016 |
| molbloc-L_C | 25 mL/min | 0.067 | 0.016 |
| molbloc-L_C | 10 mL/min | 0.040 | 0.018 |
| molbloc-L_D | 10 mL/min | 0.090 | 0.021 |
| molbloc-L_D | 5 mL/min | 0.205 | 0.023 |
| molbloc-L_D | 2 mL/min | 0.074 | 0.030 |
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc A for 1 000 mL/min to 10 000 mL/min
NOMINAL VALUE 7 500 mL/min
The technique to determine key comparison reference value xR and its associated standard uncertainty uR is described in Section 6 of the CCM.FF-K6.2017 Final Report.
| instrument | flowrate | xR / % | uR / % |
| molbloc-L_A | 10000 mL/min | -0.149 | 0.011 |
| molbloc-L_A | 7500 mL/min | -0.111 | 0.011 |
| molbloc-L_A | 5000 mL/min | -0.093 | 0.011 |
| molbloc-L_A | 2500 mL/min | -0.103 | |
| molbloc-L_A | 1000 mL/min | -0.062 | |
| molbloc-L_B | 1000 mL/min | -0.129 | 0.012 |
| molbloc-L_B | 750 mL/min | -0.118 | 0.012 |
| molbloc-L_B | 500 mL/min | -0.131 | 0.012 |
| molbloc-L_B | 250 mL/min | -0.136 | 0.012 |
| molbloc-L_B | 100 mL/min | -0.136 | 0.013 |
| molbloc-L_C | 100 mL/min | 0.081 | 0.015 |
| molbloc-L_C | 75 mL/min | 0.099 | 0.015 |
| molbloc-L_C | 50 mL/min | 0.105 | 0.016 |
| molbloc-L_C | 25 mL/min | 0.067 | 0.016 |
| molbloc-L_C | 10 mL/min | 0.040 | 0.018 |
| molbloc-L_D | 10 mL/min | 0.090 | 0.021 |
| molbloc-L_D | 5 mL/min | 0.205 | 0.023 |
| molbloc-L_D | 2 mL/min | 0.074 | 0.030 |
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc A for 1 000 mL/min to 10 000 mL/min
NOMINAL VALUE 5 000 mL/min
The technique to determine key comparison reference value xR and its associated standard uncertainty uR is described in Section 6 of the CCM.FF-K6.2017 Final Report.
| instrument | flowrate | xR / % | uR / % |
| molbloc-L_A | 10000 mL/min | -0.149 | 0.011 |
| molbloc-L_A | 7500 mL/min | -0.111 | 0.011 |
| molbloc-L_A | 5000 mL/min | -0.093 | 0.011 |
| molbloc-L_A | 2500 mL/min | -0.103 | |
| molbloc-L_A | 1000 mL/min | -0.062 | |
| molbloc-L_B | 1000 mL/min | -0.129 | 0.012 |
| molbloc-L_B | 750 mL/min | -0.118 | 0.012 |
| molbloc-L_B | 500 mL/min | -0.131 | 0.012 |
| molbloc-L_B | 250 mL/min | -0.136 | 0.012 |
| molbloc-L_B | 100 mL/min | -0.136 | 0.013 |
| molbloc-L_C | 100 mL/min | 0.081 | 0.015 |
| molbloc-L_C | 75 mL/min | 0.099 | 0.015 |
| molbloc-L_C | 50 mL/min | 0.105 | 0.016 |
| molbloc-L_C | 25 mL/min | 0.067 | 0.016 |
| molbloc-L_C | 10 mL/min | 0.040 | 0.018 |
| molbloc-L_D | 10 mL/min | 0.090 | 0.021 |
| molbloc-L_D | 5 mL/min | 0.205 | 0.023 |
| molbloc-L_D | 2 mL/min | 0.074 | 0.030 |
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc A for 1 000 mL/min to 10 000 mL/min
NOMINAL VALUE 2 500 mL/min
The technique to determine key comparison reference value xR and its associated standard uncertainty uR is described in Section 6 of the CCM.FF-K6.2017 Final Report.
| instrument | flowrate | xR / % | uR / % |
| molbloc-L_A | 10000 mL/min | -0.149 | 0.011 |
| molbloc-L_A | 7500 mL/min | -0.111 | 0.011 |
| molbloc-L_A | 5000 mL/min | -0.093 | 0.011 |
| molbloc-L_A | 2500 mL/min | -0.103 | |
| molbloc-L_A | 1000 mL/min | -0.062 | |
| molbloc-L_B | 1000 mL/min | -0.129 | 0.012 |
| molbloc-L_B | 750 mL/min | -0.118 | 0.012 |
| molbloc-L_B | 500 mL/min | -0.131 | 0.012 |
| molbloc-L_B | 250 mL/min | -0.136 | 0.012 |
| molbloc-L_B | 100 mL/min | -0.136 | 0.013 |
| molbloc-L_C | 100 mL/min | 0.081 | 0.015 |
| molbloc-L_C | 75 mL/min | 0.099 | 0.015 |
| molbloc-L_C | 50 mL/min | 0.105 | 0.016 |
| molbloc-L_C | 25 mL/min | 0.067 | 0.016 |
| molbloc-L_C | 10 mL/min | 0.040 | 0.018 |
| molbloc-L_D | 10 mL/min | 0.090 | 0.021 |
| molbloc-L_D | 5 mL/min | 0.205 | 0.023 |
| molbloc-L_D | 2 mL/min | 0.074 | 0.030 |
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc A for 1 000 mL/min to 10 000 mL/min
NOMINAL VALUE 1 000 mL/min
The technique to determine key comparison reference value xR and its associated standard uncertainty uR is described in Section 6 of the CCM.FF-K6.2017 Final Report.
| instrument | flowrate | xR / % | uR / % |
| molbloc-L_A | 10000 mL/min | -0.149 | 0.011 |
| molbloc-L_A | 7500 mL/min | -0.111 | 0.011 |
| molbloc-L_A | 5000 mL/min | -0.093 | 0.011 |
| molbloc-L_A | 2500 mL/min | -0.103 | |
| molbloc-L_A | 1000 mL/min | -0.062 | |
| molbloc-L_B | 1000 mL/min | -0.129 | 0.012 |
| molbloc-L_B | 750 mL/min | -0.118 | 0.012 |
| molbloc-L_B | 500 mL/min | -0.131 | 0.012 |
| molbloc-L_B | 250 mL/min | -0.136 | 0.012 |
| molbloc-L_B | 100 mL/min | -0.136 | 0.013 |
| molbloc-L_C | 100 mL/min | 0.081 | 0.015 |
| molbloc-L_C | 75 mL/min | 0.099 | 0.015 |
| molbloc-L_C | 50 mL/min | 0.105 | 0.016 |
| molbloc-L_C | 25 mL/min | 0.067 | 0.016 |
| molbloc-L_C | 10 mL/min | 0.040 | 0.018 |
| molbloc-L_D | 10 mL/min | 0.090 | 0.021 |
| molbloc-L_D | 5 mL/min | 0.205 | 0.023 |
| molbloc-L_D | 2 mL/min | 0.074 | 0.030 |
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc B for 100 mL/min to 1 000 mL/min
NOMINAL VALUE 1 000 mL/min
The technique to determine key comparison reference value xR and its associated standard uncertainty uR is described in Section 6 of the CCM.FF-K6.2017 Final Report.
| instrument | flowrate | xR / % | uR / % |
| molbloc-L_A | 10000 mL/min | -0.149 | 0.011 |
| molbloc-L_A | 7500 mL/min | -0.111 | 0.011 |
| molbloc-L_A | 5000 mL/min | -0.093 | 0.011 |
| molbloc-L_A | 2500 mL/min | -0.103 | |
| molbloc-L_A | 1000 mL/min | -0.062 | |
| molbloc-L_B | 1000 mL/min | -0.129 | 0.012 |
| molbloc-L_B | 750 mL/min | -0.118 | 0.012 |
| molbloc-L_B | 500 mL/min | -0.131 | 0.012 |
| molbloc-L_B | 250 mL/min | -0.136 | 0.012 |
| molbloc-L_B | 100 mL/min | -0.136 | 0.013 |
| molbloc-L_C | 100 mL/min | 0.081 | 0.015 |
| molbloc-L_C | 75 mL/min | 0.099 | 0.015 |
| molbloc-L_C | 50 mL/min | 0.105 | 0.016 |
| molbloc-L_C | 25 mL/min | 0.067 | 0.016 |
| molbloc-L_C | 10 mL/min | 0.040 | 0.018 |
| molbloc-L_D | 10 mL/min | 0.090 | 0.021 |
| molbloc-L_D | 5 mL/min | 0.205 | 0.023 |
| molbloc-L_D | 2 mL/min | 0.074 | 0.030 |
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc B for 100 mL/min to 1 000 mL/min
NOMINAL VALUE 750 mL/min
The technique to determine key comparison reference value xR and its associated standard uncertainty uR is described in Section 6 of the CCM.FF-K6.2017 Final Report.
| instrument | flowrate | xR / % | uR / % |
| molbloc-L_A | 10000 mL/min | -0.149 | 0.011 |
| molbloc-L_A | 7500 mL/min | -0.111 | 0.011 |
| molbloc-L_A | 5000 mL/min | -0.093 | 0.011 |
| molbloc-L_A | 2500 mL/min | -0.103 | |
| molbloc-L_A | 1000 mL/min | -0.062 | |
| molbloc-L_B | 1000 mL/min | -0.129 | 0.012 |
| molbloc-L_B | 750 mL/min | -0.118 | 0.012 |
| molbloc-L_B | 500 mL/min | -0.131 | 0.012 |
| molbloc-L_B | 250 mL/min | -0.136 | 0.012 |
| molbloc-L_B | 100 mL/min | -0.136 | 0.013 |
| molbloc-L_C | 100 mL/min | 0.081 | 0.015 |
| molbloc-L_C | 75 mL/min | 0.099 | 0.015 |
| molbloc-L_C | 50 mL/min | 0.105 | 0.016 |
| molbloc-L_C | 25 mL/min | 0.067 | 0.016 |
| molbloc-L_C | 10 mL/min | 0.040 | 0.018 |
| molbloc-L_D | 10 mL/min | 0.090 | 0.021 |
| molbloc-L_D | 5 mL/min | 0.205 | 0.023 |
| molbloc-L_D | 2 mL/min | 0.074 | 0.030 |
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc B for 100 mL/min to 1 000 mL/min
NOMINAL VALUE 500 mL/min
The technique to determine key comparison reference value xR and its associated standard uncertainty uR is described in Section 6 of the CCM.FF-K6.2017 Final Report.
| instrument | flowrate | xR / % | uR / % |
| molbloc-L_A | 10000 mL/min | -0.149 | 0.011 |
| molbloc-L_A | 7500 mL/min | -0.111 | 0.011 |
| molbloc-L_A | 5000 mL/min | -0.093 | 0.011 |
| molbloc-L_A | 2500 mL/min | -0.103 | |
| molbloc-L_A | 1000 mL/min | -0.062 | |
| molbloc-L_B | 1000 mL/min | -0.129 | 0.012 |
| molbloc-L_B | 750 mL/min | -0.118 | 0.012 |
| molbloc-L_B | 500 mL/min | -0.131 | 0.012 |
| molbloc-L_B | 250 mL/min | -0.136 | 0.012 |
| molbloc-L_B | 100 mL/min | -0.136 | 0.013 |
| molbloc-L_C | 100 mL/min | 0.081 | 0.015 |
| molbloc-L_C | 75 mL/min | 0.099 | 0.015 |
| molbloc-L_C | 50 mL/min | 0.105 | 0.016 |
| molbloc-L_C | 25 mL/min | 0.067 | 0.016 |
| molbloc-L_C | 10 mL/min | 0.040 | 0.018 |
| molbloc-L_D | 10 mL/min | 0.090 | 0.021 |
| molbloc-L_D | 5 mL/min | 0.205 | 0.023 |
| molbloc-L_D | 2 mL/min | 0.074 | 0.030 |
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc B for 100 mL/min to 1 000 mL/min
NOMINAL VALUE 250 mL/min
The technique to determine key comparison reference value xR and its associated standard uncertainty uR is described in Section 6 of the CCM.FF-K6.2017 Final Report.
| instrument | flowrate | xR / % | uR / % |
| molbloc-L_A | 10000 mL/min | -0.149 | 0.011 |
| molbloc-L_A | 7500 mL/min | -0.111 | 0.011 |
| molbloc-L_A | 5000 mL/min | -0.093 | 0.011 |
| molbloc-L_A | 2500 mL/min | -0.103 | |
| molbloc-L_A | 1000 mL/min | -0.062 | |
| molbloc-L_B | 1000 mL/min | -0.129 | 0.012 |
| molbloc-L_B | 750 mL/min | -0.118 | 0.012 |
| molbloc-L_B | 500 mL/min | -0.131 | 0.012 |
| molbloc-L_B | 250 mL/min | -0.136 | 0.012 |
| molbloc-L_B | 100 mL/min | -0.136 | 0.013 |
| molbloc-L_C | 100 mL/min | 0.081 | 0.015 |
| molbloc-L_C | 75 mL/min | 0.099 | 0.015 |
| molbloc-L_C | 50 mL/min | 0.105 | 0.016 |
| molbloc-L_C | 25 mL/min | 0.067 | 0.016 |
| molbloc-L_C | 10 mL/min | 0.040 | 0.018 |
| molbloc-L_D | 10 mL/min | 0.090 | 0.021 |
| molbloc-L_D | 5 mL/min | 0.205 | 0.023 |
| molbloc-L_D | 2 mL/min | 0.074 | 0.030 |
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc B for 100 mL/min to 1 000 mL/min
NOMINAL VALUE 100 mL/min
The technique to determine key comparison reference value xR and its associated standard uncertainty uR is described in Section 6 of the CCM.FF-K6.2017 Final Report.
| instrument | flowrate | xR / % | uR / % |
| molbloc-L_A | 10000 mL/min | -0.149 | 0.011 |
| molbloc-L_A | 7500 mL/min | -0.111 | 0.011 |
| molbloc-L_A | 5000 mL/min | -0.093 | 0.011 |
| molbloc-L_A | 2500 mL/min | -0.103 | |
| molbloc-L_A | 1000 mL/min | -0.062 | |
| molbloc-L_B | 1000 mL/min | -0.129 | 0.012 |
| molbloc-L_B | 750 mL/min | -0.118 | 0.012 |
| molbloc-L_B | 500 mL/min | -0.131 | 0.012 |
| molbloc-L_B | 250 mL/min | -0.136 | 0.012 |
| molbloc-L_B | 100 mL/min | -0.136 | 0.013 |
| molbloc-L_C | 100 mL/min | 0.081 | 0.015 |
| molbloc-L_C | 75 mL/min | 0.099 | 0.015 |
| molbloc-L_C | 50 mL/min | 0.105 | 0.016 |
| molbloc-L_C | 25 mL/min | 0.067 | 0.016 |
| molbloc-L_C | 10 mL/min | 0.040 | 0.018 |
| molbloc-L_D | 10 mL/min | 0.090 | 0.021 |
| molbloc-L_D | 5 mL/min | 0.205 | 0.023 |
| molbloc-L_D | 2 mL/min | 0.074 | 0.030 |
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc C for 10 mL/min to 100 mL/min
NOMINAL VALUE 100 mL/min
The technique to determine key comparison reference value xR and its associated standard uncertainty uR is described in Section 6 of the CCM.FF-K6.2017 Final Report.
| instrument | flowrate | xR / % | uR / % |
| molbloc-L_A | 10000 mL/min | -0.149 | 0.011 |
| molbloc-L_A | 7500 mL/min | -0.111 | 0.011 |
| molbloc-L_A | 5000 mL/min | -0.093 | 0.011 |
| molbloc-L_A | 2500 mL/min | -0.103 | |
| molbloc-L_A | 1000 mL/min | -0.062 | |
| molbloc-L_B | 1000 mL/min | -0.129 | 0.012 |
| molbloc-L_B | 750 mL/min | -0.118 | 0.012 |
| molbloc-L_B | 500 mL/min | -0.131 | 0.012 |
| molbloc-L_B | 250 mL/min | -0.136 | 0.012 |
| molbloc-L_B | 100 mL/min | -0.136 | 0.013 |
| molbloc-L_C | 100 mL/min | 0.081 | 0.015 |
| molbloc-L_C | 75 mL/min | 0.099 | 0.015 |
| molbloc-L_C | 50 mL/min | 0.105 | 0.016 |
| molbloc-L_C | 25 mL/min | 0.067 | 0.016 |
| molbloc-L_C | 10 mL/min | 0.040 | 0.018 |
| molbloc-L_D | 10 mL/min | 0.090 | 0.021 |
| molbloc-L_D | 5 mL/min | 0.205 | 0.023 |
| molbloc-L_D | 2 mL/min | 0.074 | 0.030 |
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc C for 10 mL/min to 100 mL/min
NOMINAL VALUE 75 mL/min
The technique to determine key comparison reference value xR and its associated standard uncertainty uR is described in Section 6 of the CCM.FF-K6.2017 Final Report.
| instrument | flowrate | xR / % | uR / % |
| molbloc-L_A | 10000 mL/min | -0.149 | 0.011 |
| molbloc-L_A | 7500 mL/min | -0.111 | 0.011 |
| molbloc-L_A | 5000 mL/min | -0.093 | 0.011 |
| molbloc-L_A | 2500 mL/min | -0.103 | |
| molbloc-L_A | 1000 mL/min | -0.062 | |
| molbloc-L_B | 1000 mL/min | -0.129 | 0.012 |
| molbloc-L_B | 750 mL/min | -0.118 | 0.012 |
| molbloc-L_B | 500 mL/min | -0.131 | 0.012 |
| molbloc-L_B | 250 mL/min | -0.136 | 0.012 |
| molbloc-L_B | 100 mL/min | -0.136 | 0.013 |
| molbloc-L_C | 100 mL/min | 0.081 | 0.015 |
| molbloc-L_C | 75 mL/min | 0.099 | 0.015 |
| molbloc-L_C | 50 mL/min | 0.105 | 0.016 |
| molbloc-L_C | 25 mL/min | 0.067 | 0.016 |
| molbloc-L_C | 10 mL/min | 0.040 | 0.018 |
| molbloc-L_D | 10 mL/min | 0.090 | 0.021 |
| molbloc-L_D | 5 mL/min | 0.205 | 0.023 |
| molbloc-L_D | 2 mL/min | 0.074 | 0.030 |
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc C for 10 mL/min to 100 mL/min
NOMINAL VALUE 50 mL/min
The technique to determine key comparison reference value xR and its associated standard uncertainty uR is described in Section 6 of the CCM.FF-K6.2017 Final Report.
| instrument | flowrate | xR / % | uR / % |
| molbloc-L_A | 10000 mL/min | -0.149 | 0.011 |
| molbloc-L_A | 7500 mL/min | -0.111 | 0.011 |
| molbloc-L_A | 5000 mL/min | -0.093 | 0.011 |
| molbloc-L_A | 2500 mL/min | -0.103 | |
| molbloc-L_A | 1000 mL/min | -0.062 | |
| molbloc-L_B | 1000 mL/min | -0.129 | 0.012 |
| molbloc-L_B | 750 mL/min | -0.118 | 0.012 |
| molbloc-L_B | 500 mL/min | -0.131 | 0.012 |
| molbloc-L_B | 250 mL/min | -0.136 | 0.012 |
| molbloc-L_B | 100 mL/min | -0.136 | 0.013 |
| molbloc-L_C | 100 mL/min | 0.081 | 0.015 |
| molbloc-L_C | 75 mL/min | 0.099 | 0.015 |
| molbloc-L_C | 50 mL/min | 0.105 | 0.016 |
| molbloc-L_C | 25 mL/min | 0.067 | 0.016 |
| molbloc-L_C | 10 mL/min | 0.040 | 0.018 |
| molbloc-L_D | 10 mL/min | 0.090 | 0.021 |
| molbloc-L_D | 5 mL/min | 0.205 | 0.023 |
| molbloc-L_D | 2 mL/min | 0.074 | 0.030 |
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc C for 10 mL/min to 100 mL/min
NOMINAL VALUE 25 mL/min
The technique to determine key comparison reference value xR and its associated standard uncertainty uR is described in Section 6 of the CCM.FF-K6.2017 Final Report.
| instrument | flowrate | xR / % | uR / % |
| molbloc-L_A | 10000 mL/min | -0.149 | 0.011 |
| molbloc-L_A | 7500 mL/min | -0.111 | 0.011 |
| molbloc-L_A | 5000 mL/min | -0.093 | 0.011 |
| molbloc-L_A | 2500 mL/min | -0.103 | |
| molbloc-L_A | 1000 mL/min | -0.062 | |
| molbloc-L_B | 1000 mL/min | -0.129 | 0.012 |
| molbloc-L_B | 750 mL/min | -0.118 | 0.012 |
| molbloc-L_B | 500 mL/min | -0.131 | 0.012 |
| molbloc-L_B | 250 mL/min | -0.136 | 0.012 |
| molbloc-L_B | 100 mL/min | -0.136 | 0.013 |
| molbloc-L_C | 100 mL/min | 0.081 | 0.015 |
| molbloc-L_C | 75 mL/min | 0.099 | 0.015 |
| molbloc-L_C | 50 mL/min | 0.105 | 0.016 |
| molbloc-L_C | 25 mL/min | 0.067 | 0.016 |
| molbloc-L_C | 10 mL/min | 0.040 | 0.018 |
| molbloc-L_D | 10 mL/min | 0.090 | 0.021 |
| molbloc-L_D | 5 mL/min | 0.205 | 0.023 |
| molbloc-L_D | 2 mL/min | 0.074 | 0.030 |
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc C for 10 mL/min to 100 mL/min
NOMINAL VALUE 10 mL/min
The technique to determine key comparison reference value xR and its associated standard uncertainty uR is described in Section 6 of the CCM.FF-K6.2017 Final Report.
| instrument | flowrate | xR / % | uR / % |
| molbloc-L_A | 10000 mL/min | -0.149 | 0.011 |
| molbloc-L_A | 7500 mL/min | -0.111 | 0.011 |
| molbloc-L_A | 5000 mL/min | -0.093 | 0.011 |
| molbloc-L_A | 2500 mL/min | -0.103 | |
| molbloc-L_A | 1000 mL/min | -0.062 | |
| molbloc-L_B | 1000 mL/min | -0.129 | 0.012 |
| molbloc-L_B | 750 mL/min | -0.118 | 0.012 |
| molbloc-L_B | 500 mL/min | -0.131 | 0.012 |
| molbloc-L_B | 250 mL/min | -0.136 | 0.012 |
| molbloc-L_B | 100 mL/min | -0.136 | 0.013 |
| molbloc-L_C | 100 mL/min | 0.081 | 0.015 |
| molbloc-L_C | 75 mL/min | 0.099 | 0.015 |
| molbloc-L_C | 50 mL/min | 0.105 | 0.016 |
| molbloc-L_C | 25 mL/min | 0.067 | 0.016 |
| molbloc-L_C | 10 mL/min | 0.040 | 0.018 |
| molbloc-L_D | 10 mL/min | 0.090 | 0.021 |
| molbloc-L_D | 5 mL/min | 0.205 | 0.023 |
| molbloc-L_D | 2 mL/min | 0.074 | 0.030 |
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc D for 2 mL/min to 10 mL/min
NOMINAL VALUE 10 mL/min
The technique to determine key comparison reference value xR and its associated standard uncertainty uR is described in Section 6 of the CCM.FF-K6.2017 Final Report.
| instrument | flowrate | xR / % | uR / % |
| molbloc-L_A | 10000 mL/min | -0.149 | 0.011 |
| molbloc-L_A | 7500 mL/min | -0.111 | 0.011 |
| molbloc-L_A | 5000 mL/min | -0.093 | 0.011 |
| molbloc-L_A | 2500 mL/min | -0.103 | |
| molbloc-L_A | 1000 mL/min | -0.062 | |
| molbloc-L_B | 1000 mL/min | -0.129 | 0.012 |
| molbloc-L_B | 750 mL/min | -0.118 | 0.012 |
| molbloc-L_B | 500 mL/min | -0.131 | 0.012 |
| molbloc-L_B | 250 mL/min | -0.136 | 0.012 |
| molbloc-L_B | 100 mL/min | -0.136 | 0.013 |
| molbloc-L_C | 100 mL/min | 0.081 | 0.015 |
| molbloc-L_C | 75 mL/min | 0.099 | 0.015 |
| molbloc-L_C | 50 mL/min | 0.105 | 0.016 |
| molbloc-L_C | 25 mL/min | 0.067 | 0.016 |
| molbloc-L_C | 10 mL/min | 0.040 | 0.018 |
| molbloc-L_D | 10 mL/min | 0.090 | 0.021 |
| molbloc-L_D | 5 mL/min | 0.205 | 0.023 |
| molbloc-L_D | 2 mL/min | 0.074 | 0.030 |
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc D for 2 mL/min to 10 mL/min
NOMINAL VALUE 5 mL/min
The technique to determine key comparison reference value xR and its associated standard uncertainty uR is described in Section 6 of the CCM.FF-K6.2017 Final Report.
| instrument | flowrate | xR / % | uR / % |
| molbloc-L_A | 10000 mL/min | -0.149 | 0.011 |
| molbloc-L_A | 7500 mL/min | -0.111 | 0.011 |
| molbloc-L_A | 5000 mL/min | -0.093 | 0.011 |
| molbloc-L_A | 2500 mL/min | -0.103 | |
| molbloc-L_A | 1000 mL/min | -0.062 | |
| molbloc-L_B | 1000 mL/min | -0.129 | 0.012 |
| molbloc-L_B | 750 mL/min | -0.118 | 0.012 |
| molbloc-L_B | 500 mL/min | -0.131 | 0.012 |
| molbloc-L_B | 250 mL/min | -0.136 | 0.012 |
| molbloc-L_B | 100 mL/min | -0.136 | 0.013 |
| molbloc-L_C | 100 mL/min | 0.081 | 0.015 |
| molbloc-L_C | 75 mL/min | 0.099 | 0.015 |
| molbloc-L_C | 50 mL/min | 0.105 | 0.016 |
| molbloc-L_C | 25 mL/min | 0.067 | 0.016 |
| molbloc-L_C | 10 mL/min | 0.040 | 0.018 |
| molbloc-L_D | 10 mL/min | 0.090 | 0.021 |
| molbloc-L_D | 5 mL/min | 0.205 | 0.023 |
| molbloc-L_D | 2 mL/min | 0.074 | 0.030 |
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc D for 2 mL/min to 10 mL/min
NOMINAL VALUE 2 mL/min
The technique to determine key comparison reference value xR and its associated standard uncertainty uR is described in Section 6 of the CCM.FF-K6.2017 Final Report.
| instrument | flowrate | xR / % | uR / % |
| molbloc-L_A | 10000 mL/min | -0.149 | 0.011 |
| molbloc-L_A | 7500 mL/min | -0.111 | 0.011 |
| molbloc-L_A | 5000 mL/min | -0.093 | 0.011 |
| molbloc-L_A | 2500 mL/min | -0.103 | |
| molbloc-L_A | 1000 mL/min | -0.062 | |
| molbloc-L_B | 1000 mL/min | -0.129 | 0.012 |
| molbloc-L_B | 750 mL/min | -0.118 | 0.012 |
| molbloc-L_B | 500 mL/min | -0.131 | 0.012 |
| molbloc-L_B | 250 mL/min | -0.136 | 0.012 |
| molbloc-L_B | 100 mL/min | -0.136 | 0.013 |
| molbloc-L_C | 100 mL/min | 0.081 | 0.015 |
| molbloc-L_C | 75 mL/min | 0.099 | 0.015 |
| molbloc-L_C | 50 mL/min | 0.105 | 0.016 |
| molbloc-L_C | 25 mL/min | 0.067 | 0.016 |
| molbloc-L_C | 10 mL/min | 0.040 | 0.018 |
| molbloc-L_D | 10 mL/min | 0.090 | 0.021 |
| molbloc-L_D | 5 mL/min | 0.205 | 0.023 |
| molbloc-L_D | 2 mL/min | 0.074 | 0.030 |
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc A for 1 000 mL/min to 10 000 mL/min
NOMINAL VALUE 10 000 mL/min
xi measurement value issued by laboratory i, Labi
ui combined standard uncertainty of xi
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc A for 1 000 mL/min to 10 000 mL/min
NOMINAL VALUE 7 500 mL/min
xi measurement value issued by laboratory i, Labi
ui combined standard uncertainty of xi
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc A for 1 000 mL/min to 10 000 mL/min
NOMINAL VALUE 5 000 mL/min
xi measurement value issued by laboratory i, Labi
ui combined standard uncertainty of xi
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc A for 1 000 mL/min to 10 000 mL/min
NOMINAL VALUE 2 500 mL/min
xi measurement value issued by laboratory i, Labi
ui combined standard uncertainty of xi
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc A for 1 000 mL/min to 10 000 mL/min
NOMINAL VALUE 1 000 mL/min
xi measurement value issued by laboratory i, Labi
ui combined standard uncertainty of xi
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc B for 100 mL/min to 1 000 mL/min
NOMINAL VALUE 1 000 mL/min
xi measurement value issued by laboratory i, Labi
ui combined standard uncertainty of xi
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc B for 100 mL/min to 1 000 mL/min
NOMINAL VALUE 750 mL/min
xi measurement value issued by laboratory i, Labi
ui combined standard uncertainty of xi
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc B for 100 mL/min to 1 000 mL/min
NOMINAL VALUE 500 mL/min
xi measurement value issued by laboratory i, Labi
ui combined standard uncertainty of xi
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc B for 100 mL/min to 1 000 mL/min
NOMINAL VALUE 250 mL/min
xi measurement value issued by laboratory i, Labi
ui combined standard uncertainty of xi
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc B for 100 mL/min to 1 000 mL/min
NOMINAL VALUE 100 mL/min
xi measurement value issued by laboratory i, Labi
ui combined standard uncertainty of xi
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc C for 10 mL/min to 100 mL/min
NOMINAL VALUE 100 mL/min
xi measurement value issued by laboratory i, Labi
ui combined standard uncertainty of xi
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc C for 10 mL/min to 100 mL/min
NOMINAL VALUE 75 mL/min
xi measurement value issued by laboratory i, Labi
ui combined standard uncertainty of xi
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc C for 10 mL/min to 100 mL/min
NOMINAL VALUE 50 mL/min
xi measurement value issued by laboratory i, Labi
ui combined standard uncertainty of xi
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc C for 10 mL/min to 100 mL/min
NOMINAL VALUE 25 mL/min
xi measurement value issued by laboratory i, Labi
ui combined standard uncertainty of xi
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc C for 10 mL/min to 100 mL/min
NOMINAL VALUE 10 mL/min
xi measurement value issued by laboratory i, Labi
ui combined standard uncertainty of xi
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc D for 2 mL/min to 10 mL/min
NOMINAL VALUE 10 mL/min
xi measurement value issued by laboratory i, Labi
ui combined standard uncertainty of xi
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc D for 2 mL/min to 10 mL/min
NOMINAL VALUE 5 mL/min
xi measurement value issued by laboratory i, Labi
ui combined standard uncertainty of xi
CCM.FF-K6.2017
MEASURAND Gas flow
INSTRUMENT Molbloc D for 2 mL/min to 10 mL/min
NOMINAL VALUE 2 mL/min
xi measurement value issued by laboratory i, Labi
ui combined standard uncertainty of xi
