CCTK6 and SIM.TK6.3
MEASURAND Realization of local scale of dewpoint temperature of humid gas
NOMINAL VALUE 10 °C
Degrees of equivalence represented by D_{i} and its expanded uncertainty U_{i} at a 95 % level of confidence, both expressed in°C.
CCTK6, SIM.TK6.3 and SIM.TK6.7
MEASURAND Realization of local scale of dewpoint temperature of humid gas
NOMINAL VALUE 1 °C
Degrees of equivalence represented by D_{i} and its expanded uncertainty U_{i} at a 95 % level of confidence, both expressed in °C.
CCTK6, SIM.TK6.3 and SIM.TK6.7
MEASURAND Realization of local scale of dewpoint temperature of humid gas
NOMINAL VALUE 20 °C
Degrees of equivalence represented by D_{i} and its expanded uncertainty U_{i} at a 95 % level of confidence, both expressed in °C.
CCTK6 and CCTK6.2
MEASURAND Realization of local scale of dewpoint temperature of humid gas
NOMINAL VALUE 50 °C
Degrees of equivalence represented by D_{i }and its expanded uncertainty U_{i} at a 95 % level of confidence, both expressed in °C.
CCTK6 and CCTK6.2
MEASURAND Realization of local scale of dewpoint temperature of humid gas
NOMINAL VALUE 30 °C
Degrees of equivalence represented by D_{i} and its expanded uncertainty U_{i} at a 95 % level of confidence, both expressed in °C.
CCTK6 and SIM.TK6.3
MEASURAND Realization of local scale of dewpoint temperature of humid gas
NOMINAL VALUE 10 °C
Degrees of equivalence represented by D_{i} and its expanded uncertainty U_{i} at a 95 % level of confidence, both expressed in °C.
LAB_{i}  D_{i}  U_{neg,i}  U_{pos,i}

°C
°C
°C

NPL  0.007  0.05
NMIJ  0.015  0.062
VSL  0.069  0.047
MIKES  0.031  0.046
INTA  0.013  0.044
INRIM  0.039  0.045
NIST  0.039  0.043
NMC, A*STAR  0.028  0.058
NIM  0.091  0.099
VNIIFTRI  0.031  0.041
INMETRO  0.04  0.2
CCTK6, SIM.TK6.3 and SIM.TK6.7
MEASURAND Realization of local scale of dewpoint temperature of humid gas
NOMINAL VALUE 1 °C
Degrees of equivalence represented by D_{i} and its expanded uncertainty U_{i} at a 95 % level of confidence, both expressed in °C.
LAB_{i}  D_{i}  U_{neg,i}  U_{pos,i}

°C
°C
°C

NPL  0.045  0.071
NMIJ  0.002  0.07
VSL  0.056  0.125
MIKES  0.017  0.061
INTA  0.022  0.059
INRIM  0.01  0.058
NIST  0.011  0.06
NMC, A*STAR  0.029  0.083
NIM  0.071  0.086
VNIIFTRI  0.026  0.058
INMETRO  0.04  0.21
INTI  0.001  0.31
CCTK6, SIM.TK6.3 and SIM.TK6.7
MEASURAND Realization of local scale of dewpoint temperature of humid gas
NOMINAL VALUE 20 °C
Degrees of equivalence represented by D_{i} and its expanded uncertainty U_{i} at a 95 % level of confidence, both expressed in °C.
LAB_{i}  D_{i}  U_{neg,i}  U_{pos,i}

°C
°C
°C

NPL  0.014  0.049
NMIJ  0  0.062
VSL  0.005  0.057
MIKES  0.006  0.051
INTA  0.016  0.048
INRIM  0.015  0.047
NIST  0.006  0.05
NMC, A*STAR  0.028  0.082
NIM  0.097  0.073
VNIIFTRI  0.003  0.046
INMETRO  0.01  0.21
INTI  0.062  0.27
CCTK6 and CCTK6.2
MEASURAND Realization of local scale of dewpoint temperature of humid gas
NOMINAL VALUE 50 °C
Degrees of equivalence represented by D_{i }and its expanded uncertainty U_{i} at a 95 % level of confidence, both expressed in °C.
LAB_{i}  D_{i}  U_{neg,i}  U_{pos,i}

°C
°C
°C

NPL  0.014  0.028
NMIJ  0.023  0.100
VSL  0.153  0.134
MIKES  0.037  0.043
INTA  0.012  0.034
INRIM  0.000  0.037
NMC, A*STAR  0.046  0.067
NIM  0.060  0.119
VNIIFTRI  0.011  0.032
NIST  0.012  0.142
CCTK6 and CCTK6.2
MEASURAND Realization of local scale of dewpoint temperature of humid gas
NOMINAL VALUE 30 °C
Degrees of equivalence represented by D_{i} and its expanded uncertainty U_{i} at a 95 % level of confidence, both expressed in °C.
LAB_{i}  D_{i}  U_{neg,i}  U_{pos,i}

°C
°C
°C

NPL  0.034  0.064
NMIJ  0.050  0.057
VSL  0.015  0.105
MIKES  0.016  0.046
INTA  0.003  0.041
INRIM  0.027  0.040
NMC, A*STAR  0.028  0.062
NIM  0.055  0.094
VNIIFTRI  0.013  0.038
NIST  0.048  0.075
Metrology area, Subfield  Thermometry, Humidity
Description  Realizations of local scales of dew/frostpoint temperature of humid air
Time of measurements  2009  2010
Status  Approved for equivalence
Final Reports of the comparisons
Measurand  Dewpoint temperature: 30 °C, 10 °C, 0 °C and 20 °C
Transfer device  Dedicated transfer standard
Comparison type  Key Comparison
Consultative Committee  CCT (Consultative Committee for Thermometry)
Conducted by  SIM (InterAmerican Metrology System)
Comments

Pilot institute
NIST
National Institute of Standards and Technology United States
Contact person  Peter HUANG +1 301 975 6210
This page proposes printout on A4 paper (portrait) of the comparison details (best printed out using a black and white printer).
Please, select items to be printed out, then click on "OK" :
CCTK6 and SIM.TK6.3
MEASURAND Realization of local scale of dewpoint temperature of humid gas
NOMINAL VALUE 10 °C
The key comparison reference value, x_{R}, was obtained from the weighted mean of the participants' results excluding outliers. The standard uncertainty, u_{R}, of x_{R} included the uncertainty of the weighted mean and the additionnal uncertainty contribution for the drift of the hygrometers. The calculation of key comparison reference value is explained in section 7.1 on page 44 of the Final Report.
x_{R} = 0.096 °C, and u_{R} = 0.019 °C
The degree of equivalence of laboratory i with respect to xR is given by a pair of terms: Di and Ui, its expanded uncertainty (k = 2), both expressed in °C. (See section 7.3 on page 46 of the Final Report).
When required, the degree of equivalence between two laboratories i and j can be evaluated by a pair of terms, both expressed in °C: Dij and Uij its expanded uncertainty (k = 2) (See section 6 on page 34 of the Final Report).
Linking SIM.TK6.3 to CCTK6
The linking was made via NIST (United States of America) having participated in CCTK6 (see Section 9 of the SIM.TK6.7 Final Report).
CCTK6, SIM.TK6.3 and SIM.TK6.7
MEASURAND Realization of local scale of dewpoint temperature of humid gas
NOMINAL VALUE 1 °C
The key comparison reference value, x_{R}, was obtained from the weighted mean of the participants' results excluding outliers. The standard uncertainty, u_{R}, of x_{R} included the uncertainty of the weighted mean and the additionnal uncertainty contribution for the drift of the hygrometers. The calculation of key comparison reference value is explained in section 7.1 on page 44 of the Final Report.
xR = 0.111 °C, and uR = 0.028 °C
The degree of equivalence of laboratory i with respect to x_{R} is given by a pair of terms: D_{i}_{ }and U_{i}, its expanded uncertainty (k = 2), both expressed in °C. (See section 7.3 on page 46 of the Final Report).
When required, the degree of equivalence between two laboratories i and j can be evaluated by a pair of terms, both expressed in °C: D_{ij}_{ }and U_{ij}_{ }its expanded uncertainty (k = 2) (See section 6 on page 34 of the Final Report).
Linking SIM.TK6.3 to CCTK6
The linking was made via NIST (United States of America) having participated in CCTK6 (see Section 9 of the SIM.TK6.7 Final Report).
Linking SIM.TK6.7 to CCTK6
The linking was made via INMETRO (Brazil) and NIST (United States of America) having participated both in SIM.TK6.3, and NIST having participated in CCTK6 (see Section 9 of the SIM.TK6.7 Final Report).
CCTK6, SIM.TK6.3 and SIM.TK6.7
MEASURAND Realization of local scale of dewpoint temperature of humid gas
NOMINAL VALUE 20 °C
The key comparison reference value, x_{R}, was obtained from the weighted mean of the participants' results excluding outliers. The standard uncertainty, u_{R}, of x_{R} included the uncertainty of the weighted mean and the additionnal uncertainty contribution for the drift of the hygrometers. The calculation of key comparison reference value is explained in section 7.1 on page 44 of the Final Report.
xR = 0.147 °C, and uR = 0.022 °C
The degree of equivalence of laboratory i with respect to x_{R} is given by a pair of terms: D_{i}_{ }and U_{i}, its expanded uncertainty (k = 2), both expressed in °C. (See section 7.3 on page 46 of the Final Report).
When required, the degree of equivalence between two laboratories i and j can be evaluated by a pair of terms, both expressed in °C: D_{ij} and U_{ij }its expanded uncertainty (k = 2) (See section 6 on page 34 of the Final Report).
Linking SIM.TK6.3 to CCTK6
The linking was made via NIST (United States of America) having participated in CCTK6 (see Section 9 of the SIM.TK6.7 Final Report).
Linking SIM.TK6.7 to CCTK6
The linking was made via INMETRO (Brazil) and NIST (United States of America) having participated both in SIM.TK6.3, and NIST having participated in CCTK6 (see Section 9 of the SIM.TK6.7 Final Report).
CCTK6 and CCTK6.2
MEASURAND Realization of local scale of dewpoint temperature of humid gas
NOMINAL VALUE 50 °C
The key comparison reference value, x_{R,} was obtained from the weighted mean of the participants' results excluding outliers. The standard uncertainty, u_{R}, of x_{R} included the uncertainty of the weighted mean and the additionnal uncertainty contribution for the drift of the hygrometers. The calculation of key comparison reference value is explained in section 7.1 on page 44 of the Final Report.
x_{R} = 0.055 °C, and u_{R} = 0.011 °C
The degree of equivalence of laboratory i with respect to x_{R }is given by a pair of terms: D_{i} and U_{i}, its expanded uncertainty (k = 2), both expressed in °C. (See section 7.3 on page 46 of the Final Report).
When required, the degree of equivalence between two laboratories i and j can be evaluated by a pair of terms, both expressed in °C: D_{ij} and U_{ij} its expanded uncertainty (k = 2) (See section 6 on page 34 of the Final Report).
Linking CCTK6.2 to CCTK6
The results of CCTK6.2 are linked to CCTK6 via NMIJ AIST who participated in both comparisons.
CCTK6 and CCTK6.2
MEASURAND Realization of local scale of dewpoint temperature of humid gas
NOMINAL VALUE 30 °C
The key comparison reference value, x_{R}, was obtained from the weighted mean of the participants' results excluding outliers. The standard uncertainty, u_{R}, of x_{R} included the uncertainty of the weighted mean and the additionnal uncertainty contribution for the drift of the hygrometers. The calculation of key comparison reference value is explained in section 7.1 on page 44 of the Final Report.
x_{R} = 0.090 °C, and u_{R} = 0.017 °C
The degree of equivalence of laboratory i with respect to x_{R} is given by a pair of terms: D_{i} and U_{i}, its expanded uncertainty (k = 2), both expressed in °C. (See section 7.3 on page 46 of the Final Report).
When required, the degree of equivalence between two laboratories i and j can be evaluated by a pair of terms, both expressed in °C: D_{ij} and U_{ij} its expanded uncertainty (k = 2) (See section 6 on page 34 of the Final Report).
Linking CCTK6.2 to CCTK6
The results of CCTK6.2 were linked to CCTK6 via NMIJ AIST who participated in both comparisons.
CCTK6
MEASURAND Realization of local scale of dewpoint temperature of humid gas
NOMINAL VALUE 10 °C

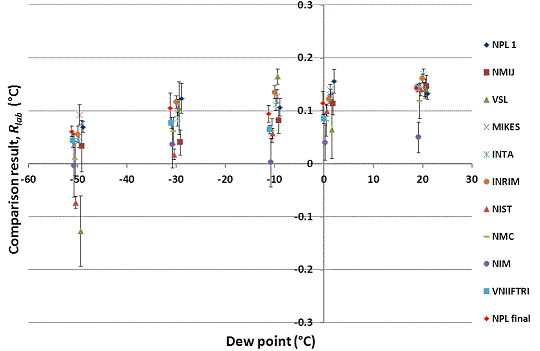

R_{Lab i } measurement result reported by each laboratory i which was calculated from the mean of simultaneous readings of two instruments, and taken as the midpoint between the two instrument mean readings (See section 5 on page 31 of the Final Report)
u_{i} combined standard uncertainty of R_{Lab i}
The full set of data for the results and associated standard uncertainties reported by each laboratory i are available in Appendix 2, and 3 of the Final Report.
CCTK6
MEASURAND Realization of local scale of dewpoint temperature of humid gas
NOMINAL VALUE 1 °C
R_{Lab i } measurement result reported by each laboratory i which was calculated from the mean of simultaneous readings of two instruments, and taken as the midpoint between the two instrument mean readings (See section 5 on page 31 of the Final Report)
u_{i} combined standard uncertainty of R_{Lab i}
The full set of data for the results and associated standard uncertainties reported by each laboratory i are available in Appendix 2, and 3 of the Final Report.
CCTK6
MEASURAND Realization of local scale of dewpoint temperature of humid gas
NOMINAL VALUE 20 °C
R_{Lab i } measurement result reported by each laboratory i which was calculated from the mean of simultaneous readings of two instruments, and taken as the midpoint between the two instrument mean readings (See section 5 on page 31 of the Final Report)
u_{i} combined standard uncertainty of R_{Lab i}
The full set of data for the results and associated standard uncertainties reported by each laboratory i are available in Appendix 2, and 3 of the Final Report.
CCTK6
MEASURAND Realization of local scale of dewpoint temperature of humid gas
NOMINAL VALUE 50 °C
R_{Lab i } measurement result reported by each laboratory i which was calculated from the mean of simultaneous readings of two instruments, and taken as the midpoint between the two instrument mean readings (See section 5 on page 31 of the Final Report)
u_{i} combined standard uncertainty of R_{Lab i}
The full set of data for the results and associated standard uncertainties reported by each laboratory i are available in Appendix 2, and 3 of the Final Report.
CCTK6
MEASURAND Realization of local scale of dewpoint temperature of humid gas
NOMINAL VALUE 30 °C
R_{Lab i } measurement result reported by each laboratory i which was calculated from the mean of simultaneous readings of two instruments, and taken as the midpoint between the two instrument mean readings (See section 5 on page 31 of the Final Report)
u_{i }combined standard uncertainty of R_{Lab i}
The full set of data for the results and associated standard uncertainties reported by each laboratory i are available in Appendix 2, and 3 of the Final Report.
