CCQM-K111, CCQM-K111.1, EURAMET.QM-K111, COOMET.QM-K111, APMP.QM-K111 and SIM.QM-K111
MEASURAND : Amount-of-substance fraction of Propane in Nitrogen
NOMINAL VALUE : 1000 µmol/mol

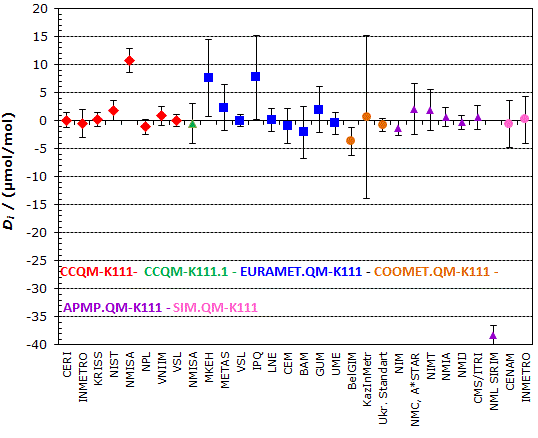

Degrees of equivalence, Di and its expanded uncertainty Ui (95 % level of confidence), expressed in µmol/mol
CCQM-K111, CCQM-K111.1, EURAMET.QM-K111, COOMET.QM-K111, APMP.QM-K111 and SIM.QM-K111
MEASURAND : Amount-of-substance fraction of Propane in Nitrogen
NOMINAL VALUE : 1000 µmol/mol

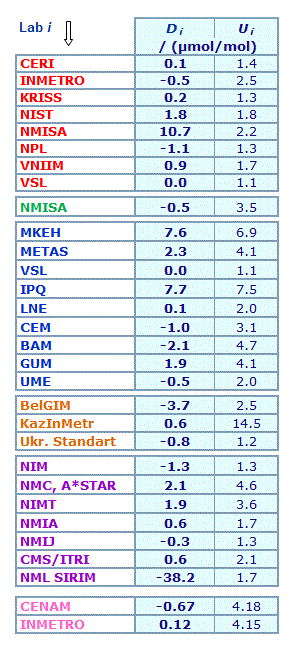

Degrees of equivalence, Di and expanded uncertainty Ui (95% level of confidence), expressed in µmol/mol
Red : CCQM-K111
Green : CCQM-K111.1
Blue : EURAMET.QM-K111
Orange : COOMET.QM-K111
Violet : APMP.QM-K111
Pink: SIM.QM-K111
Results are presented under A4 printable format in Summary Results (PDF file).
| Metrology area, Sub-field | Chemistry and Biology, Gases |
| Description | Propane in nitrogen |
| Time of measurements | 2014 |
| Status | Approved for equivalence |
| Final Reports of the comparisons | |
| Measurand | Amount-of-substance fraction of propane in nitrogen |
| Transfer device | Dedicated samples |
| Comparison type | Key Comparison |
| Consultative Committee | CCQM (Consultative Committee for Amount of Substance) |
| Conducted by | COOMET (Euro-Asian Cooperation of National Metrological Institutions) |
| Comments | Results published on 21 July 2017 Amount-of-substance fraction of propane in nitrogen CCQM-K111.1, EURAMET.QM-K111, COOMET.QM-K111, APMP.QM-K111 and SIM.QM-K111 are linked to CCQM-K111.
|
| Pilot institute |
VNIIM
D.I. Mendeleyev Institute for Metrology, Rosstandart Russian Federation |
| Contact person | Leonid Konopelko +7 812 315 11 45 |
| Pilot laboratory | |
|---|---|
| VNIIM |
D.I. Mendeleyev Institute for Metrology, Rosstandart, Russian Federation, COOMET |
| BelGIM |
Belarussian State Institute for Metrology, Belarus, COOMET |
| KazStandard |
Kazakhstan Institute of Standardization and Metrology, Kazakhstan, COOMET |
| SE "Ukrmetrteststandard" |
State Enterprise "Ukrmetrteststandard", Ukraine, EURAMET |
This page proposes print-out on A4 paper (portrait) of the comparison details (best printed out using a black and white printer).
Please, select items to be printed out, then click on "OK" :
CCQM-K111, CCQM-K111.1, EURAMET.QM-K111, COOMET.QM-K111, APMP.QM-K111 and SIM.QM-K111
MEASURAND : Amount-of-substance fraction of Propane in Nitrogen
NOMINAL VALUE : 1000 µmol/mol
| The key comparison reference value for each cylinder is identical to xprep i with the standard uncertainty uref i |
|
The degree of equivalence of laboratory i with respect to the key comparison reference value is given by a pair of terms both expressed in µmol/mol: |
The degrees of equivalence determined from the CCQM-K111.1 comparison are linked to the CCQM-K111 via VSL who participated in both comparisons.
The degrees of equivalence determined from the EURAMET.QM-K111 comparison are linked to the CCQM-K111 via VSL who participated in both comparisons.
The degrees of equivalence determined from the COOMET.QM-K111 comparison are linked to the CCQM-K111 via VNIIM who participated in both comparisons.
The degrees of equivalence determined from the APMP.QM-K111 comparison are linked to the CCQM-K111 via CERI and KRISS who participated in both comparisons.
The link is made using the results from INMETRO having participated in both comparisons (See section 2.8 in SIM.QM-K111 Final Report).
CCQM-K111, CCQM-K111.1, EURAMET.QM-K111, COOMET.QM-K111, APMP.QM-K111 and SIM.QM-K111
MEASURAND : Amount-of-substance fraction of Propane in Nitrogen
NOMINAL VALUE : 1000 µmol/mol

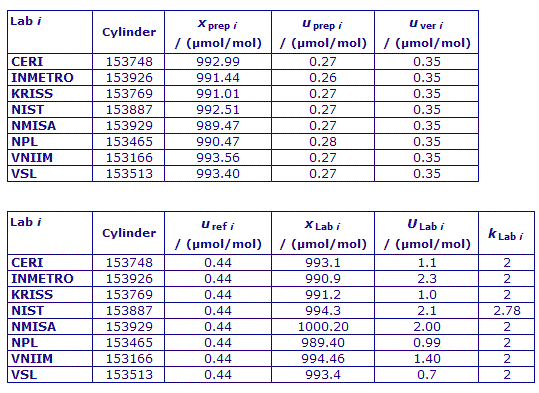

xprep i : amount-of-substance fraction from preparation
uprep i : standard uncertainty of xprep i
uver i : standard uncertainty from verification
uref i : standard uncertainty of reference value
xLab i : result of laboratory i
ULab i : stated expanded uncertainty of xLab i at a confidence level at 95 %
kLab i : stated coverage factor
The numerical results of CCQM-K111.1 are listed on p. 4 of the Final Report.
The numerical results of EURAMET-K111 are listed in Teble 4 of the Final Report.
The numerical results of COOMET.QM-K111 are listed in Annex 4 of the Final Report.
The numerical results of APMP.QM-K111 are listed in Table 4 of the Final Report.
The numerical results of SIM.QM-K111 are listed in Table 5 of the Final Report.
