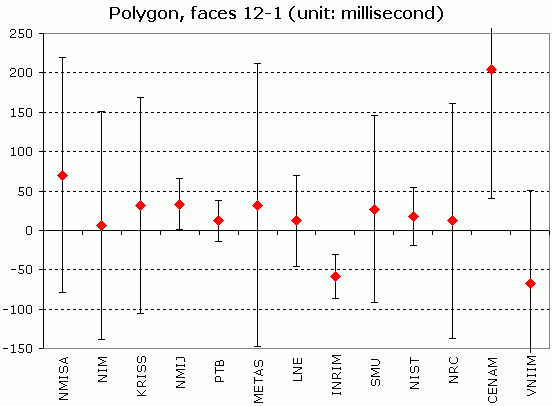

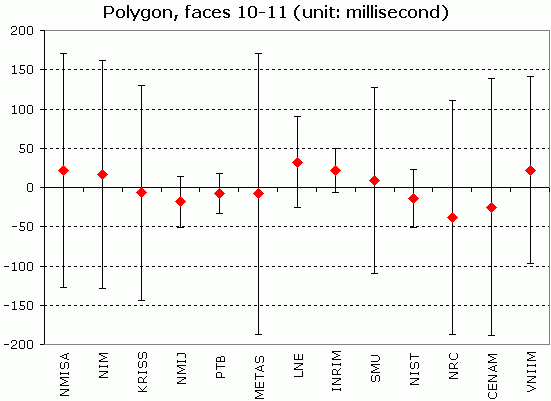

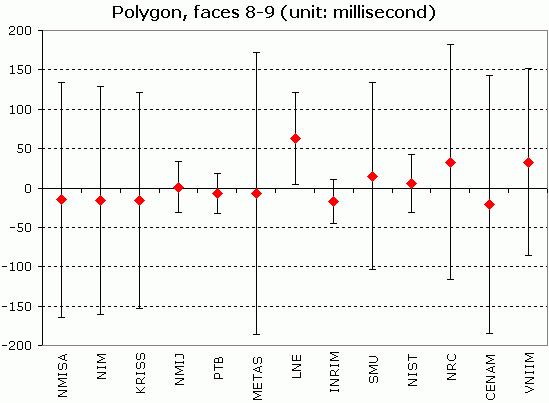

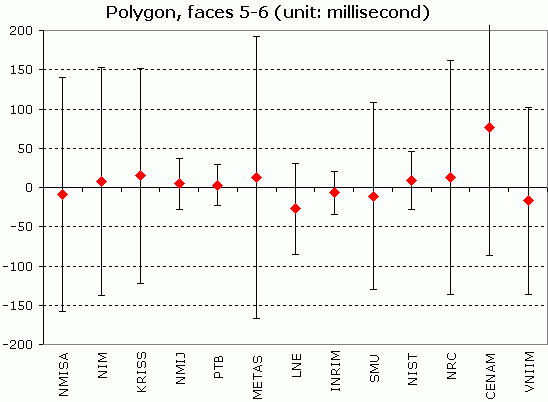

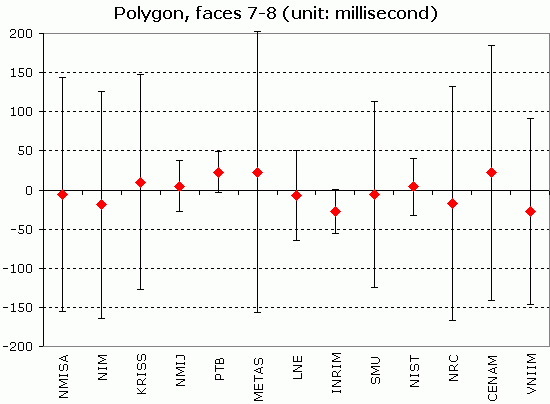

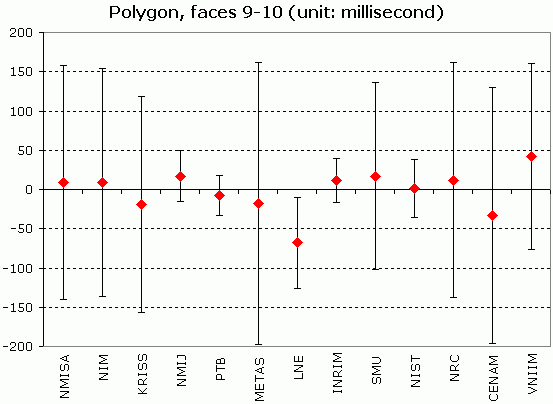

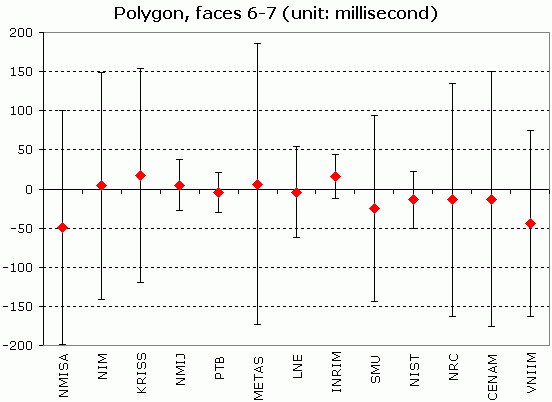

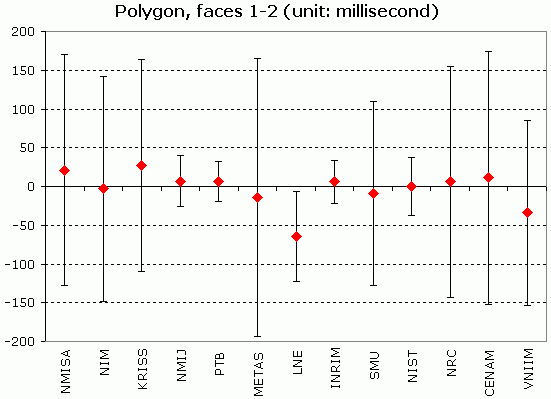

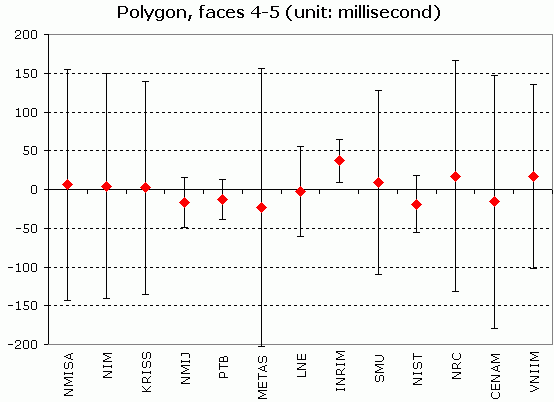

12-sided polygon
MEASURAND : Deviation from nominal angle between two faces of the polygon

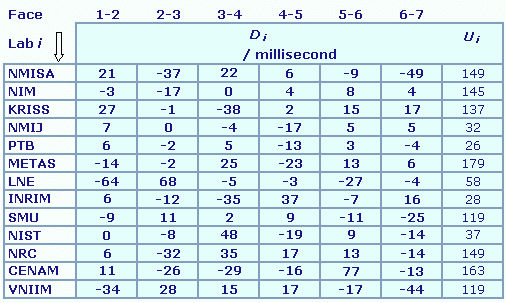

Degrees of equivalence: Di and expanded uncertainty Ui, both expressed in milliseconds

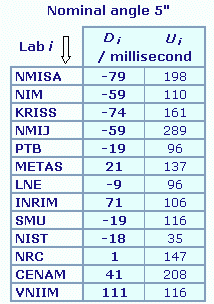

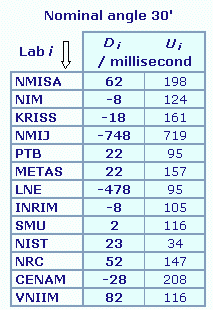

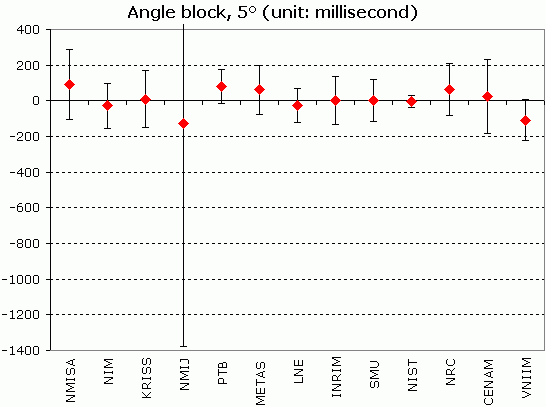

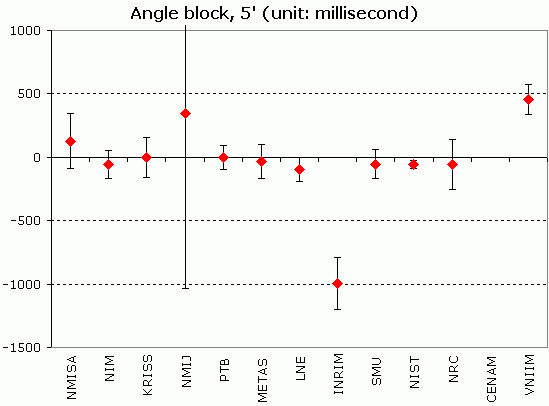

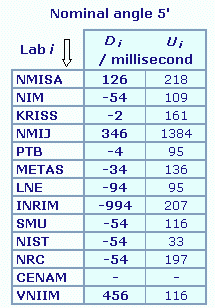

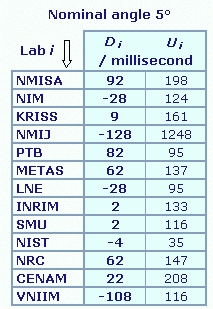

Angle blocks
MEASURAND : Deviation from nominal angles 5", 5', 30', and 5°
Degrees of equivalence: Di and expanded uncertainty Ui, both expressed in milliseconds

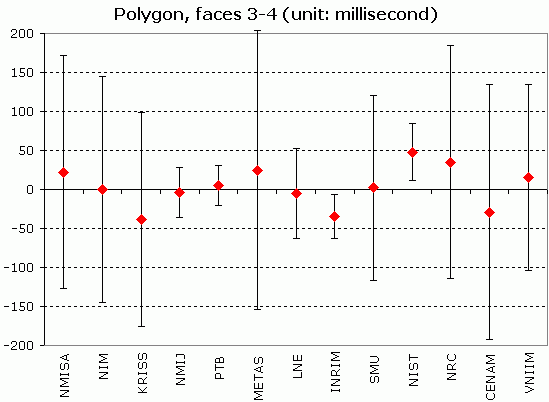

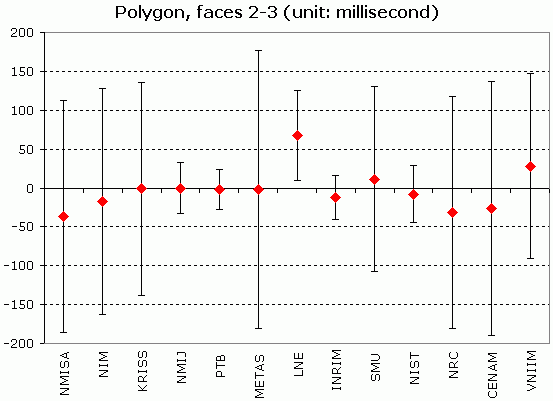

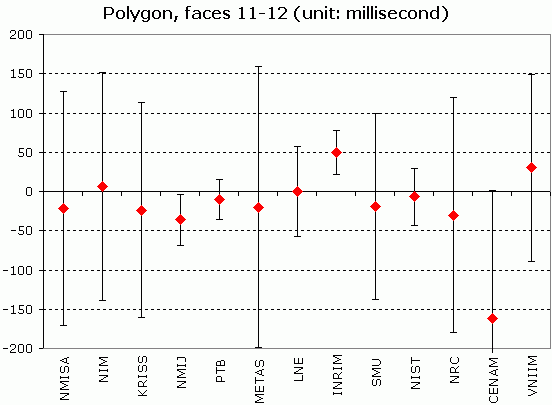

12-sided polygon
MEASURAND : Deviation from nominal angle between two faces of the polygon
The tables below give the degrees of equivalence for each participant:
Results are presented under A4 printable format in Summary Results (.PDF file).

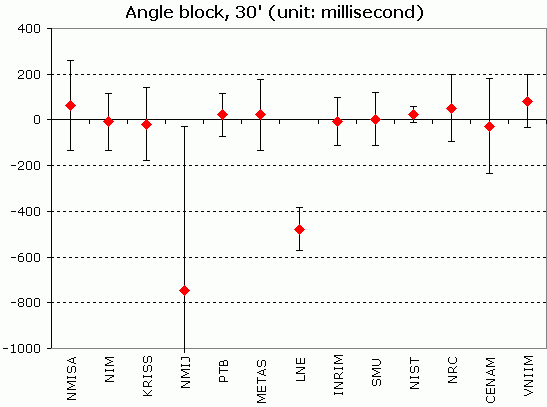

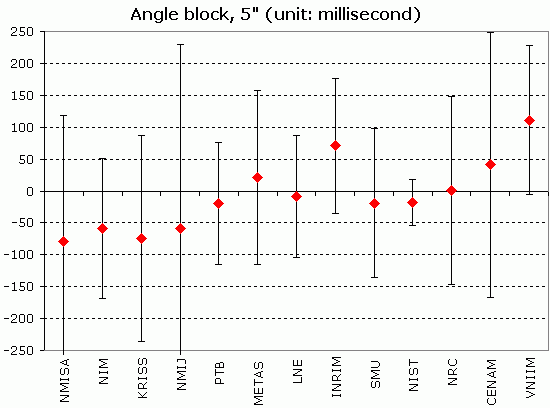

Angle blocks
MEASURAND : Deviation from nominal angles 5", 5', 30', and 5°
The tables below give the degrees of equivalence for each participant:
Results are presented under A4 printable format in Summary Results (.PDF file).
| Metrology area, Sub-field | Length, Dimensional Metrology |
| Description | Angle Gauge Blocks |
| Time of measurements | 2021 - 2022 |
| Status | Measurements in progress |
| References | |
| Measurand | Angle 4 angle gauge blocks, 1', 25', 3° and 30° |
| Transfer device | Angle gauge block |
| Comparison type | Supplementary Comparison |
| Consultative Committee | CCL (Consultative Committee for Length ) |
| Conducted by | APMP (Asia Pacific Metrology Programme) |
| Pilot institute |
NIMT
National Institute of Metrology (Thailand) Thailand |
| Contact person | Ketsaya Vacharanukul |
| Pilot laboratory | |
|---|---|
| NIMT |
National Institute of Metrology (Thailand), Thailand, APMP |
| EMI |
Emirates Metrology Institute, United Arab Emirates, GULFMET |
| KazStandard |
Kazakhstan Institute of Standardization and Metrology, Kazakhstan, COOMET |
| NMIA |
National Measurement Institute, Australia, Australia, APMP |
| NMIM |
National Metrology Institute of Malaysia, Malaysia, APMP |
| SASO-NMCC |
National Measurement and Calibration Center - Saudi Standards, Metrology and Quality Organization, Saudi Arabia, GULFMET |
| SCL |
Standards and Calibration Laboratory, Hong Kong, China, APMP |
| SE "Ukrmetrteststandard" |
State Enterprise "Ukrmetrteststandard", Ukraine, EURAMET |
| SNSU-BSN |
National Measurement Standard - National Standardization Agency of Indonesia, Indonesia, APMP |
| VMI-STAMEQ |
Viet Nam Metrology Institute, Directorate for Standards and Quality, Viet Nam, APMP |
This page proposes print-out on A4 paper (portrait) of the comparison details (best printed out using a black and white printer).
Please, select items to be printed out, then click on "OK" :
12-sided polygon
MEASURAND : Deviation from nominal angle between two faces of the polygon
|
For each face-to-face reading, the key comparison reference value, xR, is calculated as the weighted mean of all participants' results. Its standard uncertainty, uR, is calculated as the standard deviation of the weighted mean.
|
| For each face-to-face reading, the degree of equivalence of laboratory i with respect to the key comparison reference value is given by a pair of terms, both expressed in milliseconds: Di = (xi - xR) and its expanded uncertainty Ui = 2(ui2 - uR2)1/2. |
| The degrees of equivalence between pair of laboratories have not been computed for this key comparison. |
Angle blocks
MEASURAND : Deviation from nominal angles 5", 5', 30', and 5°
|
For each angle block, the key comparison reference value, xR, is calculated as the weighted mean of all participants' results. Its standard uncertainty, uR, is calculated as the standard deviation of the weighted mean.
|
| For each angle block, the degree of equivalence of laboratory i with respect to the key comparison reference value is given by a pair of terms, both expressed in milliseconds: Di = (xi - xR) and its expanded uncertainty Ui = 2(ui2 - uR2)1/2. |
| The degrees of equivalence between pair of laboratories have not been computed for this key comparison. |

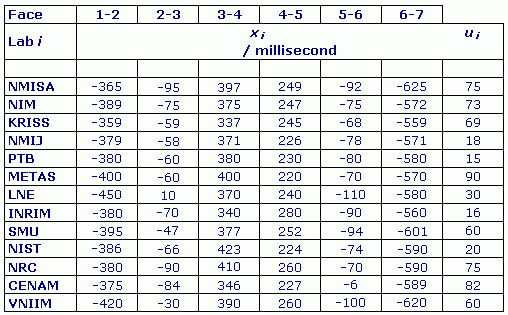

12-sided polygon
MEASURAND : Deviation from nominal angle between two faces of the polygon
xi : result of measurement carried out by laboratory i
ui : combined standard uncertainty of xi
* dates of measurements at the Pilot Laboratory: Jul 2000, 20 Jan 2001, 12 Dec 2001, 03 Jun 2002, and Aug 2002
Angle blocks
MEASURAND : Deviation from nominal angles 5", 5', 30', and 5°
xi : result of measurement carried out by laboratory i
ui : combined standard uncertainty of xi
* dates of measurements at the Pilot Laboratory: Jul 2000, 20 Jan 2001, 12 Dec 2001, 03 Jun 2002, and Aug 2002
