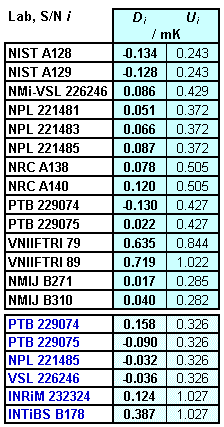

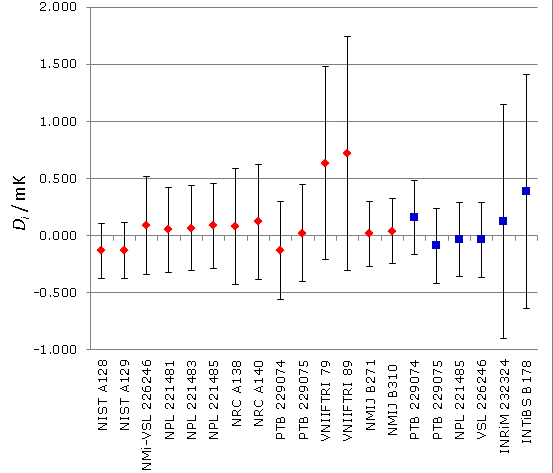

CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 2.601 K
Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in mK
Red diamonds : CCT-K1
Blue squares : EURAMET.T-K1
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 2.700 K
Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in mK
Red diamonds : CCT-K1
Blue squares : EURAMET.T-K1
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 2.997 K
Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in mK
Red diamonds : CCT-K1
Blue squares : EURAMET.T-K1

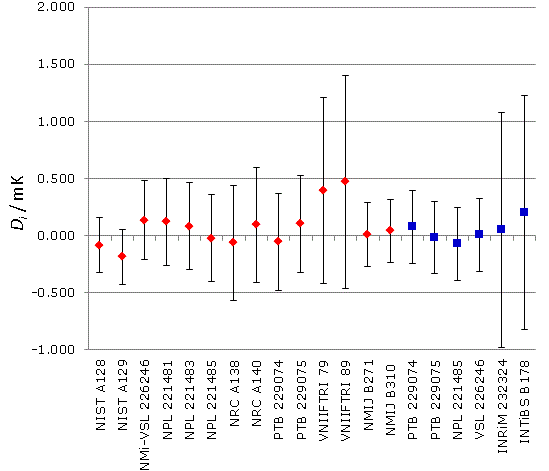

CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 3.099 K
Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in mK
Red diamonds : CCT-K1
Blue squares : EURAMET.T-K1

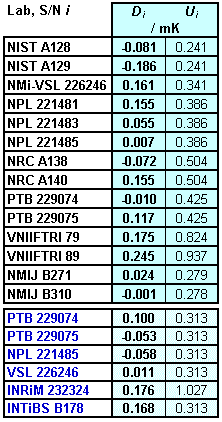

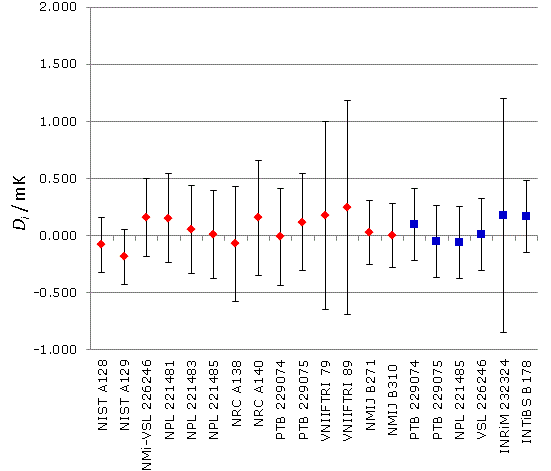

CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 3.400 K
Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in mK
Red diamonds : CCT-K1
Blue squares : EURAMET.T-K1

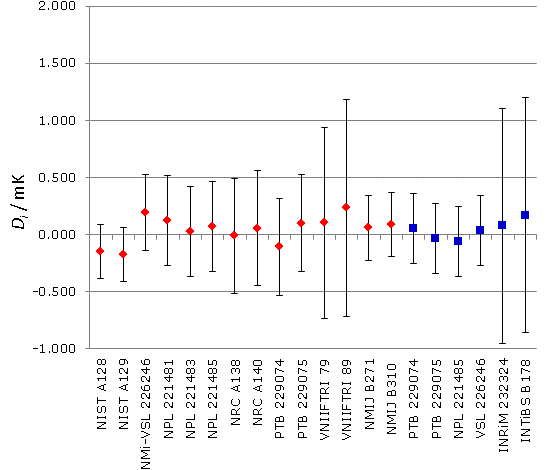

CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 3.801 K
Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in mK
Red diamonds : CCT-K1
Blue squares : EURAMET.T-K1

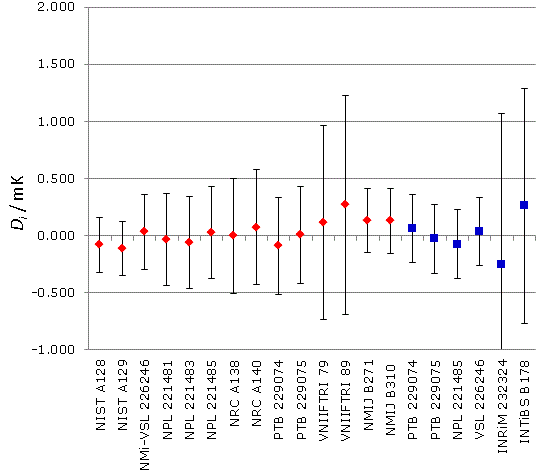

CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 4.225 K
Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in mK
Red diamonds : CCT-K1
Blue squares : EURAMET.T-K1

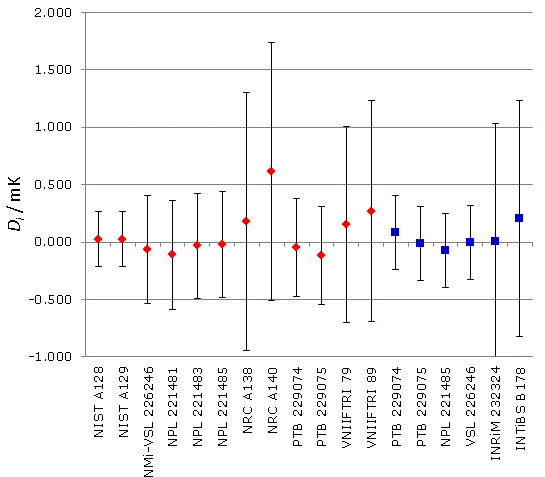

CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 4.478 K
Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in mK
Red diamonds : CCT-K1
Blue squares : EURAMET.T-K1

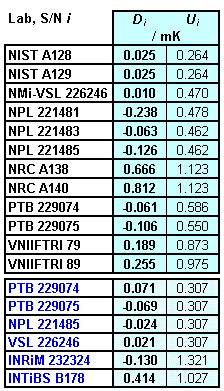

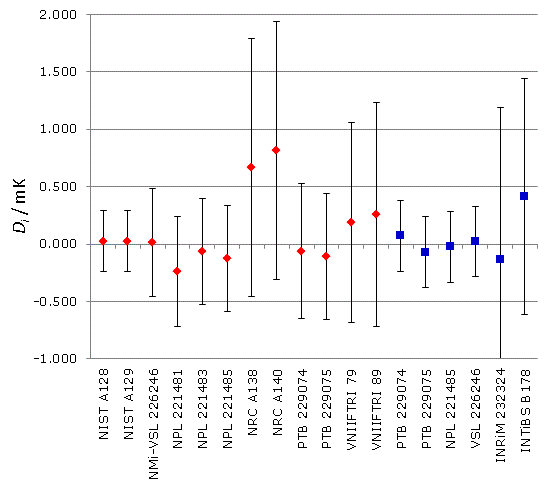

CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 5.000 K
Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in mK
Red diamonds : CCT-K1
Blue squares : EURAMET.T-K1

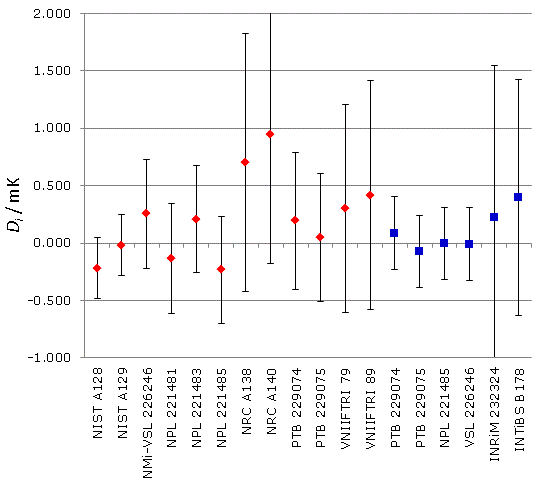

CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 5.948 K
Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in mK
Red diamonds : CCT-K1
Blue squares : EURAMET.T-K1

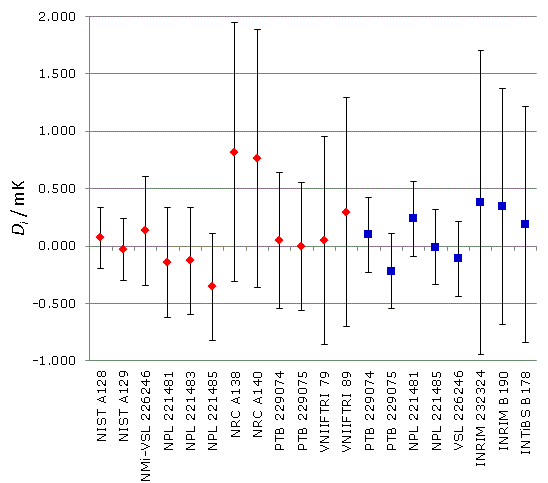

CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 7.202 K
Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in mK
Red diamonds : CCT-K1
Blue squares : EURAMET.T-K1

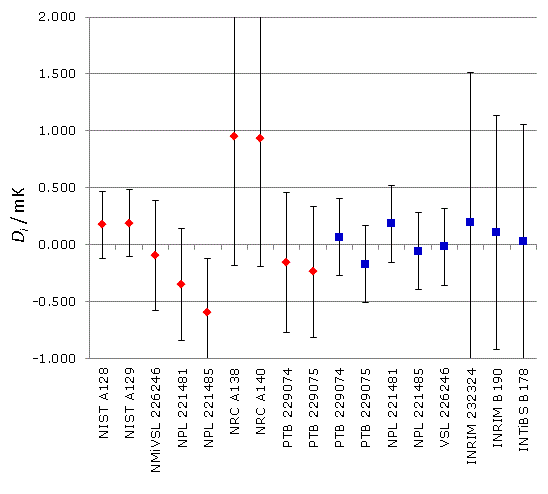

CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 8.296 K
Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in mK
Red diamonds : CCT-K1
Blue squares : EURAMET.T-K1

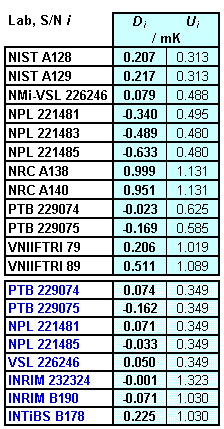

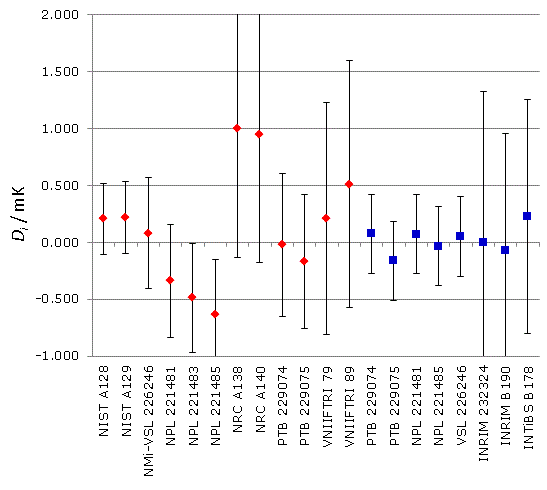

CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 9.508 K
Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in mK
Red diamonds : CCT-K1
Blue squares : EURAMET.T-K1

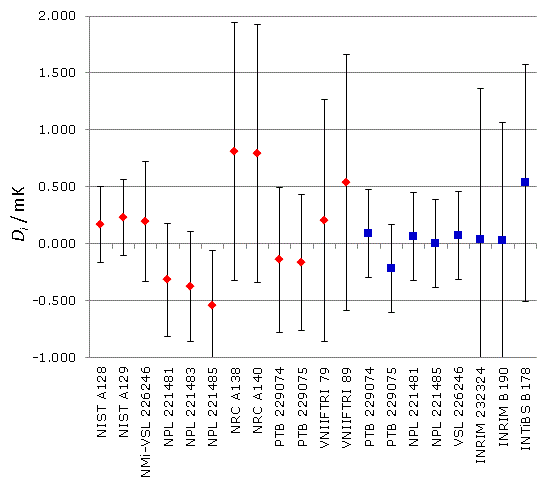

CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 10.803 K
Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in mK
Red diamonds : CCT-K1
Blue squares : EURAMET.T-K1

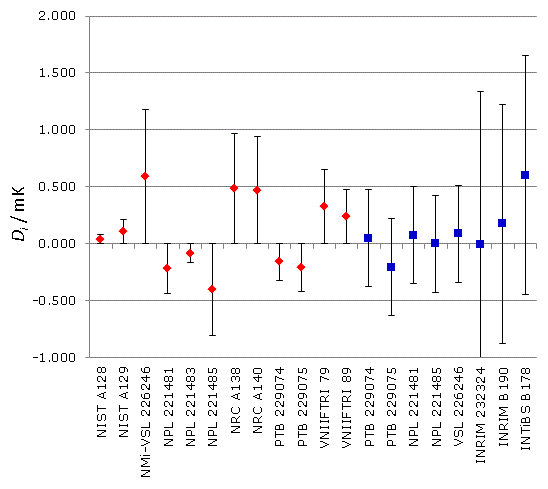

CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 12.297 K
Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in mK
Red diamonds : CCT-K1
Blue squares : EURAMET.T-K1

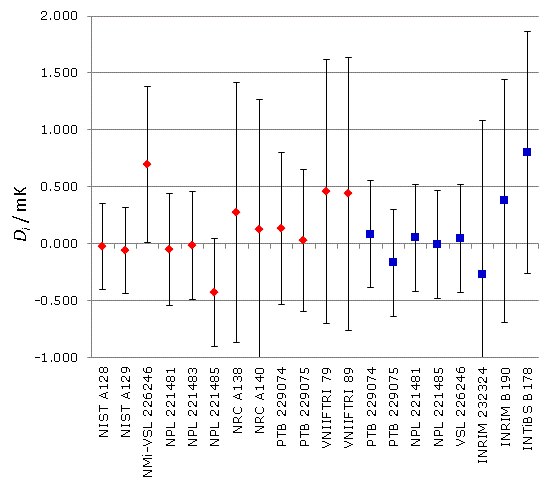

CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 13.798 K
Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in mK
Red diamonds : CCT-K1
Blue squares : EURAMET.T-K1

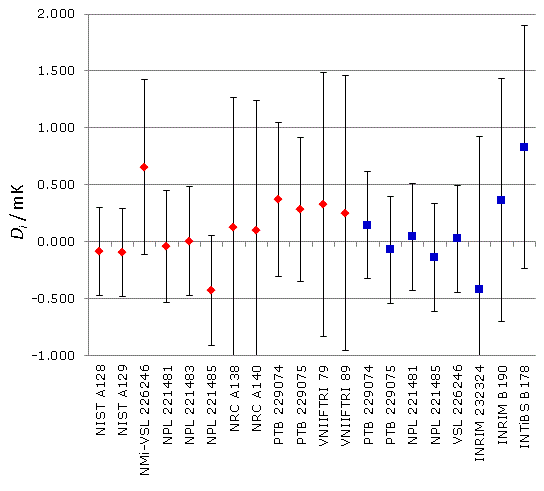

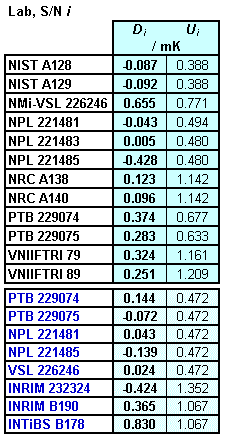

CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 15.500 K
Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in mK
Red diamonds : CCT-K1
Blue squares : EURAMET.T-K1

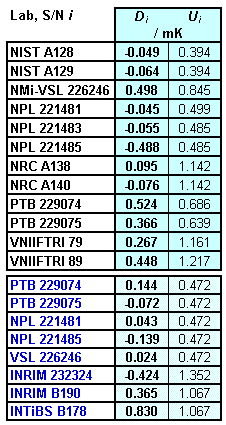

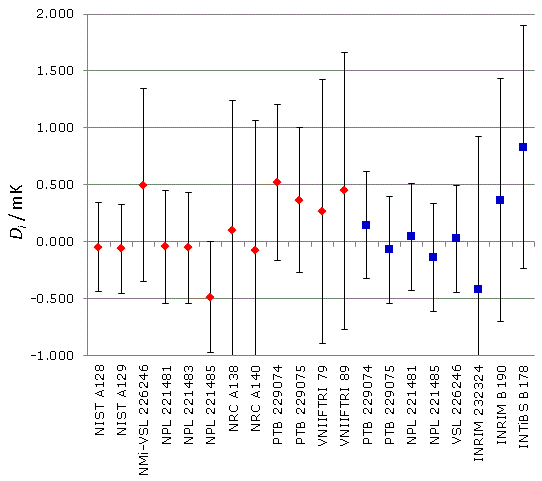

CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 16.999 K
Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in mK
Red diamonds : CCT-K1
Blue squares : EURAMET.T-K1
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 18.597 K
Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in mK
Red diamonds : CCT-K1
Blue squares : EURAMET.T-K1

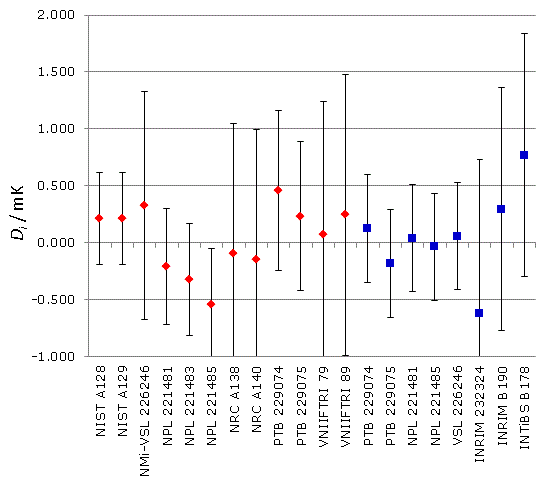

CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 20.299 K
Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in mK
Red diamonds : CCT-K1
Blue squares : EURAMET.T-K1

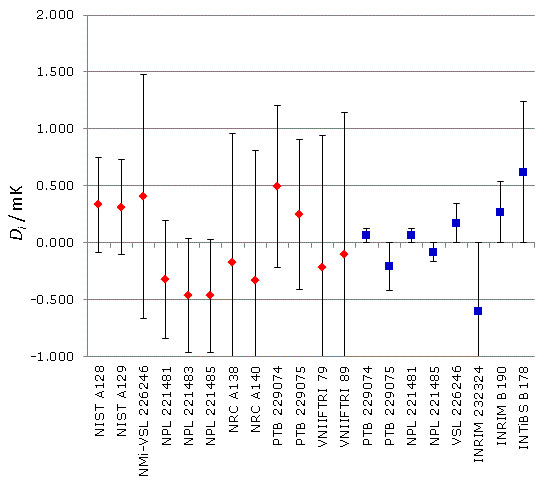

CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 21.575 K
Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in mK
Red diamonds : CCT-K1
Blue squares : EURAMET.T-K1

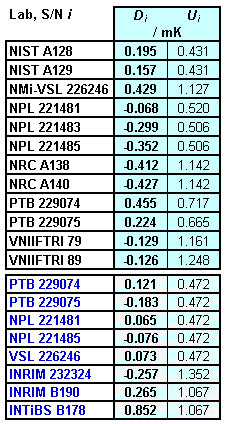

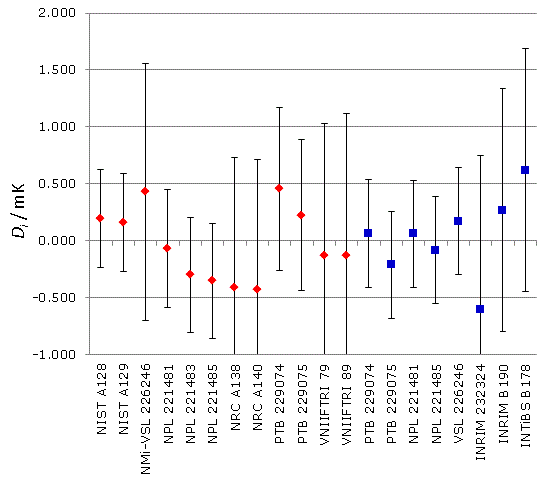

CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 22.677 K
Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in mK
Red diamonds : CCT-K1
Blue squares : EURAMET.T-K1

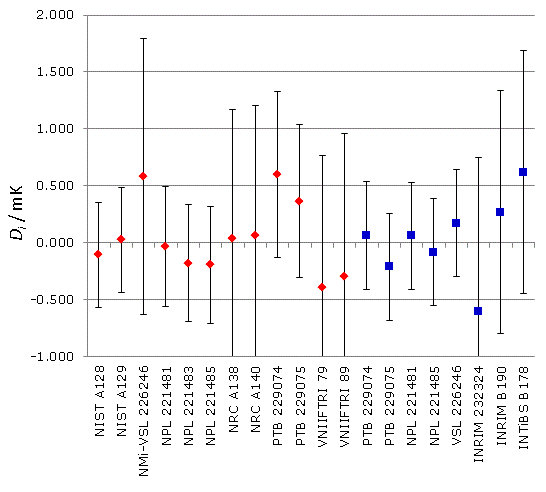

CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 24.446 K
Degrees of equivalence Di and expanded uncertainty Ui (k = 2) expressed in mK
Red diamonds : CCT-K1
Blue squares : EURAMET.T-K1
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 2.601 K
Results are presented under A4 printable format in Summary Results (.PDF file).

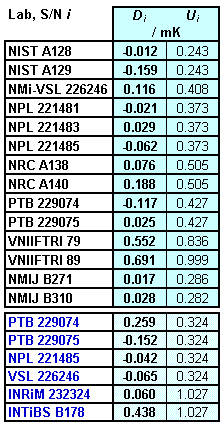

CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 2.700 K
Results are presented under A4 printable format in Summary Results (.PDF file).

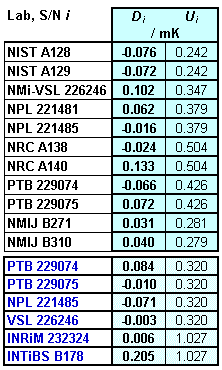

CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 2.997 K
Results are presented under A4 printable format in Summary Results (.PDF file).

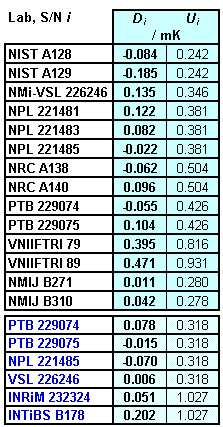

CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 3.099 K
Results are presented under A4 printable format in Summary Results (.PDF file).
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 3.400 K
Results are presented under A4 printable format in Summary Results (.PDF file).

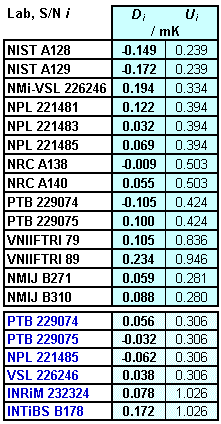

CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 3.801 K
Results are presented under A4 printable format in Summary Results (.PDF file).
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 4.225 K
Results are presented under A4 printable format in Summary Results (.PDF file).
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 4.478 K
Results are presented under A4 printable format in Summary Results (.PDF file).
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 5.000 K
Results are presented under A4 printable format in Summary Results (.PDF file).
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 5.948 K
Results are presented under A4 printable format in Summary Results (.PDF file).
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 7.202 K
Results are presented under A4 printable format in Summary Results (.PDF file).
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 8.296 K
Results are presented under A4 printable format in Summary Results (.PDF file).
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 9.508 K
Results are presented under A4 printable format in Summary Results (.PDF file).
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 10.803 K
Results are presented under A4 printable format in Summary Results (.PDF file).
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 12.297 K
Results are presented under A4 printable format in Summary Results (.PDF file).

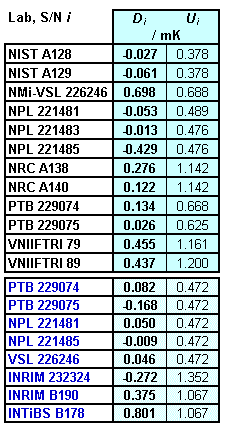

CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 13.798 K
Results are presented under A4 printable format in Summary Results (.PDF file).
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 15.500 K
Results are presented under A4 printable format in Summary Results (.PDF file).
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 16.999 K
Results are presented under A4 printable format in Summary Results (.PDF file).

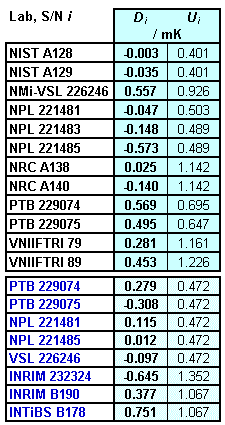

CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 18.597 K
Results are presented under A4 printable format in Summary Results (.PDF file).
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 20.299 K
Results are presented under A4 printable format in Summary Results (.PDF file).

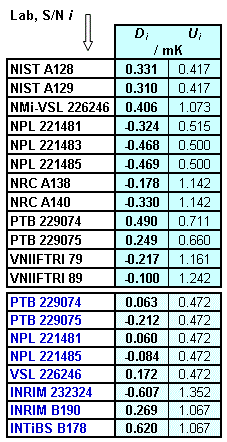

CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 21.575 K
Results are presented under A4 printable format in Summary Results (.PDF file).
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 22.677 K
Results are presented under A4 printable format in Summary Results (.PDF file).

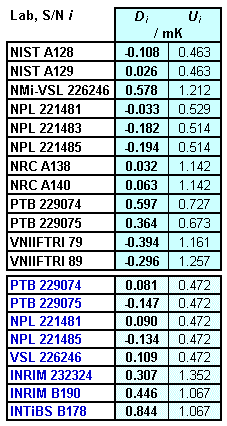

CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 24.446 K
Results are presented under A4 printable format in Summary Results (.PDF file).
| Metrology area, Sub-field | Thermometry, Standard Platinum Resistance Thermometers |
| Description | Realizations of the ITS-90 from 2.4 K to 24.6 K |
| Time of measurements | 2008 - 2012 |
| Status | Approved for equivalence |
| Final Reports of the comparisons | |
| References | |
| Measurand | Temperature: 2.4 K to 24.6 K |
| Transfer device | Rh-Fe resistance thermometers |
| Comparison type | Key Comparison |
| Consultative Committee | CCT (Consultative Committee for Thermometry) |
| Conducted by | EURAMET (European Association of National Metrology Institutes) |
| RMO Internal Identifier | EURAMET Project No 1147 |
| Comments | Results published on 21 July 2017 Realizations of the ITS-90 from 2.65 K to 24.6 K
|
| Pilot institute |
PTB
Physikalisch-Technische Bundesanstalt Germany |
| Contact person | C. Gaiser + 49 30 34817349 |
| Pilot laboratory | |
|---|---|
| PTB |
Physikalisch-Technische Bundesanstalt, Germany, EURAMET |
| INRIM |
Istituto Nazionale di Ricerca Metrologica, Italy, EURAMET |
| INTiBS |
Institute of Low Temperature and Structure Research, Poland, EURAMET |
| NPL |
National Physical Laboratory, United Kingdom, EURAMET |
| VSL |
VSL, Netherlands, EURAMET |
This page proposes print-out on A4 paper (portrait) of the comparison details (best printed out using a black and white printer).
Please, select items to be printed out, then click on "OK" :
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 2.601 K
|
For each temperature in the comparison the key comparison reference value, TR, is the weighted mean of Ti, the individual temperature values of thermometers. TR = 2.600776 K |
| The degree of equivalence of each temperature Ti with respect to the key comparison reference value, TR, is given by a pair of terms: Di = (Ti -TR) and Ui, its expanded uncertainty at 95 % confidence, both expressed in mK. Ui includes the uncertainties in the original laboratory calibrations and in the comparison measurements, but not in TR. |
EURAMET.T-K1 was linked to CCT-K1 via NPL, PTB and VSL who participated in both comparisons.
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 2.700 K
|
For each temperature in the comparison the key comparison reference value, TR, is the weighted mean of Ti, the individual temperature values of thermometers. TR = 2.699911 K |
| The degree of equivalence of each temperature Ti with respect to the key comparison reference value, TR, is given by a pair of terms: Di = (Ti -TR) and Ui, its expanded uncertainty at 95 % confidence, both expressed in mK. Ui includes the uncertainties in the original laboratory calibrations and in the comparison measurements, but not in TR. |
EURAMET.T-K1 was linked to CCT-K1 via NPL, PTB and VSL who participated in both comparisons.
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 2.997 K
|
For each temperature in the comparison the key comparison reference value, TR, is the weighted mean of Ti, the individual temperature values of thermometers. TR = 2.996648 K |
| The degree of equivalence of each temperature Ti with respect to the key comparison reference value, TR, is given by a pair of terms: Di = (Ti -TR) and Ui, its expanded uncertainty at 95 % confidence, both expressed in mK. Ui includes the uncertainties in the original laboratory calibrations and in the comparison measurements, but not in TR. |
EURAMET.T-K1 was linked to CCT-K1 via NPL, PTB and VSL who participated in both comparisons.
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 3.099 K
|
For each temperature in the comparison the key comparison reference value, TR, is the weighted mean of Ti, the individual temperature values of thermometers. TR = 3.099398 K |
| The degree of equivalence of each temperature Ti with respect to the key comparison reference value, TR, is given by a pair of terms: Di = (Ti -TR) and Ui, its expanded uncertainty at 95 % confidence, both expressed in mK. Ui includes the uncertainties in the original laboratory calibrations and in the comparison measurements, but not in TR. |
EURAMET.T-K1 was linked to CCT-K1 via NPL, PTB and VSL who participated in both comparisons.
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 3.400 K
|
For each temperature in the comparison the key comparison reference value, TR, is the weighted mean of Ti, the individual temperature values of thermometers. TR = 3.400235 K |
| The degree of equivalence of each temperature Ti with respect to the key comparison reference value, TR, is given by a pair of terms: Di = (Ti -TR) and Ui, its expanded uncertainty at 95 % confidence, both expressed in mK. Ui includes the uncertainties in the original laboratory calibrations and in the comparison measurements, but not in TR. |
EURAMET.T-K1 was linked to CCT-K1 via NPL, PTB and VSL who participated in both comparisons.
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 3.801 K
|
For each temperature in the comparison the key comparison reference value, TR, is the weighted mean of Ti, the individual temperature values of thermometers. TR = 3.800903 K |
| The degree of equivalence of each temperature Ti with respect to the key comparison reference value, TR, is given by a pair of terms: Di = (Ti -TR) and Ui, its expanded uncertainty at 95 % confidence, both expressed in mK. Ui includes the uncertainties in the original laboratory calibrations and in the comparison measurements, but not in TR. |
EURAMET.T-K1 was linked to CCT-K1 via NPL, PTB and VSL who participated in both comparisons.
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 4.225 K
|
For each temperature in the comparison the key comparison reference value, TR, is the weighted mean of Ti, the individual temperature values of thermometers. TR = 4.224794 K |
| The degree of equivalence of each temperature Ti with respect to the key comparison reference value, TR, is given by a pair of terms: Di = (Ti -TR) and Ui, its expanded uncertainty at 95 % confidence, both expressed in mK. Ui includes the uncertainties in the original laboratory calibrations and in the comparison measurements, but not in TR. |
EURAMET.T-K1 was linked to CCT-K1 via NPL, PTB and VSL who participated in both comparisons.
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 4.478 K
|
For each temperature in the comparison the key comparison reference value, TR, is the weighted mean of Ti, the individual temperature values of thermometers. TR = 4.477522 K |
| The degree of equivalence of each temperature Ti with respect to the key comparison reference value, TR, is given by a pair of terms: Di = (Ti -TR) and Ui, its expanded uncertainty at 95 % confidence, both expressed in mK. Ui includes the uncertainties in the original laboratory calibrations and in the comparison measurements, but not in TR. |
EURAMET.T-K1 was linked to CCT-K1 via NPL, PTB and VSL who participated in both comparisons.
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 5.000 K
|
For each temperature in the comparison the key comparison reference value, TR, is the weighted mean of Ti, the individual temperature values of thermometers. TR = 5.000458 K |
| The degree of equivalence of each temperature Ti with respect to the key comparison reference value, TR, is given by a pair of terms: Di = (Ti -TR) and Ui, its expanded uncertainty at 95 % confidence, both expressed in mK. Ui includes the uncertainties in the original laboratory calibrations and in the comparison measurements, but not in TR. |
EURAMET.T-K1 was linked to CCT-K1 via NPL, PTB and VSL who participated in both comparisons.
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 5.948 K
| The degree of equivalence of each temperature Ti with respect to the key comparison reference value, TR, is given by a pair of terms: Di = (Ti -TR) and Ui, its expanded uncertainty at 95 % confidence, both expressed in mK. Ui includes the uncertainties in the original laboratory calibrations and in the comparison measurements, but not in TR. |
EURAMET.T-K1 was linked to CCT-K1 via NPL, PTB and VSL who participated in both comparisons.
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 7.202 K
|
For each temperature in the comparison the key comparison reference value, TR, is the weighted mean of Ti, the individual temperature values of thermometers. TR = 7.201544 K |
| The degree of equivalence of each temperature Ti with respect to the key comparison reference value, TR, is given by a pair of terms: Di = (Ti -TR) and Ui, its expanded uncertainty at 95 % confidence, both expressed in mK. Ui includes the uncertainties in the original laboratory calibrations and in the comparison measurements, but not in TR. |
EURAMET.T-K1 was linked to CCT-K1 via NPL, PTB and VSL who participated in both comparisons.
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 8.296 K
|
For each temperature in the comparison the key comparison reference value, TR, is the weighted mean of Ti, the individual temperature values of thermometers. TR = 8.296372 K |
| The degree of equivalence of each temperature Ti with respect to the key comparison reference value, TR, is given by a pair of terms: Di = (Ti -TR) and Ui, its expanded uncertainty at 95 % confidence, both expressed in mK. Ui includes the uncertainties in the original laboratory calibrations and in the comparison measurements, but not in TR. |
EURAMET.T-K1 was linked to CCT-K1 via NPL, PTB and VSL who participated in both comparisons.
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 9.508 K
|
For each temperature in the comparison the key comparison reference value, TR, is the weighted mean of Ti, the individual temperature values of thermometers. TR = 9.508020 K |
| The degree of equivalence of each temperature Ti with respect to the key comparison reference value, TR, is given by a pair of terms: Di = (Ti -TR) and Ui, its expanded uncertainty at 95 % confidence, both expressed in mK. Ui includes the uncertainties in the original laboratory calibrations and in the comparison measurements, but not in TR. |
EURAMET.T-K1 was linked to CCT-K1 via NPL, PTB and VSL who participated in both comparisons.
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 10.803 K
|
For each temperature in the comparison the key comparison reference value, TR, is the weighted mean of Ti, the individual temperature values of thermometers. TR = 10.803390 K |
| The degree of equivalence of each temperature Ti with respect to the key comparison reference value, TR, is given by a pair of terms: Di = (Ti -TR) and Ui, its expanded uncertainty at 95 % confidence, both expressed in mK. Ui includes the uncertainties in the original laboratory calibrations and in the comparison measurements, but not in TR. |
EURAMET.T-K1 was linked to CCT-K1 via NPL, PTB and VSL who participated in both comparisons.
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 12.297 K
|
For each temperature in the comparison the key comparison reference value, TR, is the weighted mean of Ti, the individual temperature values of thermometers. TR = 12.297309 K |
| The degree of equivalence of each temperature Ti with respect to the key comparison reference value, TR, is given by a pair of terms: Di = (Ti -TR) and Ui, its expanded uncertainty at 95 % confidence, both expressed in mK. Ui includes the uncertainties in the original laboratory calibrations and in the comparison measurements, but not in TR. |
EURAMET.T-K1 was linked to CCT-K1 via NPL, PTB and VSL who participated in both comparisons.
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 13.798 K
|
For each temperature in the comparison the key comparison reference value, TR, is the weighted mean of Ti, the individual temperature values of thermometers. TR = 13.798183 K |
| The degree of equivalence of each temperature Ti with respect to the key comparison reference value, TR, is given by a pair of terms: Di = (Ti -TR) and Ui, its expanded uncertainty at 95 % confidence, both expressed in mK. Ui includes the uncertainties in the original laboratory calibrations and in the comparison measurements, but not in TR. |
EURAMET.T-K1 was linked to CCT-K1 via NPL, PTB and VSL who participated in both comparisons.
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 15.500 K
|
For each temperature in the comparison the key comparison reference value, TR, is the weighted mean of Ti, the individual temperature values of thermometers. TR = 15.499566 K |
| The degree of equivalence of each temperature Ti with respect to the key comparison reference value, TR, is given by a pair of terms: Di = (Ti -TR) and Ui, its expanded uncertainty at 95 % confidence, both expressed in mK. Ui includes the uncertainties in the original laboratory calibrations and in the comparison measurements, but not in TR. |
EURAMET.T-K1 was linked to CCT-K1 via NPL, PTB and VSL who participated in both comparisons.
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 16.999 K
|
For each temperature in the comparison the key comparison reference value, TR, is the weighted mean of Ti, the individual temperature values of thermometers. TR = 16.999335 K |
| The degree of equivalence of each temperature Ti with respect to the key comparison reference value, TR, is given by a pair of terms: Di = (Ti -TR) and Ui, its expanded uncertainty at 95 % confidence, both expressed in mK. Ui includes the uncertainties in the original laboratory calibrations and in the comparison measurements, but not in TR. |
EURAMET.T-K1 was linked to CCT-K1 via NPL, PTB and VSL who participated in both comparisons.
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 18.597 K
|
For each temperature in the comparison the key comparison reference value, TR, is the weighted mean of Ti, the individual temperature values of thermometers. TR = 18.597377 K |
| The degree of equivalence of each temperature Ti with respect to the key comparison reference value, TR, is given by a pair of terms: Di = (Ti -TR) and Ui, its expanded uncertainty at 95 % confidence, both expressed in mK. Ui includes the uncertainties in the original laboratory calibrations and in the comparison measurements, but not in TR. |
EURAMET.T-K1 was linked to CCT-K1 via NPL, PTB and VSL who participated in both comparisons.
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 20.299 K
|
For each temperature in the comparison the key comparison reference value, TR, is the weighted mean of Ti, the individual temperature values of thermometers. TR = 20.298899 K |
| The degree of equivalence of each temperature Ti with respect to the key comparison reference value, TR, is given by a pair of terms: Di = (Ti -TR) and Ui, its expanded uncertainty at 95 % confidence, both expressed in mK. Ui includes the uncertainties in the original laboratory calibrations and in the comparison measurements, but not in TR. |
EURAMET.T-K1 was linked to CCT-K1 via NPL, PTB and VSL who participated in both comparisons.
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 21.575 K
|
For each temperature in the comparison the key comparison reference value, TR, is the weighted mean of Ti, the individual temperature values of thermometers. TR = 21.575444 K |
| The degree of equivalence of each temperature Ti with respect to the key comparison reference value, TR, is given by a pair of terms: Di = (Ti -TR) and Ui, its expanded uncertainty at 95 % confidence, both expressed in mK. Ui includes the uncertainties in the original laboratory calibrations and in the comparison measurements, but not in TR. |
EURAMET.T-K1 was linked to CCT-K1 via NPL, PTB and VSL who participated in both comparisons.
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 22.677 K
|
For each temperature in the comparison the key comparison reference value, TR, is the weighted mean of Ti, the individual temperature values of thermometers. TR = 22.676998 K |
| The degree of equivalence of each temperature Ti with respect to the key comparison reference value, TR, is given by a pair of terms: Di = (Ti -TR) and Ui, its expanded uncertainty at 95 % confidence, both expressed in mK. Ui includes the uncertainties in the original laboratory calibrations and in the comparison measurements, but not in TR. |
EURAMET.T-K1 was linked to CCT-K1 via NPL, PTB and VSL who participated in both comparisons.
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 24.446 K
|
For each temperature in the comparison the key comparison reference value, TR, is the weighted mean of Ti, the individual temperature values of thermometers. TR = 24.446403 K |
| The degree of equivalence of each temperature Ti with respect to the key comparison reference value, TR, is given by a pair of terms: Di = (Ti -TR) and Ui, its expanded uncertainty at 95 % confidence, both expressed in mK. Ui includes the uncertainties in the original laboratory calibrations and in the comparison measurements, but not in TR. |
EURAMET.T-K1 was linked to CCT-K1 via NPL, PTB and VSL who participated in both comparisons.
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 2.601 K
Lab : laboratory
S/N i : serial number of thermometer i
Ti : temperature value for thermometer i
ui : standard uncertainty in the calibration of thermometer i
ucomp : standard uncertainty in the comparison measurements
ucomp = 0.115 mK
Laboratory individual measurements for CCT-K1:
| Lab, S/N i | Ti / mK | ui / mK |
| NIST A128 | 2.600642 | 0.040 |
| NIST A129 | 2.600648 | 0.040 |
| NMi-VSL 226246 | 2.600862 | 0.181 |
| NPL 221481 | 2.600827 | 0.146 |
| NPL 221483 | 2.600842 | 0.146 |
| NPL 221485 | 2.600863 | 0.146 |
| NRC A138 | 2.600854 | 0.225 |
| NRC A140 | 2.600896 | 0.225 |
| PTB 229074 | 2.600646 | 0.180 |
| PTB 229075 | 2.600798 | 0.180 |
| VNIIFTRI 79 | 2.601411 | 0.406 |
| VNIIFTRI 89 | 2.601495 | 0.498 |
| NMIJ B271 | 2.600793 | 0.084 |
| NMIJ B310 | 2.600816 | 0.082 |
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 2.700 K
Lab : laboratory
S/N i : serial number of thermometer i
Ti : temperature value for thermometer i
ui : standard uncertainty in the calibration of thermometer i
ucomp : standard uncertainty in the comparison measurements
ucomp = 0.115 mK
Laboratory individual measurements for CCT-K1:
| Lab, S/N i | Ti / mK | ui / mK |
| NIST A128 | 2.699899 | 0.040 |
| NIST A129 | 2.699752 | 0.040 |
| NMi-VSL 226246 | 2.700027 | 0.169 |
| NPL 221481 | 2.699890 | 0.147 |
| NPL 221483 | 2.699940 | 0.147 |
| NPL 221485 | 2.699849 | 0.147 |
| NRC A138 | 2.699987 | 0.225 |
| NRC A140 | 2.700099 | 0.225 |
| PTB 229074 | 2.699794 | 0.180 |
| PTB 229075 | 2.699936 | 0.180 |
| VNIIFTRI 79 | 2.700463 | 0.402 |
| VNIIFTRI 89 | 2.700602 | 0.486 |
| NMIJ B271 | 2.699928 | 0.085 |
| NMIJ B310 | 2.699939 | 0.082 |
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 2.997 K
Lab : laboratory
S/N i : serial number of thermometer i
Ti : temperature value for thermometer i
ui : standard uncertainty in the calibration of thermometer i
ucomp : standard uncertainty in the comparison measurements
ucomp = 0.114 mK
Laboratory individual measurements for CCT-K1:
| Lab, S/N i | Ti / mK | ui / mK |
| NIST A128 | 2.996572 | 0.041 |
| NIST A129 | 2.996576 | 0.041 |
| NMi-VSL 226246 | 2.996750 | 0.131 |
| NPL 221481 | 2.996710 | 0.151 |
| NPL 221485 | 2.996632 | 0.151 |
| NRC A138 | 2.996624 | 0.225 |
| NRC A140 | 2.996781 | 0.225 |
| PTB 229074 | 2.996582 | 0.180 |
| PTB 229075 | 2.996720 | 0.180 |
| NMIJ B271 | 2.996679 | 0.082 |
| NMIJ B310 | 2.996688 | 0.080 |
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 3.099 K
Lab : laboratory
S/N i : serial number of thermometer i
Ti : temperature value for thermometer i
ui : standard uncertainty in the calibration of thermometer i
ucomp : standard uncertainty in the comparison measurements
ucomp = 0.114 mK
Laboratory individual measurements for CCT-K1:
| Lab, S/N i | Ti / mK | ui / mK |
| NIST A128 | 3.099314 | 0.041 |
| NIST A129 | 3.099213 | 0.041 |
| NMi-VSL 226246 | 3.099533 | 0.130 |
| NPL 221481 | 3.099520 | 0.153 |
| NPL 221483 | 3.099480 | 0.153 |
| NPL 221485 | 3.099376 | 0.153 |
| NRC A138 | 3.099336 | 0.225 |
| NRC A140 | 3.099494 | 0.225 |
| PTB 229074 | 3.099343 | 0.180 |
| PTB 229075 | 3.099502 | 0.180 |
| VNIIFTRI 79 | 3.099793 | 0.392 |
| VNIIFTRI 89 | 3.099869 | 0.451 |
| NMIJ B271 | 3.099409 | 0.082 |
| NMIJ B310 | 3.099440 | 0.080 |
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 3.400 K
Lab : laboratory
S/N i : serial number of thermometer i
Ti : temperature value for thermometer i
ui : standard uncertainty in the calibration of thermometer i
ucomp : standard uncertainty in the comparison measurements
ucomp = 0.113 mK
Laboratory individual measurements for CCT-K1:
| Lab, S/N i | Ti / mK | ui / mK |
| NIST A128 | 3.400154 | 0.042 |
| NIST A129 | 3.400049 | 0.042 |
| NMi-VSL 226246 | 3.400396 | 0.127 |
| NPL 221481 | 3.400390 | 0.157 |
| NPL 221483 | 3.400290 | 0.157 |
| NPL 221485 | 3.400242 | 0.157 |
| NRC A138 | 3.400163 | 0.225 |
| NRC A140 | 3.400390 | 0.225 |
| PTB 229074 | 3.400225 | 0.180 |
| PTB 229075 | 3.400352 | 0.180 |
| VNIIFTRI 79 | 3.400410 | 0.396 |
| VNIIFTRI 89 | 3.400480 | 0.455 |
| NMIJ B271 | 3.400259 | 0.082 |
| NMIJ B310 | 3.400234 | 0.081 |
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 3.801 K
Lab : laboratory
S/N i : serial number of thermometer i
Ti : temperature value for thermometer i
ui : standard uncertainty in the calibration of thermometer i
ucomp : standard uncertainty in the comparison measurements
ucomp = 0.112 mK
Laboratory individual measurements for CCT-K1:
| Lab, S/N i | Ti / mK | ui / mK |
| NIST A128 | 3.800754 | 0.042 |
| NIST A129 | 3.800731 | 0.042 |
| NMi-VSL 226246 | 3.801097 | 0.124 |
| NPL 221481 | 3.801025 | 0.162 |
| NPL 221483 | 3.800935 | 0.162 |
| NPL 221485 | 3.800972 | 0.162 |
| NRC A138 | 3.800894 | 0.225 |
| NRC A140 | 3.800958 | 0.225 |
| PTB 229074 | 3.800798 | 0.180 |
| PTB 229075 | 3.801003 | 0.180 |
| VNIIFTRI 79 | 3.801008 | 0.403 |
| VNIIFTRI 89 | 3.801137 | 0.460 |
| NMIJ B271 | 3.800962 | 0.085 |
| NMIJ B310 | 3.800991 | 0.084 |
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 4.225 K
Lab : laboratory
S/N i : serial number of thermometer i
Ti : temperature value for thermometer i
ui : standard uncertainty in the calibration of thermometer i
ucomp : standard uncertainty in the comparison measurements
ucomp = 0.111 mK
Laboratory individual measurements for CCT-K1:
| Lab, S/N i | Ti / mK | ui / mK |
| NIST A128 | 4.224713 | 0.042 |
| NIST A129 | 4.224680 | 0.042 |
| NMi-VSL 226246 | 4.224827 | 0.122 |
| NPL 221481 | 4.224760 | 0.167 |
| NPL 221483 | 4.224731 | 0.167 |
| NPL 221485 | 4.224823 | 0.167 |
| NRC A138 | 4.224794 | 0.225 |
| NRC A140 | 4.224867 | 0.225 |
| PTB 229074 | 4.224704 | 0.180 |
| PTB 229075 | 4.224800 | 0.180 |
| VNIIFTRI 79 | 4.224908 | 0.409 |
| VNIIFTRI 89 | 4.225064 | 0.465 |
| NMIJ B271 | 4.224928 | 0.088 |
| NMIJ B310 | 4.224923 | 0.087 |
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 4.478 K
Lab : laboratory
S/N i : serial number of thermometer i
Ti : temperature value for thermometer i
ui : standard uncertainty in the calibration of thermometer i
ucomp : standard uncertainty in the comparison measurements
ucomp = 0.112 mK
Laboratory individual measurements for CCT-K1:
| Lab, S/N i | Ti / mK | ui / mK |
| NIST A128 | 4.477545 | 0.042 |
| NIST A129 | 4.477546 | 0.042 |
| NMi-VSL 226246 | 4.477459 | 0.206 |
| NPL 221481 | 4.477410 | 0.210 |
| NPL 221483 | 4.477489 | 0.201 |
| NPL 221485 | 4.477502 | 0.201 |
| NRC A138 | 4.477701 | 0.550 |
| NRC A140 | 4.478134 | 0.550 |
| PTB 229074 | 4.477475 | 0.180 |
| PTB 229075 | 4.477406 | 0.180 |
| VNIIFTRI 79 | 4.477674 | 0.413 |
| VNIIFTRI 89 | 4.477791 | 0.468 |
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 5.000 K
Lab : laboratory
S/N i : serial number of thermometer i
Ti : temperature value for thermometer i
ui : standard uncertainty in the calibration of thermometer i
ucomp : standard uncertainty in the comparison measurements
ucomp = 0.114 mK
Laboratory individual measurements for CCT-K1:
| Lab, S/N i | Ti / mK | ui / mK |
| NIST A128 | 5.000483 | 0.067 |
| NIST A129 | 5.000483 | 0.067 |
| NMi-VSL 226246 | 5.000468 | 0.206 |
| NPL 221481 | 5.000220 | 0.210 |
| NPL 221483 | 5.000395 | 0.201 |
| NPL 221485 | 5.000332 | 0.201 |
| NRC A138 | 5.001124 | 0.550 |
| NRC A140 | 5.001270 | 0.550 |
| PTB 229074 | 5.000397 | 0.270 |
| PTB 229075 | 5.000352 | 0.250 |
| VNIIFTRI 79 | 5.000647 | 0.421 |
| VNIIFTRI 89 | 5.000713 | 0.474 |
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 5.948 K
Lab : laboratory
S/N i : serial number of thermometer i
Ti : temperature value for thermometer i
ui : standard uncertainty in the calibration of thermometer i
ucomp : standard uncertainty in the comparison measurements
ucomp = 0.118 mK
Laboratory individual measurements for CCT-K1:
| Lab, S/N i | Ti / mK | ui / mK |
| NIST A128 | 5.947948 | 0.064 |
| NIST A129 | 5.948148 | 0.064 |
| NMi-VSL 226246 | 5.948420 | 0.206 |
| NPL 221481 | 5.948030 | 0.210 |
| NPL 221483 | 5.948374 | 0.201 |
| NPL 221485 | 5.947935 | 0.201 |
| NRC A138 | 5.948869 | 0.550 |
| NRC A140 | 5.949112 | 0.550 |
| PTB 229074 | 5.948358 | 0.273 |
| PTB 229075 | 5.948217 | 0.252 |
| VNIIFTRI 79 | 5.948466 | 0.436 |
| VNIIFTRI 89 | 5.948584 | 0.485 |
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 7.202 K
Lab : laboratory
S/N i : serial number of thermometer i
Ti : temperature value for thermometer i
ui : standard uncertainty in the calibration of thermometer i
ucomp : standard uncertainty in the comparison measurements
ucomp = 0.122 mK
Laboratory individual measurements for CCT-K1:
| Lab, S/N i | Ti / mK | ui / mK |
| NIST A128 | 7.201615 | 0.070 |
| NIST A129 | 7.201513 | 0.070 |
| NMi-VSL 226246 | 7.201679 | 0.206 |
| NPL 221481 | 7.201400 | 0.210 |
| NPL 221483 | 7.201415 | 0.201 |
| NPL 221485 | 7.201191 | 0.201 |
| NRC A138 | 7.202363 | 0.550 |
| NRC A140 | 7.202306 | 0.550 |
| PTB 229074 | 7.201593 | 0.277 |
| PTB 229075 | 7.201538 | 0.256 |
| VNIIFTRI 79 | 7.201591 | 0.456 |
| VNIIFTRI 89 | 7.201839 | 0.501 |
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 8.296 K
Lab : laboratory
S/N i : serial number of thermometer i
Ti : temperature value for thermometer i
ui : standard uncertainty in the calibration of thermometer i
ucomp : standard uncertainty in the comparison measurements
ucomp = 0.127 mK
Laboratory individual measurements for CCT-K1:
| Lab, S/N i | Ti / mK | ui / mK |
| NIST A128 | 8.296546 | 0.076 |
| NIST A129 | 8.296561 | 0.076 |
| NMi-VSL 226246 | 8.296278 | 0.206 |
| NPL 221481 | 8.296020 | 0.210 |
| NPL 221485 | 8.295779 | 0.201 |
| NRC A138 | 8.297318 | 0.550 |
| NRC A140 | 8.297308 | 0.550 |
| PTB 229074 | 8.296214 | 0.280 |
| PTB 229075 | 8.296135 | 0.258 |
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 9.508 K
Lab : laboratory
S/N i : serial number of thermometer i
Ti : temperature value for thermometer i
ui : standard uncertainty in the calibration of thermometer i
ucomp : standard uncertainty in the comparison measurements
ucomp = 0.131 mK
Laboratory individual measurements for CCT-K1:
| Lab, S/N i | Ti / mK | ui / mK |
| NIST A128 | 9.508227 | 0.086 |
| NIST A129 | 9.508237 | 0.086 |
| NMi-VSL 226246 | 9.508099 | 0.206 |
| NPL 221481 | 9.507680 | 0.210 |
| NPL 221483 | 9.507531 | 0.201 |
| NPL 221485 | 9.507387 | 0.201 |
| NRC A138 | 9.509019 | 0.550 |
| NRC A140 | 9.508971 | 0.550 |
| PTB 229074 | 9.507997 | 0.284 |
| PTB 229075 | 9.507851 | 0.262 |
| VNIIFTRI 79 | 9.508226 | 0.492 |
| VNIIFTRI 89 | 9.508531 | 0.528 |
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 10.803 K
Lab : laboratory
S/N i : serial number of thermometer i
Ti : temperature value for thermometer i
ui : standard uncertainty in the calibration of thermometer i
ucomp : standard uncertainty in the comparison measurements
ucomp = 0.137 mK
Laboratory individual measurements for CCT-K1:
| Lab, S/N i | Ti / mK | ui / mK |
| NIST A128 | 10.803560 | 0.096 |
| NIST A129 | 10.803616 | 0.096 |
| NMi-VSL 226246 | 10.803584 | 0.227 |
| NPL 221481 | 10.803070 | 0.206 |
| NPL 221483 | 10.803011 | 0.200 |
| NPL 221485 | 10.802842 | 0.200 |
| NRC A138 | 10.804196 | 0.550 |
| NRC A140 | 10.804185 | 0.550 |
| PTB 229074 | 10.803248 | 0.288 |
| PTB 229075 | 10.803221 | 0.265 |
| VNIIFTRI 79 | 10.803595 | 0.513 |
| VNIIFTRI 89 | 10.803927 | 0.544 |
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 12.297 K
Lab : laboratory
S/N i : serial number of thermometer i
Ti : temperature value for thermometer i
ui : standard uncertainty in the calibration of thermometer i
ucomp : standard uncertainty in the comparison measurements
ucomp = 0.145 mK
Laboratory individual measurements for CCT-K1:
| Lab, S/N i | Ti / mK | ui / mK |
| NIST A128 | 12.297349 | 0.106 |
| NIST A129 | 12.297413 | 0.106 |
| NMi-VSL 226246 | 12.297900 | 0.267 |
| NPL 221481 | 12.297090 | 0.199 |
| NPL 221483 | 12.297224 | 0.197 |
| NPL 221485 | 12.296905 | 0.197 |
| NRC A138 | 12.297793 | 0.550 |
| NRC A140 | 12.297778 | 0.550 |
| PTB 229074 | 12.297149 | 0.292 |
| PTB 229075 | 12.297099 | 0.269 |
| VNIIFTRI 79 | 12.297633 | 0.536 |
| VNIIFTRI 89 | 12.297547 | 0.562 |
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 13.798 K
Lab : laboratory
S/N i : serial number of thermometer i
Ti : temperature value for thermometer i
ui : standard uncertainty in the calibration of thermometer i
ucomp : standard uncertainty in the comparison measurements
ucomp = 0.153 mK
Laboratory individual measurements for CCT-K1:
| Lab, S/N i | Ti / mK | ui / mK |
| NIST A128 | 13.798156 | 0.111 |
| NIST A129 | 13.798122 | 0.111 |
| NMi-VSL 226246 | 13.798881 | 0.308 |
| NPL 221481 | 13.798130 | 0.191 |
| NPL 221483 | 13.798170 | 0.182 |
| NPL 221485 | 13.797754 | 0.182 |
| NRC A138 | 13.798459 | 0.550 |
| NRC A140 | 13.798305 | 0.550 |
| PTB 229074 | 13.798317 | 0.297 |
| PTB 229075 | 13.798209 | 0.273 |
| VNIIFTRI 79 | 13.798638 | 0.560 |
| VNIIFTRI 89 | 13.798620 | 0.580 |
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 15.500 K
Lab : laboratory
S/N i : serial number of thermometer i
Ti : temperature value for thermometer i
ui : standard uncertainty in the calibration of thermometer i
ucomp : standard uncertainty in the comparison measurements
ucomp = 0.153 mK
Laboratory individual measurements for CCT-K1:
| Lab, S/N i | Ti / mK | ui / mK |
| NIST A128 | 15.499479 | 0.119 |
| NIST A129 | 15.499474 | 0.119 |
| NMi-VSL 226246 | 15.500221 | 0.354 |
| NPL 221481 | 15.499523 | 0.194 |
| NPL 221483 | 15.499571 | 0.185 |
| NPL 221485 | 15.499138 | 0.185 |
| NRC A138 | 15.499689 | 0.550 |
| NRC A140 | 15.499662 | 0.550 |
| PTB 229074 | 15.499940 | 0.302 |
| PTB 229075 | 15.499849 | 0.277 |
| VNIIFTRI 79 | 15.499890 | 0.560 |
| VNIIFTRI 89 | 15.499817 | 0.585 |
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 16.999 K
Lab : laboratory
S/N i : serial number of thermometer i
Ti : temperature value for thermometer i
ui : standard uncertainty in the calibration of thermometer i
ucomp : standard uncertainty in the comparison measurements
ucomp = 0.153 mK
Laboratory individual measurements for CCT-K1:
| Lab, S/N i | Ti / mK | ui / mK |
| NIST A128 | 16.999286 | 0.124 |
| NIST A129 | 16.999271 | 0.124 |
| NMi-VSL 226246 | 16.999833 | 0.394 |
| NPL 221481 | 16.999290 | 0.197 |
| NPL 221483 | 16.999280 | 0.188 |
| NPL 221485 | 16.998847 | 0.188 |
| NRC A138 | 16.999430 | 0.550 |
| NRC A140 | 16.999259 | 0.550 |
| PTB 229074 | 16.999859 | 0.307 |
| PTB 229075 | 16.999701 | 0.281 |
| VNIIFTRI 79 | 16.999602 | 0.560 |
| VNIIFTRI 89 | 16.999783 | 0.589 |
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 18.597 K
Lab : laboratory
S/N i : serial number of thermometer i
Ti : temperature value for thermometer i
ui : standard uncertainty in the calibration of thermometer i
ucomp : standard uncertainty in the comparison measurements
ucomp = 0.153 mK
Laboratory individual measurements for CCT-K1:
| Lab, S/N i | Ti / mK | ui / mK |
| NIST A128 | 18.597374 | 0.129 |
| NIST A129 | 18.597342 | 0.129 |
| NMi-VSL 226246 | 18.597934 | 0.437 |
| NPL 221481 | 18.597330 | 0.200 |
| NPL 221483 | 18.597229 | 0.191 |
| NPL 221485 | 18.596804 | 0.191 |
| NRC A138 | 18.597402 | 0.550 |
| NRC A140 | 18.597237 | 0.550 |
| PTB 229074 | 18.597946 | 0.312 |
| PTB 229075 | 18.597872 | 0.285 |
| VNIIFTRI 79 | 18.597658 | 0.560 |
| VNIIFTRI 89 | 18.597830 | 0.593 |
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 20.299 K
Lab : laboratory
S/N i : serial number of thermometer i
Ti : temperature value for thermometer i
ui : standard uncertainty in the calibration of thermometer i
ucomp : standard uncertainty in the comparison measurements
ucomp = 0.153 mK
Laboratory individual measurements for CCT-K1:
| Lab, S/N i | Ti / mK | ui / mK |
| NIST A128 | 20.299107 | 0.132 |
| NIST A129 | 20.299108 | 0.132 |
| NMi-VSL 226246 | 20.299225 | 0.475 |
| NPL 221481 | 20.298690 | 0.203 |
| NPL 221483 | 20.298576 | 0.194 |
| NPL 221485 | 20.298352 | 0.194 |
| NRC A138 | 20.298800 | 0.550 |
| NRC A140 | 20.298750 | 0.550 |
| PTB 229074 | 20.299355 | 0.317 |
| PTB 229075 | 20.299131 | 0.289 |
| VNIIFTRI 79 | 20.298975 | 0.560 |
| VNIIFTRI 89 | 20.299144 | 0.598 |
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 21.575 K
Lab : laboratory
S/N i : serial number of thermometer i
Ti : temperature value for thermometer i
ui : standard uncertainty in the calibration of thermometer i
ucomp : standard uncertainty in the comparison measurements
ucomp = 0.153 mK
Laboratory individual measurements for CCT-K1:
| Lab, S/N i | Ti / mK | ui / mK |
| NIST A128 | 21.575775 | 0.142 |
| NIST A129 | 21.575754 | 0.142 |
| NMi-VSL 226246 | 21.575850 | 0.514 |
| NPL 221481 | 21.575120 | 0.207 |
| NPL 221483 | 21.574976 | 0.198 |
| NPL 221485 | 21.574975 | 0.198 |
| NRC A138 | 21.575266 | 0.550 |
| NRC A140 | 21.575114 | 0.550 |
| PTB 229074 | 21.575934 | 0.321 |
| PTB 229075 | 21.575693 | 0.292 |
| VNIIFTRI 79 | 21.575227 | 0.560 |
| VNIIFTRI 89 | 21.575344 | 0.602 |
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 22.677 K
Lab : laboratory
S/N i : serial number of thermometer i
Ti : temperature value for thermometer i
ui : standard uncertainty in the calibration of thermometer i
ucomp : standard uncertainty in the comparison measurements
ucomp = 0.153 mK
Laboratory individual measurements for CCT-K1:
| Lab, S/N i | Ti / mK | ui / mK |
| NIST A128 | 22.677193 | 0.152 |
| NIST A129 | 22.677155 | 0.152 |
| NMi-VSL 226246 | 22.677427 | 0.542 |
| NPL 221481 | 22.676930 | 0.210 |
| NPL 221483 | 22.676699 | 0.201 |
| NPL 221485 | 22.676646 | 0.201 |
| NRC A138 | 22.676586 | 0.550 |
| NRC A140 | 22.676571 | 0.550 |
| PTB 229074 | 22.677453 | 0.324 |
| PTB 229075 | 22.677222 | 0.295 |
| VNIIFTRI 79 | 22.676869 | 0.560 |
| VNIIFTRI 89 | 22.676872 | 0.605 |
CCT-K1 and EURAMET.T-K1
MEASURAND : Temperature T90 expressed in K
NOMINAL TEMPERATURE : T90 = 24.446 K
Lab : laboratory
S/N i : serial number of thermometer i
Ti : temperature value for thermometer i
ui : standard uncertainty in the calibration of thermometer i
ucomp : standard uncertainty in the comparison measurements
ucomp = 0.153 mK
Laboratory individual measurements for CCT-K1:
| Lab, S/N i | Ti / mK | ui / mK |
| NIST A128 | 24.446295 | 0.174 |
| NIST A129 | 24.446429 | 0.174 |
| NMi-VSL 226246 | 24.446981 | 0.587 |
| NPL 221481 | 24.446370 | 0.216 |
| NPL 221483 | 24.446221 | 0.207 |
| NPL 221485 | 24.446209 | 0.207 |
| NRC A138 | 24.446435 | 0.550 |
| NRC A140 | 24.446466 | 0.550 |
| PTB 229074 | 24.447000 | 0.330 |
| PTB 229075 | 24.446767 | 0.300 |
| VNIIFTRI 79 | 24.446009 | 0.560 |
| VNIIFTRI 89 | 24.446107 | 0.610 |
