CCM.G-K2, EURAMET.M.G-K2 and SIM.M.G-K1

MEASURAND : Free-fall acceleration
NOMINAL VALUE : 9.81 m/s2

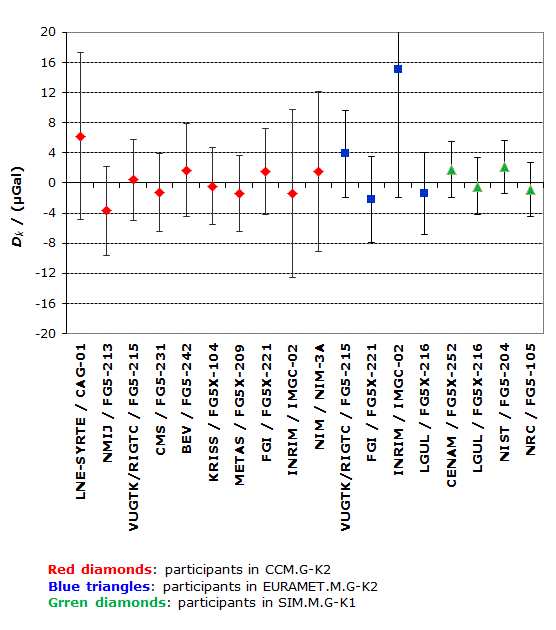

Degrees of equivalence: Dk and expanded uncertainty Uk (k = 2), both expressed in µGal

CCM.G-K2, EURAMET.M.G-K2 and SIM.M.G-K1

MEASURAND : Free-fall acceleration
NOMINAL VALUE : 9.81 m/s2

Degrees of equivalence: Dk and expanded uncertainty Uk (k = 2), both expressed in µGal

CCT.G-K2 EURAMET.M.G-K2 SIM.M.G-K1

Results are presented under A4 printable format in Summary Results (PDF file).

Comparison
Comparison close
CC comparison
Linked comparison
EURAMET.M.G-K2
Metrology area, Sub-field Mass and related quantities, Gravity
Description Free-fall acceleration
Time of measurements 2015
Status Approved for equivalence
Final Reports of the comparisons
References

EURAMET.M.G-K2 Registration and progress form

Measurand Free-fall acceleration: 9.81 m/s2
Transfer device Comparison using absolute gravimeters
Comparison type Key Comparison
Consultative Committee CCM (Consultative Committee for Mass and Related Quantities)
Conducted by EURAMET (European Association of National Metrology Institutes)
RMO Internal Identifier EURAMET Project #1368
Comments

The comparison will be organised as EURAMET.M.G-K2 Key Comparison and Pilot Study and linked to the CCM.G-K2 by means of four joint participants. The results of comparison will be also used for demons.
Apart from the VUGTK/RIGTC, FGI, INRiM and BEV, another 17 geodetic and geophysical institutes of Luxembourg, Germany, Netherlands, Poland, Belgium, Sweden, Italy, Russia, Slovakia, France and USA participate.

Results published on 7 March 2017
EURAMET.M.G-K2 and SIM.M.G-K1 results are linked to those of CCM.G-K2

Free-fall acceleration

Pilot institute VUGTK/RIGTC
Research Institute of Geodesy, Topography and Cartography
Czechia
Contact person Vojtech Pálinkáš

+420 323649235
First Name Last Name
wwww@ww.www +356719836 Institute 1 Institute 1 Khmelnitskiy
Pilot laboratory
VUGTK/RIGTC

Research Institute of Geodesy, Topography and Cartography, Czechia, EURAMET

FGI

Finnish Geospatial Research Institute, Finland, EURAMET

INRIM

Istituto Nazionale di Ricerca Metrologica, Italy, EURAMET

LGUL

Laboratory of Geophysics of the University of Luxembourg, Luxembourg, EURAMET

CCM.G-K2, EURAMET.M.G-K2 and SIM.M.G-K1

  • Key comparison CCM.G-K2

MEASURAND : Free-fall acceleration
NOMINAL VALUE : 9.81 m/s2

A weighted least-square adjustement is applied to the set of measurements obtained from absolute gravimeters AG(k) at Stations j, gjk, with standard uncertainty ujk, in order to evaluate the gravity value Gj at each Station j, as well as the offset Dk for absolute gravimeter AG(k), as explained in Section 6.2 "Second and final solution" of the Final Report).

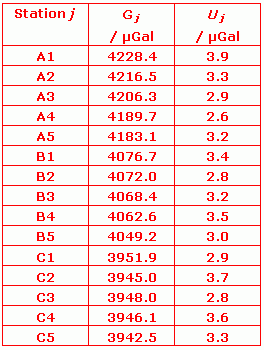

Gj is the key comparison reference value for Station j. Its associated expanded uncertainty (at a 95 % level of confidence) is denoted Uj.
Gj values are given after substraction of 980 960 000 µGal.
The key comparison reference values are defined at the reference height of 1.3 m.

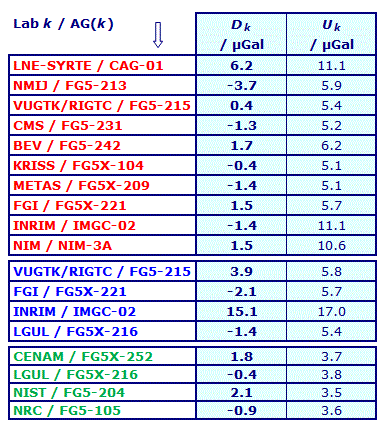

The degree of equivalence of absolute gravimeter AG(k) is given by a pair of terms: Dk and Uk, its expanded uncertainty at a 95 % level of confidence, both expressed in µGal.
  • Key comparison EURAMET.M.G-K2

The linkage of EURAMET.M.G-K2 comparison results to CCM.G-K2 comparison results are made by means of four laboratory absolute gravimeters that have been used in both comparisons, and the linking process is described in the EURAMET.M.G-K2 Final Report.

  • Key comparison SIM.M.G-K1

The linkage of SIM.M.G-K1 comparison results to CCM.G-K2 comparison results was made using the FG5X-216 gravimeter through EURAMET.M.G-K2. Tthe linking process is described in the SIM.M.G-K1 Final Report Section 7.3.

CCM.G-K2, EURAMET.M.G-K2 and SIM.M.G-K1

  • Key comparison CCM.G-K2

MEASURAND : Free-fall acceleration
NOMINAL VALUE : 9.81 m/s2

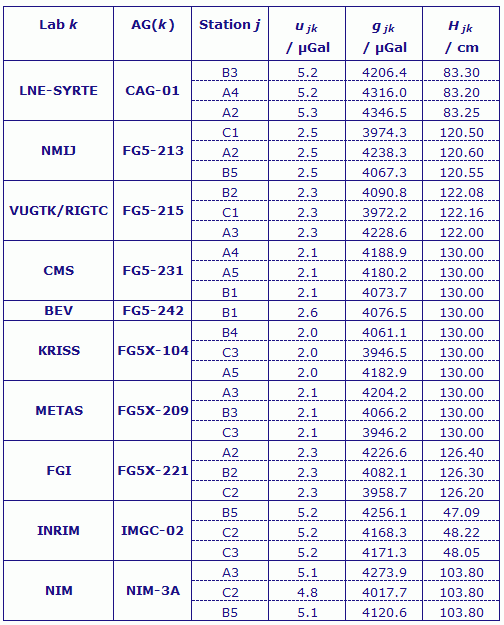

AG(k) : absolute gravimeter of Laboratory k
Station j : designation of the station where the measurement was carried out
gjk : gravity value at Station j and height Hjk after substraction of 980 960 000 µGal
ujk : combined standard uncertainty declared by Laboratory k

The comparison was performed in 2013
In general, each participant communicated gravity measurements for three of the fifteen stations used

  • Key comparison EURAMET.M.G-K2

Raw measurements from Absolute Gravimeters reported by the participants in EURAMET.M.G-K2 are given in Table 4 on page 8 of the Final Report.
The comparison was performed in 2015.

  • Key comparison SIM.M.G-K1

Raw measurements from Absolute Gravimeters reported by the participants in SIM.M.G-K1 are given in Table 5 on pp. 7-8 of the Final Report.
The comparison was performed in 2016.
