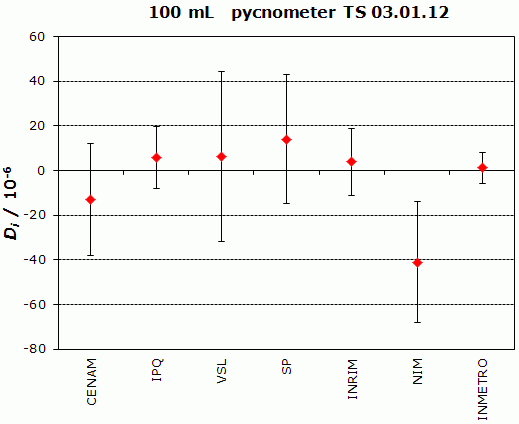

CCM.FF-K4.1.2011

 

MEASURAND   Water volume

NOMINAL VALUE 100 mL

TRANSFER INSTRUMENT   Glass pycnometer, serial number TS 03.01.12



Degrees of equivalence represented by Di = (xi - xR)/xR and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in 10-6.

100 mL
Di
Participating institutes

CCM.FF-K4.1.2011 used three transfer instruments for the volume of liquids at 100 mL, with serial numbers TS 03.01.12, TS 03.01.16 and TS 03.01.17.

print out

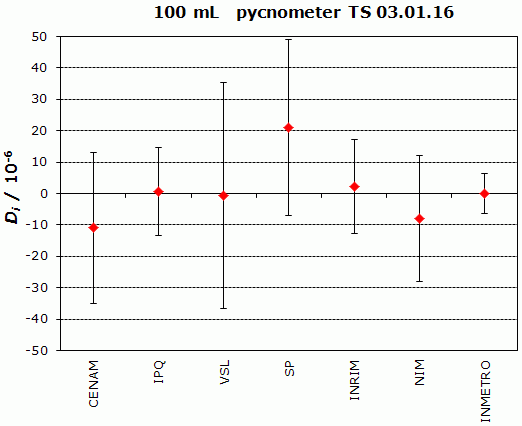

CCM.FF-K4.1.2011 and SIM.M.FF-K4.1.2017

 

MEASURAND   Water volume

NOMINAL VALUE 100 mL

TRANSFER INSTRUMENT   Glass pycnometer, serial number TS 03.01.16



Degrees of equivalence represented by Di = (xi - xR)/xR and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in 10-6.

100 mL
Di
Participating institutes

CCM.FF-K4.1.2011 used three transfer instruments for the volume of liquids at 100 mL, with serial numbers TS 03.01.12, TS 03.01.16 and TS 03.01.17. The results of SIM.M.FF-K4.1.2017 were linked to CCM.FF-K4.1.2011 through the results obtained for the instrument TS 03.01.16.

print out

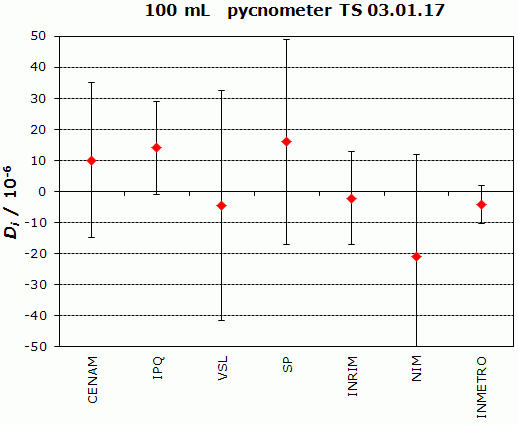

CCM.FF-K4.1.2011

 

MEASURAND   Water volume

NOMINAL VALUE 100 mL

TRANSFER INSTRUMENT   Glass pycnometer, serial number TS 03.01.17



Degrees of equivalence represented by Di = (xi - xR)/xR and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in 10-6.

100 mL
Di
Participating institutes

CCM.FF-K4.1.2011 used three transfer instruments for the volume of liquids at 100 mL, with serial numbers TS 03.01.12, TS 03.01.16 and TS 03.01.17.

print out

CCM.FF-K4.1.2011 and EURAMET.M.FF-K4.1.2016



MEASURAND             Water volume

NOMINAL VALUE     20 L

TRANSFER INSTRUMENT   Overflow type pipette, serial number TS 710-04

Degrees of equivalence represented by Di = (xi - xR)/xR and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in 10-6.

20 L
Di
Participating institutes

CCM.FF-K4.1.2011 used two transfer standards for the volume of liquids at 20 L, with serial numbers TS 710-04 and TS 710-05. The results of EURAMET.M.FF-K4.1.2016 were linked to CCM.FF-K4.1.2011 through the results obtained for the standard TS 710-04. More information is accessible in the CCM.FF-K4.1.2011 Final Report.

print out

CCM.FF-K4.1.2011 and SIM.M.FF-K4.1.2017



MEASURAND             Water volume

NOMINAL VALUE     20 L

TRANSFER INSTRUMENT   Overflow type pipette, serial number TS 710-05



Degrees of equivalence represented by Di = (xi - xR)/xR and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in 10-6.

20 L
Di
Participating institutes

CCM.FF-K4.1.2011 used two transfer instruments for the volume of liquids at 20 L, with serial numbers TS 710-04 and TS 710-05. The results of SIM.M.FF-K4.1.2017 were linked to CCM.FF-K4.1.2011 through the results obtained for the instrument TS 710-05.

Comparison
Comparison close
Results
print out

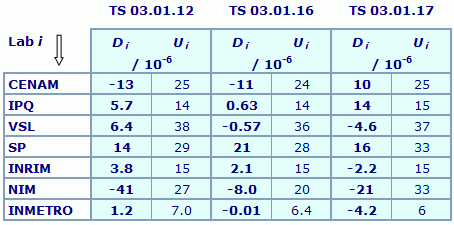

CCM.FF-K4.1.2011

 

MEASURAND   Water volume

NOMINAL VALUE 100 mL

TRANSFER INSTRUMENT   Glass pycnometer, serial number TS 03.01.12



Degrees of equivalence represented by Di = (xi - xR)/xR and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in 10-6.

LABi Di Uneg,i Upos,i
10-6
10-6
10-6
CENAM -13 25
IPQ 5.7 14
VSL 6.4 38
SP 14 29
INRIM 3.8 15
NIM -41 27
INMETRO 1.2 7.0
Participating institutes
CCM.FF-K4.1.2011

CCM.FF-K4.1.2011 used three transfer instruments for the volume of liquids at 100 mL, with serial numbers TS 03.01.12, TS 03.01.16 and TS 03.01.17.

print out

CCM.FF-K4.1.2011 and SIM.M.FF-K4.1.2017

 

MEASURAND   Water volume

NOMINAL VALUE 100 mL

TRANSFER INSTRUMENT   Glass pycnometer, serial number TS 03.01.16



Degrees of equivalence represented by Di = (xi - xR)/xR and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in 10-6.

LABi Di Uneg,i Upos,i
10-6
10-6
10-6
CENAM -11 24
IPQ 0.63 14
VSL -0.57 36
SP 21 28
INRIM 2.1 15
NIM -8.0 20
INMETRO -0.01 6.4
LACOMET 7.7 44
INM (CO) 19 21
INACAL -4.9 51
IBMETRO 80 37
INTN 7.7 42
LATU 29 44
INTI 7.7 41
Participating institutes
CCM.FF-K4.1.2011
SIM.M.FF-K4.1.2017

CCM.FF-K4.1.2011 used three transfer instruments for the volume of liquids at 100 mL, with serial numbers TS 03.01.12, TS 03.01.16 and TS 03.01.17. The results of SIM.M.FF-K4.1.2017 were linked to CCM.FF-K4.1.2011 through the results obtained for the instrument TS 03.01.16.

print out

CCM.FF-K4.1.2011

 

MEASURAND   Water volume

NOMINAL VALUE 100 mL

TRANSFER INSTRUMENT   Glass pycnometer, serial number TS 03.01.17



Degrees of equivalence represented by Di = (xi - xR)/xR and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in 10-6.

LABi Di Uneg,i Upos,i
10-6
10-6
10-6
CENAM 10 25
IPQ 14 15
VSL -4.6 37
SP 16 33
INRIM -2.2 15
NIM -21 33
INMETRO -4.2 6.0
Participating institutes
CCM.FF-K4.1.2011

CCM.FF-K4.1.2011 used three transfer instruments for the volume of liquids at 100 mL, with serial numbers TS 03.01.12, TS 03.01.16 and TS 03.01.17.

print out

CCM.FF-K4.1.2011 and EURAMET.M.FF-K4.1.2016



MEASURAND             Water volume

NOMINAL VALUE     20 L

TRANSFER INSTRUMENT   Overflow type pipette, serial number TS 710-04

Degrees of equivalence represented by Di = (xi - xR)/xR and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in 10-6.

LABi Di Uneg,i Upos,i
10-6
10-6
10-6
CENAM -0.08 39
NIST 8.6 57
IPQ -2.7 84
VSL -11 32
SP -6.5 23
INRIM -1.05 16
NIM -15 28
INMETRO 15 17
DMDM 35 88
IMBIH -22 37
MBM -44 66
DPM 193 57
JV -4 34
METAS -32 108
BoM -58 88
SMU -18 40
MIRS -9 55
AMK -60 142
BIM 57 83
VMC -10 79
CEM -25 42
BEV 2 45
MKEH -12 30
CMI -16 40
Participating institutes
CCM.FF-K4.1.2011
EURAMET.M.FF-K4.1.2016

CCM.FF-K4.1.2011 used two transfer standards for the volume of liquids at 20 L, with serial numbers TS 710-04 and TS 710-05. The results of EURAMET.M.FF-K4.1.2016 were linked to CCM.FF-K4.1.2011 through the results obtained for the standard TS 710-04. More information is accessible in the CCM.FF-K4.1.2011 Final Report.

print out

CCM.FF-K4.1.2011 and SIM.M.FF-K4.1.2017



MEASURAND             Water volume

NOMINAL VALUE     20 L

TRANSFER INSTRUMENT   Overflow type pipette, serial number TS 710-05



Degrees of equivalence represented by Di = (xi - xR)/xR and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in 10-6.

LABi Di Uneg,i Upos,i
10-6
10-6
10-6
CENAM -1.4 39
NIST -7.3 57
IPQ -28 68
VSL -14 33
SP -4.2 23
INRIM 0.9 16
NIM -19 28
INMETRO 14 14
RECOPE -4.8 51
INM (CO) -77 58
INACAL -107 92
IBMETRO -89 106
INTN -33 164
INMETRO 13 153
LATU -6.8 113
INTI -12 62
Participating institutes
CCM.FF-K4.1.2011
SIM.M.FF-K4.1.2017

CCM.FF-K4.1.2011 used two transfer instruments for the volume of liquids at 20 L, with serial numbers TS 710-04 and TS 710-05. The results of SIM.M.FF-K4.1.2017 were linked to CCM.FF-K4.1.2011 through the results obtained for the instrument TS 710-05.

Comparison
Comparison close
CC comparison
Linked comparison
EURAMET.M.FF-K4.1.2016
print out
Metrology area, Sub-field Mass and related quantities, Fluid Flow
Description Liquid volume: 20 L
Time of measurements 2016 - 2017
Status Approved for equivalence
Final Reports of the comparisons
Metrologia 2020 57 Tech. Suppl. 07021
Measurand Volume of water, 20 L
Parameters Volume at 20 °C
Transfer device Stainless Steel Pipette 20 L
Comparison type Key Comparison
Consultative Committee CCM (Consultative Committee for Mass and Related Quantities)
Conducted by EURAMET (European Association of National Metrology Institutes)
RMO Internal Identifier EURAMET 1395
Comments Results published on 3 August 2020

Pilot institute INRIM
Istituto Nazionale di Ricerca Metrologica
Italy
Contact person Andrea Malengo

+39 011 3919 946
First Name Last Name
wwww@ww.www +356719836 Institute 1 Institute 1 Khmelnitskiy
Pilot laboratory
INRIM

Istituto Nazionale di Ricerca Metrologica, Italy, EURAMET

BEV

Bundesamt für Eich- und Vermessungswesen, Austria, EURAMET

BIM

Bulgarian Institute of Metrology, Bulgaria, EURAMET

BMM

Bureau of Metrology (Montenegro), Montenegro, EURAMET

BOM

Bureau of Metrology, Ministry of Economy (North Macedonia), North Macedonia, EURAMET

CEM

Centro Español de Metrologia, Spain, EURAMET

CENAM

Centro Nacional de Metrologia, Mexico, SIM

DFM

Danish Fundamental Metrology A/S, Denmark, EURAMET

DMDM

Directorate of Measures and Precious Metals, Serbia, EURAMET

DPM

Drejtoria e Pergjithshme e Metrologjise/General Directorate of Metrology, Albania, EURAMET

IMBIH

Institute of Metrology of Bosnia and Herzegovina, Bosnia and Herzegovina, EURAMET

IPQ

Instituto Portugues da Qualidade, Portugal, EURAMET

JV

Justervesenet, Norway, EURAMET

METAS

Federal Institute of Metrology, Switzerland, EURAMET

MIRS

Metrology Institute of the Republic of Slovenia, Ministry of the Economy, Tourism and Sport, Slovenia, EURAMET

MKEH

Hungarian Trade Licensing Office; now BFKH, Hungary, EURAMET

SMU

Slovensky Metrologicky Ustav, Slovakia, EURAMET

SP

Technical Research Institute of Sweden from 2017 Research Institutes of Sweden AB, Sweden, EURAMET

VMC

Vilnius Metrology Center/VI Vilniaus metrologijos centras, Lithuania, EURAMET

VSL

VSL, Netherlands, EURAMET

Comparison
Comparison close
Results
print out

CCM.FF-K4.1.2011

 

MEASURAND   Water volume

NOMINAL VALUE 100 mL

TRANSFER INSTRUMENT   Glass pycnometer, serial number TS 03.01.12



The key comparison reference value xR and its associated standard uncertainty uR are computed from the weighted mean of the reported results for the transfer instrument, as explained in Section 8 of the CCM.FF-K4.1.2011 Final report.



        xR = 99.643 22 mL     uR = 0.000 33 mL



The degree of equivalence of laboratory i relative to the key comparison reference value xR is given by a pair of terms, both expressed in 10-6:

Di = (xi - xR)/xR and its expanded uncertainty Ui at a 95 % level of confidence also expressed in relative terms.

print out

CCM.FF-K4.1.2011 and SIM.M.FF-K4.1.2017

 

MEASURAND   Water volume

NOMINAL VALUE 100 mL

TRANSFER INSTRUMENT   Glass pycnometer, serial number TS 03.01.16



The key comparison reference value xR and its associated standard uncertainty uR are computed from the weighted mean of the reported results for the transfer instrument, as explained in Section 8 of the CCM.FF-K4.1.2011 Final report.



        xR = 103.091 91 mL     uR = 0.000 32 mL



The degree of equivalence of laboratory i relative to the key comparison reference value xR is given by a pair of terms, both expressed in 10-6:

Di = (xi - xR)/xR and its expanded uncertainty Ui at a 95 % level of confidence also expressed in relative terms.



Linking SIM.M.FF-K4.1.2017 to CCM.FF-K4.1.2011

The institutes CENAM and INMETRO provide the link between the key comparison CCM.FF-K4.1.2011 and SIM.M.FF-K4.1.2017, having participated in both comparisons at the 100 mL liquid volume measurand. The linking process is described in Section 8.3.1 of the SIM.M.FF-K4.1.2017 Final Report.

print out

CCM.FF-K4.1.2011

 

MEASURAND   Water volume

NOMINAL VALUE 100 mL

TRANSFER INSTRUMENT   Glass pycnometer, serial number TS 03.01.17



The key comparison reference value xR and its associated standard uncertainty uR are computed from the weighted mean of the reported results for the transfer instrument, as explained in Section 8 of the CCM.FF-K4.1.2011 Final report.



        xR = 100.595 89 mL     uR = 0.000 32 mL



The degree of equivalence of laboratory i relative to the key comparison reference value xR is given by a pair of terms, both expressed in 10-6:

Di = (xi - xR)/xR and its expanded uncertainty Ui at a 95 % level of confidence also expressed in relative terms.

print out

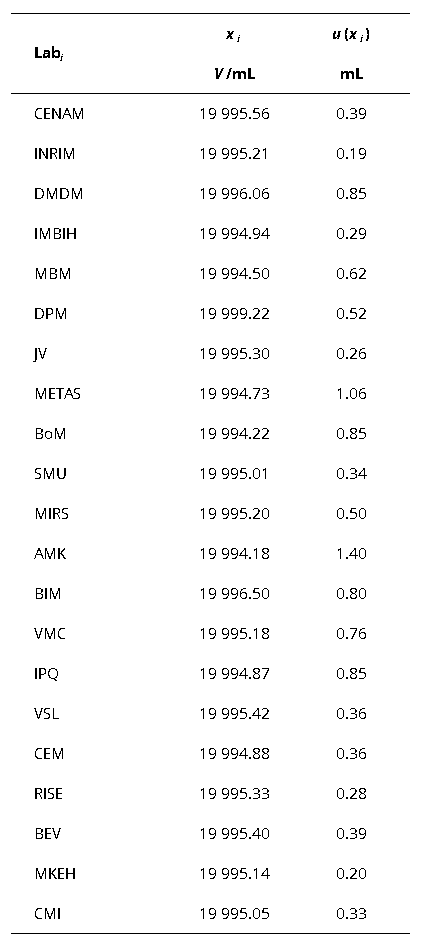

CCM.FF-K4.1.2011 and EURAMET.M.FF-K4.1.2016



MEASURAND             Water volume

NOMINAL VALUE     20 L

TRANSFER INSTRUMENT   Overflow type pipette, serial number TS 710-04



The key comparison reference values are basically obtained from the weighted means of the results, including a consistency check, as explained on page 9 of the CCM.FF-K4.1.2011 Final Report. They are denoted xR with standard uncertainties uR.



        xR = 19 990.75 mL     uR = 0.10 mL



The degree of equivalence of laboratory i relative to the key comparison reference value xR is given by a pair of terms, both expressed in 10-6:

Di = (xi - xR)/xR and its expanded uncertainty Ui at a 95 % level of confidence also expressed in relative terms.



Linking EURAMET.M.FF-K4.1.2016 to CCM.FF-K4.1.2011

The results obtaibed from EURAMET.M.FF-K4.1.2016 were linked to CCM.FF-K4.1.2011 via CENAM, INRiM, IPQ, RISE and VSL who participated in both comparisons.

print out

CCM.FF-K4.1.2011 and SIM.M.FF-K4.1.2017



MEASURAND             Water volume

NOMINAL VALUE     20 L

TRANSFER INSTRUMENT   Overflow type pipette, serial number TS 710-05



The key comparison reference value xR and its associated standard uncertainty uR are computed from the weighted mean of the reported results for the transfer instrument, as explained in Section 8 of the CCM.FF-K4.1.2011 Final report.



        xR = 19 993.53 mL     uR = 0.096 mL



The degree of equivalence of laboratory i relative to the key comparison reference value xR is given by a pair of terms, both expressed in 10-6:

Di = (xi - xR)/xR and its expanded uncertainty Ui at a 95 % level of confidence also expressed in relative terms.



Linking SIM.M.FF-K4.1.2017 to CCM.FF-K4.1.2011

The institutes CENAM and NIST provide the link between the key comparison CCM.FF-K4.1.2011 and SIM.M.FF-K4.1.2017, having participated in both comparisons at the 20 L liquid volume measurand. The linking process is described in Section 8.1 of the SIM.M.FF-K4.1.2017 Final Report.

Comparison
Comparison close
Results
print out

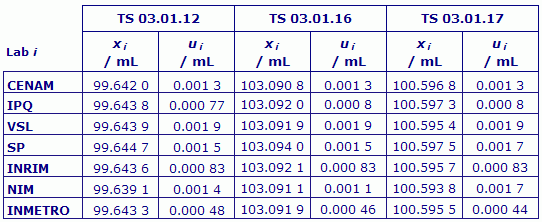

CCM.FF-K4.1.2011

 

MEASURAND   Water volume

NOMINAL VALUE 100 mL

TRANSFER INSTRUMENT   Glass pycnometer, serial number TS 03.01.12



xi   measurement result reported by laboratory i, Labi

ui   combined standard uncertainty of xi





Labi

xi

ui



mL

mL



CENAM

99.642 0

0.001 3



IPQ

99.643 8

0.000 77



VSL

99.643 9

0.001 9



SP

99.644 7

0.001 5



INRIM

99.643 6

0.000 83



NIM

99.639 1

0.001 4



INMETRO

99.643 3

0.000 48



























print out

CCM.FF-K4.1.2011 and SIM.M.FF-K4.1.2017

 

MEASURAND   Water volume

NOMINAL VALUE 100 mL

TRANSFER INSTRUMENT   Glass pycnometer, serial number TS 03.01.16



xi   measurement result reported by laboratory i, Labi

ui   combined standard uncertainty of xi



CCM.FF-K4.1.2011

  Labi xi ui
  mL mL
  CENAM 103.090 8 0.001 3
  IPQ 103.092 0 0.000 8
  VSL 103.091 9 0.001 9
  SP 103.094 0 0.001 5
  INRIM 103.092 1 0.000 83
  NIM 103.091 1 0.001 1
  INMETRO 103.091 9 0.000 46





SIM.M.FF-K4.1.2017

  Labi xi ui
  mL mL
  CENAM 97.8113 0.0015
  LACOMET 97.8113 0.0021
  INM (CO) 97.8125 0.0006
  INACAL 97.8100 0.0025
  IBMETRO 97.8188 0.0017
  INTN 97.8113 0.0020
  INMETRO 97.8102 0.0008
  LATU 97.8135 0.0021
  INTI 97.8113 0.0019
print out

CCM.FF-K4.1.2011

 

MEASURAND   Water volume

NOMINAL VALUE 100 mL

TRANSFER INSTRUMENT   Glass pycnometer, serial number TS 03.01.17



xi   measurement result reported by laboratory i, Labi

ui   combined standard uncertainty of xi



  Labi xi ui
  mL mL
  CENAM 100.596 8 0.001 3
  IPQ 100.597 3 0.000 8
  VSL 100.595 4 0.001 9
  SP 100.597 5 0.001 7
  INRIM 100.595 7 0.000 83
  NIM 100.593 8 0.001 7
  INMETRO 100.595 5 0.000 44
print out

CCM.FF-K4.1.2011 and EURAMET.M.FF-K4.1.2016



MEASURAND             Water volume

NOMINAL VALUE     20 L

TRANSFER INSTRUMENT   Overflow type pipette, serial number TS 710-04



xi         volume measured by laboratory i

ui            standard uncertainty of xi





CCM.FF-K4.1.2011



EURAMET.M.FF-K4.1.2016



print out

CCM.FF-K4.1.2011 and SIM.M.FF-K4.1.2017



MEASURAND             Water volume

NOMINAL VALUE     20 L

TRANSFER INSTRUMENT   Overflow type pipette, serial number TS 710-05



xi   measurement result reported by laboratory i, Labi

ui   combined standard uncertainty of xi



CCM.FF-K4.1.2011

  Labi xi ui
  mL mL
  CENAM 19993.50 0.40
  NIST 19993.39 0.58
  IPQ 19992.97 0.83
  VSL 19993.25 0.34
  SP 19993.45 0.25
  INRIM 19993.55 0.19
  NIM 19993.14 0.30
  INMETRO 19993.81 0.17





SIM.M.FF-K4.1.2017

  Labi xi ui
  mL mL
  CENAM 19990.83 0.38
  NIST 19990.94 0.48
  RECOPE 19990.84 0.22
  INM (CO) 19989.39 0.35
  INACAL 19988.80 0.80
  IBMETRO 19989.16 0.96
  INTN 19990.28 1.57
  INMETRO 19991.20 1.46
  LATU 19990.80 1.03
  INTI 19990.70 0.41
