CCM.FF-K2.2015 Hydrocarbon liquid flow
Measurand: relative K factor at a specific Reynolds number
Transfer instrument: screw type positive displacement flow meter
CCM.FF-K2.2015 Hydrocarbon liquid flow
Measurand: relative K factor at a specific Reynolds number
Transfer instrument: screw type positive displacement flow meter
CCM.FF-K2.2015 Hydrocarbon liquid flow
Measurand: relative K factor at a specific Reynolds number
Transfer instrument: screw type positive displacement flow meter
CCM.FF-K2.2015 Hydrocarbon liquid flow
Measurand: relative K factor at a specific Reynolds number
Transfer instrument: screw type positive displacement flow meter
Results are presented under A4 printable format in Summary Results (.PDF file).
CCM.FF-K2.2015 Hydrocarbon liquid flow
Measurand: relative K factor at a specific Reynolds number
Transfer instrument: screw type positive displacement flow meter
Results are presented under A4 printable format in Summary Results (.PDF file).
CCM.FF-K2.2015 Hydrocarbon liquid flow
Measurand: relative K factor at a specific Reynolds number
Transfer instrument: screw type positive displacement flow meter
Results are presented under A4 printable format in Summary Results (.PDF file).
| Metrology area, Sub-field | Mass and related quantities, Fluid Flow |
| Description | Hydrocarbon liquid flow |
| Time of measurements | 2014 - 2015 |
| Status | Approved for equivalence |
| Final Reports of the comparisons | |
| References | |
| Measurand | K-factor (pulse/L), flow from 60 m3/h to 300 m3//h |
| Parameters | Test pipe diameter: 150 mm |
| Transfer device | Positive displacement flow meter |
| Comparison type | Key Comparison |
| Consultative Committee | CCM (Consultative Committee for Mass and Related Quantities) |
| Conducted by | CCM (Consultative Committee for Mass and Related Quantities) |
| Comments | Results published on 27 October 2016 Hydrocarbon liquid flow |
| Pilot institute |
NMIJ AIST
National Metrology Institute of Japan Japan |
| Contact person | Takashi SHIMADA +81 29 861 3816 |
| Pilot laboratory | |
|---|---|
| NMIJ AIST |
National Metrology Institute of Japan, Japan, APMP |
| BEV |
Bundesamt für Eich- und Vermessungswesen, Austria, EURAMET |
| CENAM |
Centro Nacional de Metrologia, Mexico, SIM |
| CMS |
ITRI Center for Measurement Standards, Chinese Taipei, APMP |
| LNE-TRAPIL |
Société des Transports Pétroliers par Pipeline, France, EURAMET |
| NMIA |
National Measurement Institute, Australia, Australia, APMP |
| TUVNEL |
TUVNEL, United Kingdom, EURAMET |
This page proposes print-out on A4 paper (portrait) of the comparison details (best printed out using a black and white printer).
Please, select items to be printed out, then click on "OK" :
CCM.FF-K2.2015 Hydrocarbon liquid flow
Measurand: relative K factor at a specific Reynolds number
Transfer instrument: screw type positive displacement flow meter
|

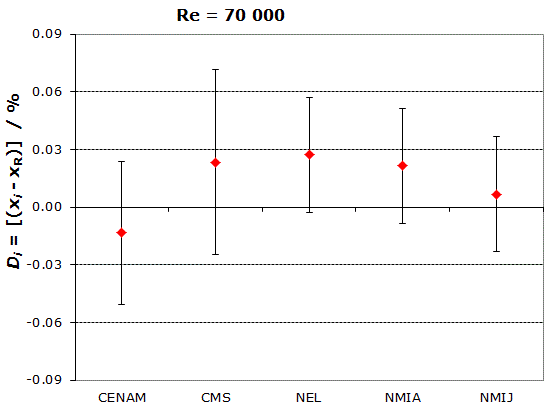

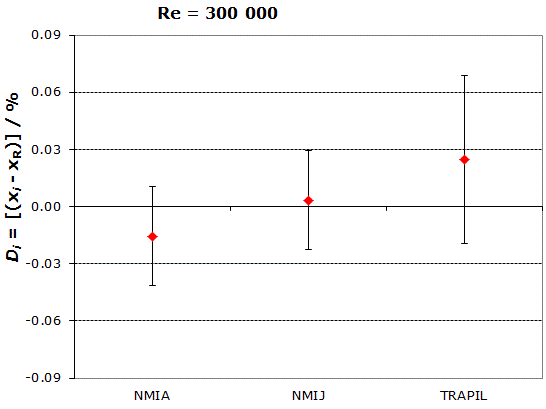

The key comparison reference value, xR, is calculated as the weighted mean of the participants' results for Re = 70 000 and Re = 300 000. For Re = 100 000, xR is calculated as the median. Its expanded uncertainty is UR. |
| The degree of equivalence of laboratory i with respect to the key comparison reference value is given by a pair of terms, both expressed in relative terms: Di and Ui. Di = (xi - xR). For Re = 70 000 and Re = 300 000 its expanded uncertainty is Ui = (ULab i2 - UR2)1/2. For Re = 100 000 the uncertainty was calculated using Monte carlo methods. |
| The degree of equivalence between two laboratories i and j may be calculated approximately by Dij = (Di - Dj) and the associated expanded uncertainty Uij = (ULab i2 + ULab j2)1/2. |
CCM.FF-K2.2015 Hydrocarbon liquid flow
Measurand: relative K factor at a specific Reynolds number
Transfer instrument: screw type positive displacement flow meter
|
The key comparison reference value, xR, is calculated as the weighted mean of the participants' results for Re = 70 000 and Re = 300 000. For Re = 100 000, xR is calculated as the median. Its expanded uncertainty is UR. |
| The degree of equivalence of laboratory i with respect to the key comparison reference value is given by a pair of terms, both expressed in relative terms: Di and Ui. Di = (xi - xR). For Re = 70 000 and Re = 300 000 its expanded uncertainty is Ui = (ULab i2 - UR2)1/2. For Re = 100 000 the uncertainty was calculated using Monte carlo methods. |
| The degree of equivalence between two laboratories i and j may be calculated approximately by Dij = (Di - Dj) and the associated expanded uncertainty Uij = (ULab i2 + ULab j2)1/2. |
CCM.FF-K2.2015 Hydrocarbon liquid flow
Measurand: relative K factor at a specific Reynolds number
Transfer instrument: screw type positive displacement flow meter
|
The key comparison reference value, xR, is calculated as the weighted mean of the participants' results for Re = 70 000 and Re = 300 000. For Re = 100 000, xR is calculated as the median. Its expanded uncertainty is UR. |
| The degree of equivalence of laboratory i with respect to the key comparison reference value is given by a pair of terms, both expressed in relative terms: Di and Ui. Di = (xi - xR). For Re = 70 000 and Re = 300 000 its expanded uncertainty is Ui = (ULab i2 - UR2)1/2. For Re = 100 000 the uncertainty was calculated using Monte carlo methods. |
| The degree of equivalence between two laboratories i and j may be calculated approximately by Dij = (Di - Dj) and the associated expanded uncertainty Uij = (ULab i2 + ULab j2)1/2. |
CCM.FF-K2.2015 Hydrocarbon liquid flow
Measurand: relative K factor at a specific Reynolds number
Transfer instrument: screw type positive displacement flow meter
xi : measurement result reported by laboratory i
ULab i : expanded uncertainty of xi

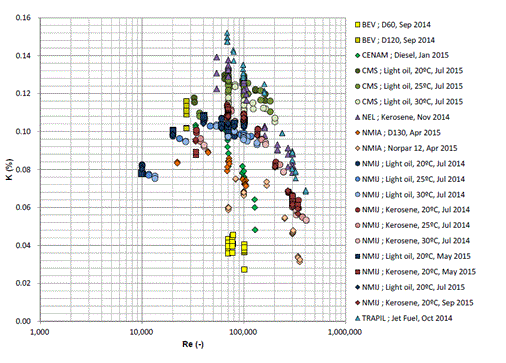

Relative K factors (xi) obtained by the all participants. Numerical results are listed in Appendix A of the CCM.FF-K2.2015 Final Report.
CCM.FF-K2.2015 Hydrocarbon liquid flow
Measurand: relative K factor at a specific Reynolds number
Transfer instrument: screw type positive displacement flow meter
xi : measurement result reported by laboratory i
ULab i : expanded uncertainty of xi
Relative K factors (xi) obtained by the all participants. Numerical results are listed in Appendix A of the CCM.FF-K2.2015 Final Report.
CCM.FF-K2.2015 Hydrocarbon liquid flow
Measurand: relative K factor at a specific Reynolds number
Transfer instrument: screw type positive displacement flow meter
xi : measurement result reported by laboratory i
ULab i : expanded uncertainty of xi
Relative K factors (xi) obtained by the all participants. Numerical results are listed in Appendix A of the CCM.FF-K2.2015 Final Report.
