Comparison
Comparison close
Results

EURAMET.L-K3.2009.1 Angle blocks

MEASURAND : Deviation from nominal angles 10", 5', 30', 5° and 30°

Degrees of equivalence: Di and expanded uncertainty Ui (k = 2) are expressed in milliseconds

Comparison
Comparison close
Results

EURAMET.L-K3.2009.1 Angle blocks

MEASURAND : Deviation from nominal angles 10", 5', 30', 5° and 30°

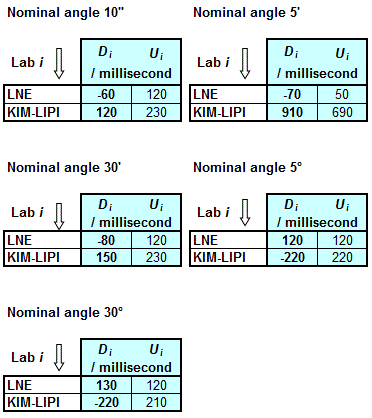

The tables below give the degrees of equivalence for each participant.

Degrees of equivalence: Di and expanded uncertainty Ui ( k = 2) are expressed in milliseconds





Results are presented under A4 printable format in Summary Results (.PDF file).

Comparison
Comparison close
RMO comparison
Linked comparison
EURAMET.L-K3.2009.1
Metrology area, Sub-field Length, Dimensional Metrology
Description Angle blocks measurements
Time of measurements 2014
Status Approved for equivalence
Final Reports of the comparisons
References

EURAMET.L-K3.2009.1 Registration and Progress Form

EURAMET.L-K3.2009.1 Technical Protocol

Measurand Deviation from nominal angle
Transfer device Five angle blocks of 10", 5', 30', 5° and 30°
Comparison type Key Comparison
Consultative Committee CCL (Consultative Committee for Length )
Conducted by EURAMET (European Association of National Metrology Institutes)
RMO Internal Identifier EURAMET Project No 1321
Comments

The angle is defined by the angle between the measuring faces with the plane perpendicular to the line being common to both functional planes

Results published on 21 October 2015

Angle standards

Pilot institute LNE
Laboratoire national de métrologie et d'essais
France
Contact person José SALGADO
jose.salgado@lne.fr
+33140433957
First Name Last Name
wwww@ww.www +356719836 Institute 1 Institute 1 Khmelnitskiy
Pilot laboratory
LNE

Laboratoire national de métrologie et d'essais, France, EURAMET

Puslit KIM-LIPI

Research Center for Calibration, Instrumentation and Metrology – Indonesian Institute of Sciences, Indonesia, APMP

Comparison
Comparison close
Results

EURAMET.L-K3.2009.1 Angle blocks

MEASURAND : Deviation from nominal angles 10", 5', 30', 5° and 30°

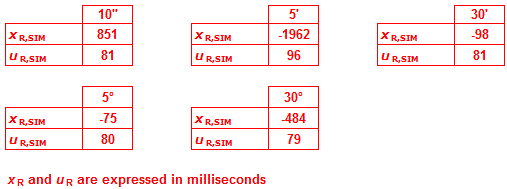

A key comparison reference value of EURAMET.L-K3.2009.1, xR, has beed determined for each block and position. The key comparison reference value is here calculated as the weighted mean of the two participants' results. Its standard uncertainty, uR, is calculated as the standard deviation of the weighted mean.

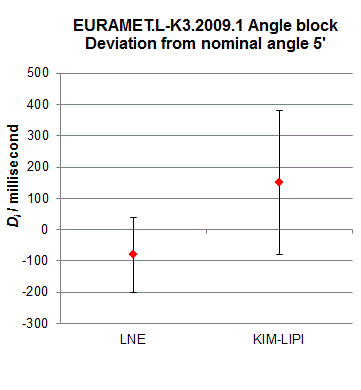

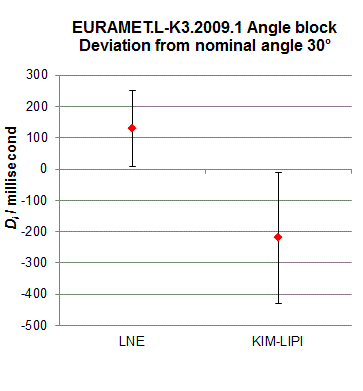

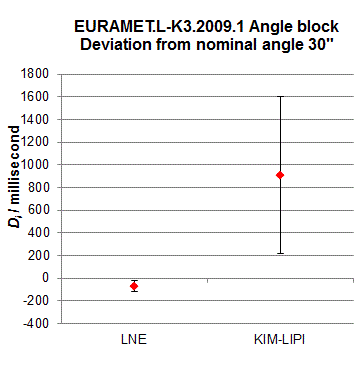

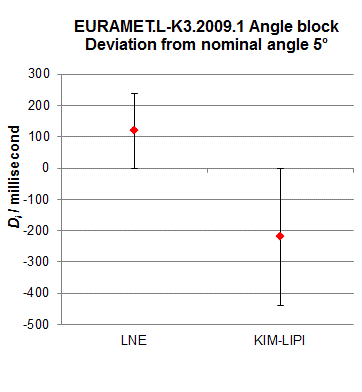

For each angle block, the degree of equivalence of laboratory i with respect to the key comparison reference value is given by a pair of terms, both expressed in milliseconds:
Di = (xi - xR) and its expanded uncertainty Ui = 2(ui2 - uR2)1/2.
Comparison
Comparison close
Results

EURAMET.L-K3.2009.1 Angle blocks

MEASURAND : Deviation from nominal angles 10", 5', 30', 5° and 30°

The individual polygon measurement results are available in EURAMET.L-K3.2009.1 Final Report, Table 4 (p. 5).
